PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
1 / 5
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine
PVC PE Plastic Pulverizer/Plastic Milling Machine

PVC PE Plastic Pulverizer/Plastic Milling Machine

Customization: Available
Type: Hard Plastic Crusher
Raw Material: PVC
Send Inquiry

Product Description

Basic Info.
Model NO.
QS 300.500, 1000
Structure
Tangential Feed
Knife Classification
Claw Knife Crusher
Knife Roll
Solid Knife Roller
Automation
Automatic
Certification
CE, ISO9001:2008
Capacity
100-1000kg/H
Voltage
380V 50Hz
Materials
PE and PVC
HS Code
8479820090
Product Description

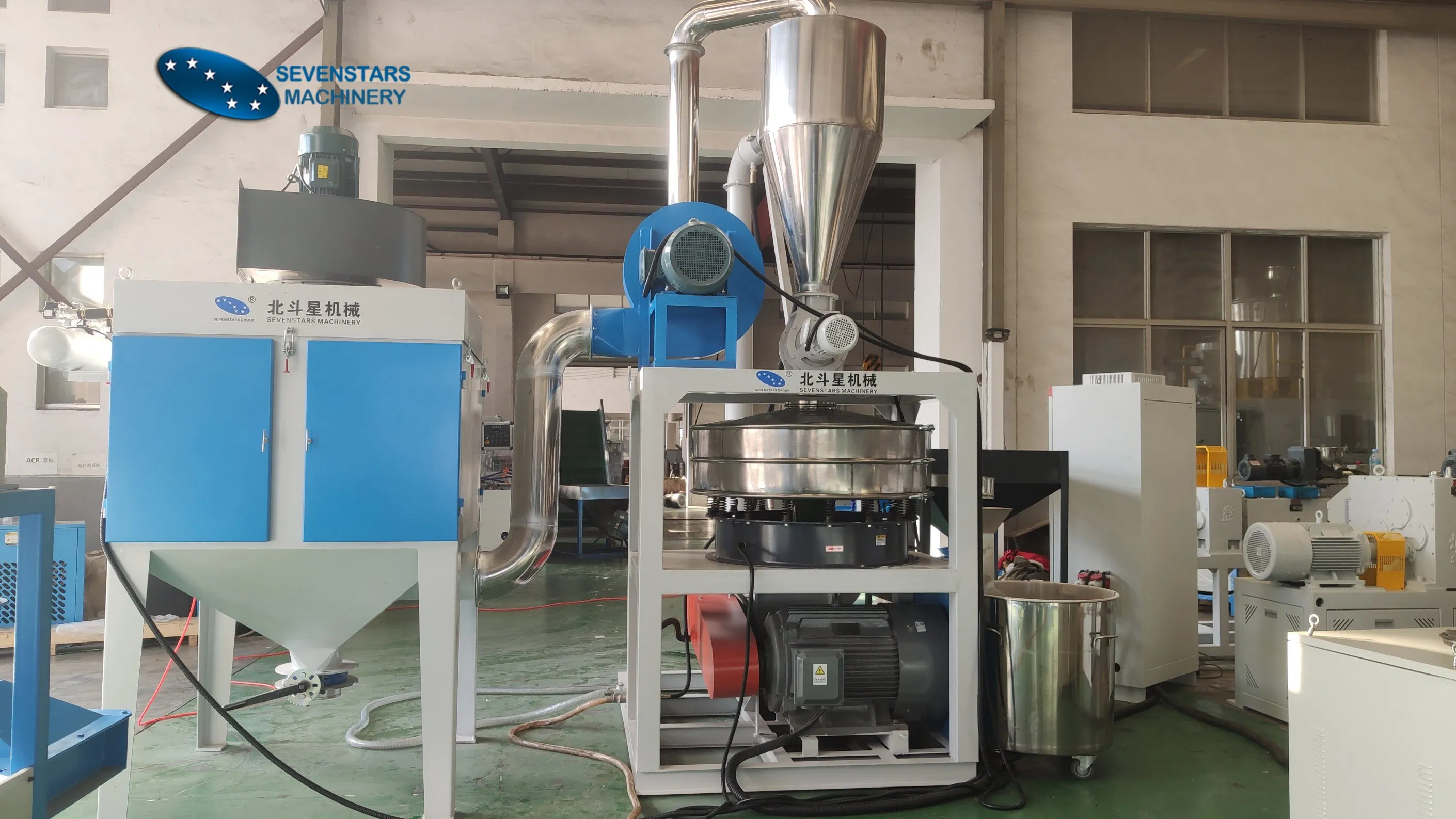

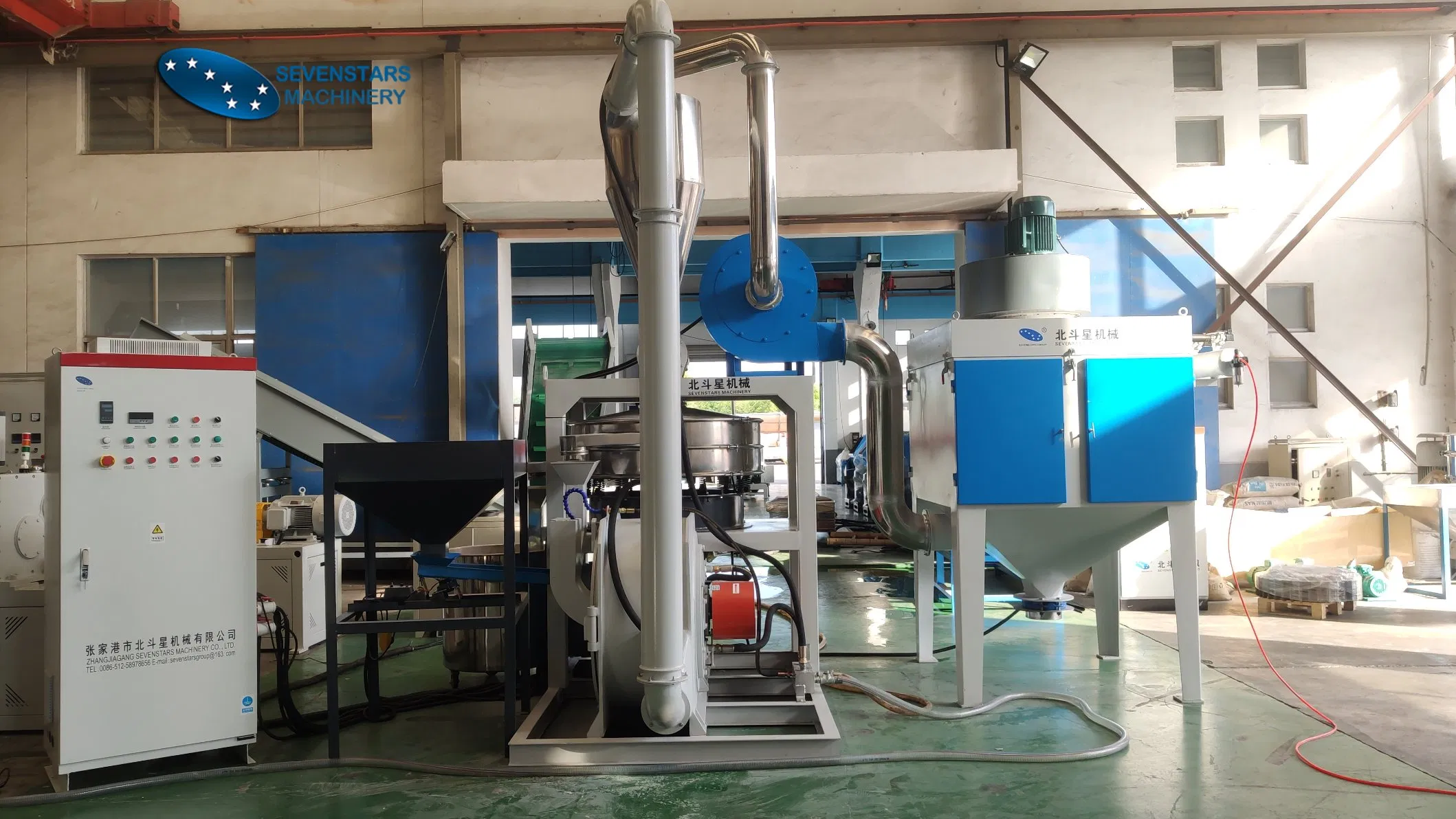

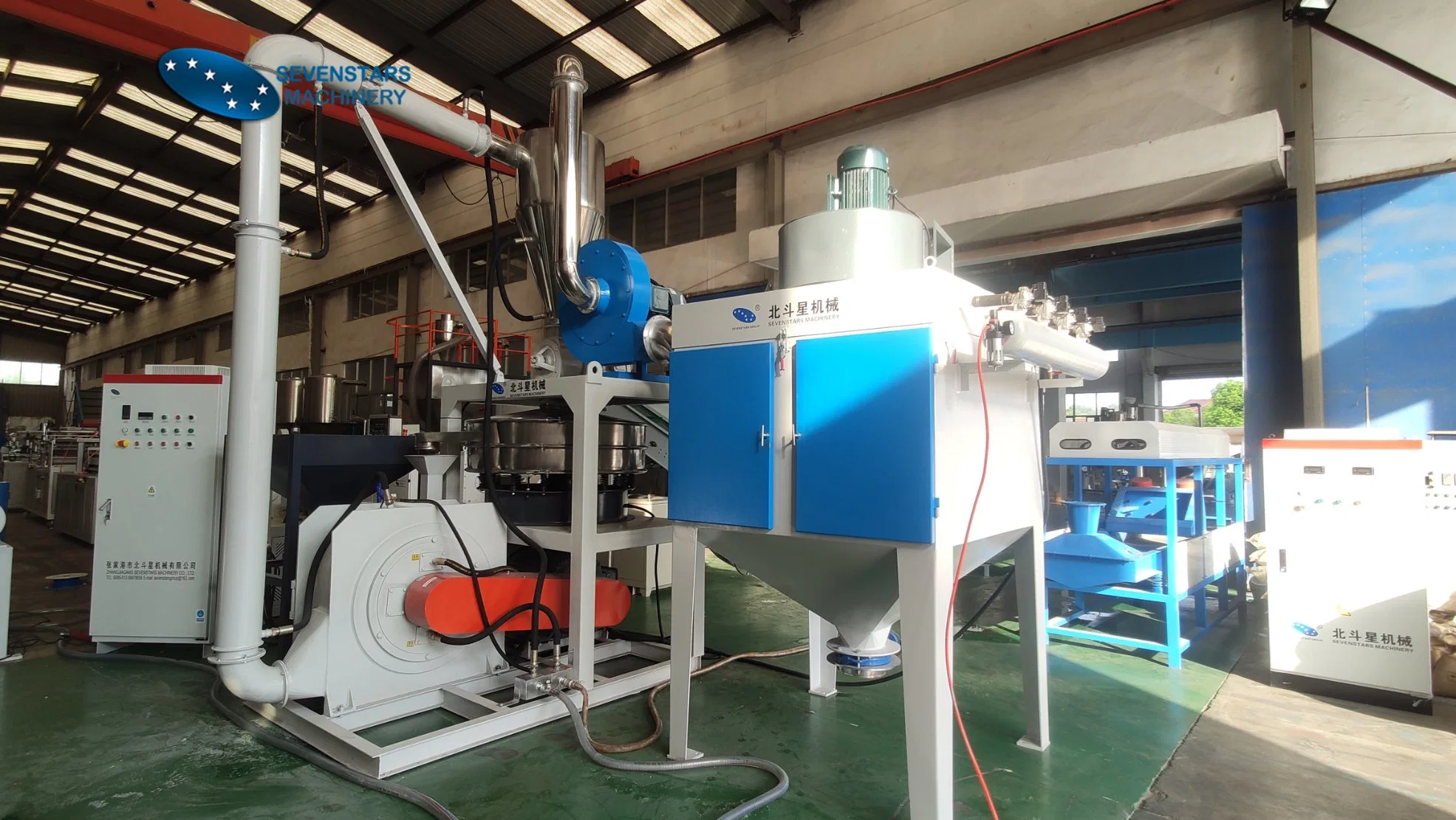

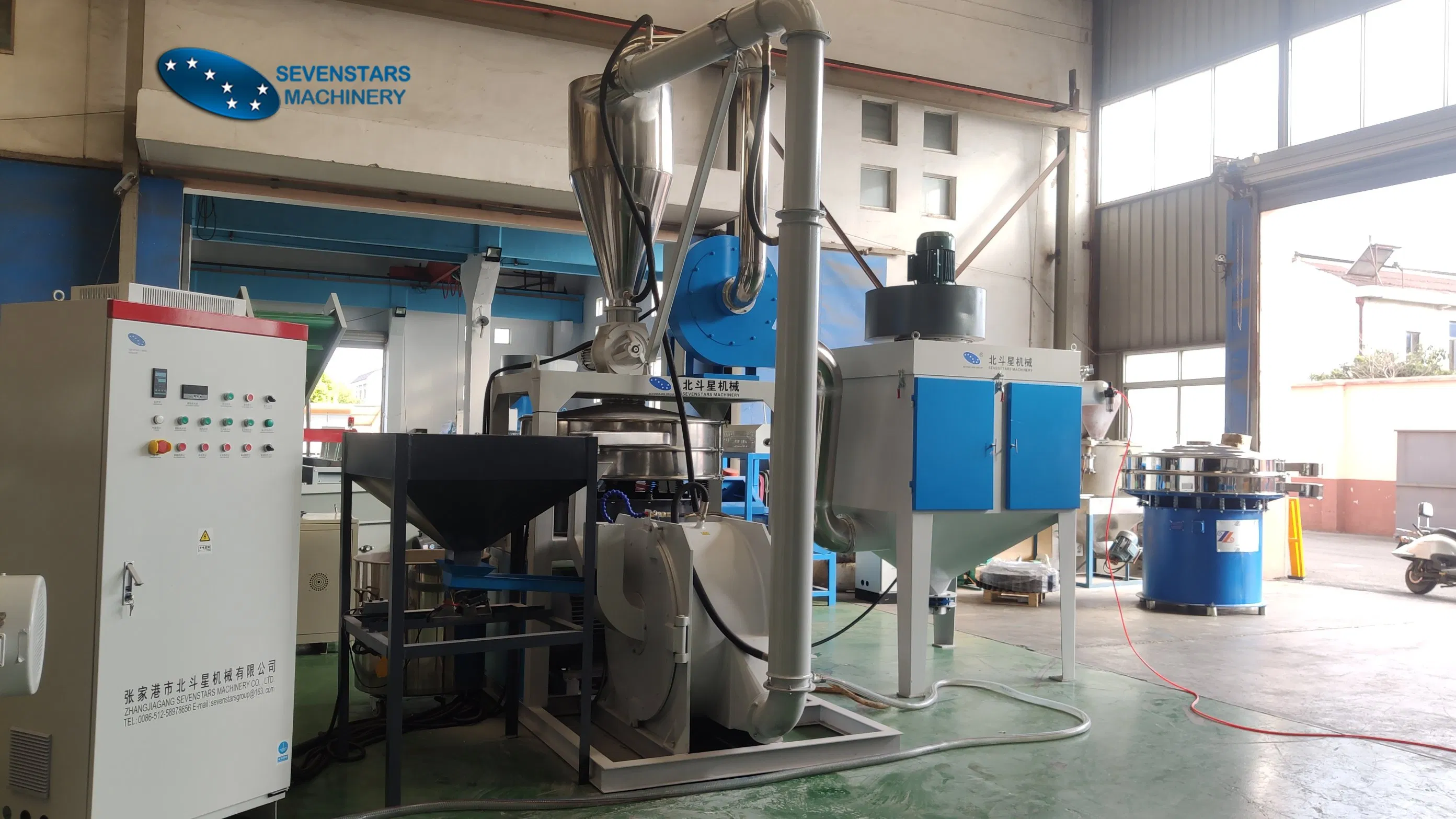

PVC plastic Pulverizer / Plastic Milling Machine

★ Key Features

  • Capability to grind all kinds of Hard & Soft materials into 20-80 mesh powders at normal temperature.
  • Wide application range: PVC, PE, PP, ABS, PS, PA, and PC materials.
  • Higher output efficiency, significantly better than normal millers, equipped with a dedicated Dust collector.
  • Energy-saving design optimized for modern plastic industries.
  • Durable sword adopted from high-quality stainless steel for continuous operation.
  • Easy knife adjustment, maintenance, and control system.
  • Matched with high-performance oil pumps for long-term operational stability.

★ Specifications

Model SMF-400 SMF-500 MF-500 MF-600
Disc Diameter (mm) 400mm 500mm 500mm 600mm
Speed (rpm) 3700 rpm 3800 rpm 3600 rpm 3108 rpm
Main Motor (KW) 30KW 45KW 45KW 55KW
Capacity 50-150kg/h 200-300kg/h 200-300kg/h 250-400kg/h

★ Applications

Suitable for recycling all kinds of grinding thermoplastic materials, such as PP, PE, PVC, PET, EVA, and ABS. It is a proven solution for plastic factories to handle waste and reduce production costs effectively.

★ Technical Advantages

  • New high-yield grinding disk with strong resistance and double the lifespan of ordinary disks.
  • Simplified installation and maintenance procedures.
  • Fully automated operation for labor cost reduction.
  • Easy adjustment of the grinding gap.
  • Configured with a water and wind double cooling system for heat management.
PVC PE Plastic Pulverizer
Plastic Milling Machine
Frequently Asked Questions
What materials can this pulverizer process?
It is designed for both hard and soft thermoplastics, including PVC, PE, PP, ABS, PS, PA, and PC.
What is the final powder size output?
The machine can produce powders ranging from 20 to 80 mesh depending on the settings and material.
How does the machine manage heat during operation?
It features a dual cooling system utilizing both water and wind to maintain optimal grinding temperatures.
Is the grinding disk durable?
Yes, the new disk design is highly wear-resistant, offering a service life that is double that of standard disks.
Is this machine easy to operate?
The unit is fully automated, and the grinding gap can be adjusted easily, making it user-friendly and low maintenance.
What is the production capacity of the SMF series?
Depending on the model, the capacity ranges from 50kg/h (SMF-400) up to 400kg/h (MF-600).
