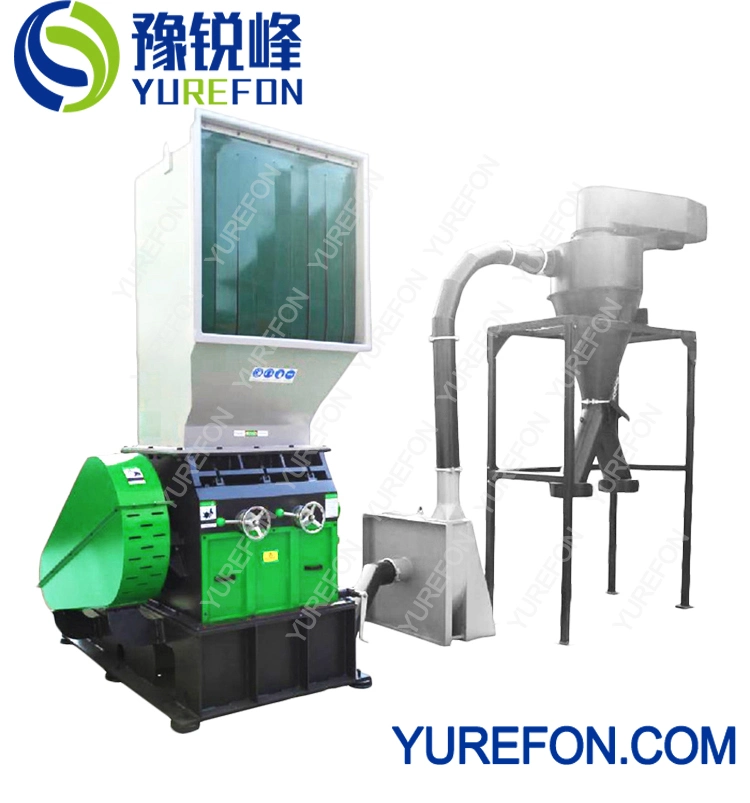

Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
1 / 5
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder
Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder

Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder

Customization: Available
Type: Hard Plastic Crusher
Raw Material: Pet PVC PP PE
Send Inquiry

Product Description

Basic Specification
Model NO.
Crusher
Structure
Tangential Feed
Knife Classification
Claw Knife Crusher
Knife Roll
Solid Knife Roller
Automation
Automatic
Certification
CE
Capacity
100~800 Kg/H
Warranty
12 Months
Blades Material
SKD-11
Application
Plastic Recycling
Product Name
Waste Products Crushing Machine
Specification
RFC400
HS Code
84778000
Product Introduction

Heavy Duty Strong Plastic PVC PE LLDPE Shrink Stretch Cling Film Grinder

Overview of the Crusher System:

The machine is fitted with a special hopper and can be loaded manually or by conveyor belt. This hopper can be adapted to suit individual requirements and ensures a continuous and efficient supply of the material being processed, without any need for manual assistance.

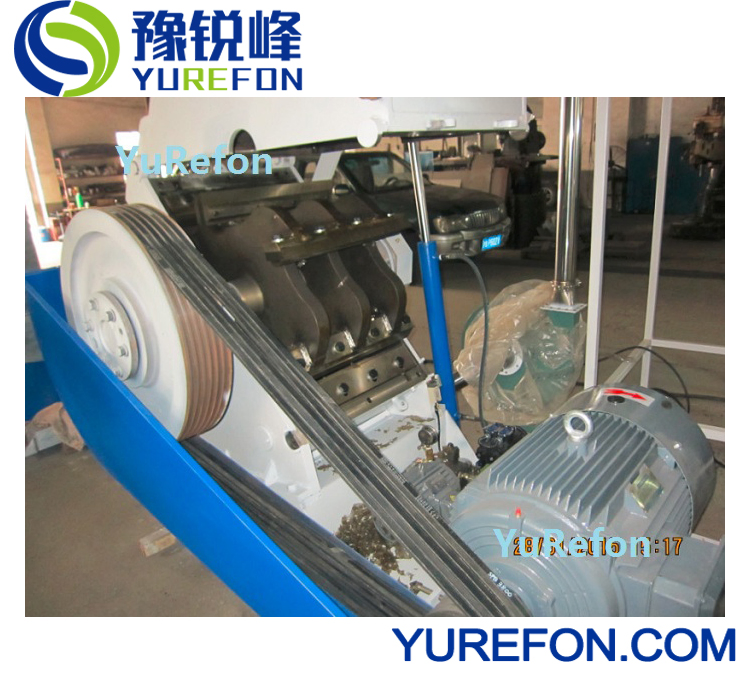

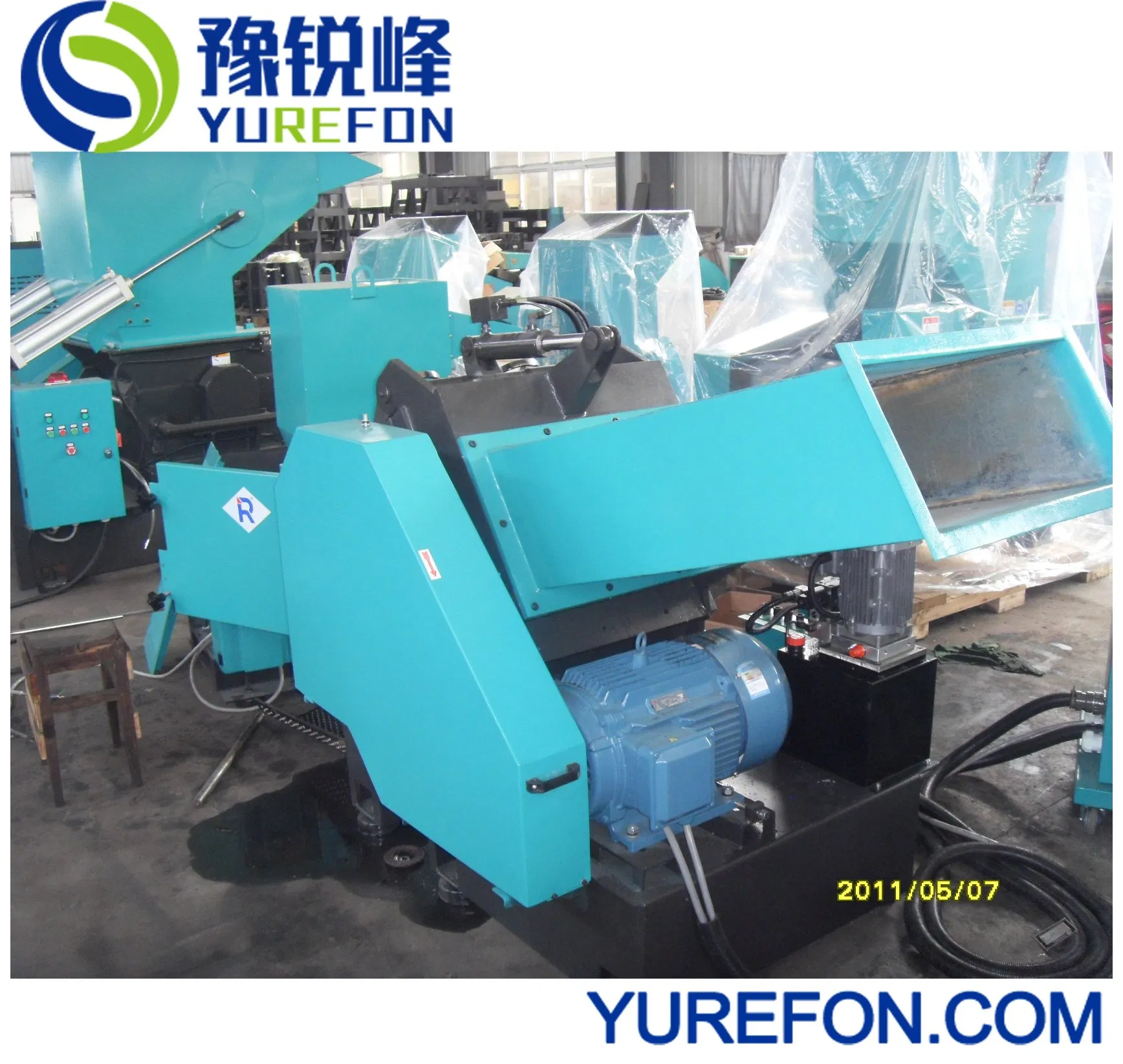

The PC Series is of extremely robust construction, and the rotor is driven by a belt drive configuration. On top of the Crusher is a feeding hopper which can be opened hydraulically. The hopper opening is also fitted with curtains to protect the materials from splashing out during operation.

The machine is equipped with a quick-change screen, which can be opened extremely quickly via a hydraulic system, this helps to gain easy access to the rotor and cutting profile and grinding room, in order to save maintenance and operating cost.

The screen perforation is 60mm. This determines the final size of the finished products. The PC Series is a fast running machine to reduce the materials to a defined granulates. The system is completely electrically connected with all CE confirmed safety switches.

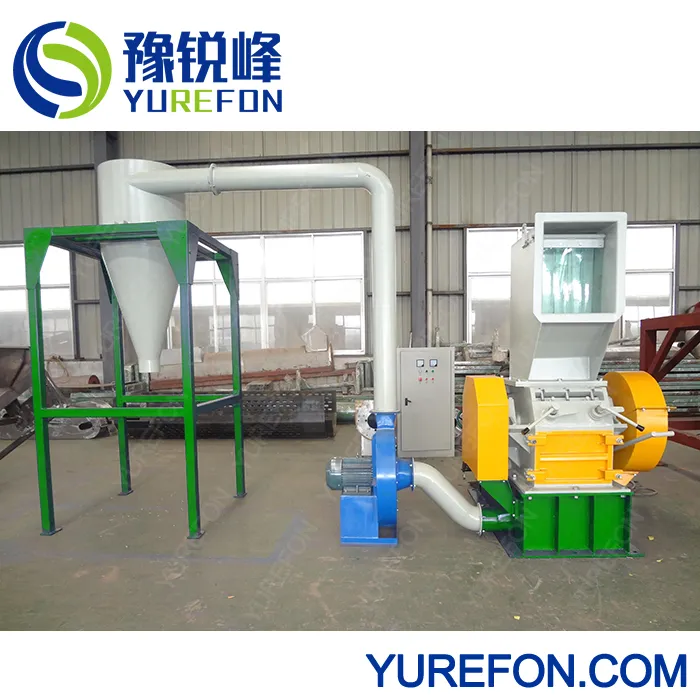

Heavy Duty Strong Plastic Crusher

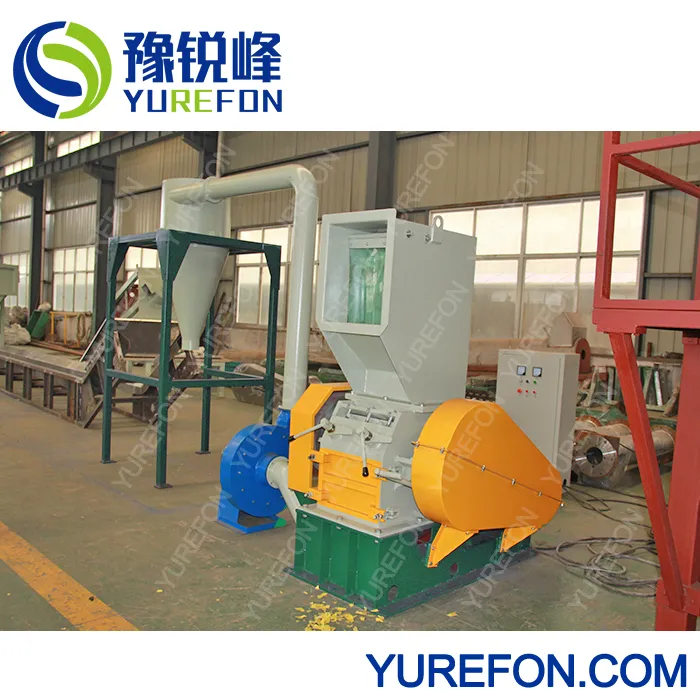

Plastic PVC PE Film Grinder
Key Characteristics
  • Easy to operate, low electricity consumption, durable and low noise.
  • Uses high quality steel material especially for making cutter of the crushers.
  • Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable.
  • Easy to clean and maintain: The hopper, crusher room, blades and screen can be removed and mounted easily.
  • Less occupied area.
  • Suitable for recycling PVC PE HDPE LDPE PP and other plastics.
Crushing Applications
  • PP HDPE Barrels, Containers, PET bottles.
  • Plastic PVC PE PP Pipe, Profile, Sheet, Board.
  • PP Woven bags, PE PP Film, Fabrics.
  • Other Waste plastics, packing plastics etc.
Technical Parameters
Model RFC400 RFCC500 RFC600 RFC800 RFC1000
Diameter of rotating blade (mm) 250 250 380 400 650
Quantity of rotating blade 12 12 18 24 24
Speed of rotating blade (mm) 560 560 560 560 560
Quantity of fixed blade 2 2 4 4 4
Capacity (kg/h) 80-100 120-150 250-350 400-500 700-800
Power (kw) 7.5 11 18.5 30 55
Size of feeding inlet (mm) 260×400 320×500 400×600 420×800 600×1000
Weight (kg) 650 650 1200 1500 2000
Detailed Gallery

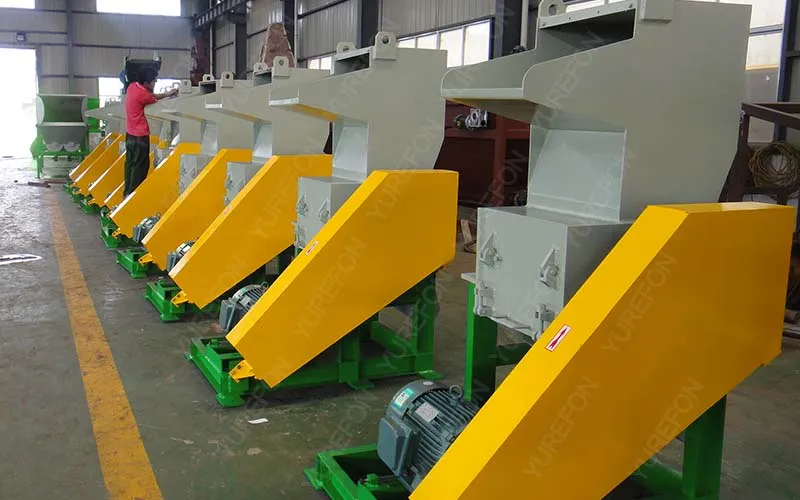

Crusher Details

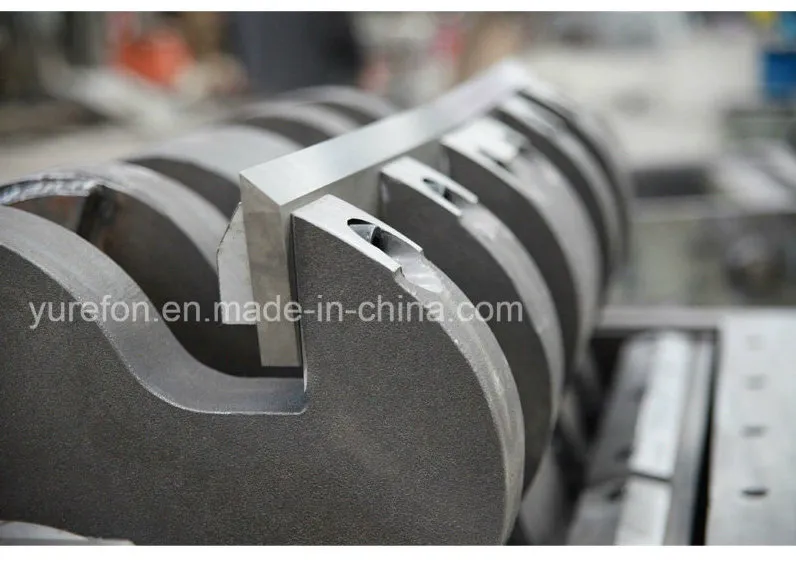

Crusher Rotor

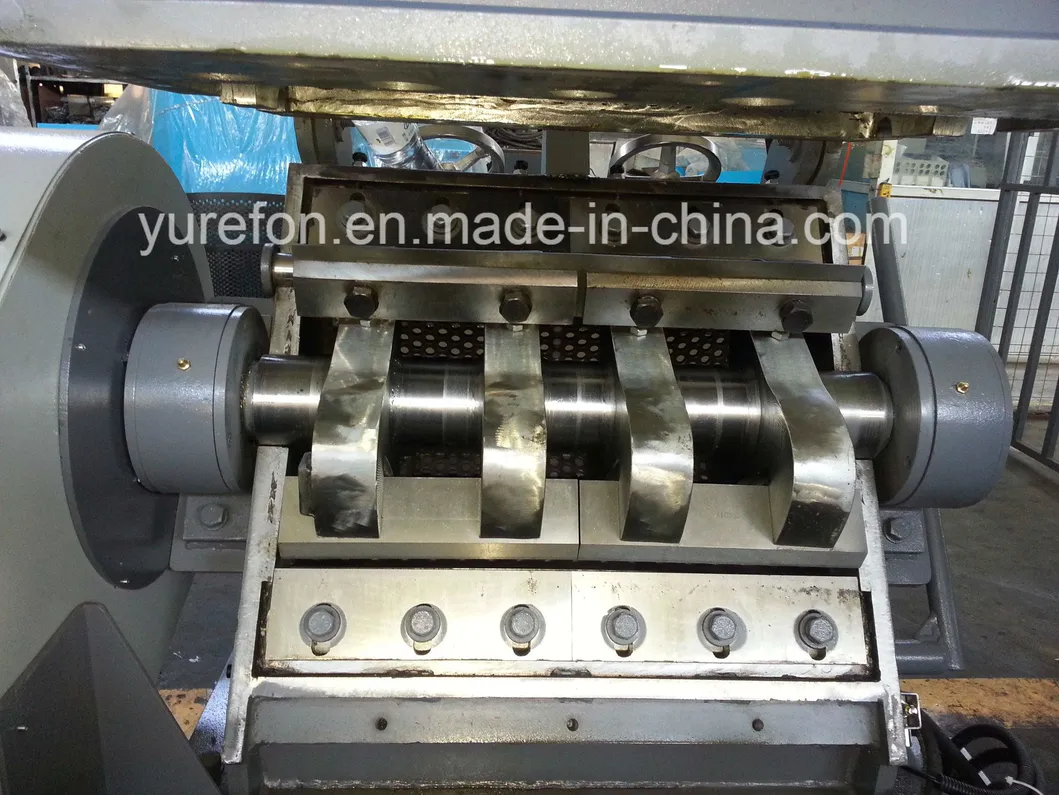

Machine Structure

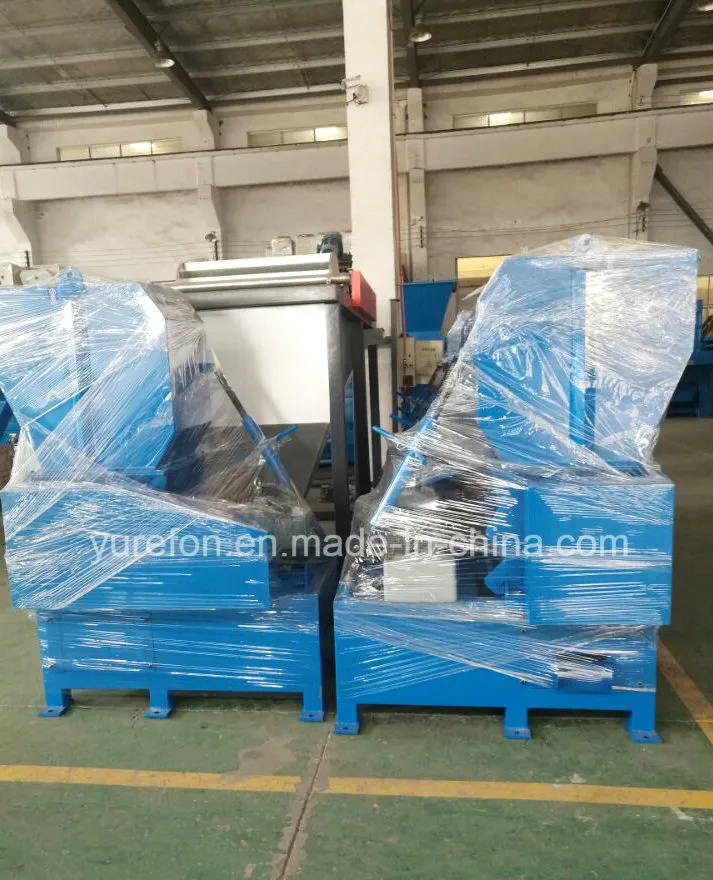

Full View
Vertical Profile
Frequently Asked Questions
What materials can this crusher process?
This heavy-duty machine is designed for various plastics including PVC, PE, HDPE, LDPE, PP, PET bottles, woven bags, and shrink/stretch films.
What is the blade material used?
The blades are made from high-quality SKD-11 steel, known for its durability and resistance to wear and damage.
Is the screen size adjustable?
The machine comes with a quick-change screen system. While the standard perforation is 60mm, screens can be replaced to achieve specific granulate sizes.
How is the machine maintained?
The feeding hopper and screen can be opened hydraulically, allowing easy access to the rotor and grinding room for quick cleaning and blade maintenance.
What safety features are included?
The system is fully CE-certified and equipped with all necessary safety switches. The feeding hopper also features curtains to prevent material splash-back during operation.
Can the machine handle automatic feeding?
Yes, the hopper is designed to be loaded either manually or via a conveyor belt for a continuous, efficient recycling process.
