Durable Waste Plastic Grinding Machine for Small Hollow Products

1 / 5

Durable Waste Plastic Grinding Machine for Small Hollow Products

Customization:	Available
After-sales Service:	Local Service Available
Warranty:	2 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Type

Plastic Crusher

Raw Material

Post-Consumer/Post Industry Plastic Waste

Structure

Tangential Feed

Automation

Automatic / Computerized

Capacity

200-6000 Kg/H

Key Selling Points

High Productivity

Certification

CE, ISO9001:2008, SGS, BV

Control System

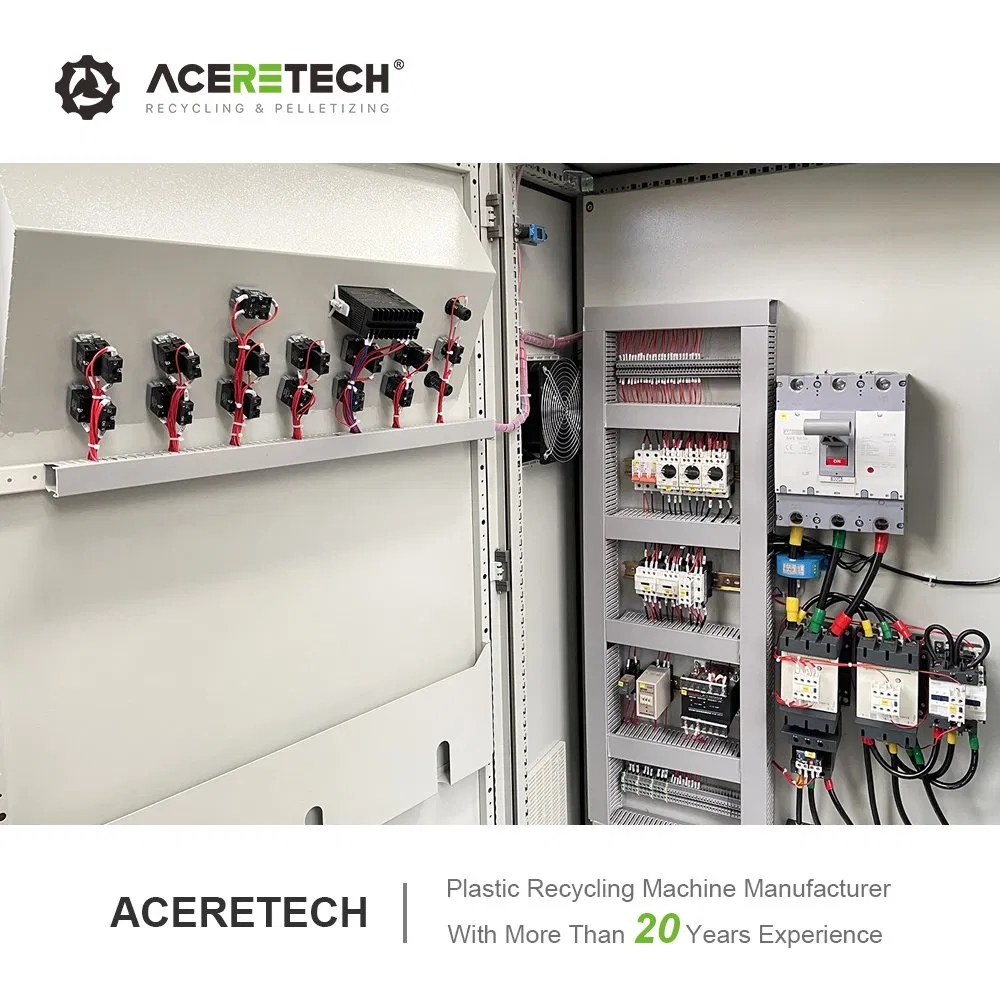

P.L.C Control (Imported Brand)

Knife Classification

Piece Knife Crusher

⚙️ Product Description

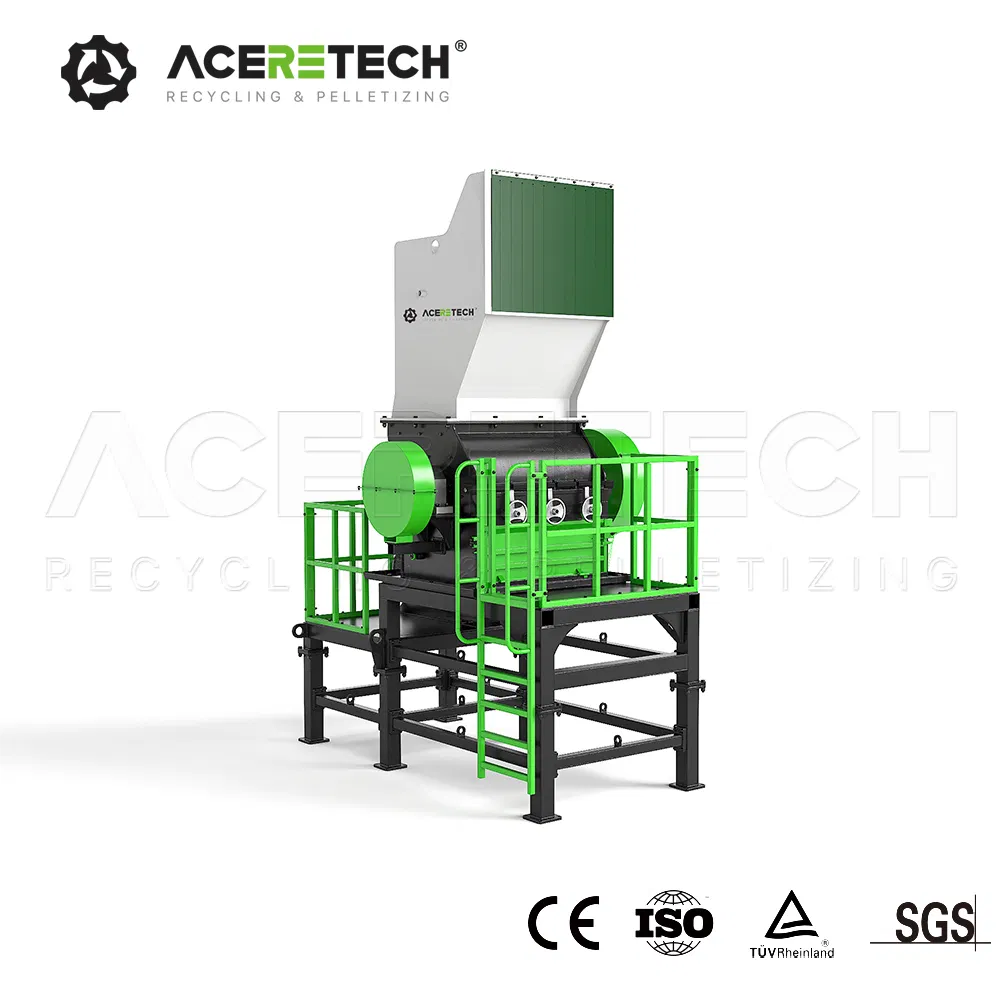

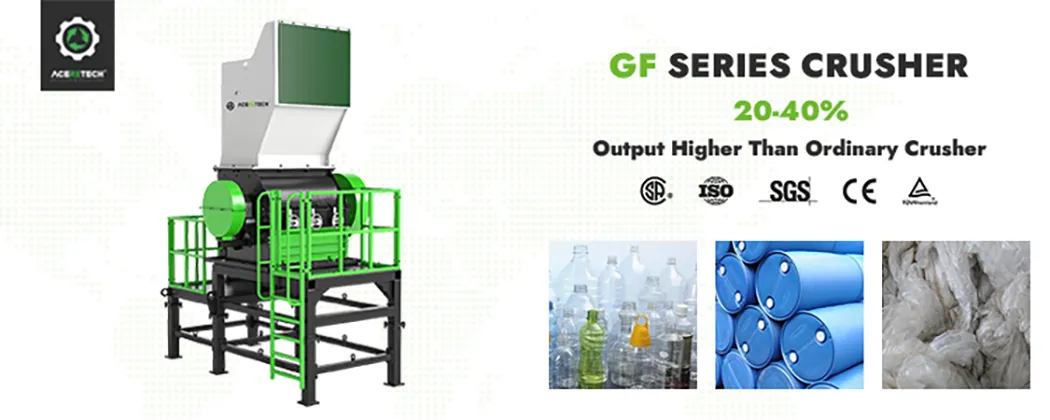

The GF series is a high-efficiency and low energy consumption crusher, specially designed for films, small hollow bottles, and PET bottles. According to the characteristics of different materials, the crusher is equipped with a variety of rotor models. The diameter of the rotor ranges from 500mm to 800mm, with widths from 700mm to 1600mm.

A targeted rotor structure can be designed to achieve the best crushing effect. It adopts a special welding process for the overall steel structure to meet the demand for materials that are not easily broken. Standard V-shaped cutting technology improves recycling efficiency and reduces dust content in recycled materials.

🚀 Application & Advantages

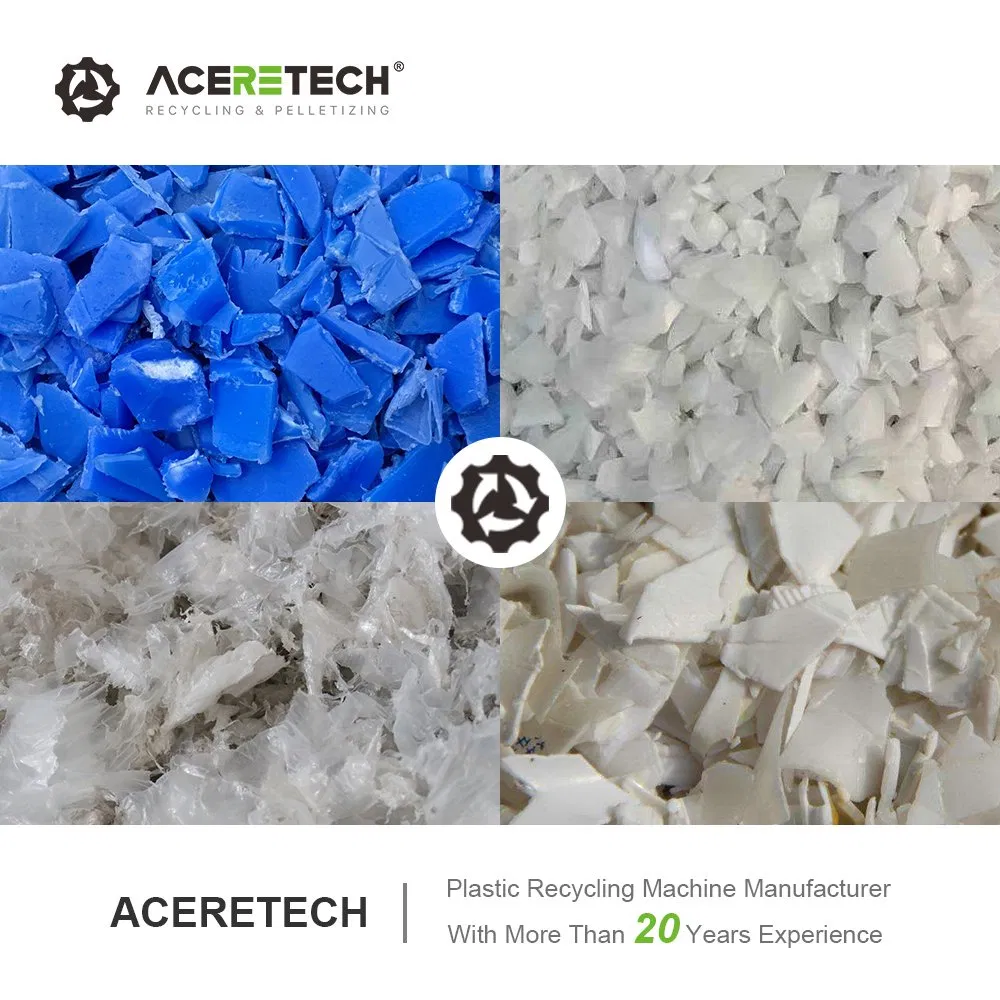

Product Application: GF series crusher features special cutting technology to recycle various film, small hollow material, including injection mold parts, bottles, blow mold parts, and films. The crushed flakes are uniform and ready for subsequent processing.

Our Key Advantages:

Optimal design of rotor and crushing cavity reduces energy consumption while increasing output.
Ideal rotor blades specifically suited for heavy material crushing.
Precise clearance between rotary and fixed knives ensures particle uniformity and minimizes noise levels.

📊 Technical Specifications

Technical specification	GF500/700	GF700/1000	GF700/1200	GF800/1600
Machine Weight (KG)	2500	3500	4200	6000
Chamber size (mm)	500x700	700x1000	700x1176	800x1600
Power (kw)	45	75	90	160
Rotary blades quantity	5x2	5x2 / 7x2	5x2 / 7x2	5x4 / 7x4
Rotor diameter (mm)	500	700	700	800
Rotor width (mm)	700	1000	1200	1600

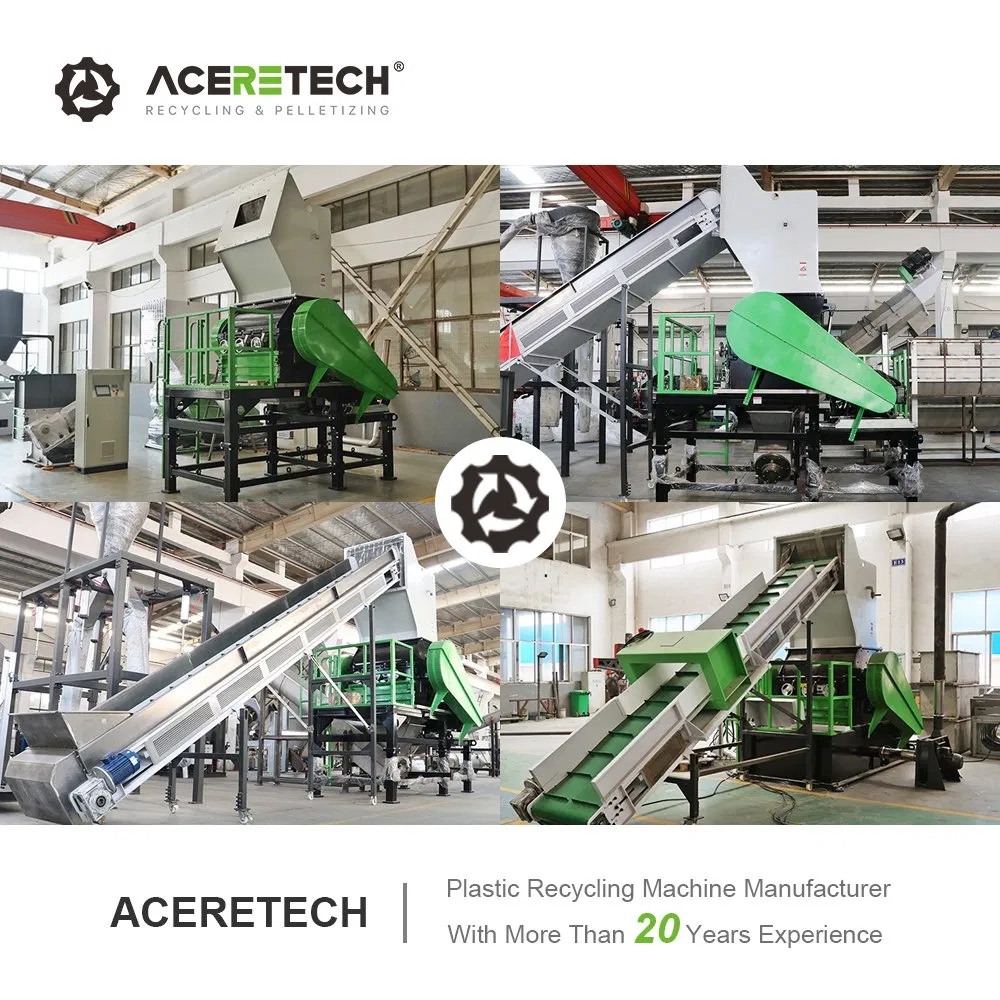

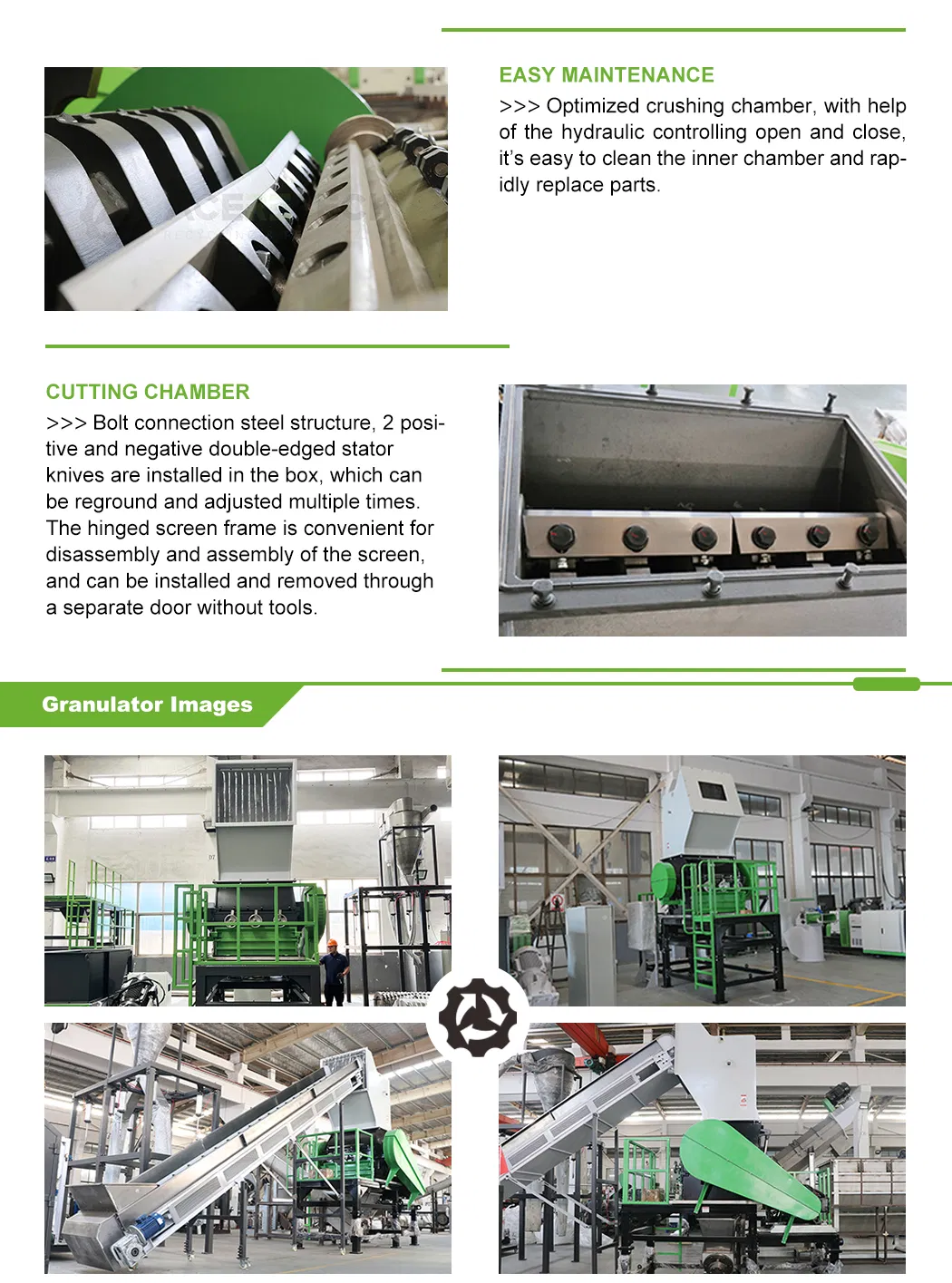

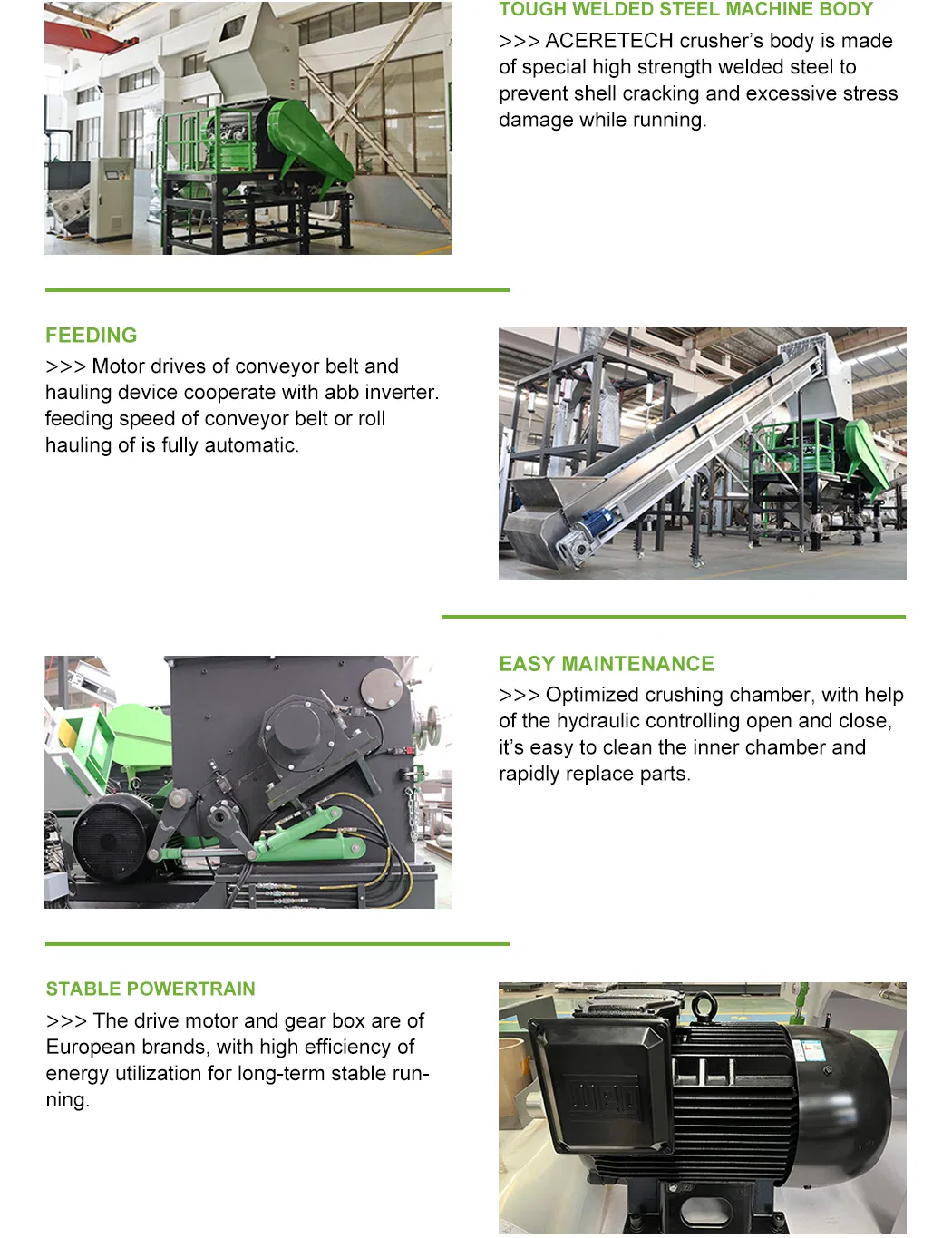

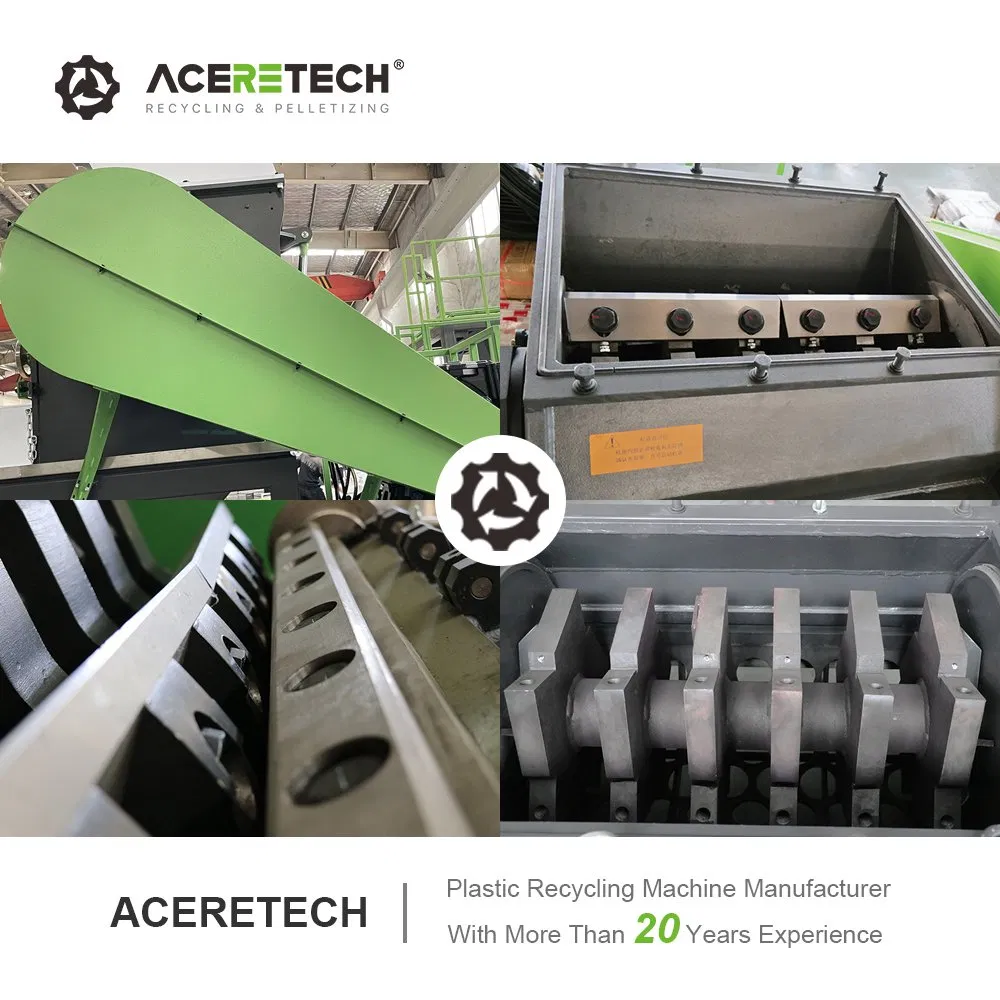

📸 Detailed Photos

💎 Quality Control & After-Sales

Ensuring Excellence in Every Machine

Professional processing equipment ensures the accuracy of every component.
Strict inspection by personnel for each part before assembly.
Assembly overseen by masters with over 15 years of experience.
12-hour full production line testing before shipment to ensure stability.
Complete debugging with video/photo proof sent to customers.
On-site installation and staff training by expert engineers available upon request.

❓ FAQ

What types of plastic waste can the GF series crusher handle?

The GF series is specifically optimized for film recycling, small hollow bottles, PET bottles, injection mold parts, and blow mold materials.

What is the production capacity of these machines?

Depending on the specific model and material, the production capacity ranges from 200 Kg/H up to 6000 Kg/H.

How do you ensure the quality of the machinery?

Every component undergoes strict inspection. Machines are assembled by experienced masters and are run for at least 12 hours continuously before being approved for shipment.

Does the machine produce a lot of dust during crushing?

No. Our machines utilize standard V-shaped cutting technology, which is specifically designed to improve efficiency while significantly reducing dust content in the recycled material.

What after-sales services do you provide?

We offer a complete after-sales package including machine debugging, export-standard packaging, and the option for engineers to visit your factory for installation and operator training.

Are the machines easy to operate?

Yes, the machines are equipped with imported brand PLC control systems, making them highly automated and easy to manage within a professional manufacturing environment.
