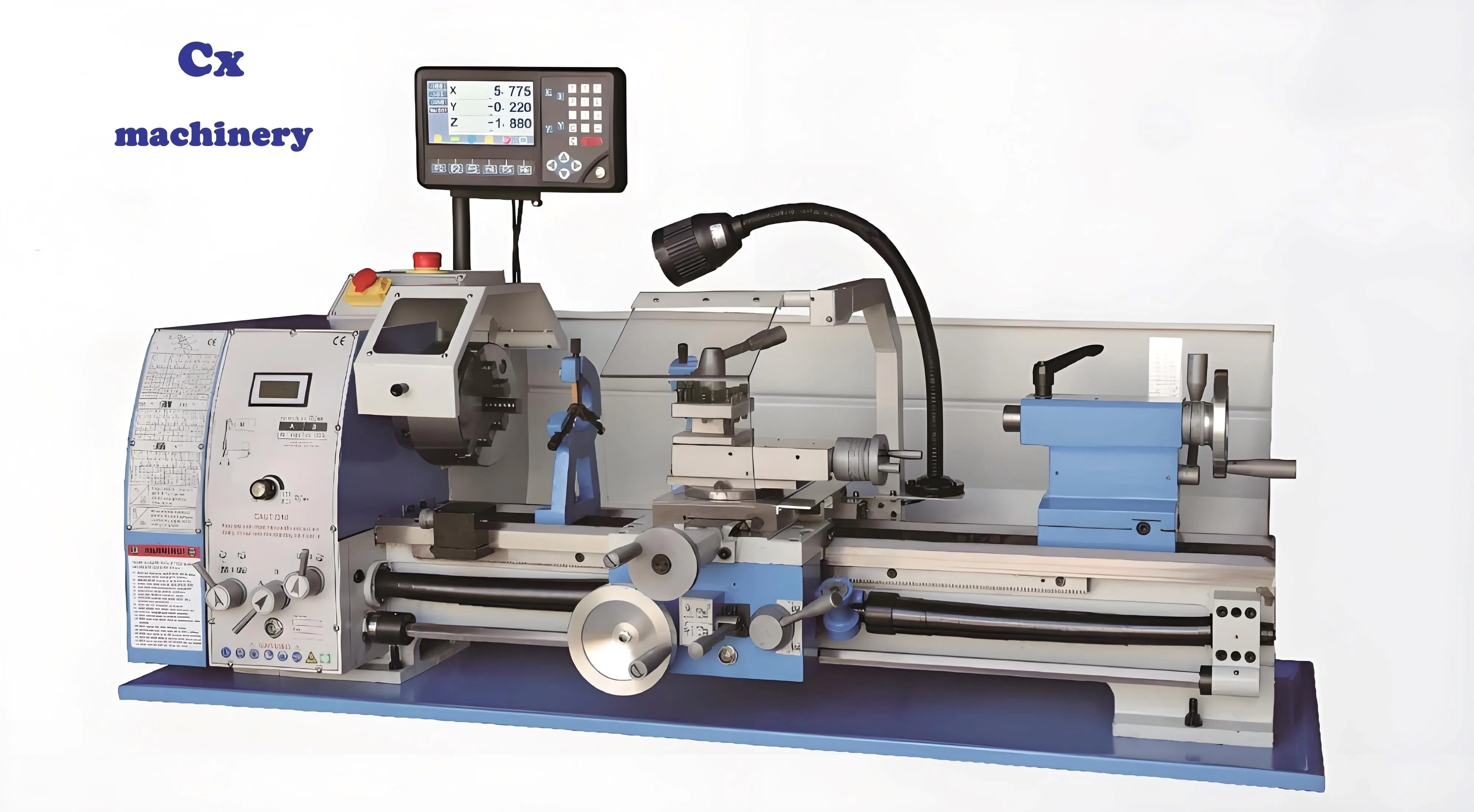

| Model Parameter | FC300V*700 | FC300*700 |
|---|---|---|
| Max.swing over bed | 300mm | 300mm |
| Distance between centers | 700mm | 700mm |
| Spindle bore | 38mm | 38mm |
| Taper of spindle bore | MT5 | MT5 |
| Range of spindle speeds | 80-2000rpm | 150,300,600/500,1000,2000rpm |
| Taper of tailstock quill | MT3 | MT3 |
| Metric threads can be cut | 0.2-3.5mm | 0.2-3.5mm |
| Inch threads can be cut | 8-48T.P.I | 8-48T.P.I |
| Motor power | 1500W | 1100W |
| NW./GW | 250/270Kg | 255/275Kg |
| Package size(L*W*H) | 1450*720*680mm | 1450*720*680mm |
| Standard Accessories | Optional Accessories |
|---|---|
| Speed display | Steady rest |

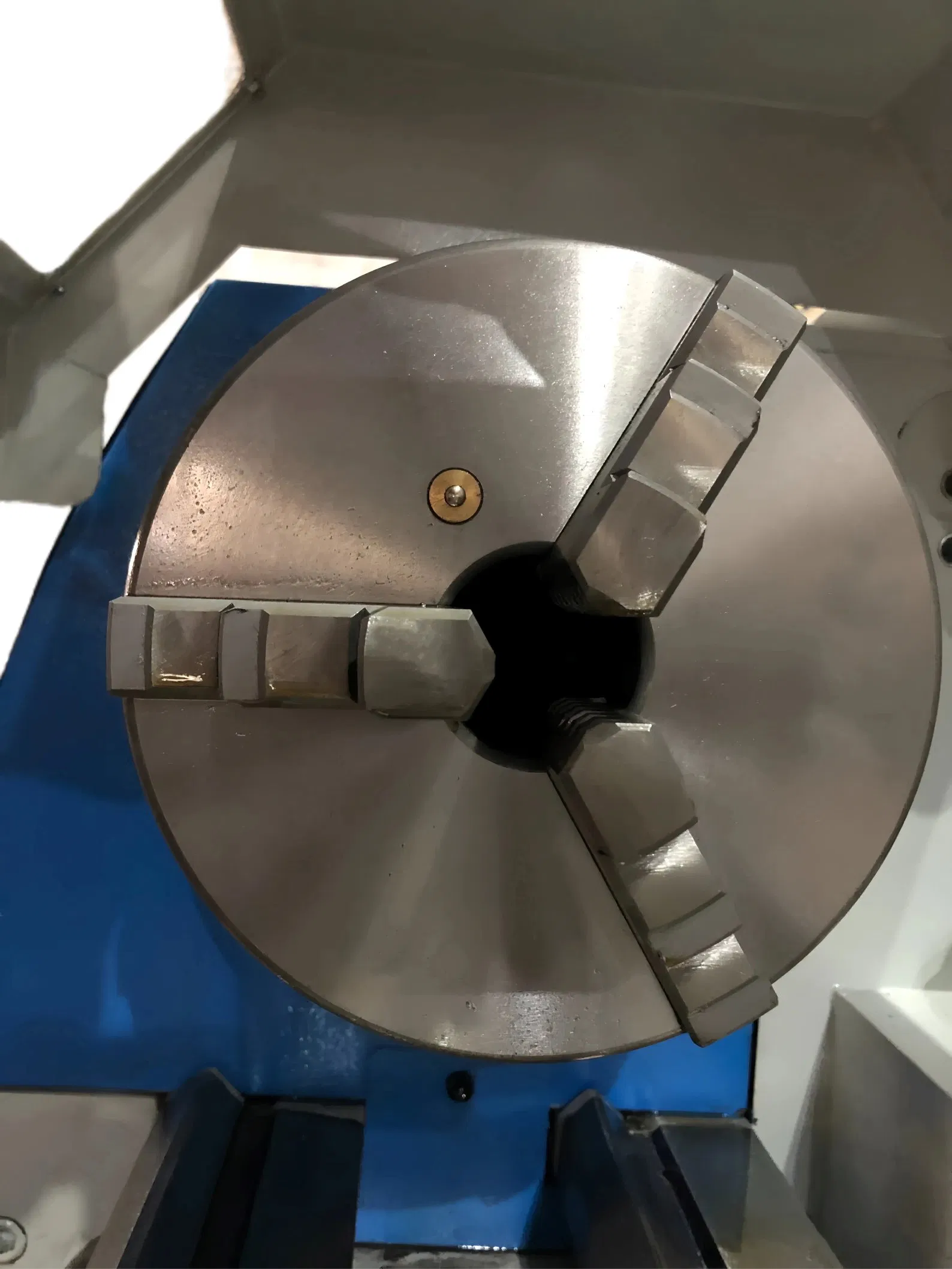

| 3-jaw chuck φ 160 | Follow rest |
| Splash guard | Face plate |
| Chip pan | Stand |
| Lathe chuck protection | 4-jaw chuck φ160 |
| Tool holder protection | Live center MT3 |
| Tool-post wrench | Halogen Lamp |
| Steady center MT3/MT2 | Thread chasing dial |

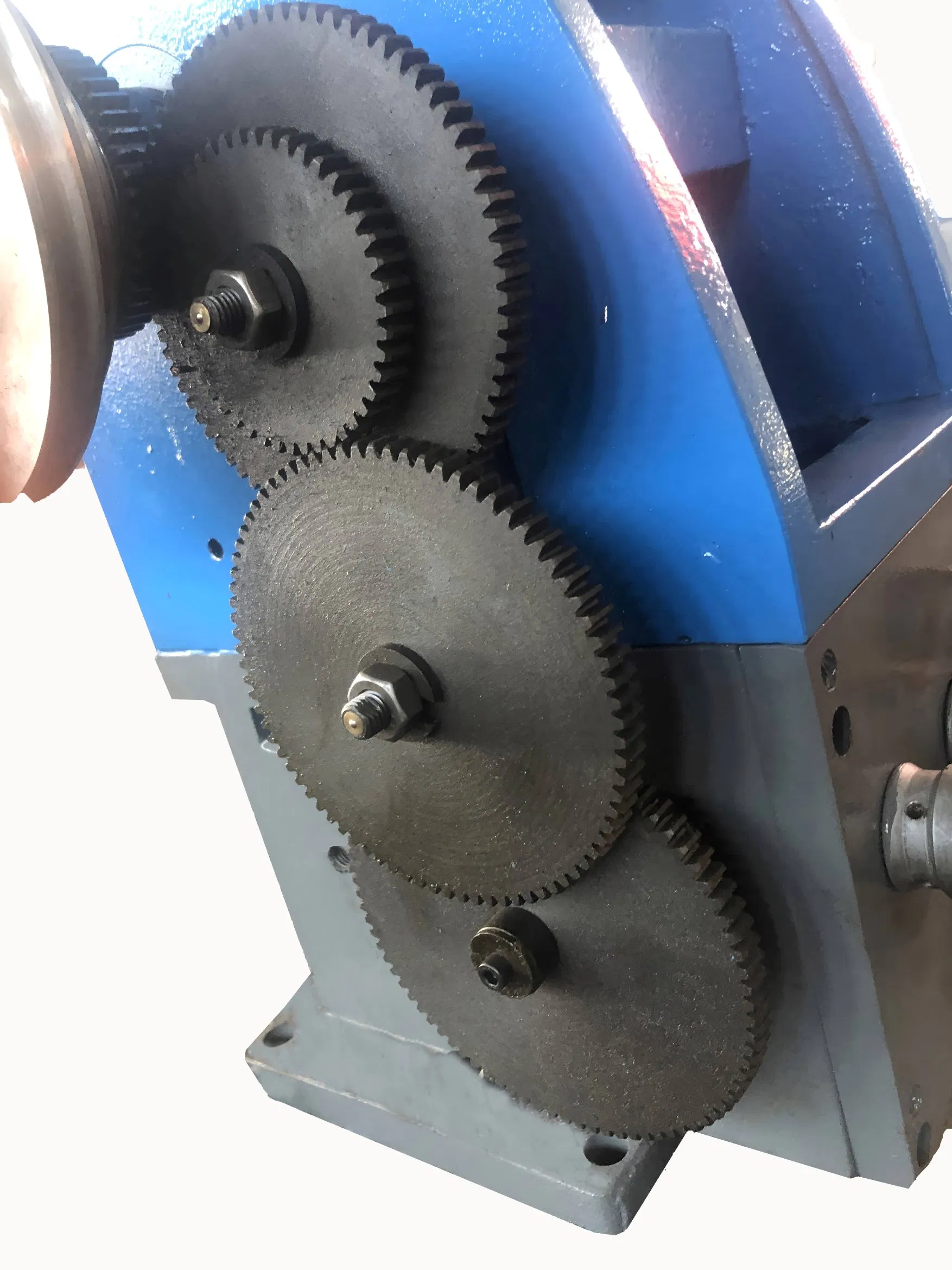

| Change gears & Tool box | - |
We provide customized mechanical solutions tailored to specific needs. With extensive OEM experience and cooperation with global machinery brands, we offer professional technical support. Prototypes can be delivered within 3 to 5 days after drawing confirmation.
Our facility covers 7,500 square meters with over 200 skilled workers and significant fixed assets. Efficient production management ensures every order is processed promptly and delivered on time.
We implement a comprehensive ISO 9001 quality management system. Every machine is fully assembled and tested under real working conditions to ensure stability, accuracy, and reliability according to global standards.
Each client is assigned a dedicated manager. We offer a one-year quality warranty with free replacement of machines or parts during the period, alongside long-term spare parts supply at factory prices.
