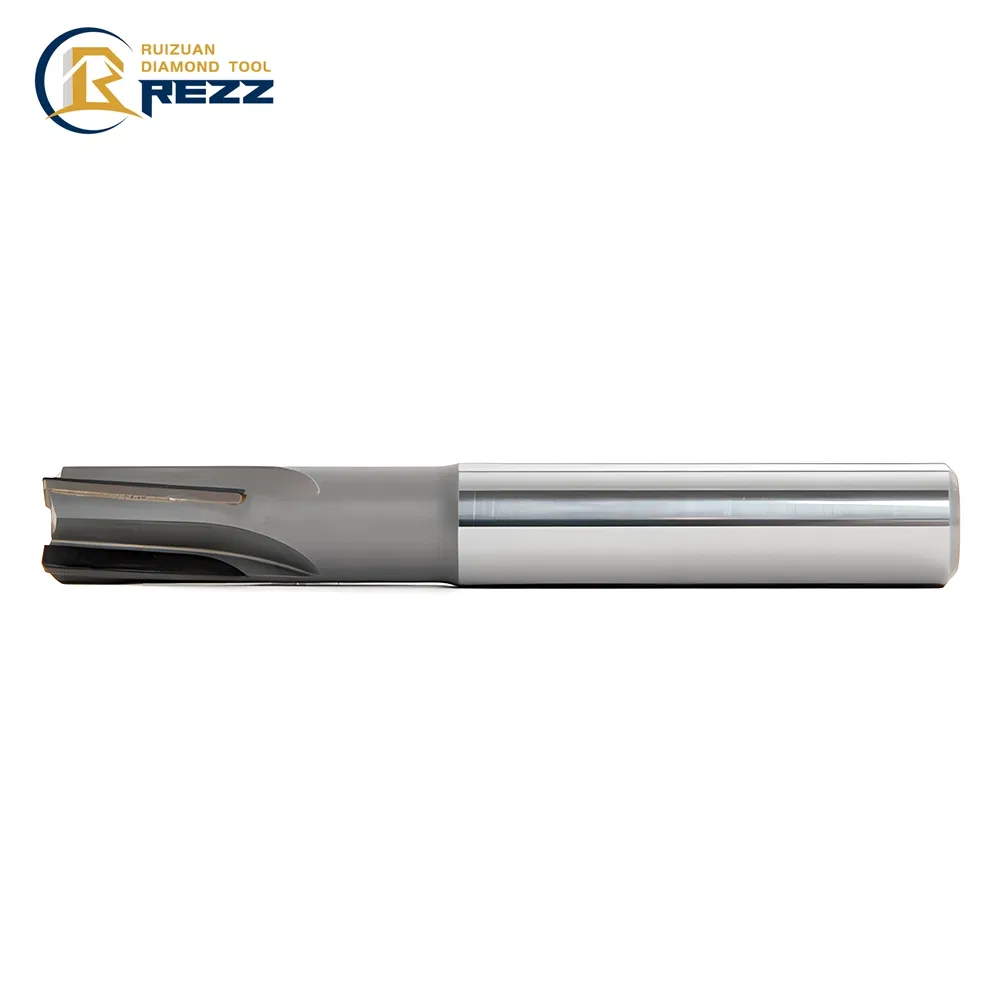

PCD Universal Milling Cutter PCD End Milling Cutter CNC Cutting Tools End Milling Diamond Straight Router Bits

1 / 5

PCD Universal Milling Cutter PCD End Milling Cutter CNC Cutting Tools End Milling Diamond Straight Router Bits

Shank Type:	Straight Shank
Application:	Copper, Aluminum, Plastic, Acrylic, Carbon Fiber
Size:	D1, D2, D3, D4, D5, D6, D8, D10, D12

Send Inquiry

Product Description

Basic Specifications

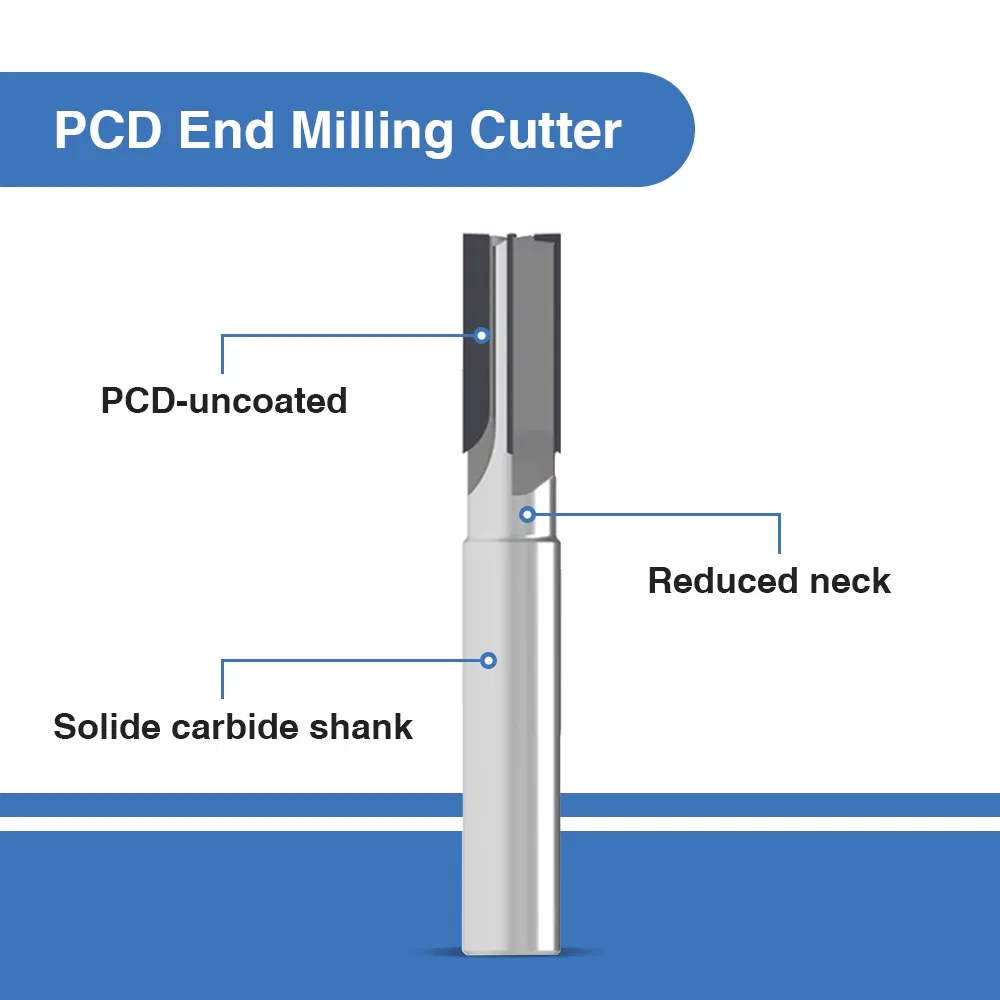

Product Name

PCD End Milling Tools

Material

Diamond

Shank Material

Carbide

Flute

1/2 flutes

Suitable for

Side, Slot, Contour Milling

Structure

Welding Tooth

Tooth Form

Straight Tooth

Specification

8-25mm

Production Capacity

1,000,000 pieces/Year

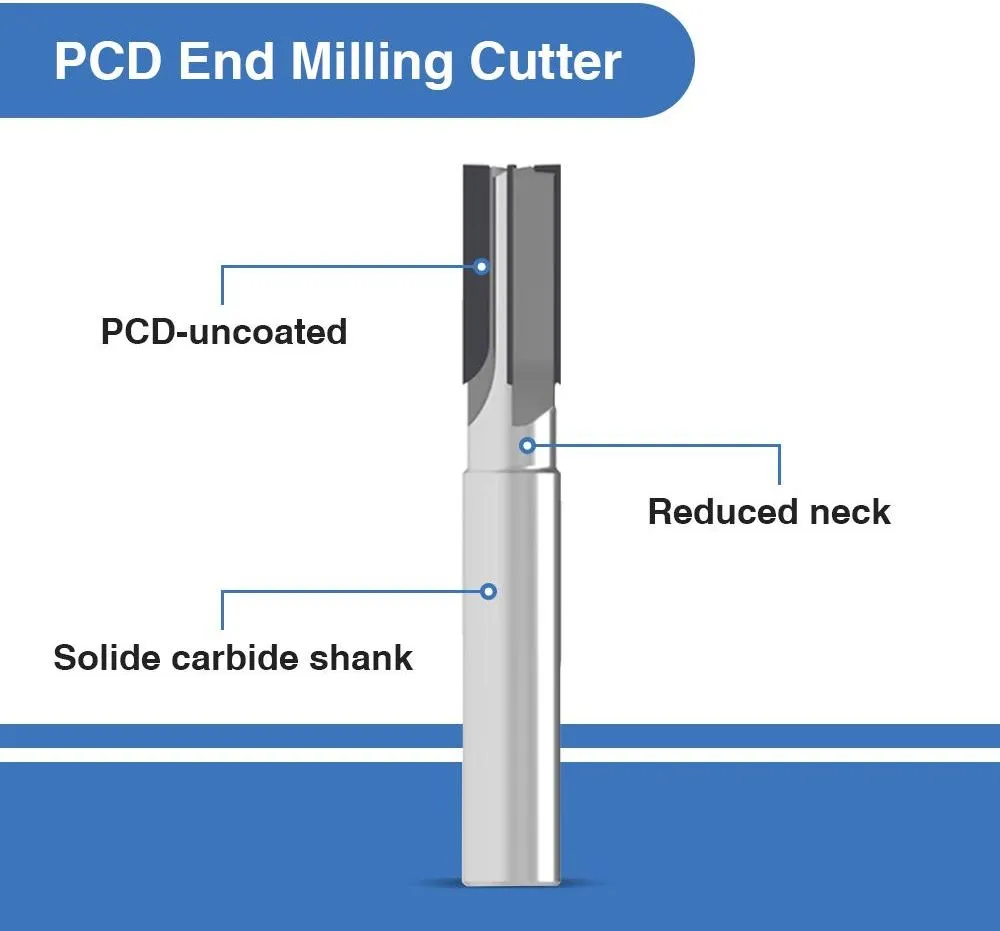

Product Description

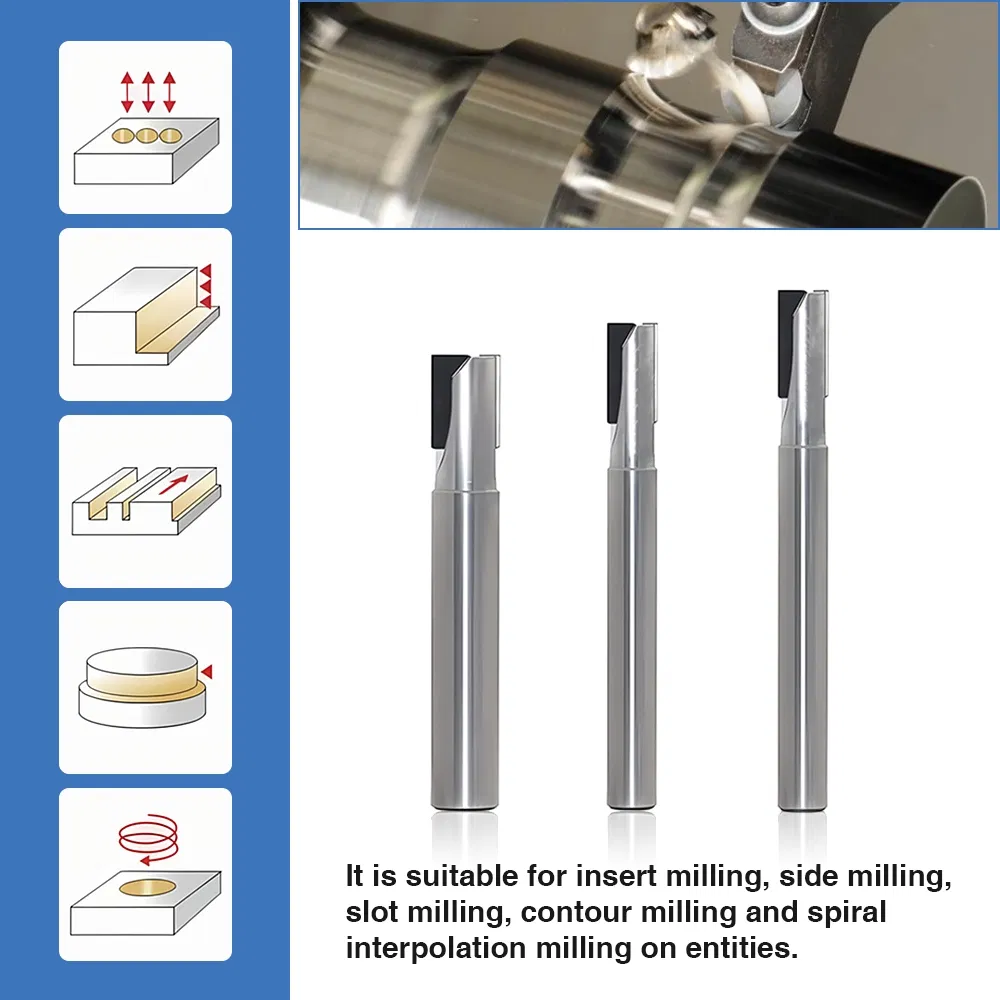

PCD universal milling cutter is suitable for milling aluminum and aluminum alloy, copper and copper alloy and other non-ferrous metals, glass fiber and metal composites, glass, engineering ceramics, engineering plastics, stone, wood and other materials. It is suitable for insert milling, side milling, slot milling, contour milling and spiral interpolation milling on entities.

Model	DC(mm)	APMX(mm)	DMM(mm)	LS(mm)	LCF(mm)	LF(mm)	ZEFP	Shank material
0303E	3	3	6	37	10	50	1	CARBIDE
0403W	4	3	6	37	10	50	1	CARBIDE
0504W	5	4	6	37	10	50	1	CARBIDE

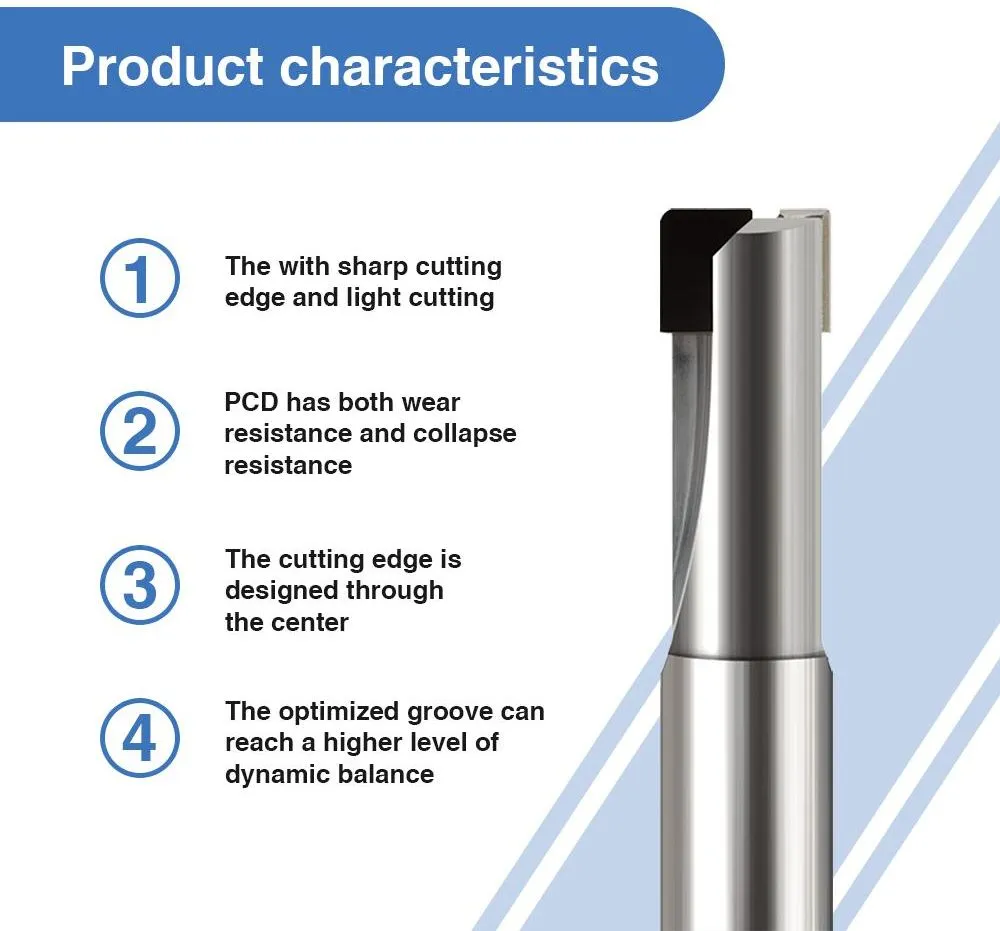

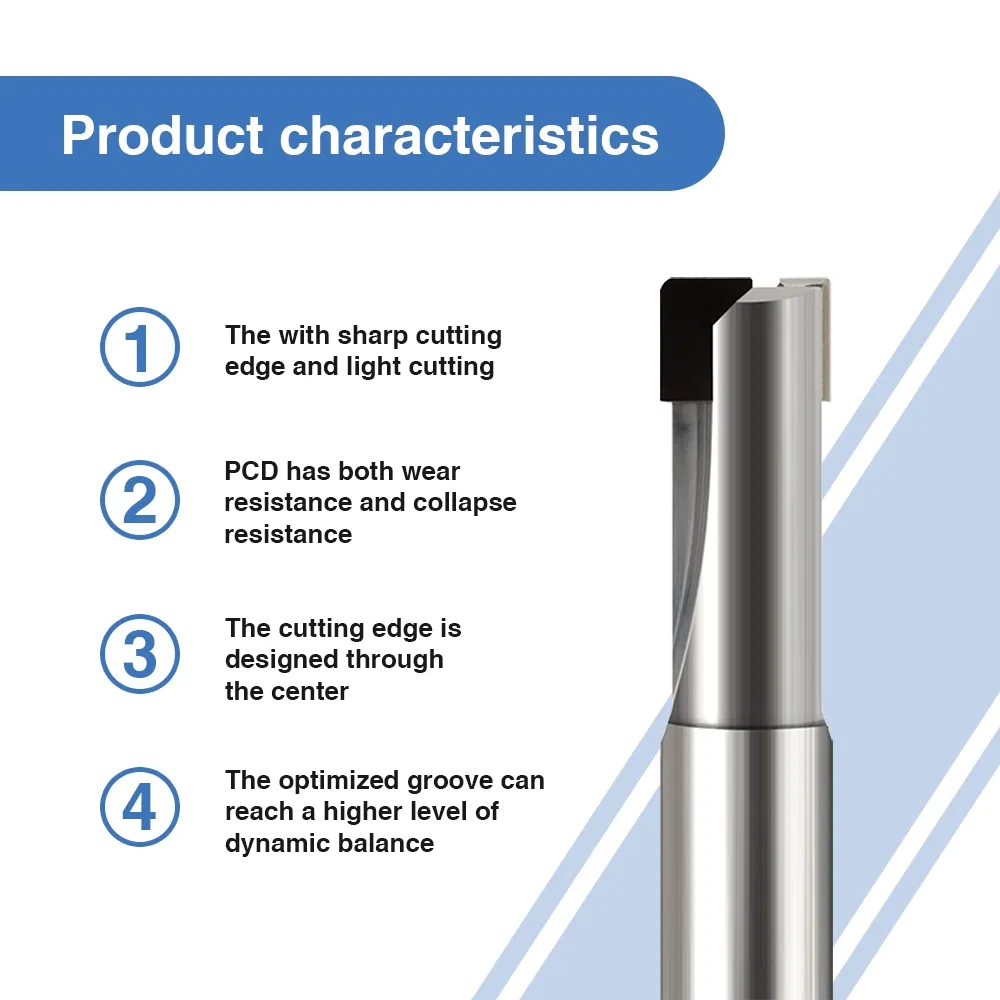

Sharp cutting edge and light cutting, suitable for high-speed occasions.
Medium grained PCD for wear resistance and collapse resistance.
Cutting edge designed through the center for axial feed milling.
Optimized groove for high-level dynamic balance.
Superior blade life compared to traditional coated tools.
Customization and grinding services available.

Industry Applications

1. Auto Parts Processing Industry
2. Aerospace Processing Industry
3. Electronic Processing Industry
4. Graphite Processing Industry

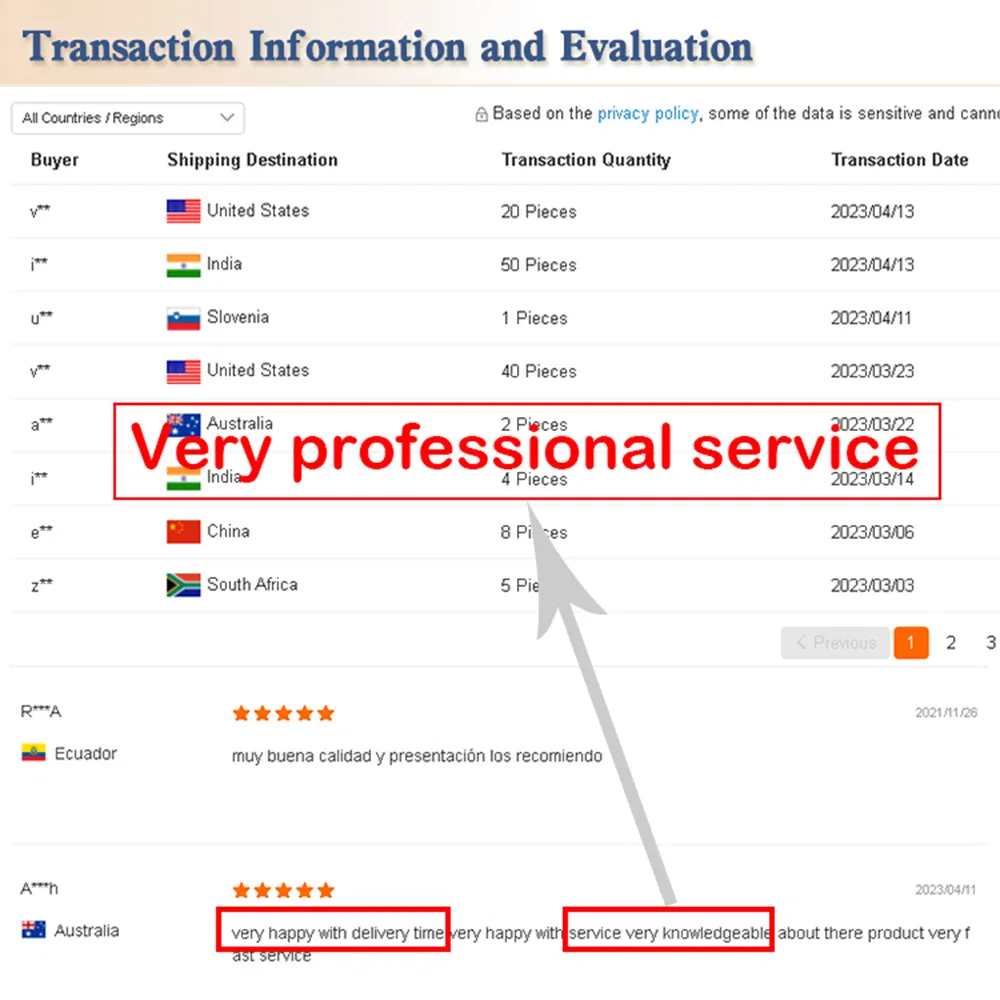

Customer Reviews

Why Choose Us

International Leading Trade Fair for Grinding Technology

Company Profile

We are committed to providing customers with grinding, cutting, turning, milling, drilling, and reaming tools. This includes abrasives, Diamond/CBN grinding wheels, PCD/PCBN blades, and carbide tools. Our tools serve industries such as woodworking, metal processing, automotive, stone, glass, gemstone, industrial ceramics, and oil and gas drilling.

Packaging & Shipping

Package

Single box per wheel, 10-20 wheels per carton

Delivery Time

3-30 days after order confirmation

Frequently Asked Questions

1. What materials can be processed with PCD end milling tools? They are ideal for non-ferrous metals like aluminum and copper, as well as glass fiber, engineering ceramics, plastics, stone, and wood.

2. Are these tools suitable for high-speed CNC machining? Yes, the sharp cutting edges and optimized grooves are specifically designed for high-speed operations and dynamic balance.

3. How does the life of a PCD tool compare to traditional coated tools? PCD tools offer significantly higher wear resistance and longer blade life, even when used under higher cutting parameters.

4. Can I request custom sizes or specific tool designs? Yes, we provide professional tool customization and specialized grinding services to meet your specific industrial requirements.

5. What is the typical lead time for an order? Delivery usually ranges from 3 to 30 days, depending on the order quantity and the current production season.

6. Is axial feed milling possible with these cutters? Yes, the cutting edge is designed through the center, allowing it to be used for axial feed milling similar to drilling.
