Deepit Cutter
1 / 5

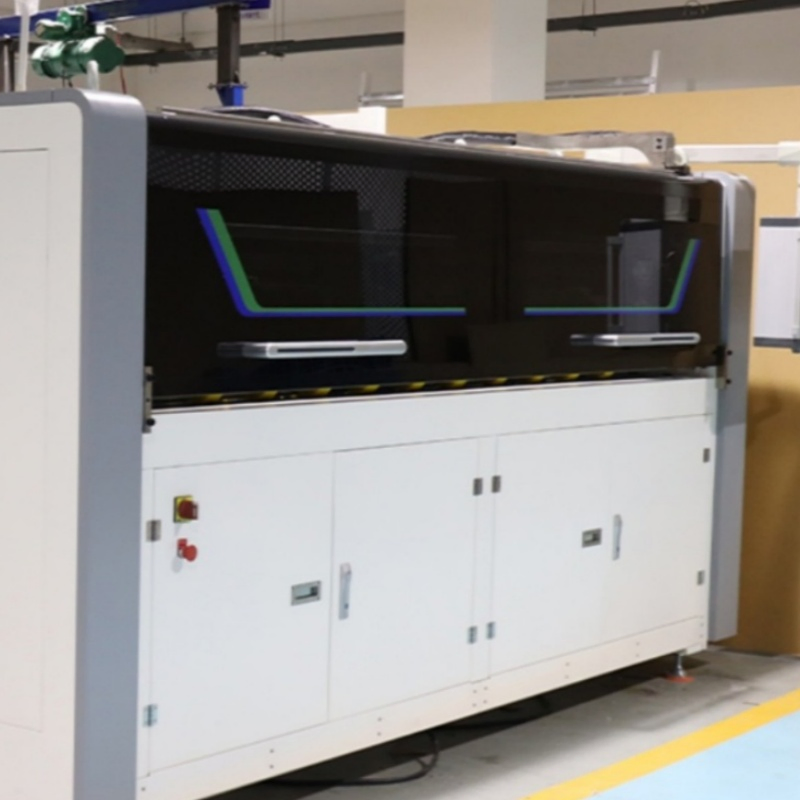

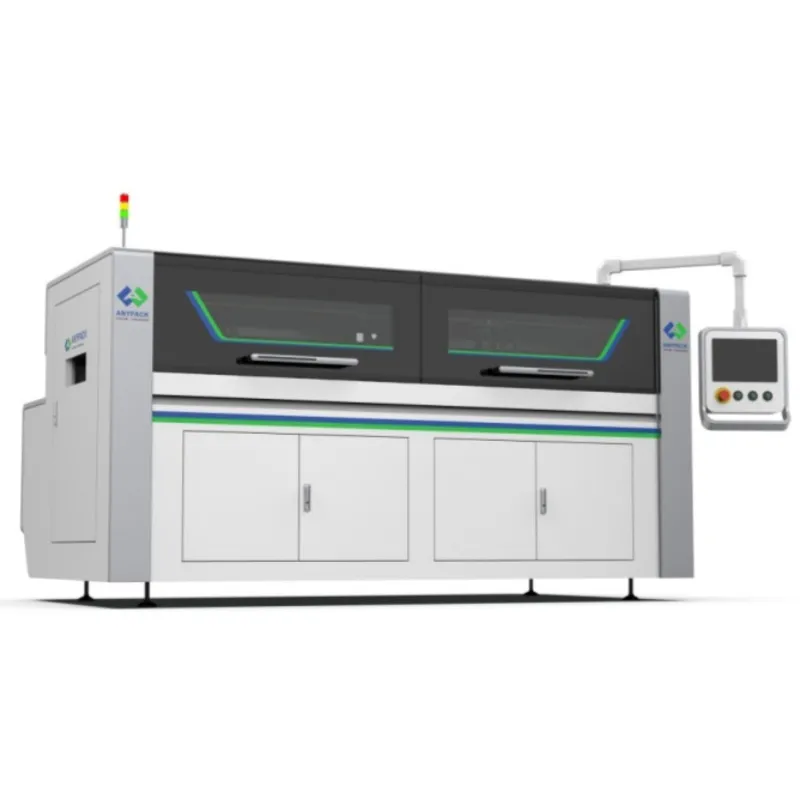

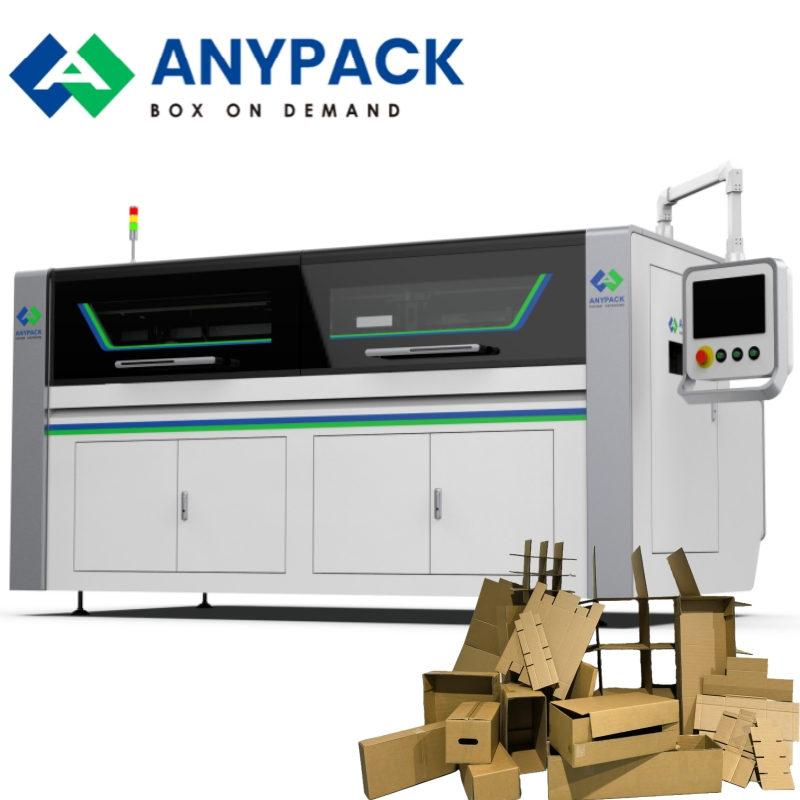

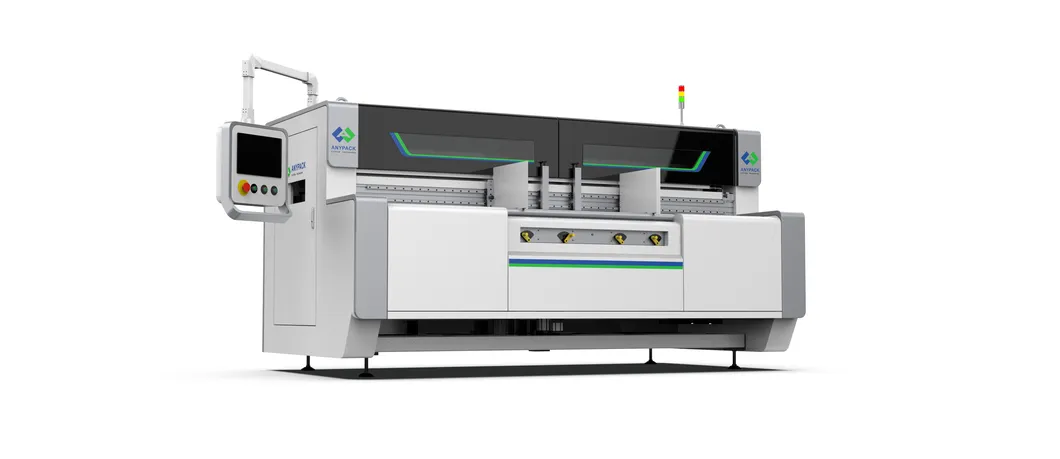

Our advanced box making machine revolutionizes on-demand packaging solutions for modern businesses. Specifically engineered to meet diverse packaging requirements, this innovative system excels in producing customized boxes with unmatched versatility.

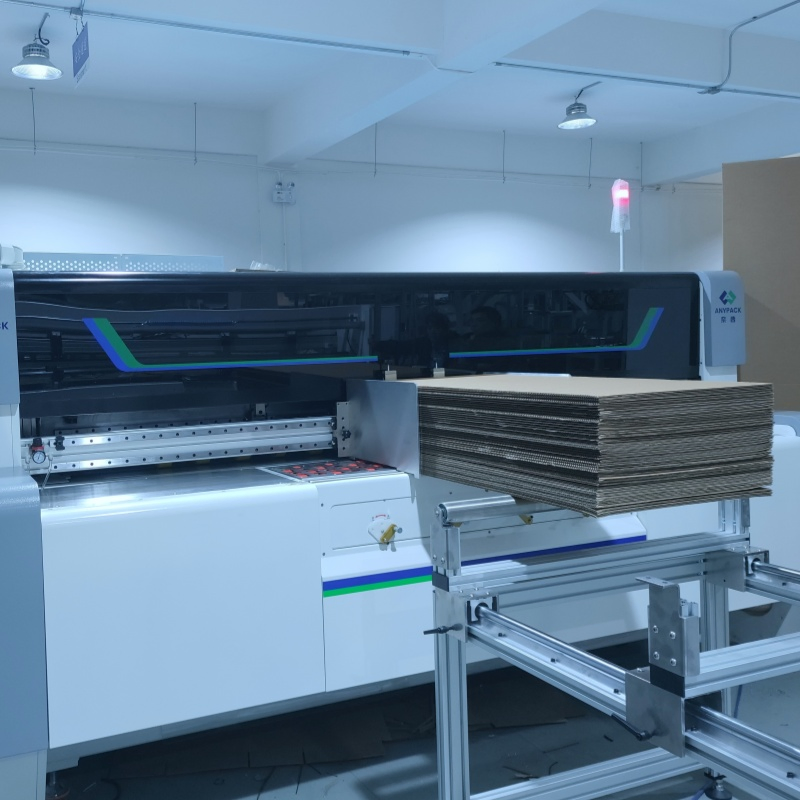

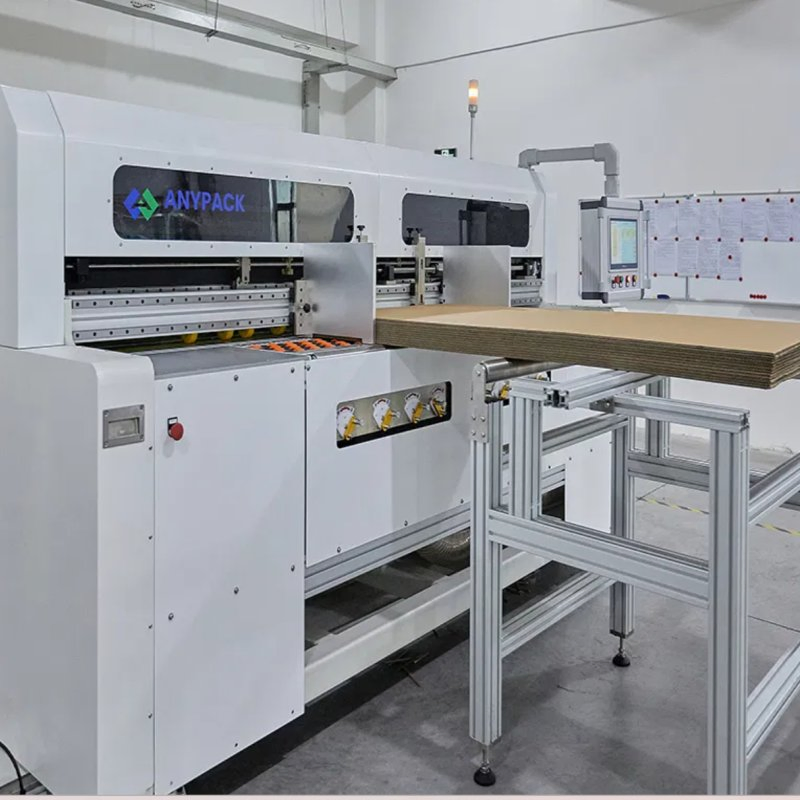

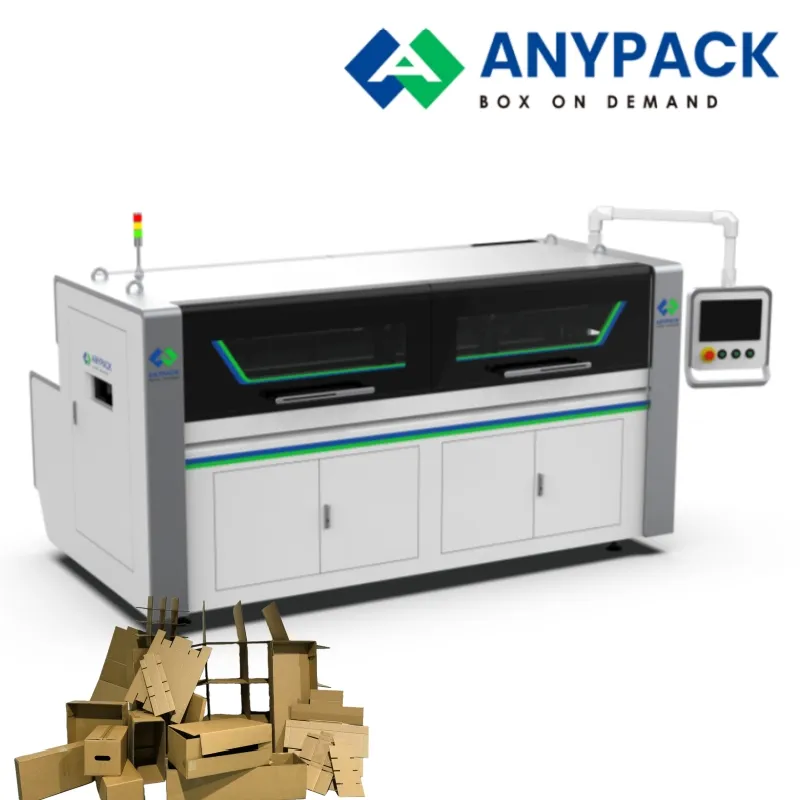

This box on demand machine combines efficiency and convenience. It produces corrugated cardboard boxes tailored to the product size, at the place of packaging, exactly when needed.

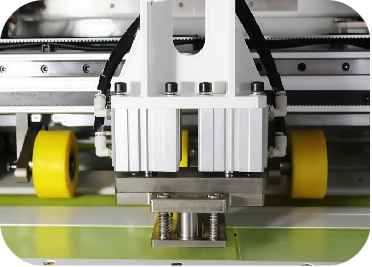

As a one stop solution for box production, it features: ✓ Slitting ✓ Creasing ✓ Slotting ✓ Scoring ✓ Trimming
| Model NO. | AB2500 |
| Type | Automatic Carton Making Machine |
| Driven Type | Pneumatic |
| Production Rate | 500-600 PCS/H |
| Switchover Time | About 3 Seconds |
| Cardboard Thickness | 1.5-10mm |
| Max. Board Size | 2500(W)mm * Unlimited Length |
| Min. Board Size | 650(L) * 200(W)mm |
| Max. Box Size | 1000(W) * 1500(H)mm * Unlimited Length |
| Min. Box Size | 150(W) * 75(H) * 150(L)mm |
| Feeding Mode | Automatic Feeding |
| Slotting Knife | 2 PCS * 500mm Length |
| Vertical Cutting Knife | 4 |
| Creasing Wheel | 4 |
| Horizontal Cutting Knife | 1 |
| Max. Box Height | 2400mm |
| Box Styles | More than 100 |
| Power | 380V, 50/60Hz, 15Kw |
| Weight | Appr 4000kg |
| Equipment Size | 3500(W) * 2200(H) * 2900(L)mm |
A: This is a compact all-in-one solution that features slitting, slotting, creasing, scoring, trimming, and hole punching within a single unit.
A: The machine features a rapid job switchover capability, allowing you to change box specifications in approximately 3 seconds.
A: The machine offers a production rate of 500-600 pieces per hour (PCS/H), depending on the box size and complexity.
A: It is designed to process cardboard thicknesses ranging from 1.5mm up to 10mm, covering a wide variety of packaging needs.

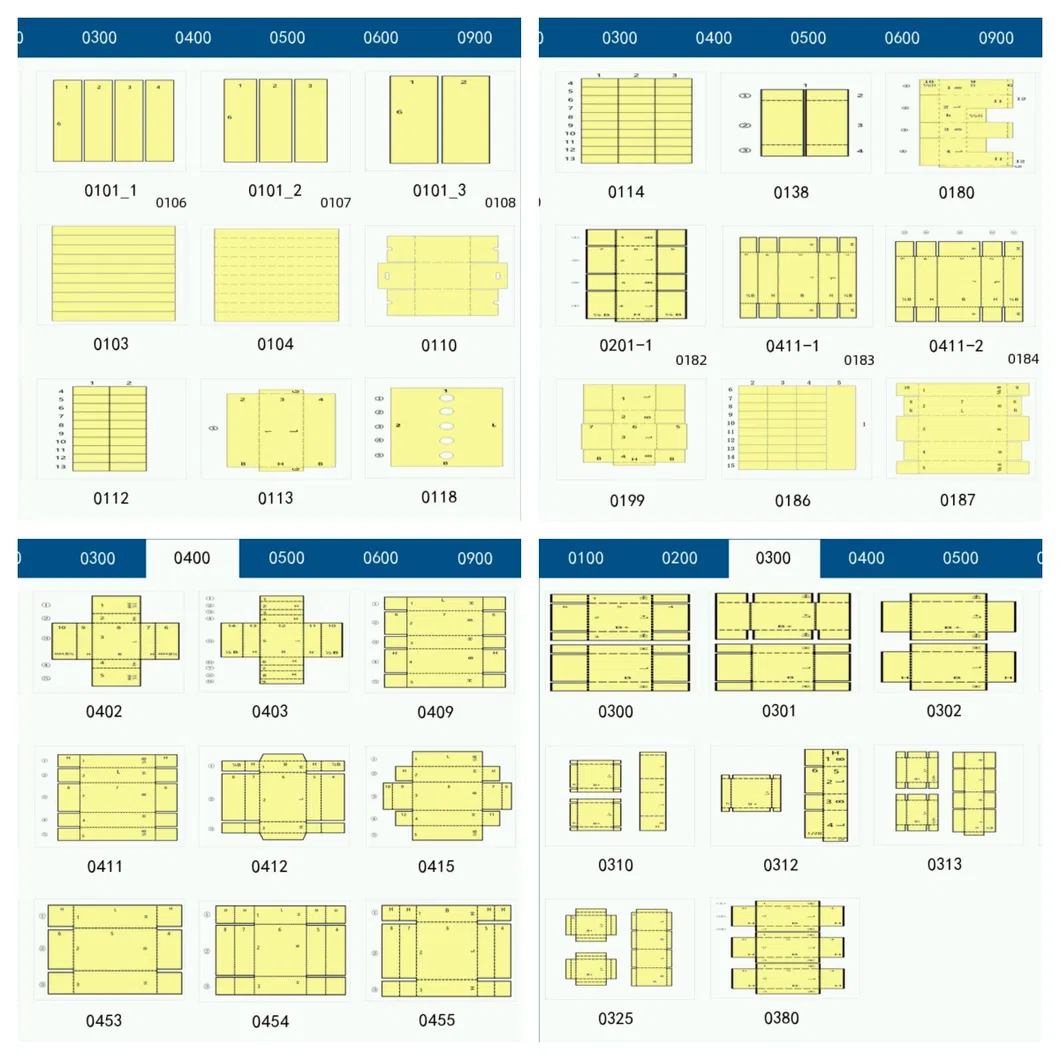

A: The system is programmed to produce more than 100 different box styles, offering extreme flexibility for custom packaging.
A: With proper care, the machine typically operates for 5 to 10 years without major issues. Maintenance is simple, usually only requiring the replacement of a few regular small parts.
