SIM Cards Punching and Creasing Machine Smart Card Making Machine

Customization:	Available
Warranty:	1 Year
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas

Send Inquiry

Product Description

Basic Information

Model NO.

WT-007SCPM

Certification

ISO 9001, RoHS, CE

Controlling Mode

CNC

Power Source

Mechanical

Condition

NEW

Type

Automatic Hole Puncher

Hole Number

Customizable

Applicable Materials

PVC, ABS, Pet, Composite Materials

Control

PLC & Servo System

Accuracy

±0.02mm

Productivity

6500PCS/H

HS Code

8462411900

Product Description

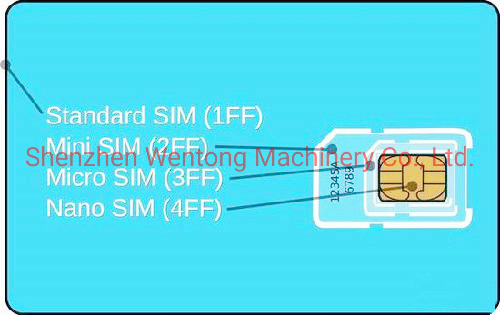

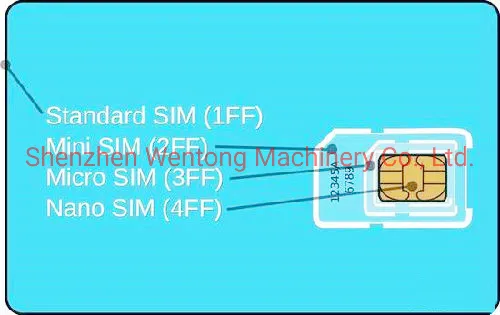

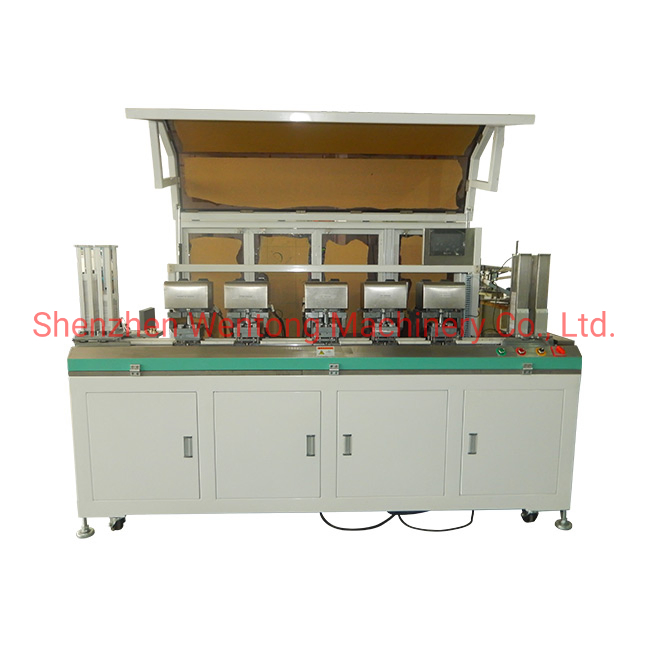

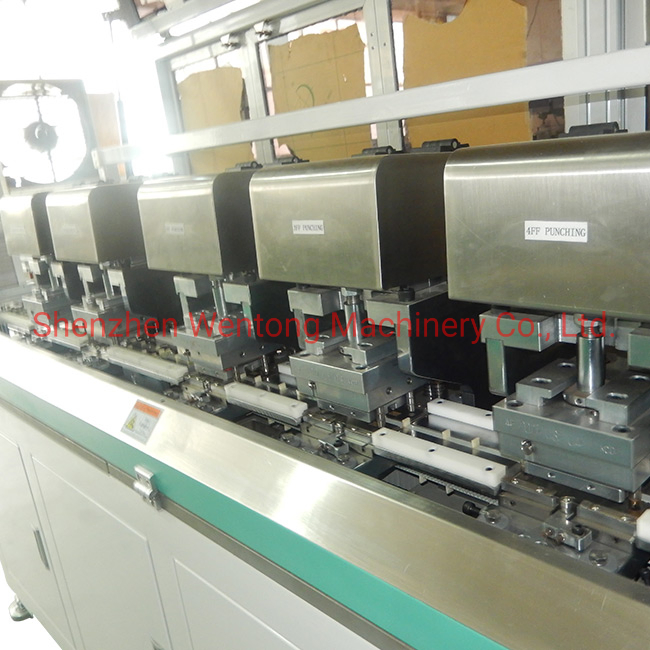

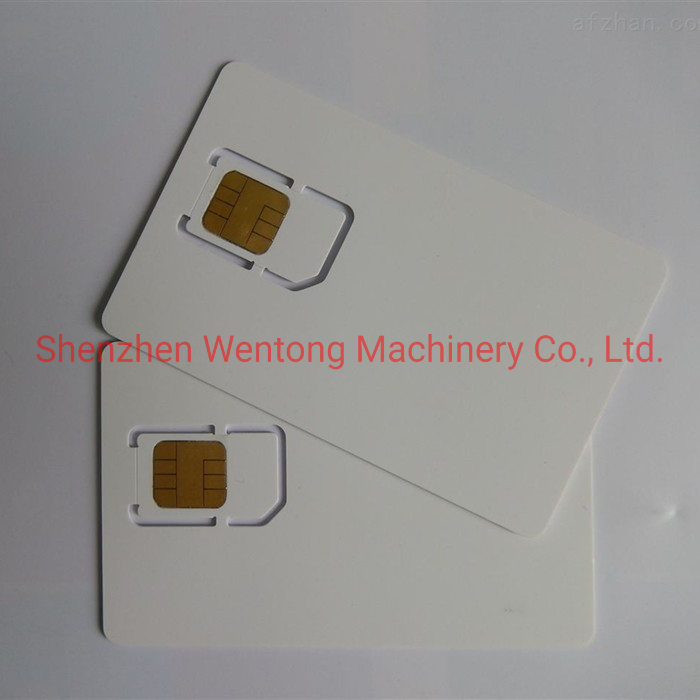

WT-007SCPM SIM card punching machine is designed for punching and scribing a break-out line for Mini SIM (2FF), Micro SIM (3FF) Nano SIM (4FF) cards based on the standard SIM card (1FF). This SIM card punching machine can be configured with vision inspection system for verification of card punching result. Each punch station can individually run or stop according to actual application needs.

Servo driven belt for cards transporting, providing high precision and adjustable speed;
Servo motor guarantees stable work pressure and low noise level;

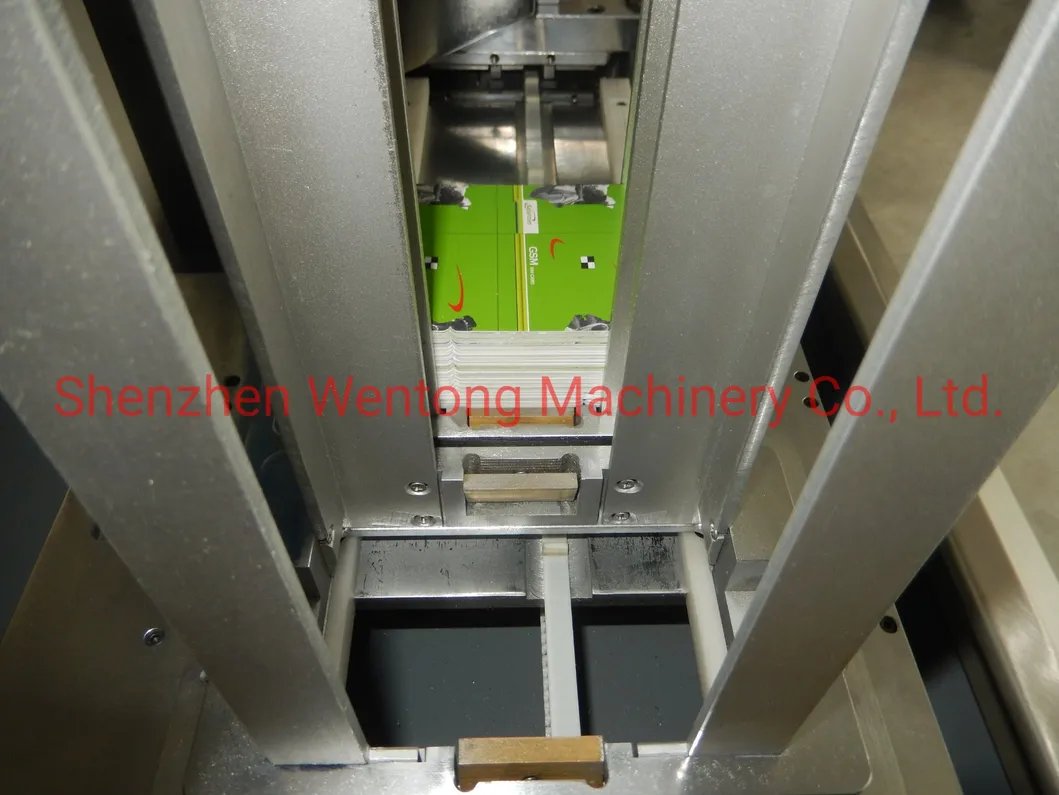

Double card magazines for cards loading and collecting significantly improve work efficiency;
2FF/3FF/4FF SIM punching and scribing can be done synchronously;

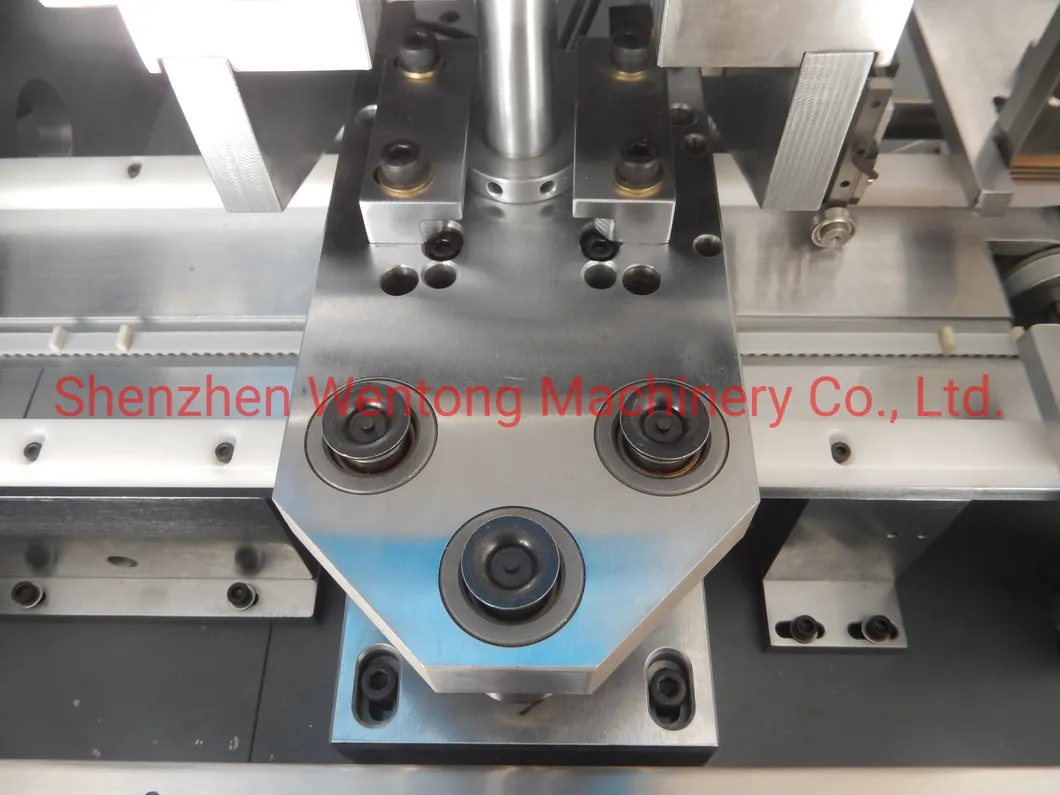

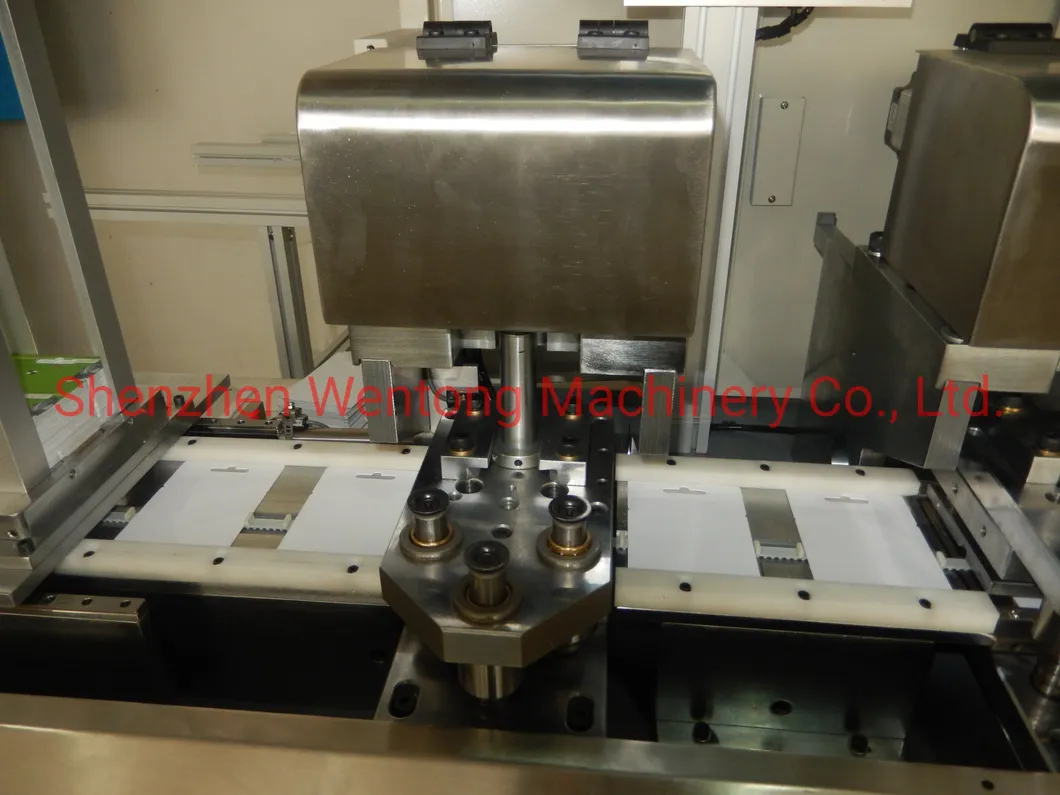

Detailed Photos

Product Parameters

Power supply	AC 380V/50 HZ	Card size	ISO card (85.5x54mm)
Total power	5.5KW	Control	PLC control + servo system
Air source	6 kg/cm2	Operators needed	1
Air consumption	Approx. 80L/min	Dimension	L2500W650H1600MM
Positioning accuracy	±0.02mm	Card thickness	0.76mm
Applicable materials	PVC, ABS, PET, Composite, etc.	Productivity	6500PCS/H
