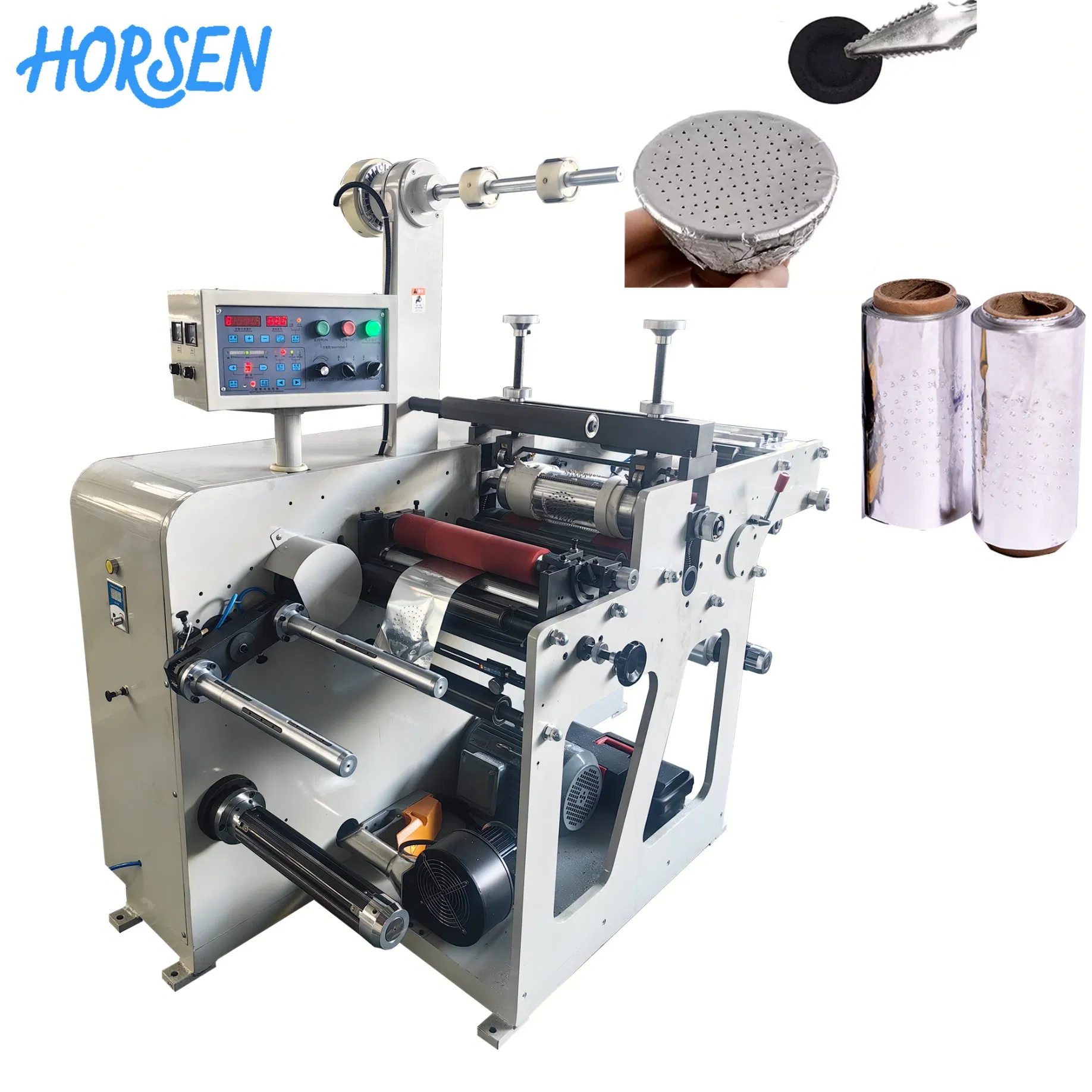

Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
1 / 5
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function
Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function

Semi Automatic Hookah Shisha Aluminum Foil Roll Rewinding Machine with Perforating and Punching Function

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
HSS-140
Application
Machinery&Hardware, Food, Commodity
Type
Pre-Cut and Rewinding Machine
Work Method
Rewinding Machine
Structure
Cutting Part
Packaging
Case
Classification
Pre-Cut and Holes
Suitable Substrates
Shisha Aluminum Foil
Weight
700kgs
Power
3kw
Rewinding Speed
10-50m/Min
Max Unwinding Width
320mm
Product Description
⚙️ HSS-140 Pre-Cut Shisha / Hookah Foil Rewinding Machine with Holes

This Shisha Foil Rerolling machine is suitable for shisha foil which die cutting and make holes automatically. It had the function of automatic meter counting, automatic stop, web guiding by photocell.

The machine had the characteristic of compact structure, fast feeding, high efficiency, easy operation, accurate rewinding and steady running etc.

Rewinding Machine View 1
Rewinding Machine View 2

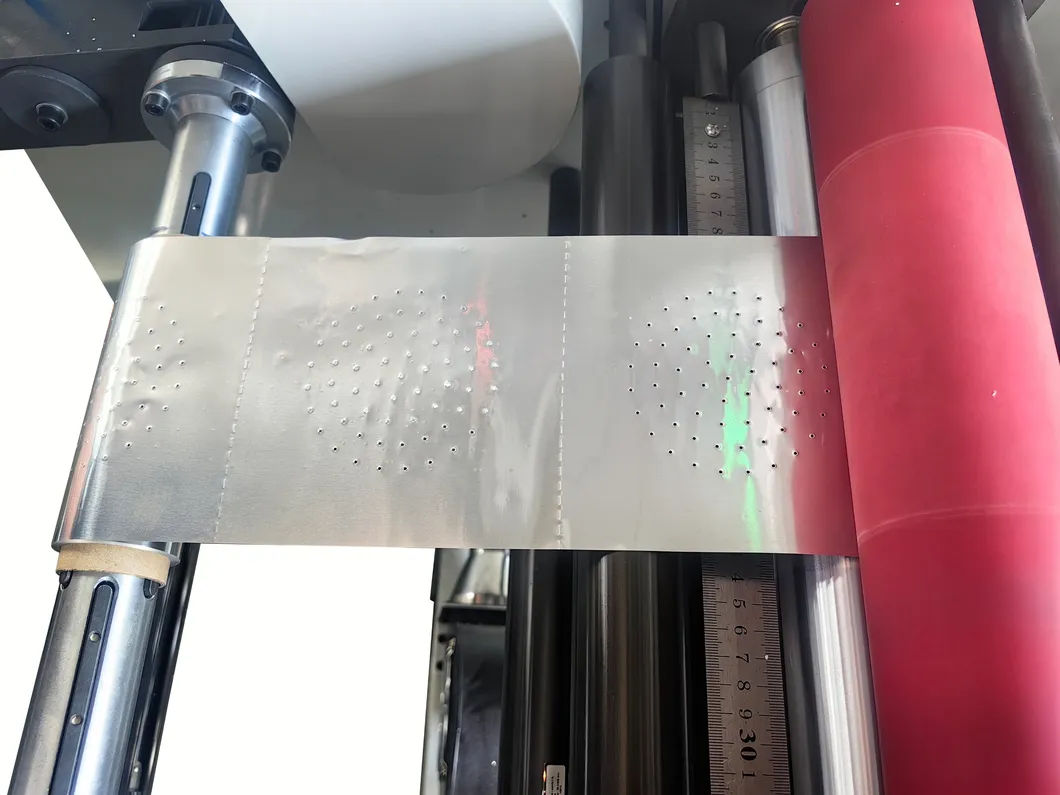

Rewinding Machine View 3
Machine Detail
Machine Operation
Technical Specification
Item Mould HSS-140
Rewinding Material Shisha Foil
Rewinding Speed 10-50m/min
Max Unwinding Diameter 500mm
Max Unwinding Width 320mm
Max Rewinding Diameter 200mm
Rewind Airshaft 40mm
Power 3kw
Machine Size 160*120*150cm
N.W Weight 600kgs
Main Motor 2.2kw
Converter Schneider
Button Schneider
Process Detail 1
Process Detail 2
Finished Product 1
Finished Product 2
Finished Product 3
Frequently Asked Questions
What is the primary function of the HSS-140 machine?
The HSS-140 is designed for rerolling shisha aluminum foil, featuring automatic die-cutting and hole-punching capabilities in one process.
What is the production speed of this rewinding machine?
The machine offers a flexible rewinding speed ranging from 10 to 50 meters per minute, depending on the material and requirements.
Does the machine support automatic measurement?
Yes, it includes an automatic meter counting function and an automatic stop feature for precise production control.
What are the maximum material dimensions supported?
The machine can handle a maximum unwinding width of 320mm and a maximum unwinding diameter of 500mm.
Are the electrical components reliable?
The HSS-140 is equipped with high-quality industrial components, including Schneider converters and buttons, ensuring steady and long-term operation.
What is the weight and size of the machine for shipping?
The machine weighs approximately 600-700kgs with dimensions around 160*120*150cm, typically packed in a secure wooden case for transport.
