Product Description

Basic Information

Model NO.HTCT VCM 1625
CertificationCE, RoHS, ISO 9001
ControlAutomatic
ApplicationPaper, Plastic, Leather, Fabric
Maximum Speed1500 mm/S
Precision0.1mm
Power SourceElectric (11kw)
Drive TypePanasonic Servo Motor

Product Parameters

Product Series HT-VCM
Model VCM-1012 VCM-1625 VCM-1830 VCM-2030 VCM-2230 Customizable
Cutting area (W*L) 1.0m*1.2m 1.6m*2.5m 1.8m*3.0m 2.30m*3.0m 2.20m*3.0m Customizable
Production Capacity Up to 15,000 cut pieces per day
Cutting Thickness 0.1mm - 110mm (after vacuum adsorption)
Cutting Precision ± 0.1mm
Operating System Windows OS with Touch control panel

Advanced CNC Cutting Solutions

Designed for Versatile Materials

  • Heavy-Duty Performance: Supports cutting thickness from 0.1cm to 11cm, ideal for both single and multi-layer materials.
  • Unmatched Speed: Achieve speeds up to 1.5m/s with precision within 0.1mm.
  • Maximized Utilization: Intelligent nesting software ensures up to 95% material efficiency.
  • Eco-Friendly: Smokeless and odor-free operation for a clean working environment.

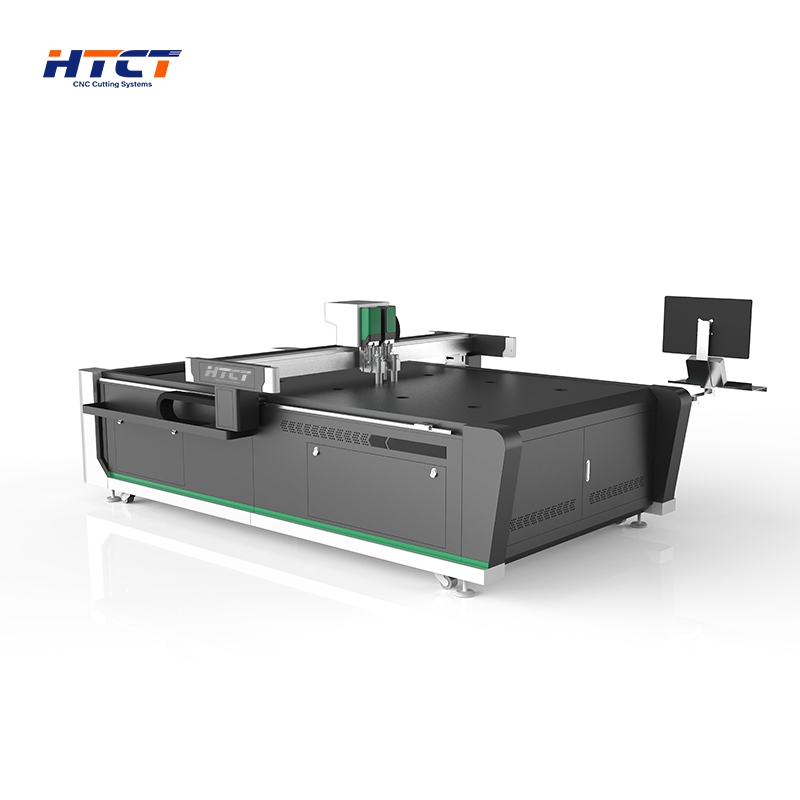

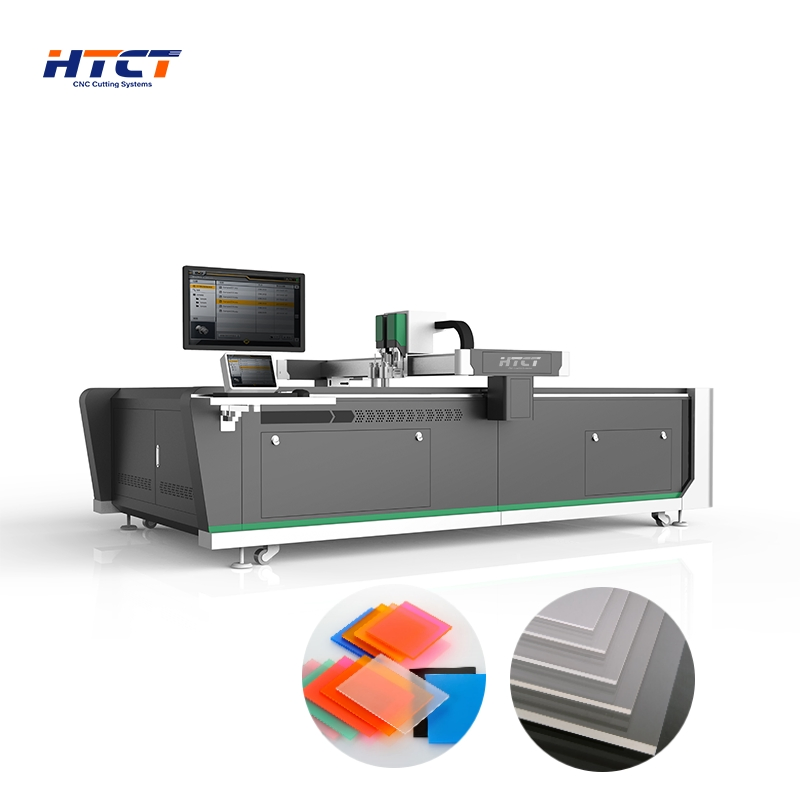

CNC Cutter Machine

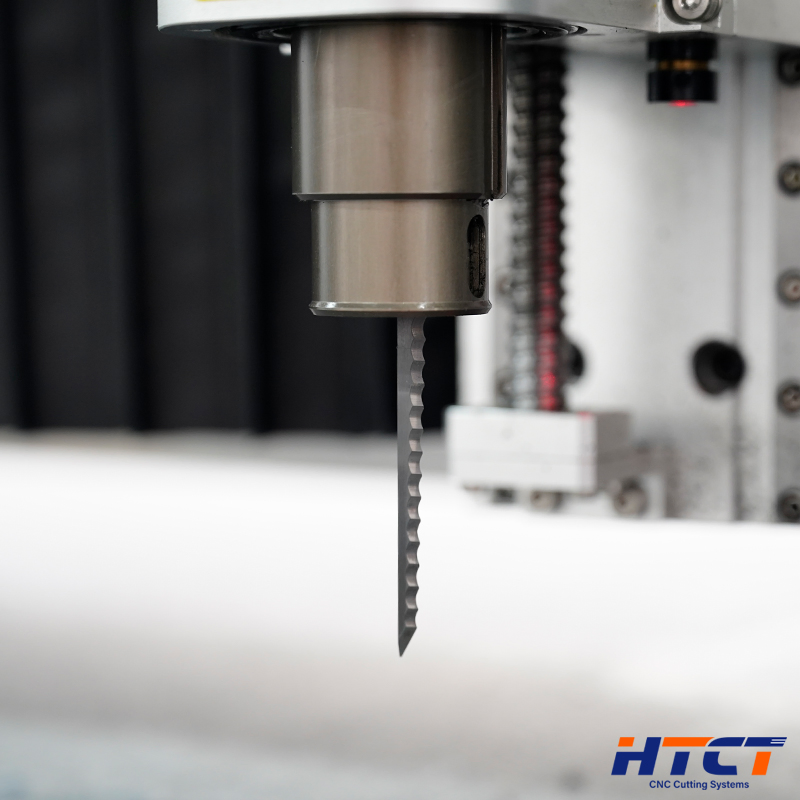

CNC Cutting Detail
VCM Pro Details

HTCT VCM Pro Advantage

  • Reduce Cutting Costs per product
  • Boost Productivity for large-scale demands
  • Save Materials via intelligent layout
  • Enhance OEE (Equipment Effectiveness)

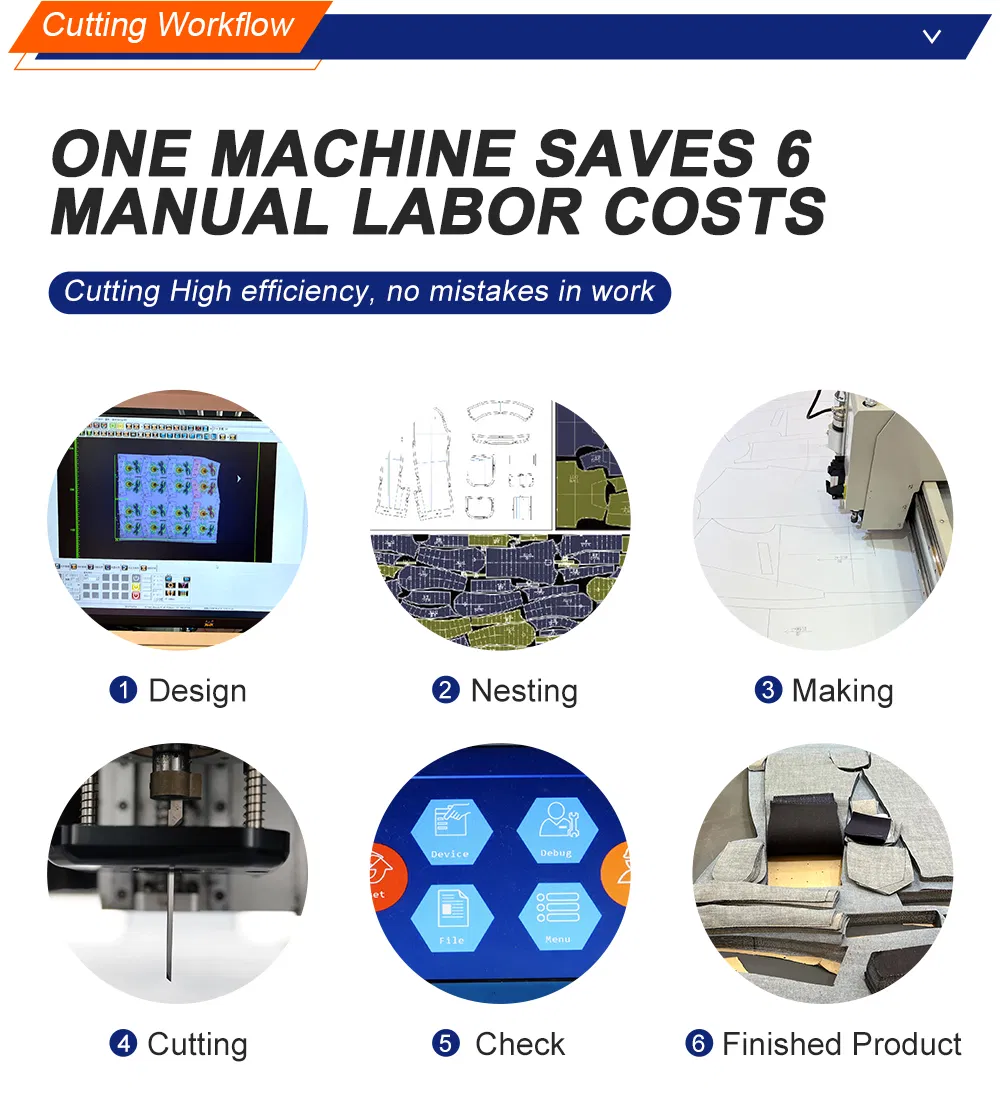

Efficient Workflow & Technology

Workflow Diagram

Simple & Efficient Operation

  • Design in Seconds: One-click clothing template creation.
  • Automated Spreading & Feeding: Continuous workflow with minimal manual intervention.
  • Minimal Labor: Requires no more than two operators for full efficiency.
Software Interface

Core Components & Quality

Equipped with top-tier international brands for maximum stability and 3-year warranty.

Panasonic Motor
Component 2
Component 3
Hiwin Guide Rail
Vacuum Pump

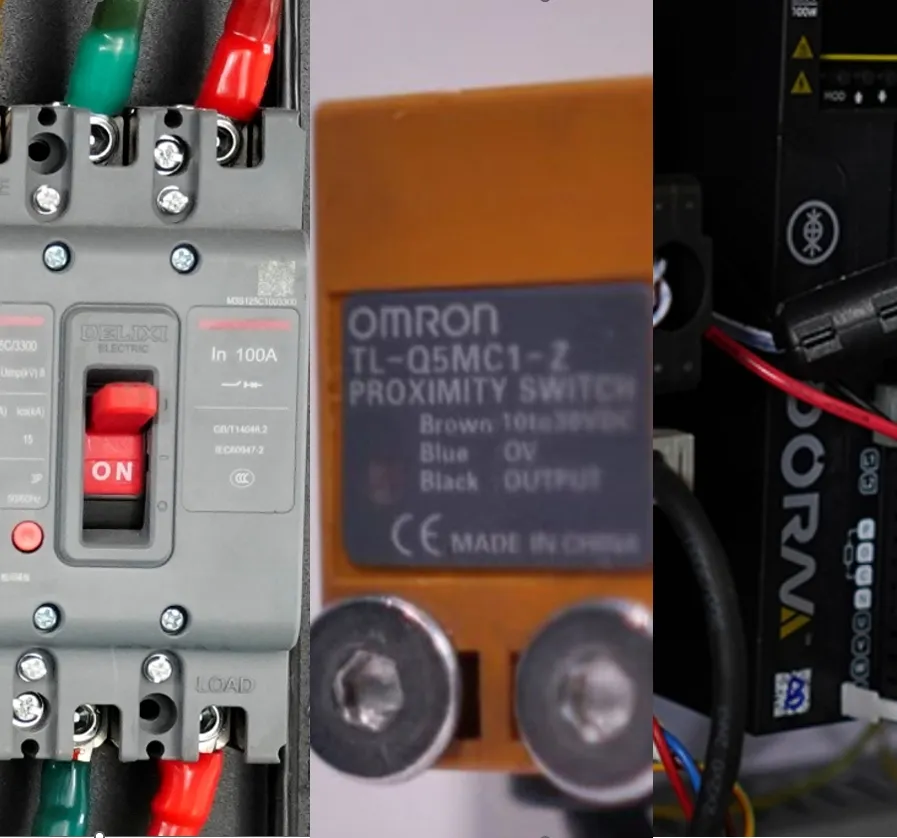

Controller

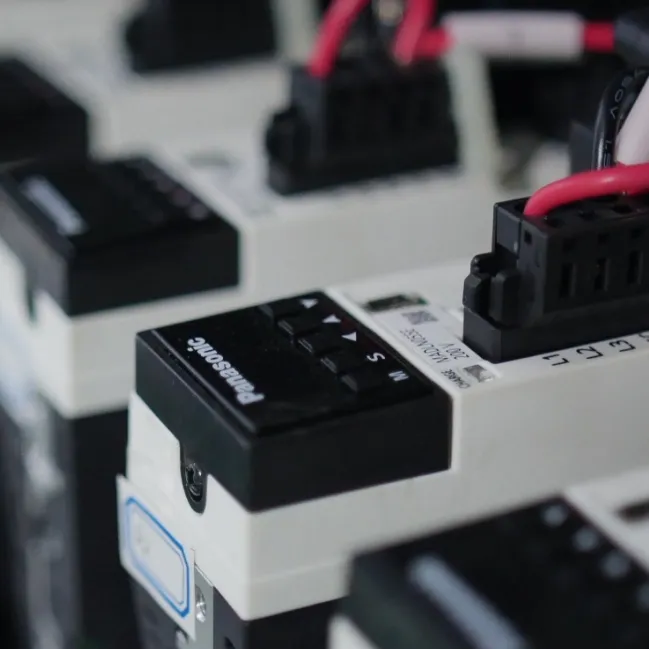

  • Panasonic Servo System: High-speed simultaneous motor control.

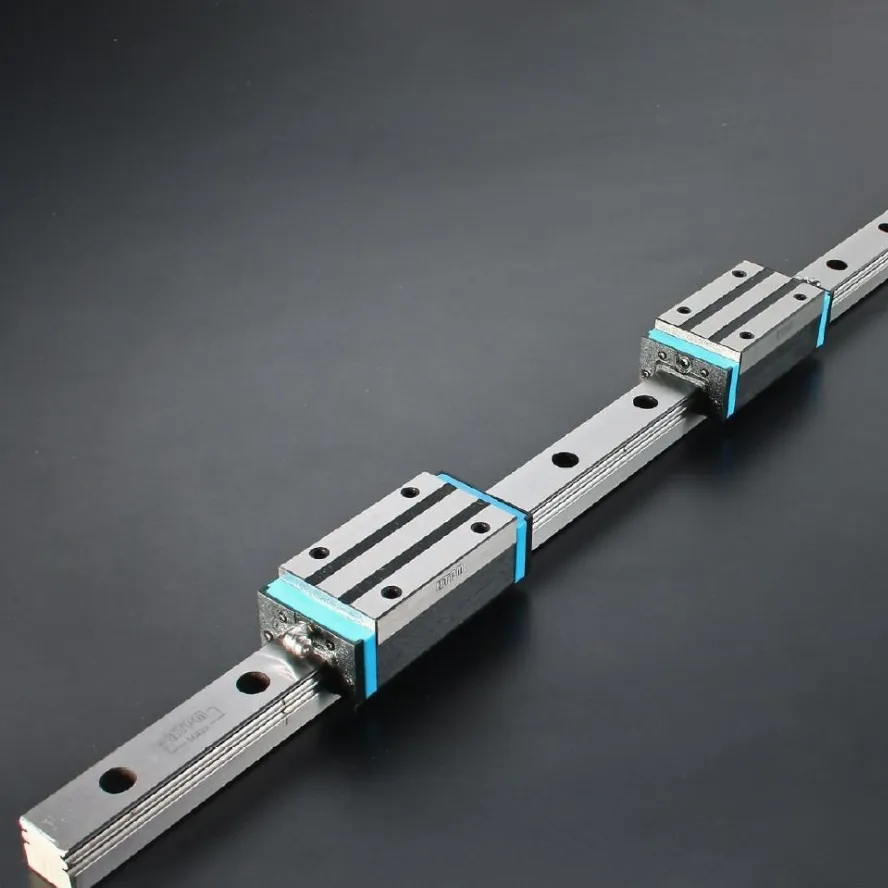

  • HIWIN Guide Rails: Micrometer-level positioning accuracy.

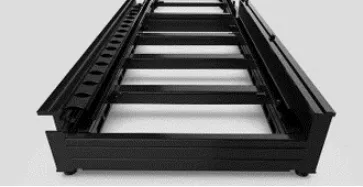

  • Integrated High-Strength Frame: Designed for loads over 3 tons.

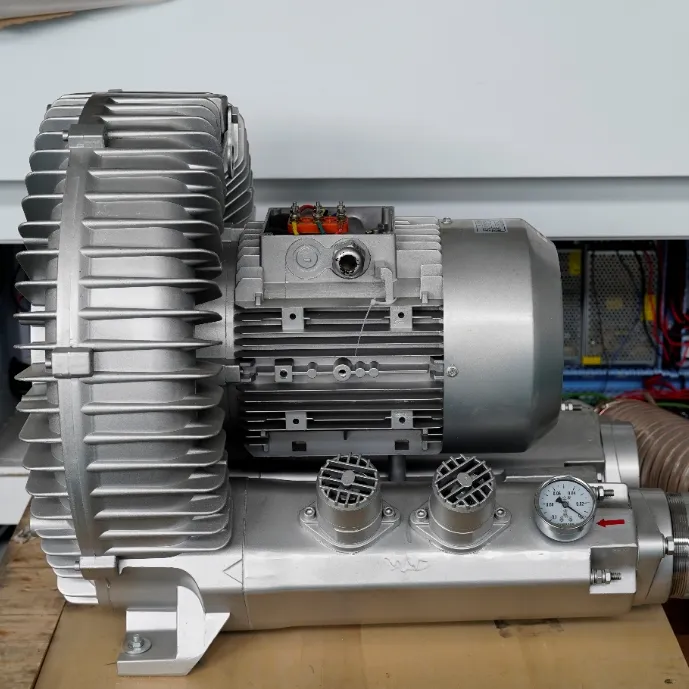

  • 9KW Vacuum Pump: Ensuring superior material adsorption.

Service Commitments

Support

24/7 Remote guidance and online assistance.

Warranty

3 Years warranty on main components.

Training

On-site installation and 40GB video tutorial library.

Frequently Asked Questions

Q1: What materials can the VCM series machine cut?
The machine is designed for various flexible and hard materials including PVC, Foam, Acrylic, Wood Board, Rubber, Fabric, Leather, and Car interiors.
Q2: What is the maximum cutting thickness?
It can cut materials ranging from 0.1mm up to 110mm after vacuum adsorption, depending on the material density and tool used.
Q3: How fast is the cutting process?
The machine achieves a maximum cutting speed of 1500mm/s (1.5m/s) with a precision of ±0.1mm.
Q4: Does the cutting process produce smoke or odor?
No, unlike laser cutting, the CNC knife cutting method is a mechanical process that is smokeless and odor-free.
Q5: What is the benefit of the intelligent layout software?
Our HT2024 software automatically optimizes nesting layouts to achieve a material utilization rate of over 95%, significantly reducing waste.
Q6: What kind of after-sales service is provided?
We offer 3 years warranty, 24/7 online support, and remote assistance. Replacement parts are typically dispatched within 24 hours.
