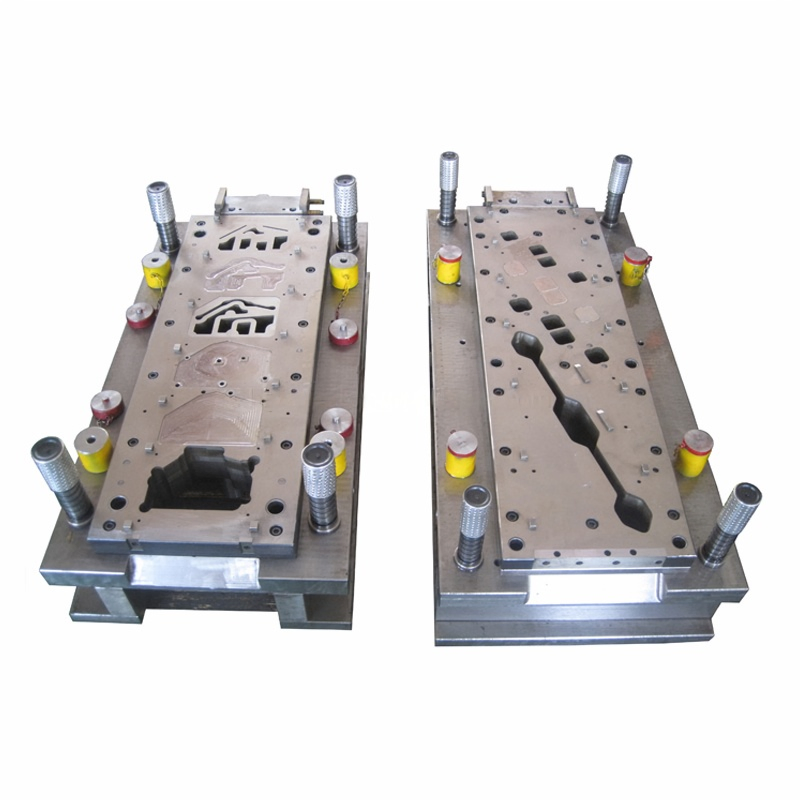

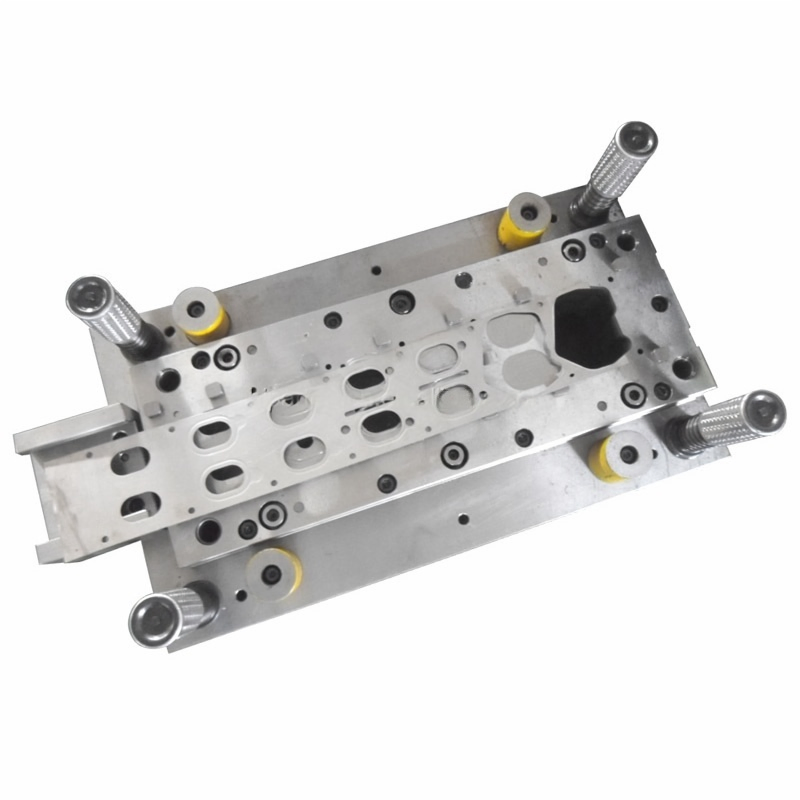

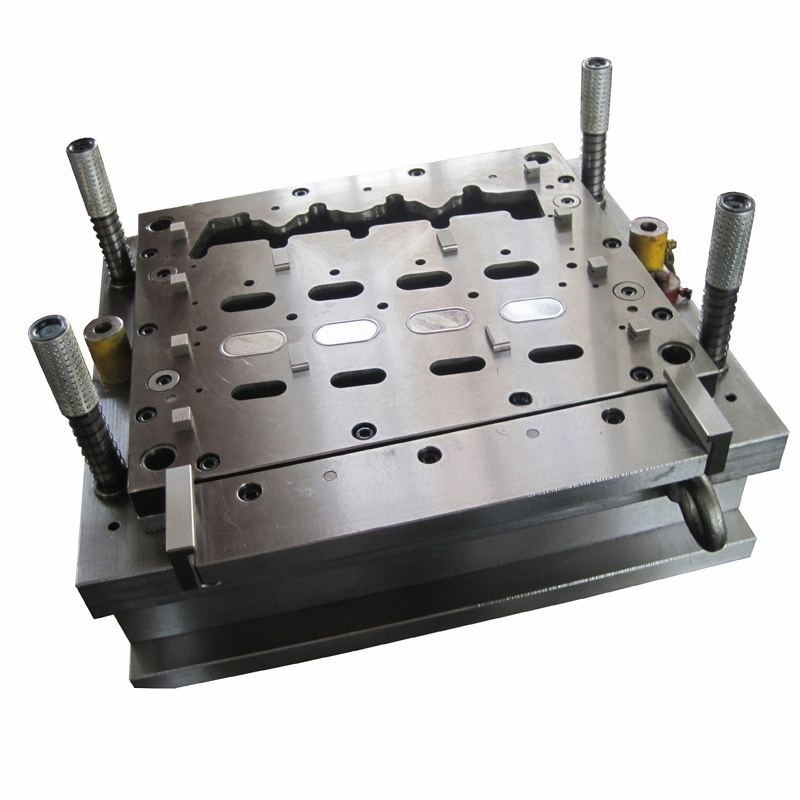

Qingdao OEM Automotive Gasket Mold Cylinder Head Gasket Cutting Machine Progressive Stamping Tools

Customization: Available
Application: Household Appliances, Electronic, Hardware, Car, Commodity, Home Use
Material: High-Speed Steel

Product Description

Basic Information
Model NO.
HPD241217Y1
Processing Method
Punching and Shearing Mould
Technics
Forming Die
Process Combination
Progressive Die
Driving Motor Type
Permanent Magnet
Part Material
DC01, SPCC, Ss, SUS etc.
Template Flatness
+/-0.01mm
Production Capacity
40 Sets Per Month
Product Description

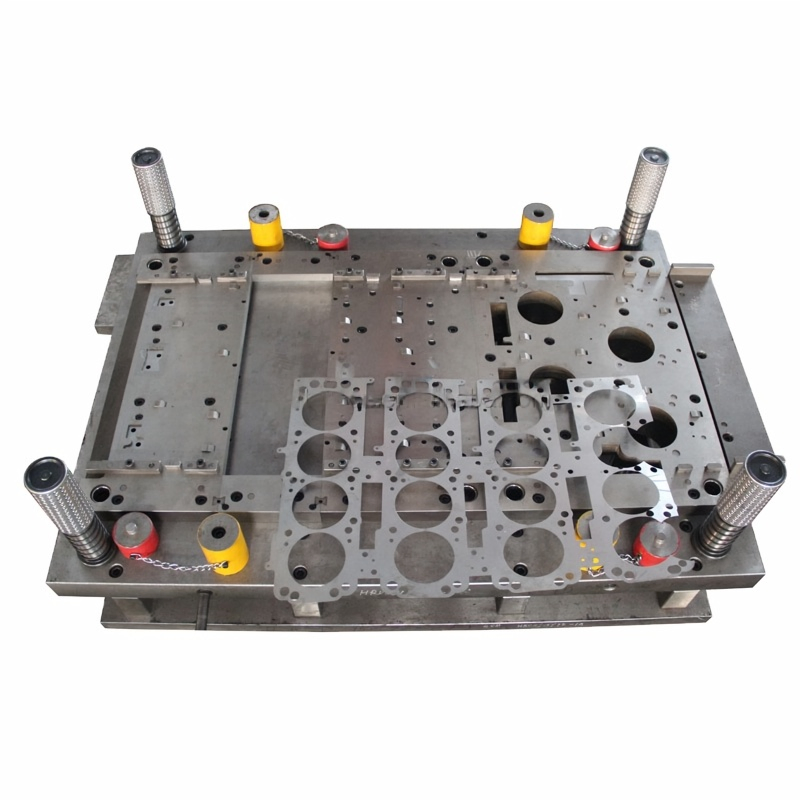

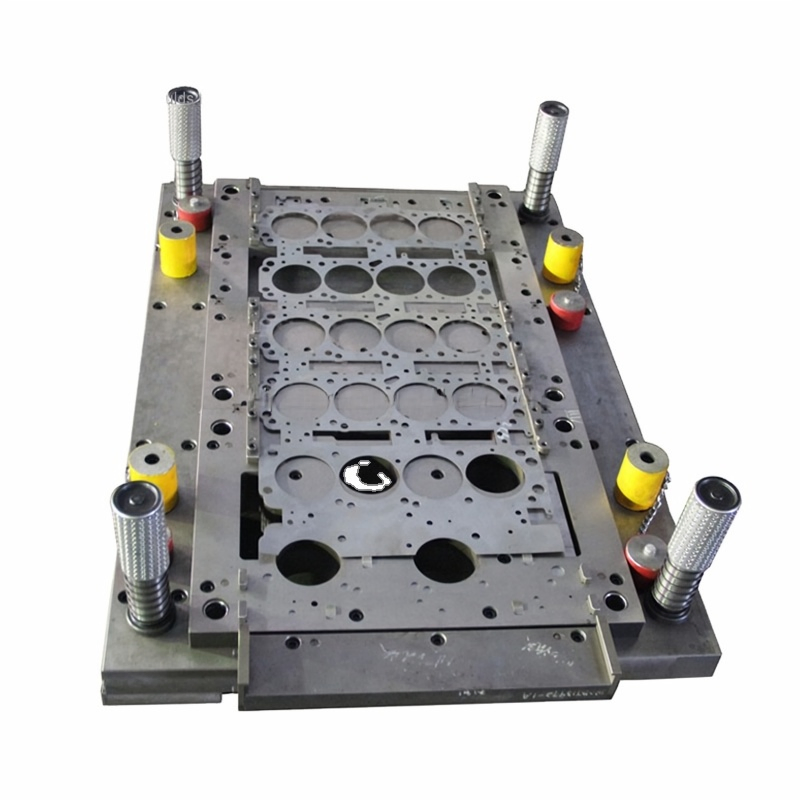

Automotive Gasket Mold
With more than 20 years of experience in designing and manufacturing progressive stamping dies, we offer a variety of die manufacturing process capabilities. Our expertise covers the production of stamping dies for all home appliances, including world-famous brands. We are also proficient in the development and manufacturing of injection molds and casting molds, providing a one-station mold service to meet diverse industrial needs.

Features of Progressive Press Die

  • High machining accuracy with flatness within 0.1mm.
  • High strength materials, resistant to deformation with excellent thermal conductivity.
  • Superior surface finish appearance.
  • Seamless assembly structure through high-precision machining.
  • Quality control ensuring no granules, spots, or paint peeling.

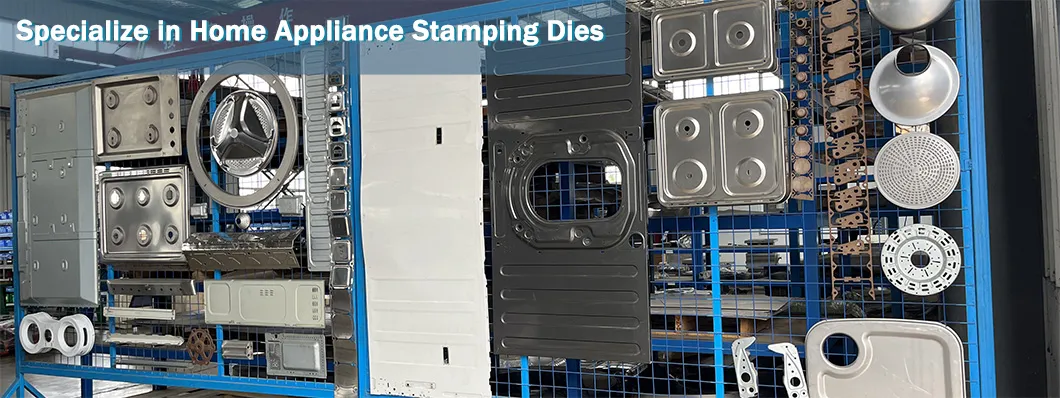

Stamping Tools
Product Parameters
Parameter Item Specification Details Parameter Item Specification Details
Mold core material S45C, S136, S136H, S50C, P20, 718H, 738H, NAK80 Mold base Standard LKM, HASCO, DME, etc.
Inspection 100% inspection by QC, QA before shipping Part material DC01, SPCC, SS, SUS etc.
Design Software AutoCAD, Solid works, PRO/E, UG Quality System ISO9001
Surface Treatment Powder coating, galvanizing, anodising, polishing Lead time Approx. 45 days after design confirmation
Design & Manufacturing Capacity
We provide a total solution service: product design optimization, die design, manufacturing, debugging, product inspection, and after-sales support.
Diverse Design Resources: Equipped with world-class CAD/CAM/CAE resources. Our engineering center consists of over 50 employees, with specialists in CAE simulation and mold structure design.
Advanced Equipment

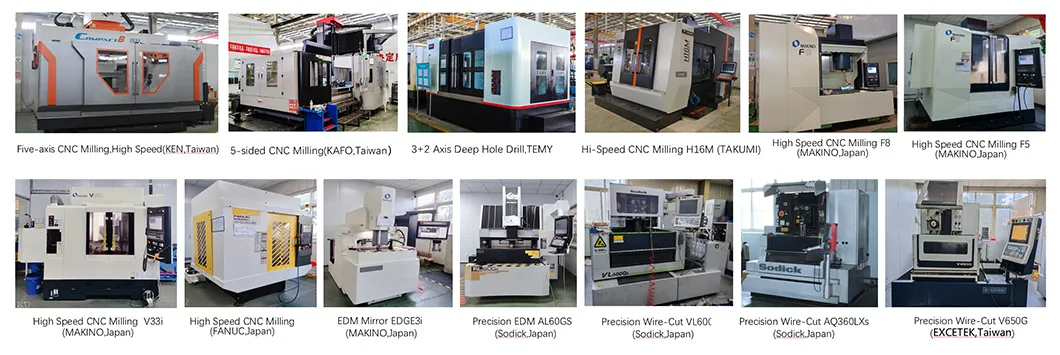

High precision equipment guarantees high-quality dies. We house a full range of processing machinery including slow-speed wire cutting, CNC machining, and high-tonnage press machines (45T-1600T).
Machining Equipments

Measurement & Quality Control

Equipment Name Specification Brand/Origin Quantity
Coordinate Measurement Machine 1200*1500*1000 Hexagon, Swiss 1
Alloy Analyzer / LANScientific 2
Vision Projector 300*250*200 China 2

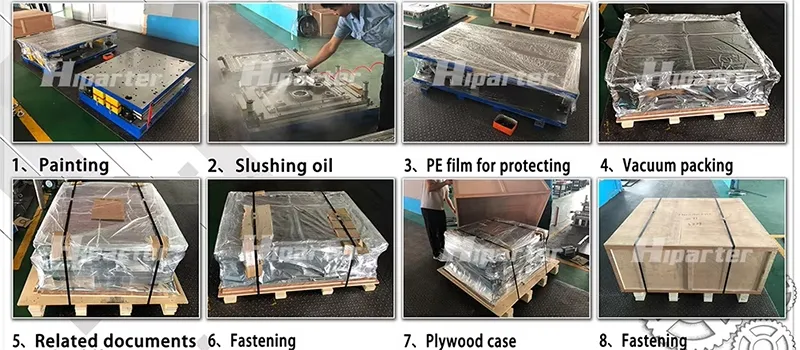

Packaging & Shipping
  • Painting: Convenient for die identification.
  • Anti-rust Oil: Protection of die surfaces during transit.
  • PE Film: Keeps the tool surface clean.
  • Documentation: Includes structure drawings, operation manuals, and inspection reports.
  • Outer Packaging: Export standard plywood cases.
Frequently Asked Questions
Q1: What is included in your one-stop OEM service? We offer parts design, mold design, prototype making, mass production, testing, painting, assembly, and delivery.
Q2: What is the typical lead time for mold delivery? Generally, it takes about 45-50 days after the down payment is received and drawings are approved.
Q3: How do you ensure the quality of the molds? We use world-class equipment for precision machining and perform 100% inspection by QC/QA teams before shipment.
Q4: What materials can be used for the stamped parts? We work with various materials including DC01, SPCC, Stainless Steel (SS), SUS, and Aluminum.
Q5: Do you provide after-sales support if issues arise? Yes, we provide analysis and solutions for any mold problems, including supplementary parts for destroyed components under warranty.

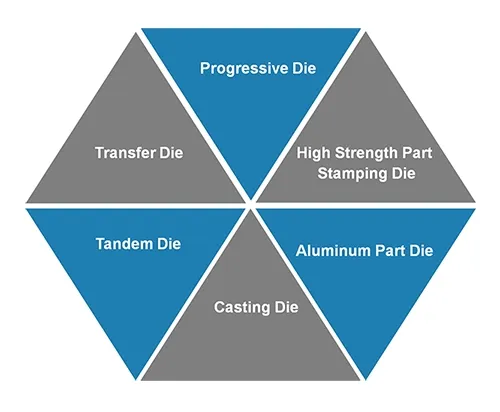

Q6: Can you handle complex progressive die designs? Absolutely. With over 20 years of experience and a large engineering team, we specialize in progressive, transfer, and tandem dies for complex industrial parts.
