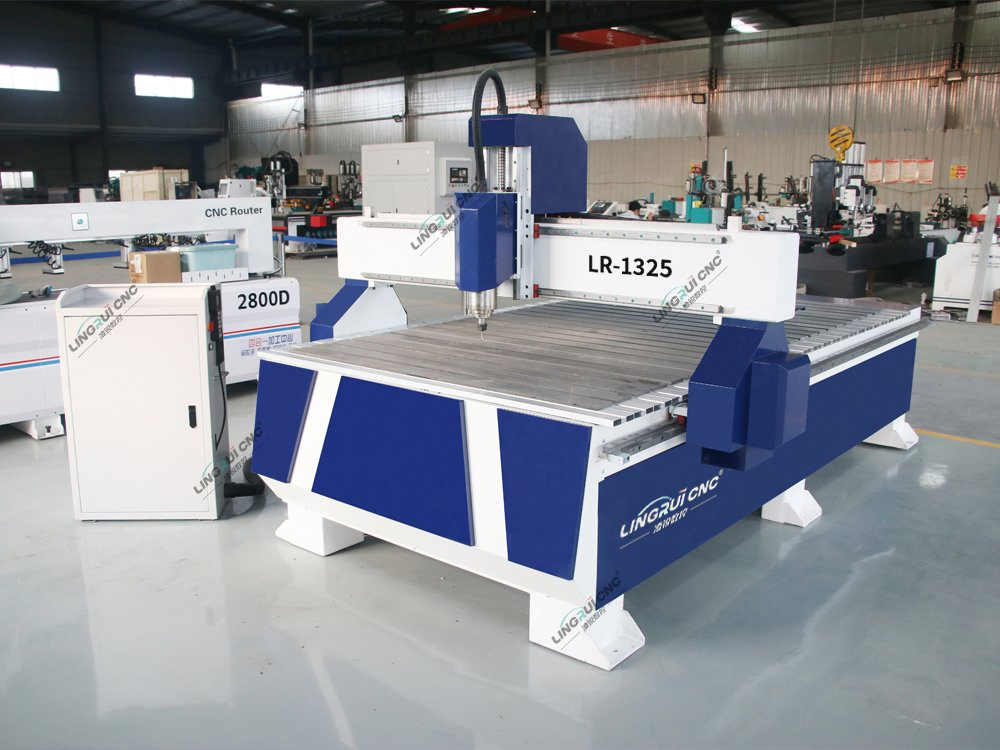

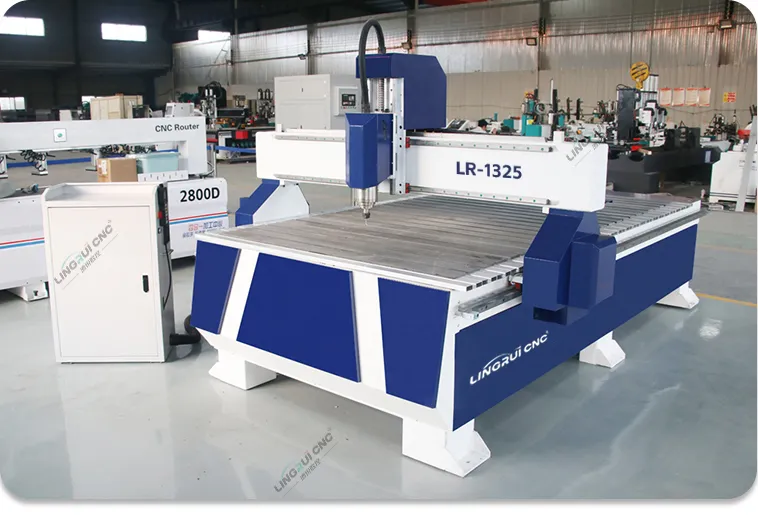

Deepit Cutter
1 / 5
| Model NO. | LR-1325 |
| Condition | New |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |
| Voltage | 380V |
| Spindle Power | 3.5 Kw Water-Cooled Variable Frequency Spindle |
| Drive Mode | Servo Motor/Servo Drive |
| Guide | Taiwan Hiwin High Precision 25 Linear Square Rail |
| Mesa | Aluminum Alloy T-Slot Workbench |
| Vacuuming Method | 3kw Double-Drum Dust Collector |
| Control System | Weihong Nc Studio V5.4.49 Optional DSP or Nk105 |
| Max Cutting Speed | 28000mm/Min |
| Max Empty Line Speed | 48000mm/Min |
| Frequency Converter | Best/Hpmont Inverter |
| Origin | China |
| XYZ Work Schedule | 1300* 2500 *200mm (customizable) |
| Dragon Gate | Thickened cast iron gantry, cast iron bracket |
| Bed | Machining center bed (heavy duty bed), independent control cabinet |
| Spindle Speed | 6000- 24000r/m |
| Transmission Mode | XY axis ground helical gear + Z axis high-precision TBI screw |
| Equipment Cable | Pure copper high flexible anti-bending cable |

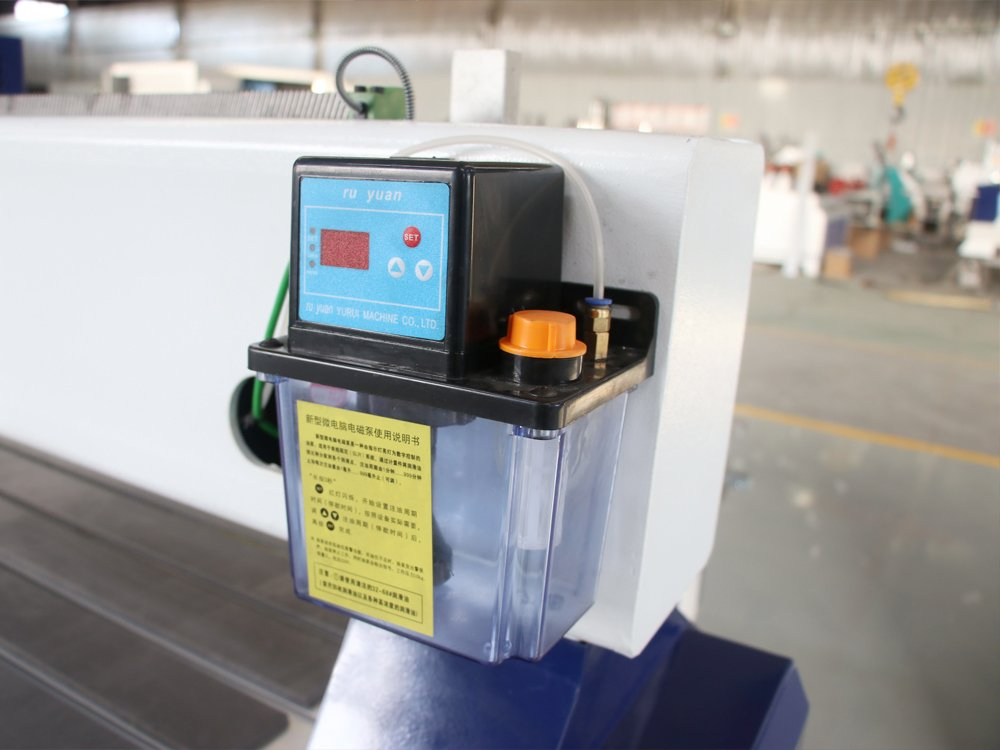

| Lubrication System | Electric lubrication oil injection maintenance system |
| Repeat Accuracy | ±0.02mm |
| Machine Size | 3100* 2000*1650mm |
| Machine Weight | 1200kg |

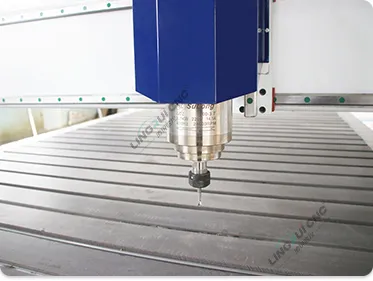

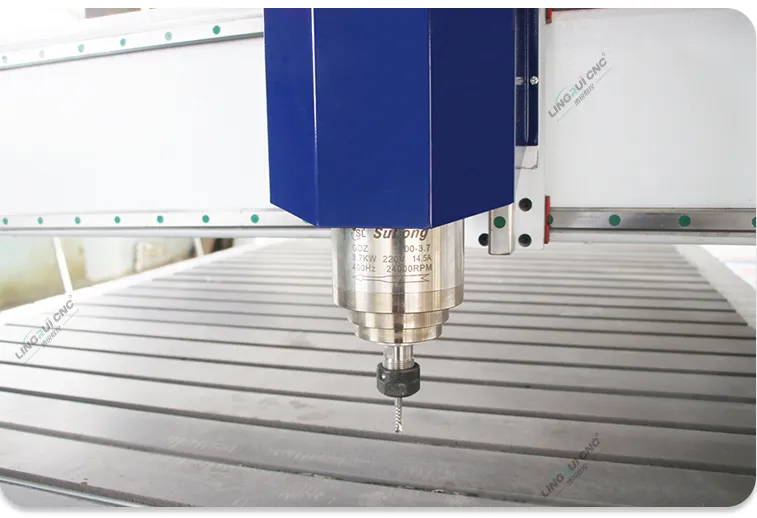

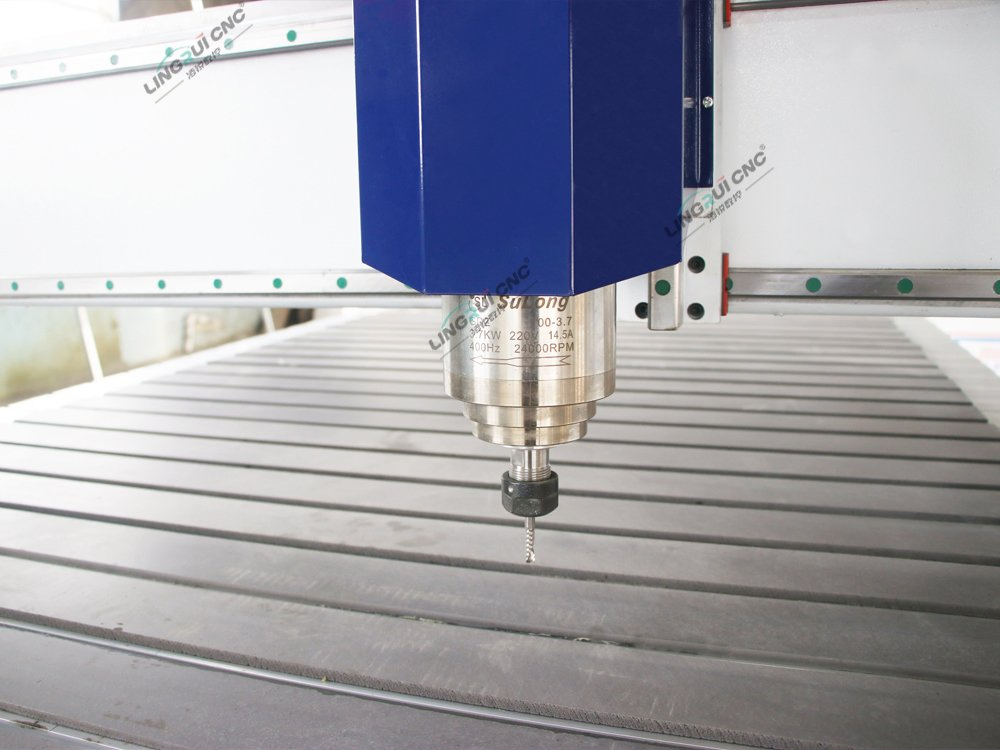

High-Speed Spindle
Standard 3.5KW high-speed water-cooled spindle, maximum speed 24000RM. Can process different plates quickly and clamp various tools for different tasks.

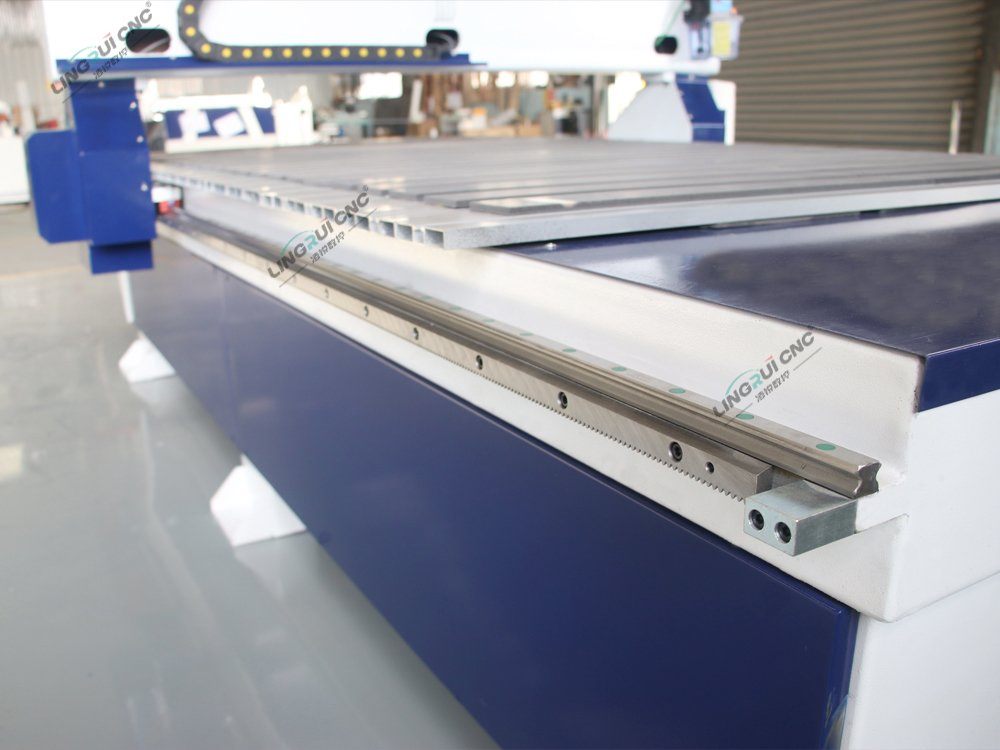

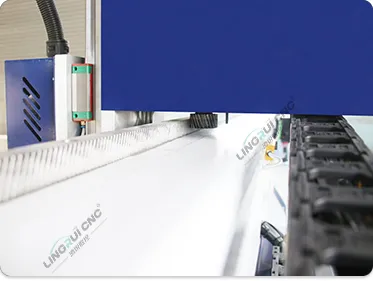

Helical Rack & Gear
High-precision helical rack and gear for fast transmission, high positioning accuracy, and low operating noise with minimal maintenance.

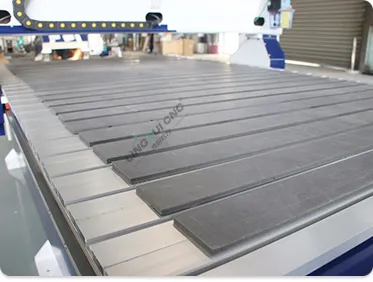

T-Slot Work Platform
Aluminum alloy T-slot platform with PVC surface. Workpieces can be freely fixed according to size. Vacuum adsorption or pneumatic roller options available.

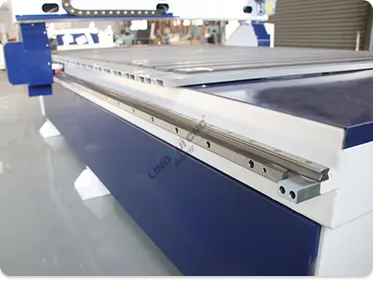

Linear Guide Rails
Taiwan Hiwin 25MM linear square guide rails and bearings. Fast running speed, higher precision, and capable of 24-hour continuous work.

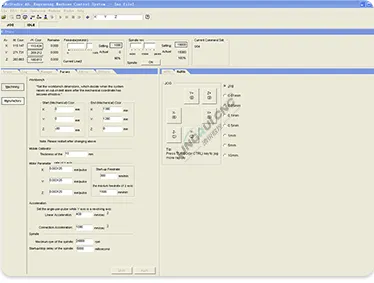

Weihong Control System
Standard NCV5.4.49 system supporting power-off resume. Optional DSP handle, NK105, or MACH3 systems available.
Applicable Materials: Wood board, MDF, artificial board, plastic, PVC, PCB, acrylic, aluminum, copper, epoxy resin, carbon fiber, artificial stone, etc.
Application Industries:
