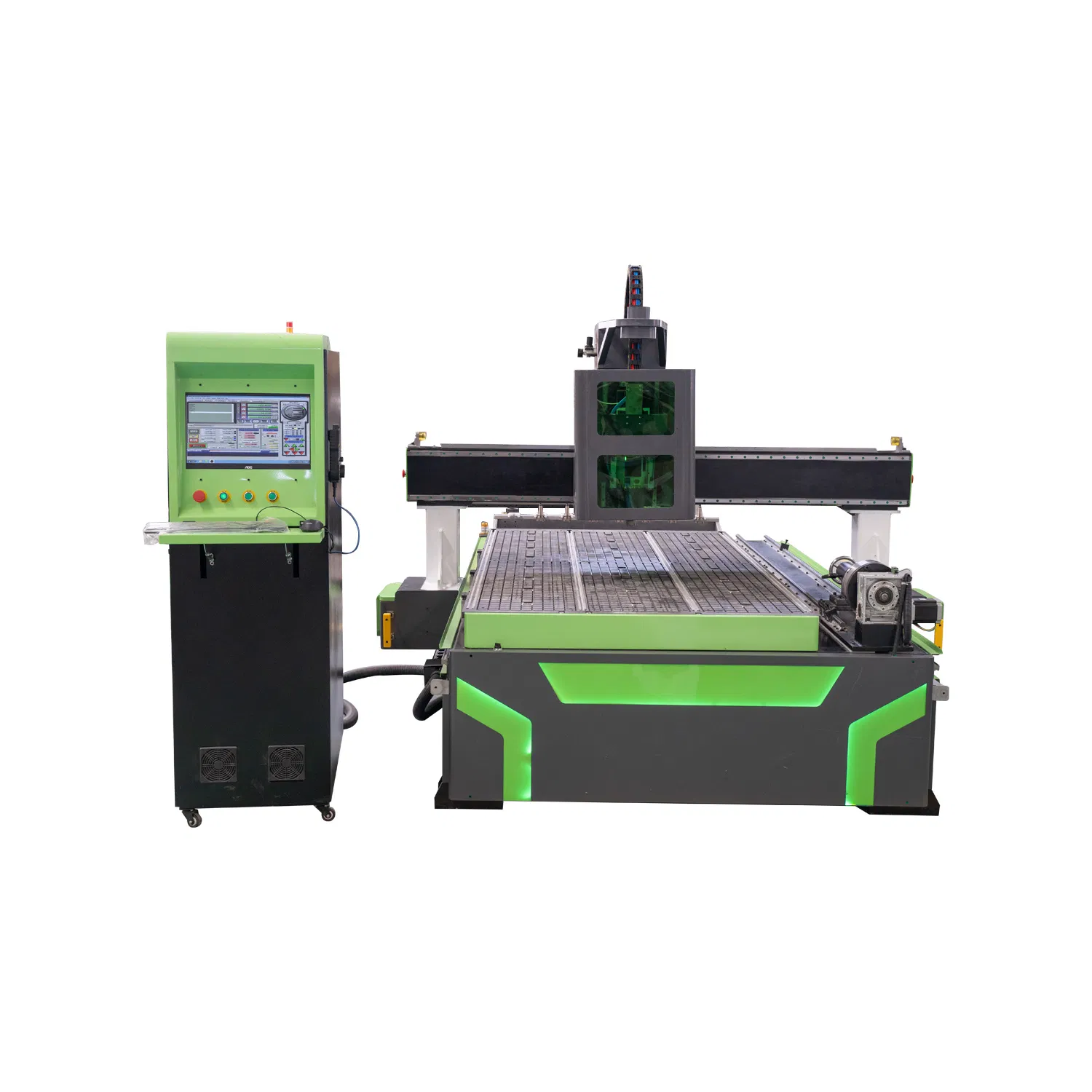

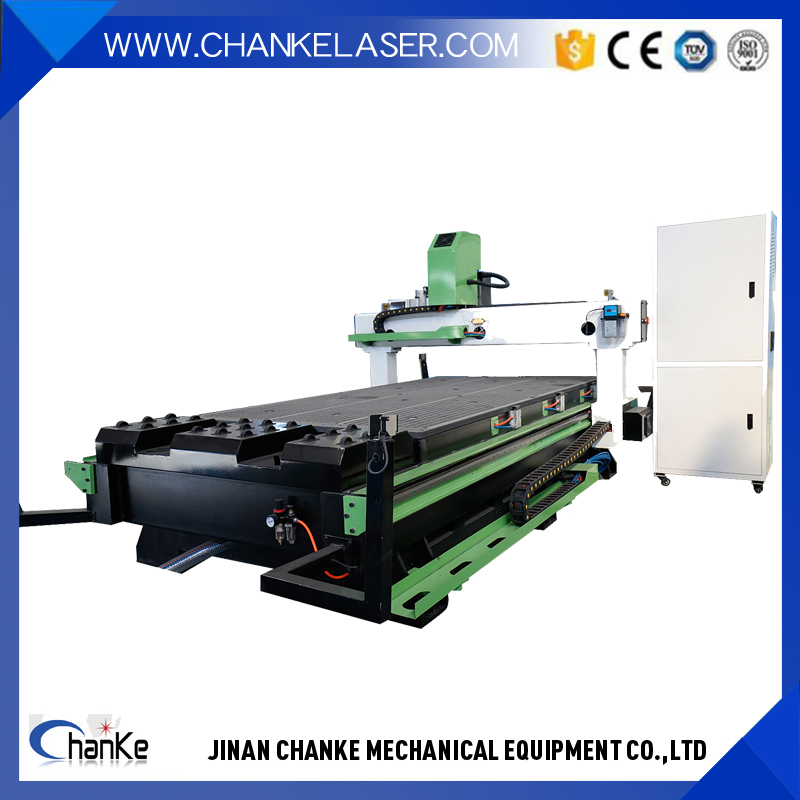

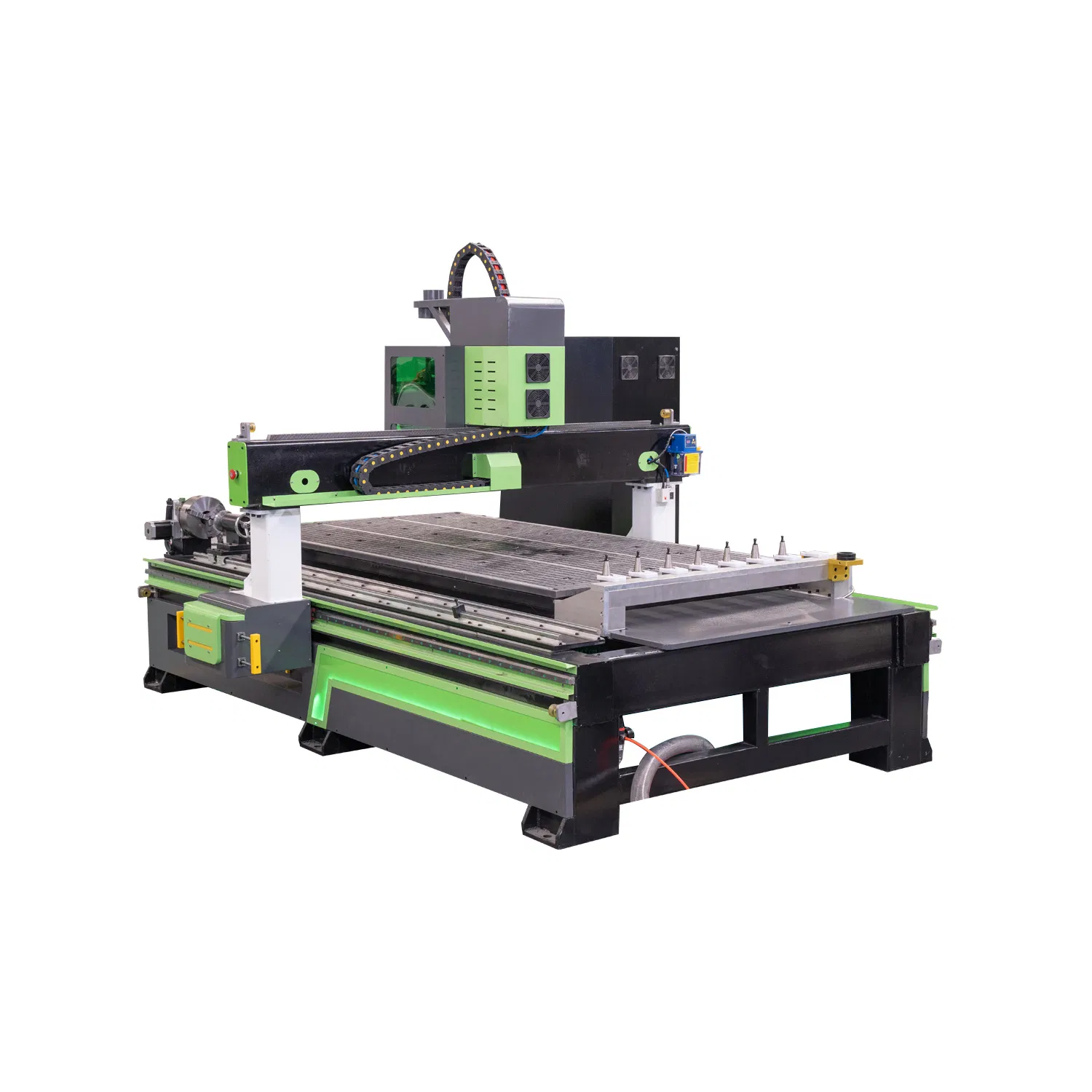

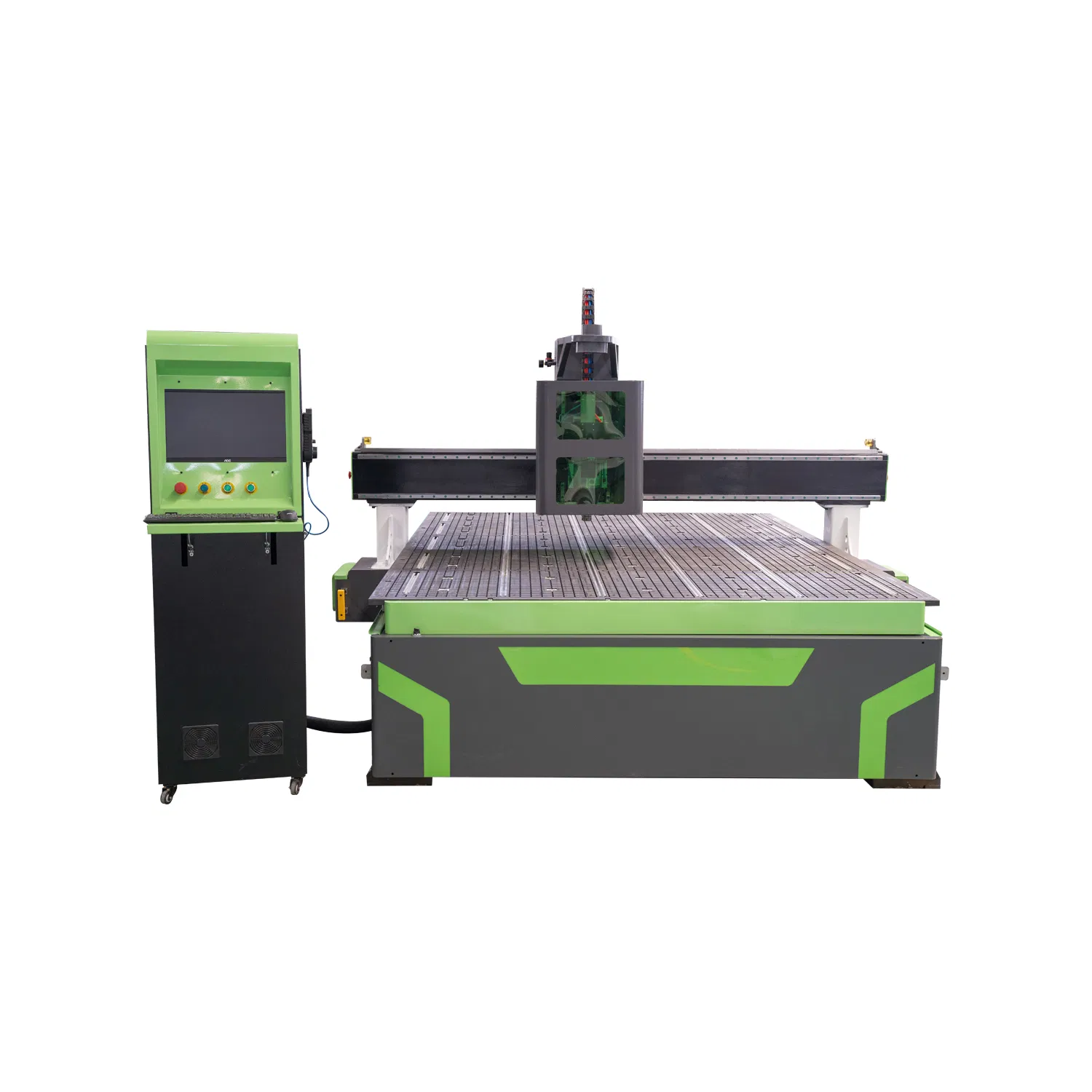

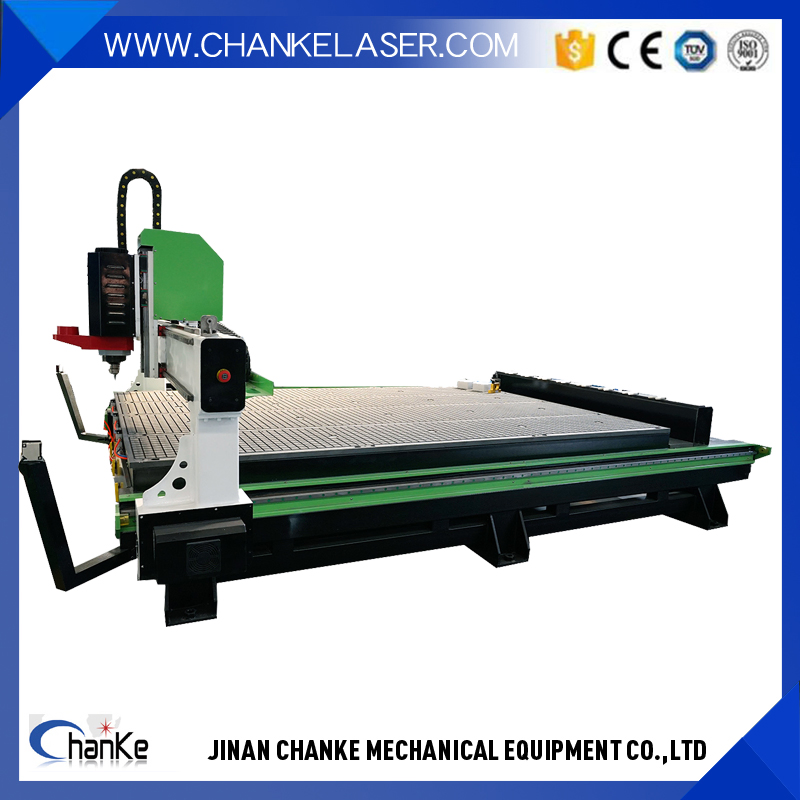

Precision Wood Carving CNC Router Tool

Customization:	Available
Type:	Engraving Router
Spindle Layout:	Spindle Over

Send Inquiry

Product Description

Basic Specifications

Model NO.

CK1325

Spindle Number

Single-Spindle

Feed Mode

Manual

Controlling Mode

CNC

Certification

CE, ISO, FDA

Condition

New

Working Size

1300X2500mm

Cooling Mode

Water Cooling Spindle

Spindle Power

1.5/2.2kw/3kw/4.5kw/5.5kw/7.5kw

Rail

Taiwan Hiwin Square Rail

Transmission

Z Axis: Ball Screw, XY: Gear and Rack Rail

HS Code

847989999

Wood CNC Router Overview

This wood CNC router boasts an impressive working size of 1300x2500x200mm, equipped with a top-of-the-line vacuum table and a powerful 3 kW water-cooled spindle. Utilizing a high-efficiency vacuum pump to secure molds firmly, it offers unparalleled convenience for high-volume production, significantly enhancing efficiency compared to traditional material holders.

We provide customizable spindle options (4.5 kW, 5.5 kW, 7.5 kW) tailored to your requirements. A robust 3 kW spindle can deftly cut and engrave materials like wood, MDF, acrylic, aluminum, and brass. For cutting 40mm thick wood in a single pass, a 5.5 kW spindle is recommended.

Key Machine Features

Vacuum & T-slot Combined Table: Supports both material holders for small processing and suction for large-scale efficient processing.
Water Cooling Spindle: High precision, long life time, and steady working performance.

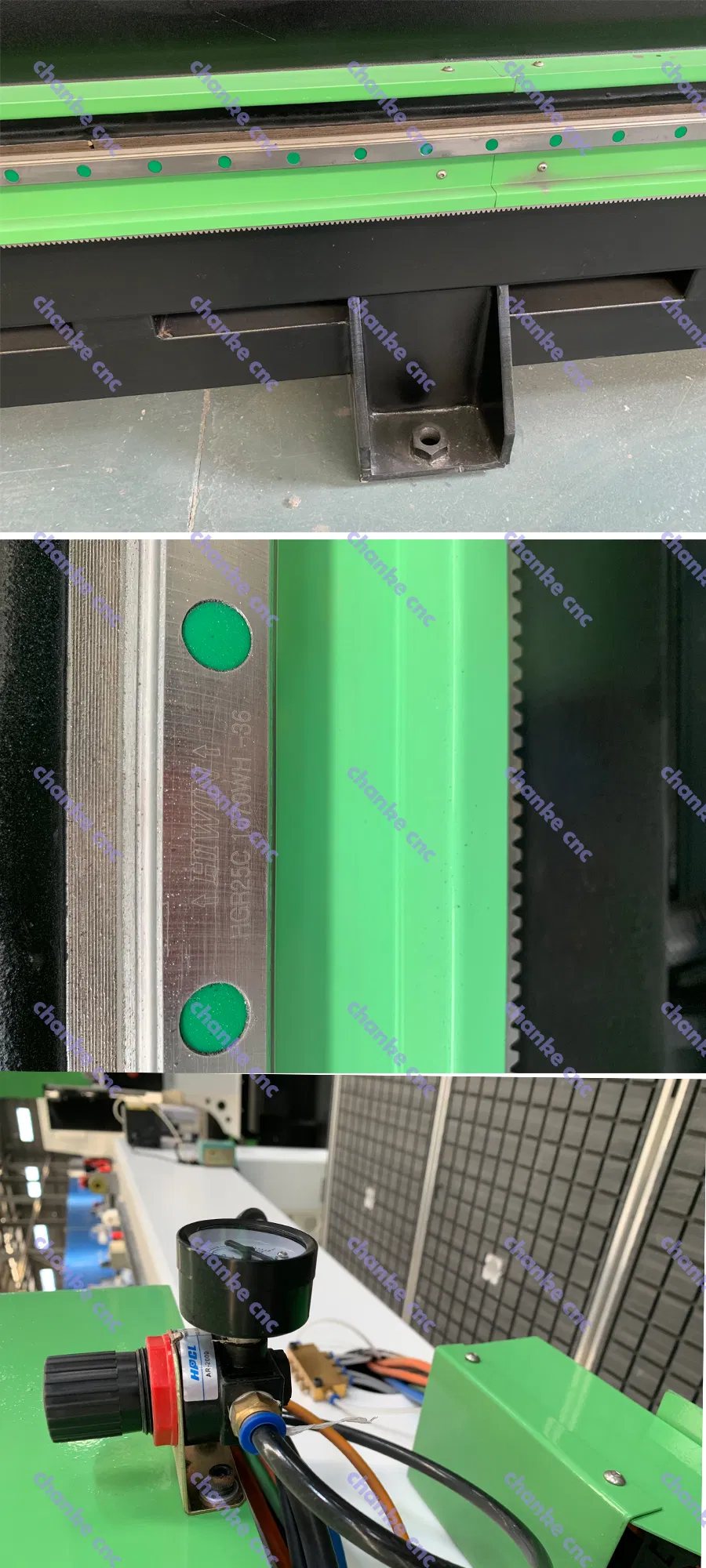

Taiwan Hiwin Linear Guide Rail: Self-lubricating sliding blocks ensuring accuracy and strength in all directions.
Double-Motor Y Axis: In-phase drive ensuring smooth machine movement and equality.
DSP Controller System: USB interface allows operation without a direct computer connection.

Technical Parameters

Parameter Item	Details
Model	CK-1325 Wood CNC Router
Engraving Area (WLH)	1300 * 2500 * 200 mm
Spindle Power	3.0kw / 4.5kw / 5.5kw (Optional)
Spindle Speed	6000 ~ 24000 rpm
Motor Type	Stepper motor or Japanese Servo motor
Machine Structure	Thicker Welded Steel Tube (8mm thickness)
Transmission System	X,Y Axis: Helical Rack; Z Axis: Taiwan TBI Ball Screw
Positioning Accuracy	±0.03 / 300mm
Engraving Speed	8000 ~ 12000 mm/min
Software Support	Type3, Artcam, Castmate, UCancam, etc.
Net Weight	1680 Kg

Applicable Industries & Materials

Furniture: Doors, cabinets, office furniture, plate processing.

Wood Products: Speakers, musical instruments, computer tables, game cabinets.

Decoration: Acrylic, PVC, MDF, plastic, and soft metals (copper, aluminum).

Board Processing: PCB, car body components, epoxy resin, ABS, PP, PE.

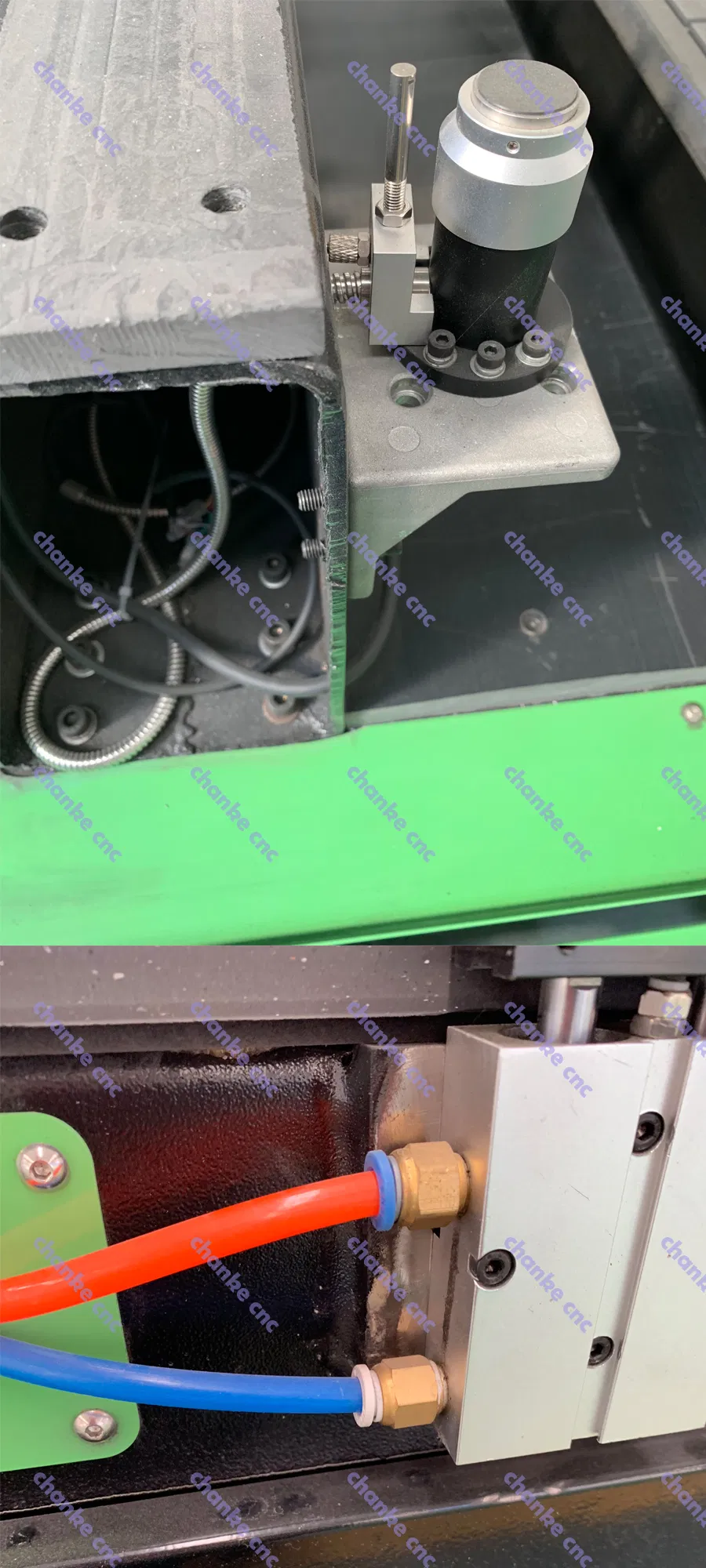

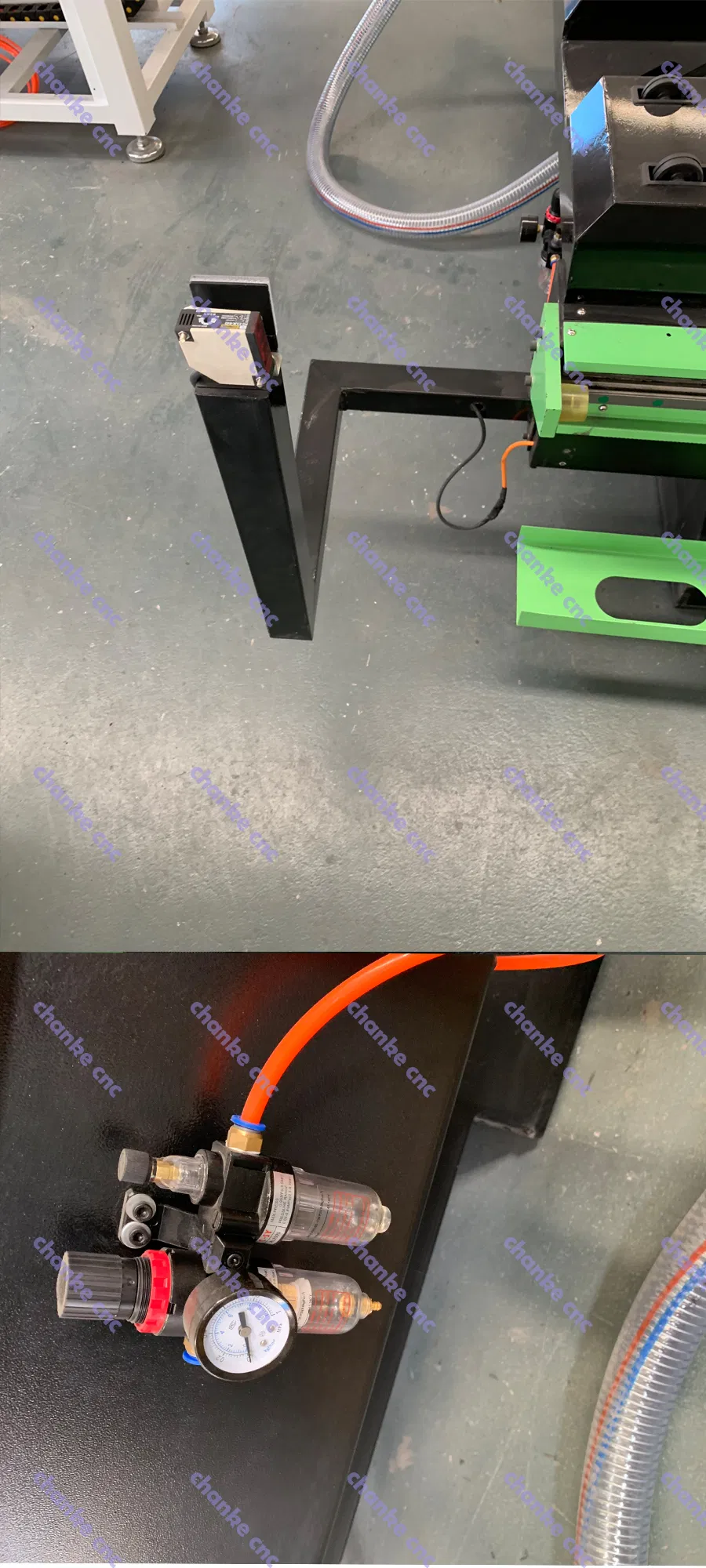

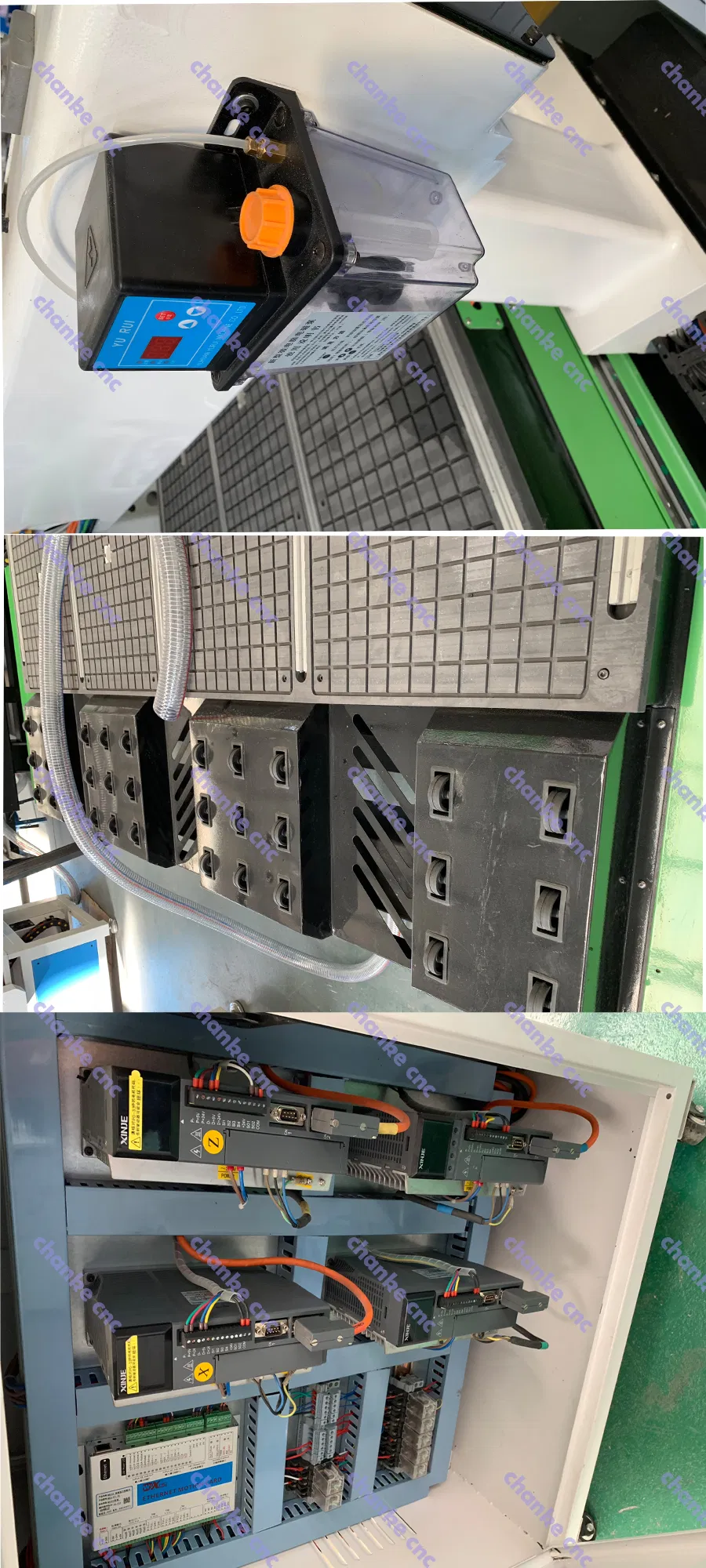

Product Display

Guarantee & After-Sales Service

Two Years Quality Guarantee: Main parts (excluding consumables) will be replaced free of charge if problems occur during the warranty period.

Lifetime technical support and 24-hour online assistance.
English operating manuals and remote control assistance.
Engineers proficient in English for global troubleshooting.
Comprehensive service from factory manufacturing to port delivery.

Professional Packaging

Our CNC routers are packaged with a standard inner plastic wrap, sturdy steel structure, and outer plywood cases. Our plywood cases are distinguished by:

High Strength: Superior compressive strength and load-bearing capacity for heavy transit.
Protection: Excellent structural integrity makes it leakproof and waterproof.
Fumigation-Free: Simplifies the import and customs process effortlessly.

Frequently Asked Questions (FAQ)

Q1: What materials can this CNC router process?

It can process wood, MDF, acrylic, PVC, plastic, and soft metals like copper, aluminum, and brass. It is also suitable for composite boards and car body materials.

Q2: Can the spindle power be customized?

Yes, we offer multiple options including 1.5kW, 2.2kW, 3kW, 4.5kW, 5.5kW, and 7.5kW spindles depending on your cutting thickness requirements.

Q3: What is the advantage of the vacuum table?

The vacuum table uses high-pressure suction to secure materials firmly without manual clamps, which saves labor and significantly increases production speed for flat sheets.

Q4: Does the machine require a computer to operate?

The DSP controller system allows the machine to work via a USB interface, meaning it can operate independently without being constantly connected to a computer.

Q5: What kind of warranty do you provide?

We provide a comprehensive two-year quality guarantee for the main parts of the machine, along with lifetime technical support.

Q6: How is the machine protected during international shipping?

The machine is wrapped in plastic, secured by a steel structure, and encased in a robust, fumigation-free plywood box to ensure it stays waterproof and safe during transit.
