Suitable for Cutting Multi-Layer Woodworking Sliding Table Panel Saw Machine

Customization: Available
Warranty: 1 Years
Type: Table Panel Saw

Product Description

Basic Specifications
Model NO.
MP32
Power Type
Electric
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO, FDA
Sliding Table Size
3200*320mm
Max Cutting Length
3150mm
Saw Blade Angle
90°
Production Capacity
5000 Pieces/Year
Product Overview

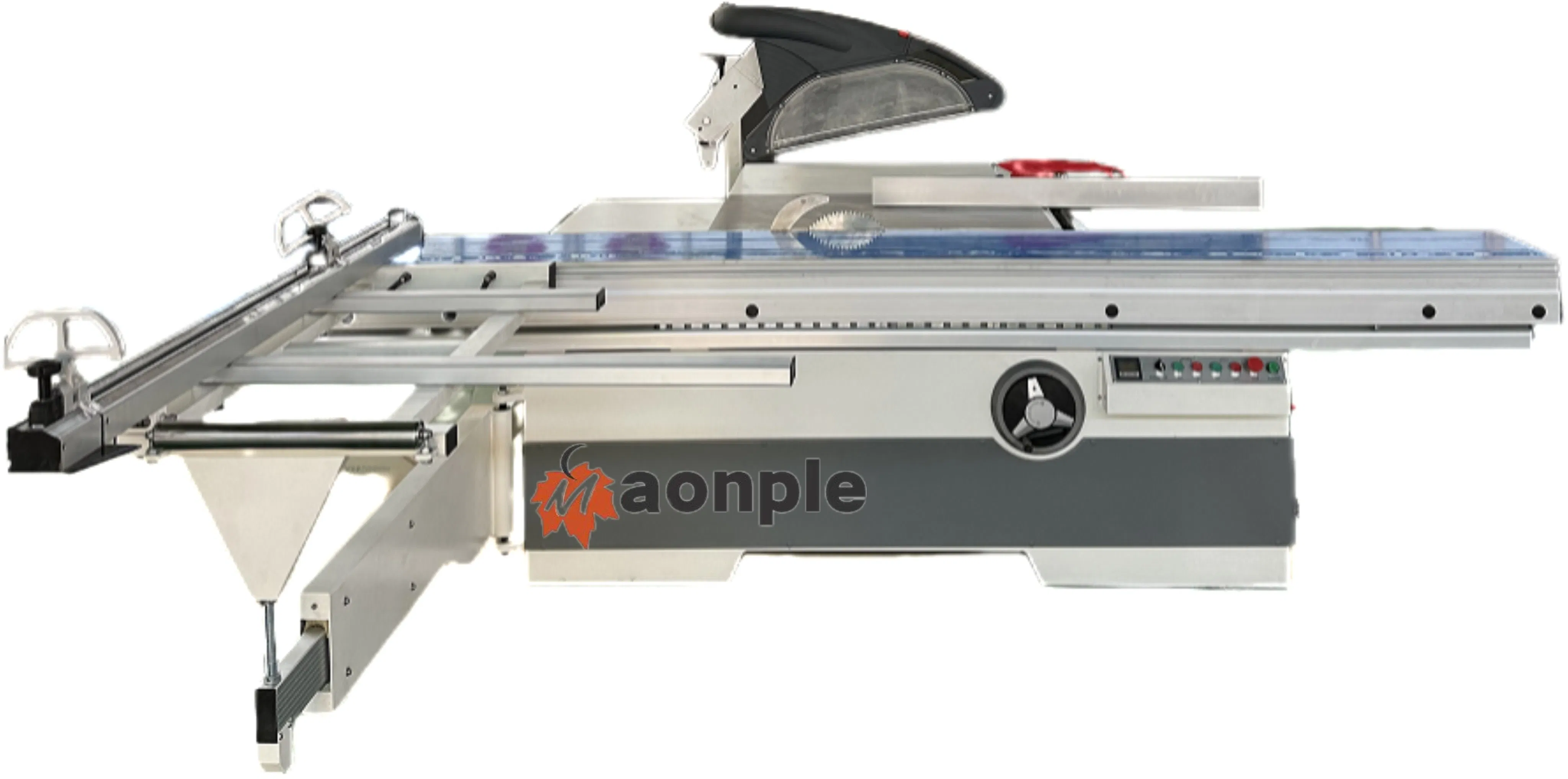

Model MP32A - Woodworking Sliding Table Panel Saw

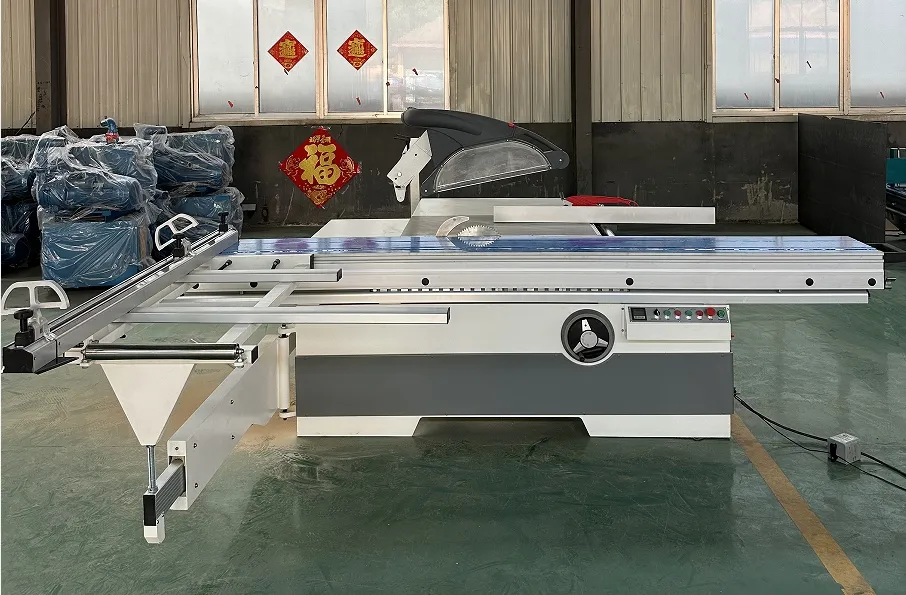

Sliding Table Panel Saw Machine

The sliding table panel saw is specifically designed for making precise cuts in various materials, including MDF (Medium Density Fibreboard), particleboards, wood-based panels, ABS boards, PVC boards, organic glass plates, and solid wood. It is highly effective for cutting materials with similar hardness levels. Featuring a large blade and a stable sliding table, it ensures accurate and controlled cutting for woodworking shops, furniture manufacturing, and construction industries.

Key Features & Technical Details

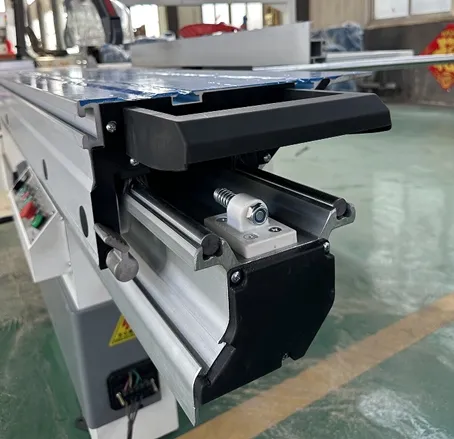

Heavy Duty Push Platform
Heavy-Duty Push Platform
European seat 388mm wide platform with plated round rod guide rail structure. Made of high-strength extruded aluminum alloy with oxidation treatment for wear resistance and zero deformation. Includes a step-by-step locking structure for easy operation.

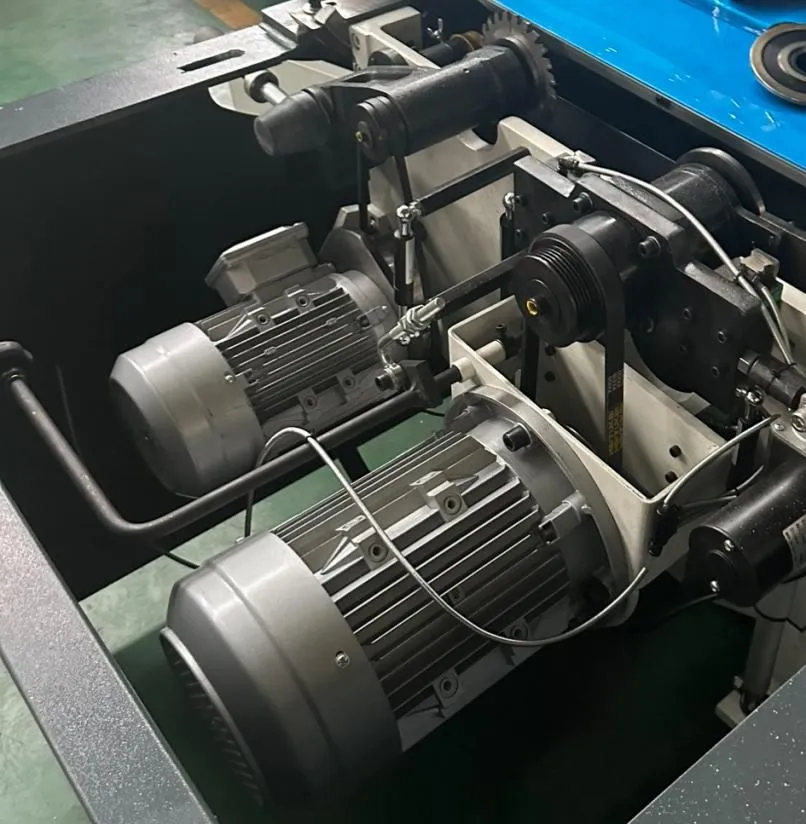

High Power Motor
Dual Motor System
Aluminum shell copper core 5.5kW + 1.1kW large motors ensure fast heat dissipation for long-term operation. Equipped with a linear guide electric lifting structure to improve stability and cutting precision.

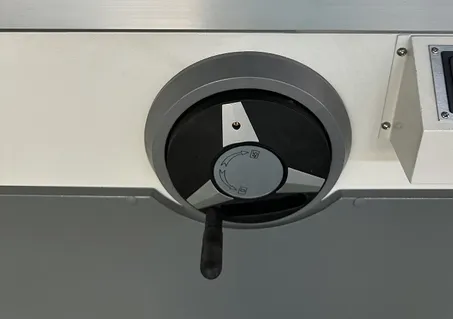

Angle Adjustment
Precision Tilting
The saw blade tilts freely from 0 to 45 degrees. The integrated digital display provides clear and precise angle readings for the operator.

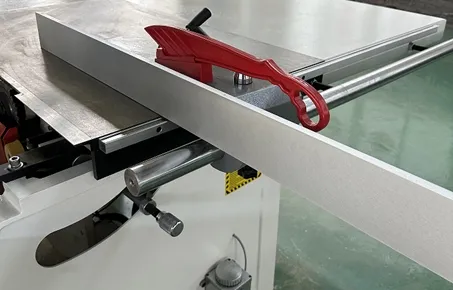

Cutting Length
Extended Mold Shaft
Increases the cutting length capabilities, making it more convenient to process large-scale panels.

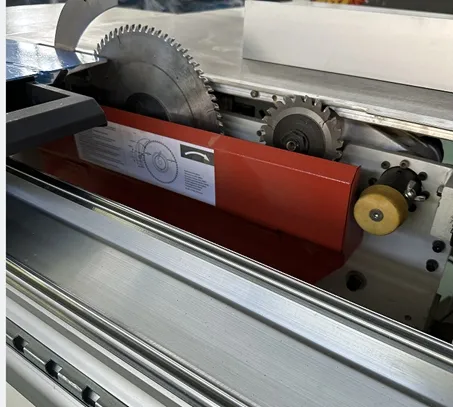

Saw Shaft
Imported Bearings
Saw shaft bearings imported from Japan ensure uniform rotating speed. The structure allows for easy loading and unloading of blades, with adjustable small saw blade positioning.

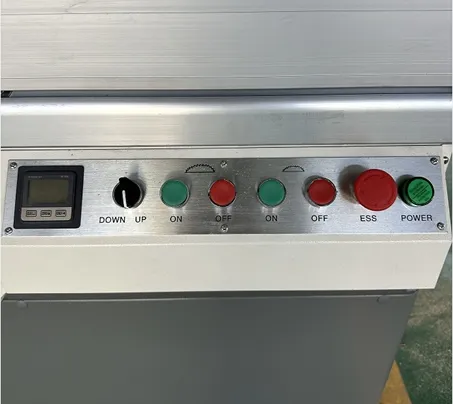

Electrical Components
Premium Electronics
Equipped with high-quality electrical components to ensure long-term stability and safe processing operations.
Product Parameters Comparison

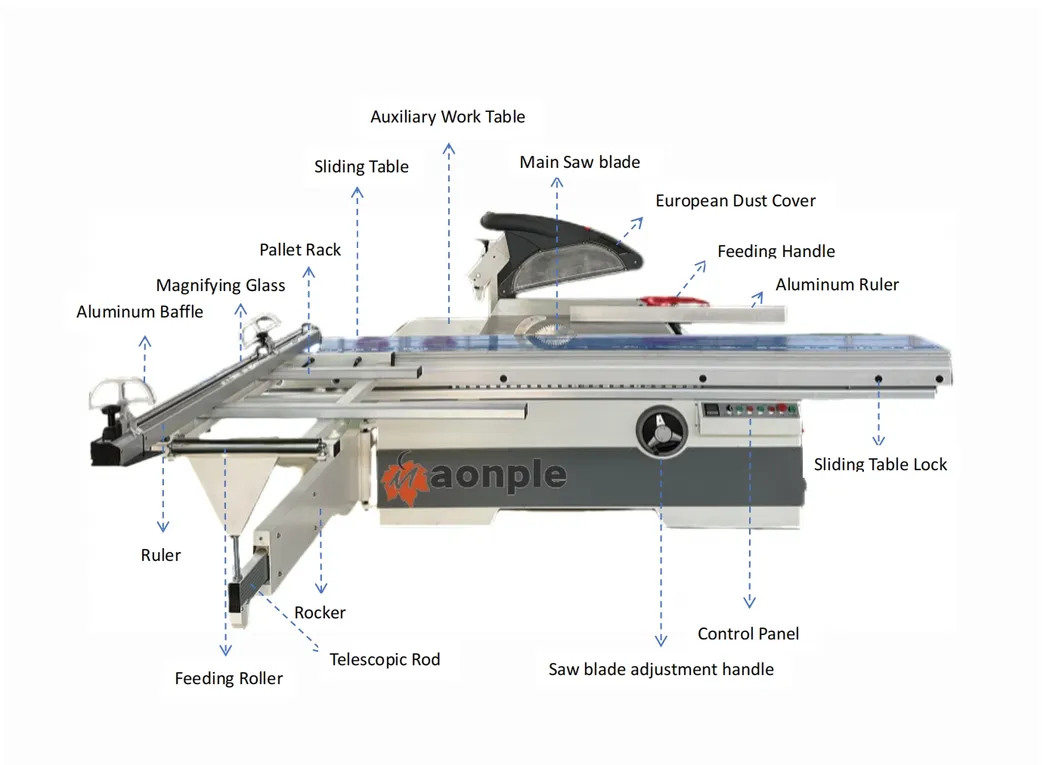

Parameter Chart
Model MP32C MP32B MP32A MP32D MP32E
Sliding table3200*375mm3200*388mm3200*388mm3200*415mm3200*405mm
Main motor4kw5.5kw5.5kw5.5kw5.5kw
Scoring motor0.75kw1.1kw1.1kw1.1kw1.1kw
Max length3200mm3200mm3200mm3200mm3200mm
LiftingManualManualElectricElectricElectric
Angle DisplayIndex dialIndex dialDigitalDigitalDigital
Weight600kg700kg750kg850kg850kg
Usage Scenarios
Usage Scenarios
  • Solid welded body frame to ensure machine stability.
  • Double saw blade structure ensures maximum cutting accuracy.
  • Suitable for multiple layers of boards, density boards, and acrylic.
  • Achieve precise cutting at any angle from 0 to 45°.
Manufacturing Excellence

Our production facility specializes in woodworking machinery, providing professional-grade products supported by expert technology and comprehensive testing lines. With 4 dedicated production lines, we adhere to strict quality management standards to deliver equipment globally to Europe, Russia, Southeast Asia, and beyond.

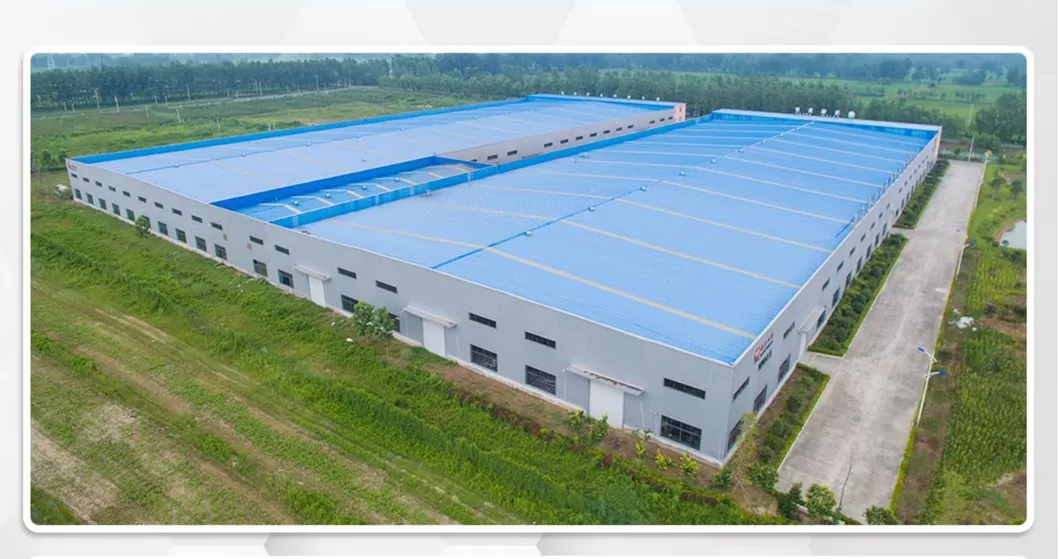

Production Line 1

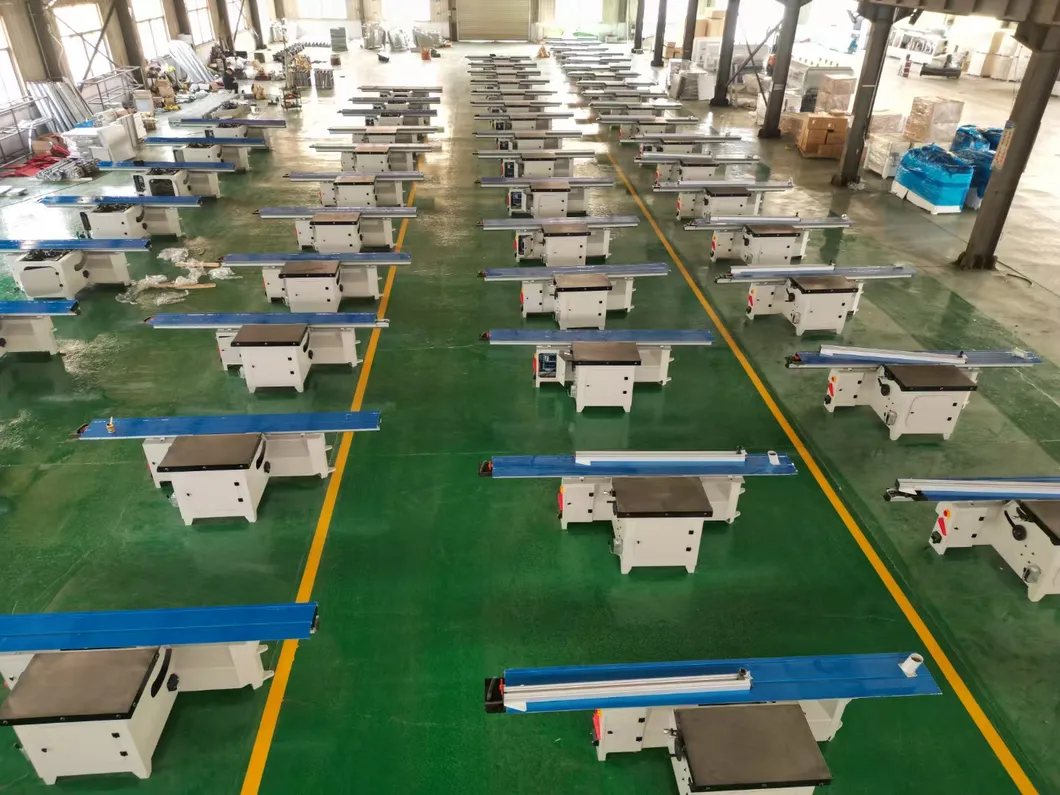

Production Line 2
Packaging & Global Presence
Packaging
Shipping
Exhibition
Frequently Asked Questions
What materials can this sliding table saw handle?
It is designed for MDF, particleboards, wood-based panels, ABS boards, PVC boards, organic glass, and solid wood.
What are the available payment and delivery terms?
We accept L/C, T/T, and other standard methods. Delivery typically occurs within 30 days after the initial payment.
What kind of warranty is provided with the machine?
We provide a one-year guarantee from the delivery date under normal operation. We are responsible for maintenance of damaged parts during this period.
Does the machine support angle cutting?
Yes, the saw blade can tilt freely from 0 to 45 degrees, and the angle is displayed clearly via a digital screen (on specific models).
What after-sales technical support is available?
We offer 24-hour technical support via email or phone, user-friendly English manuals, and overseas engineer services when required.
Can the machine specifications be customized?
Yes, we accept OEM services and can customize colors and specific configurations to meet international requirements.
