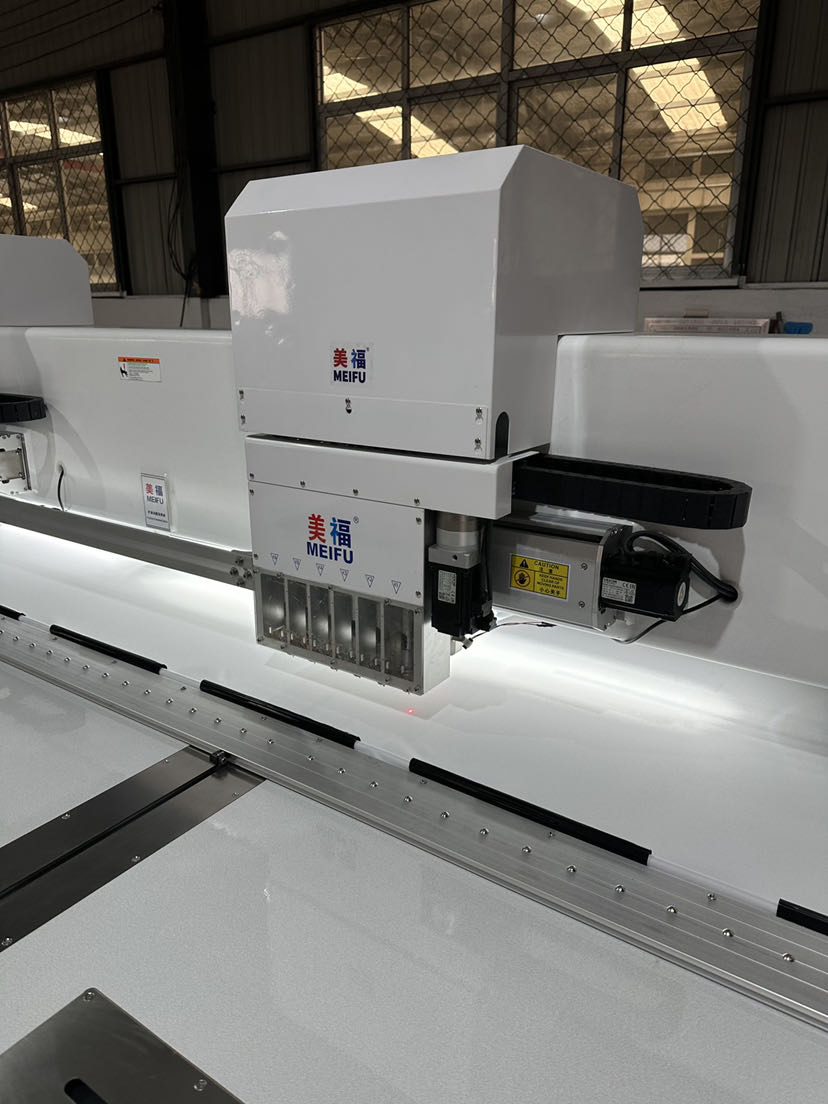

Meifu High Speed Leather Perforating Tool

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
MFR-P-105-900X600/1200X800
Condition
New
Certification
CE, ISO9001
Applicable Thickness
Thick Material
Drive
Electric
Needle Number
Six(Can Be Customized)
Package
Wooden Case
Specification
900X600mm, 1200X800mm

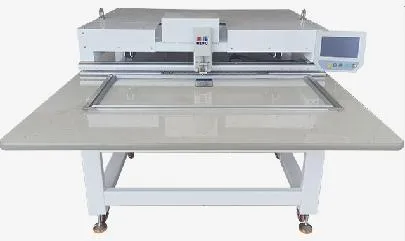

Multi-type Punching Knife Machine

Flexible Exchange: Multi-type punching knife for easy exchange, catering to individual needs.
High Performance: New gantry structure for fast punching speed and quiet operation.
Quality Preservation: Mechanical punching to preserve the original color and quality of leather.
Easy Mobility: Equipped with casters for easy machine movement.
Smart Integration: Customized electronic control for seamless integration with other machines.
Clean Environment: Includes an industrial vacuum silent cleaner for effortless removal of leather scraps.

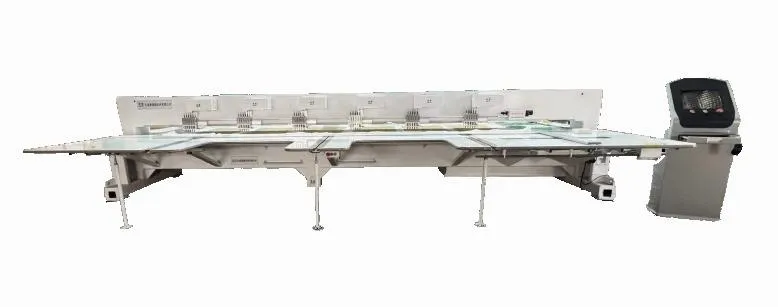

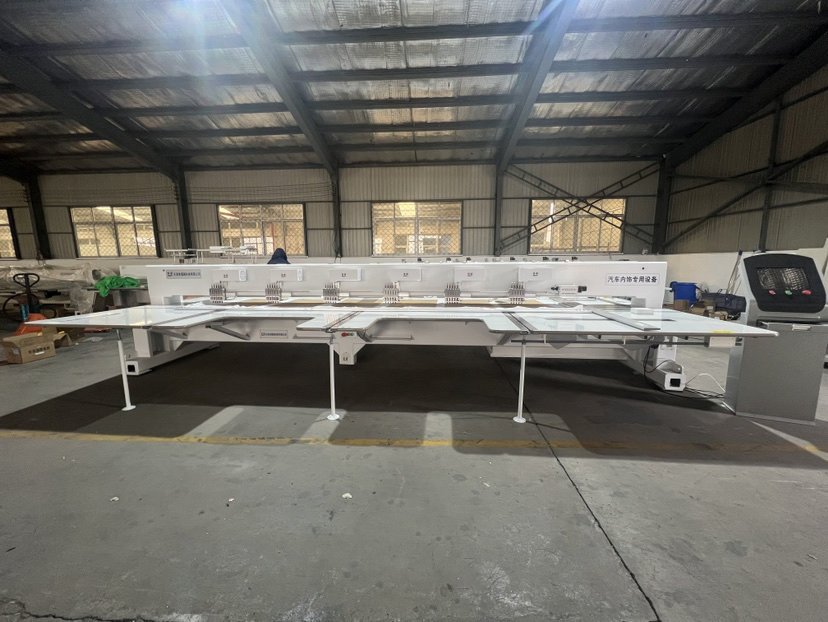

Product Showcase

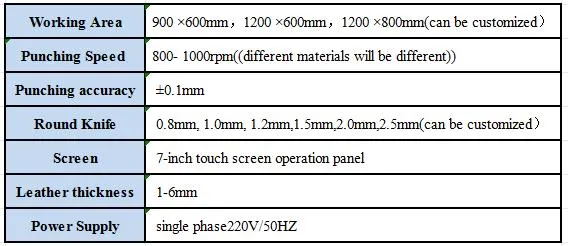

Technical Configuration

● Maximum Punching Speed: 1200 holes/min
● Tools: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm round hole
● Customized Tool Head Installation Possible
● Built-in Vacuuming System
● Pattern Reading Mode: U Disk
● Drive Motor: Servo Motor
● Power Supply: 380V/50Hz or 220V
● Drawing Format: DXF
● Brush Function for Manual Sewing
● Customizable Processing Area
● Support for 8+ Punching Heads
● Hundreds of Programming Data provided

Model Specifications

No. Product Name Specifications and Models Remarks
1 Single head CNC punch MFR-P-1.5-900*600 1 piece at a time
2 Double head CNC punch MFR-P-2.5-900*600 2 piece at a time
3 Single head CNC punch MFR-P-1.5-1200*800 1 piece at a time
4 Double head CNC punch MFR-P-2.5-1200*800 2 piece at a time
5 Four head CNC punch MFR-P-4.5-900*600 4 piece at a time
6 Six head CNC punch MFR-P-6.5-900*600 6 piece at a time

Frequently Asked Questions

What is the maximum punching speed of this machine?
The machine can reach a maximum punching speed of 1200 holes per minute.
What hole sizes are supported by the punching tools?
It supports standard round hole tools of 0.8mm, 1.0mm, 1.2mm, 1.5mm, and 2.0mm. Custom tool heads are also possible.
How is the design pattern imported into the machine?
Patterns are read via a U Disk in DXF format for easy operation.
Does the machine provide a clean working environment?
Yes, it is equipped with an industrial vacuum silent cleaner to automatically remove leather scraps.
Can the processing area be customized?
Yes, the processing area is customizable, for example, ranging from 1000mm to 2000mm to suit different production needs.
What type of motor drives the system?
The machine uses high-precision Servo Motors for stable and efficient performance.
