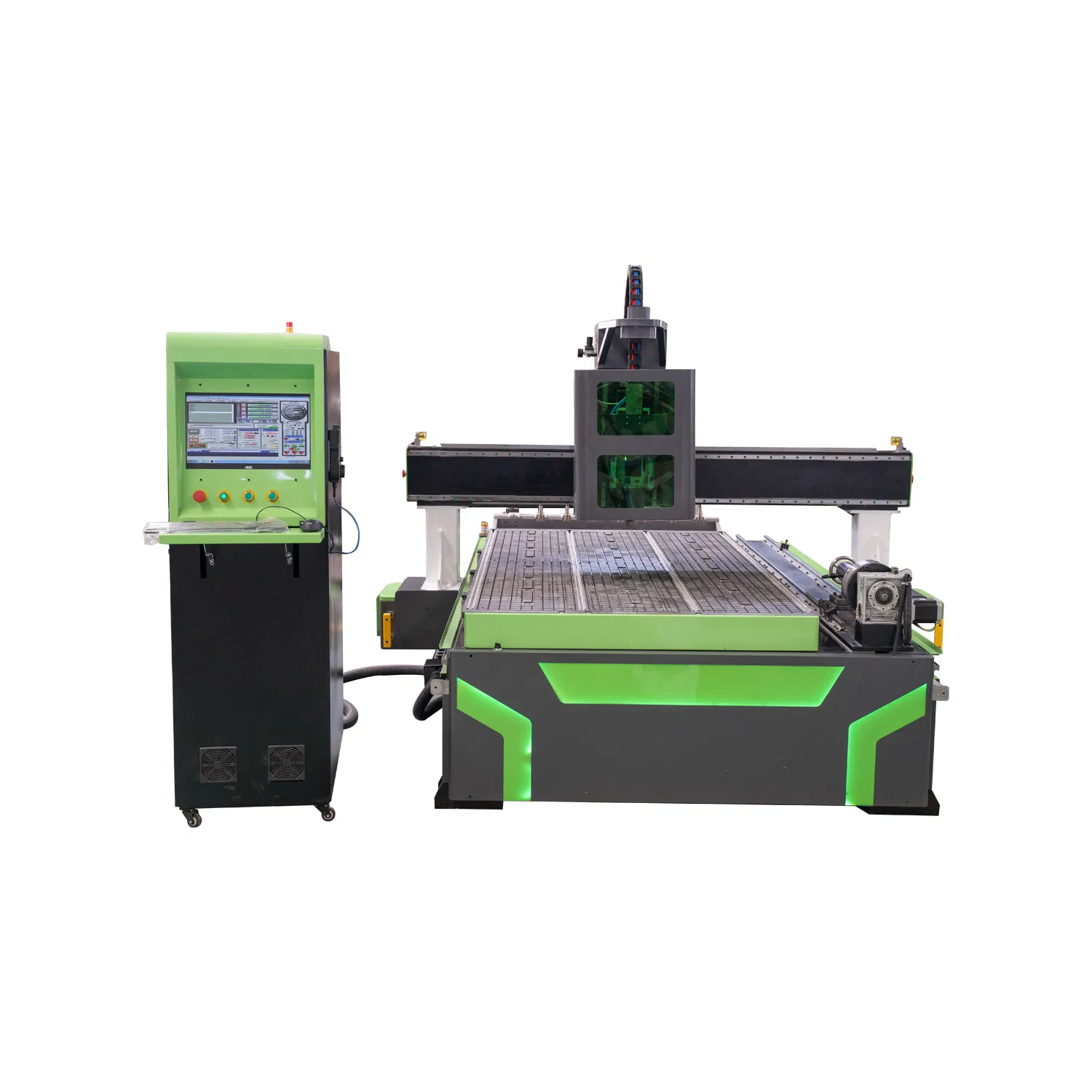

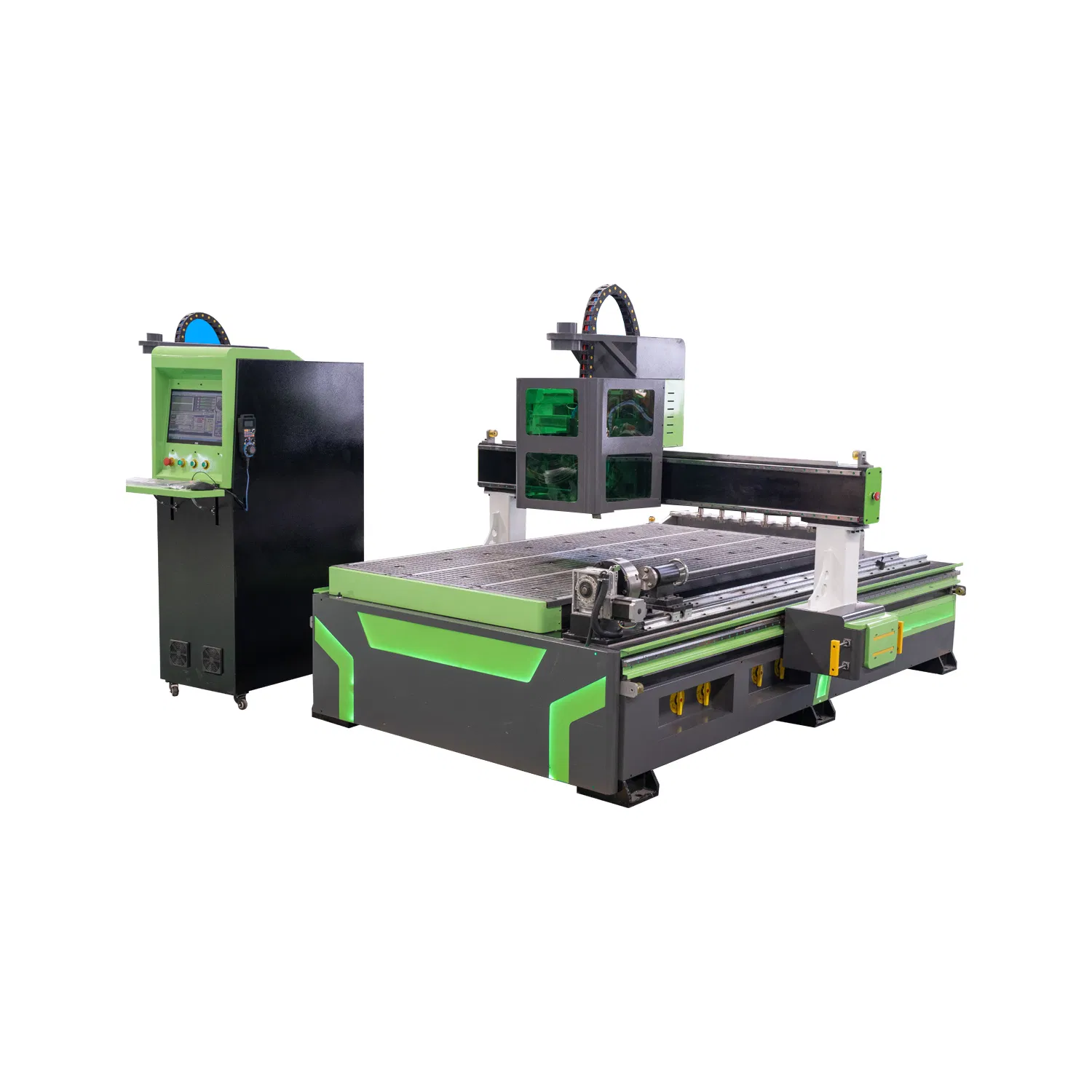

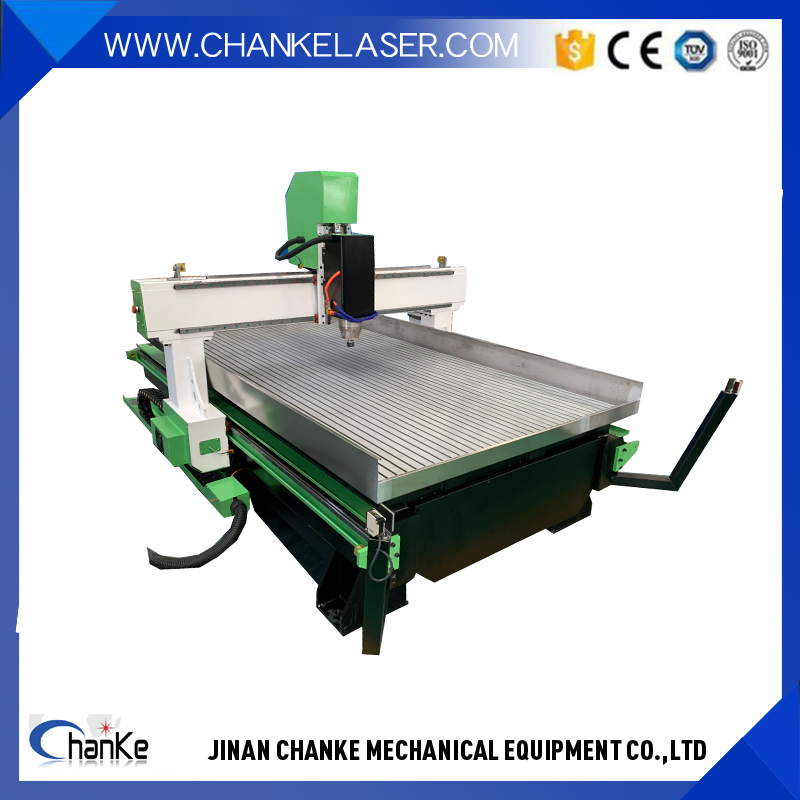

Industrial Grade Woodworking Engraving Machine Tool

1 / 5

Industrial Grade Woodworking Engraving Machine Tool

Customization:	Available
Type:	Engraving Router
Spindle Layout:	Spindle Over

Send Inquiry

Product Description

Basic Specifications

Model NO.

CK1325

Spindle Number

Single-Spindle

Controlling Mode

CNC

Certification

CE, ISO, FDA

Condition

New

Working Size

1300X2500mm

Cooling Mode

Water Cooling Spindle

Spindle Power

1.5kW to 7.5kW options

Software

DSP / Nc Studio / Mach3

Rail

Taiwan Hiwin Square Rail

Production Capacity

50 sets/Month

Product Overview

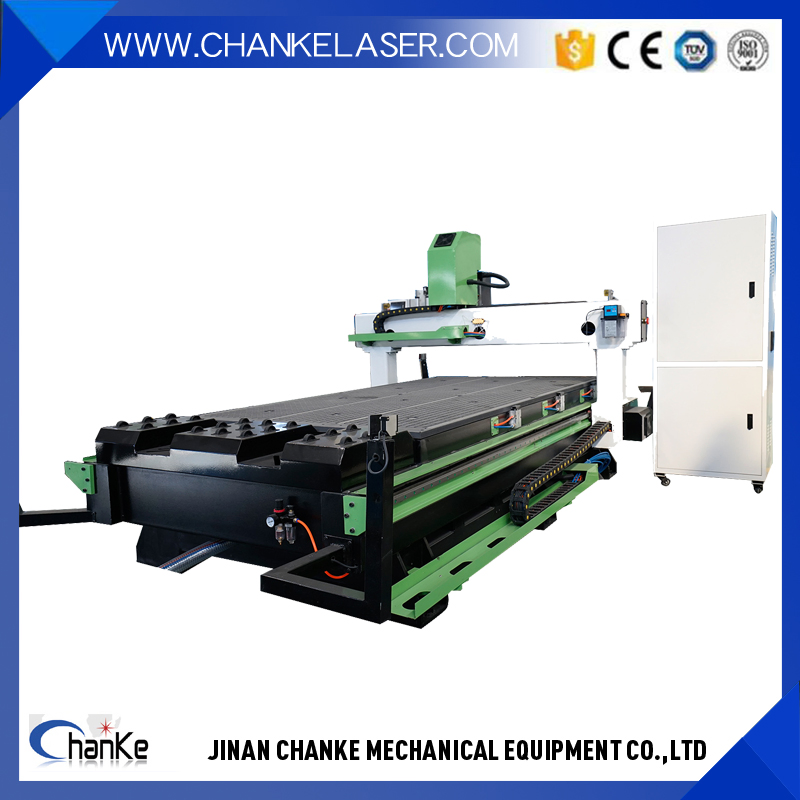

1. Wood CNC Router Capabilities

This wood CNC router offers a generous working size of 1300x2500x200mm and is equipped with a robust vacuum table and a powerful 3 kW water-cooled spindle. It uses a vacuum pump to firmly secure the mold on the table, eliminating the need for material holders. Simply place your mold, activate the vacuum pump, and begin working.

We provide customizable spindle power options, including 4.5 kW, 5.5 kW, 7.5 kW, or larger. A 3 kW water-cooled spindle can efficiently cut and engrave wood, MDF, acrylic, aluminum, copper, brass, and other metal and non-metal materials.

Key Machine Features

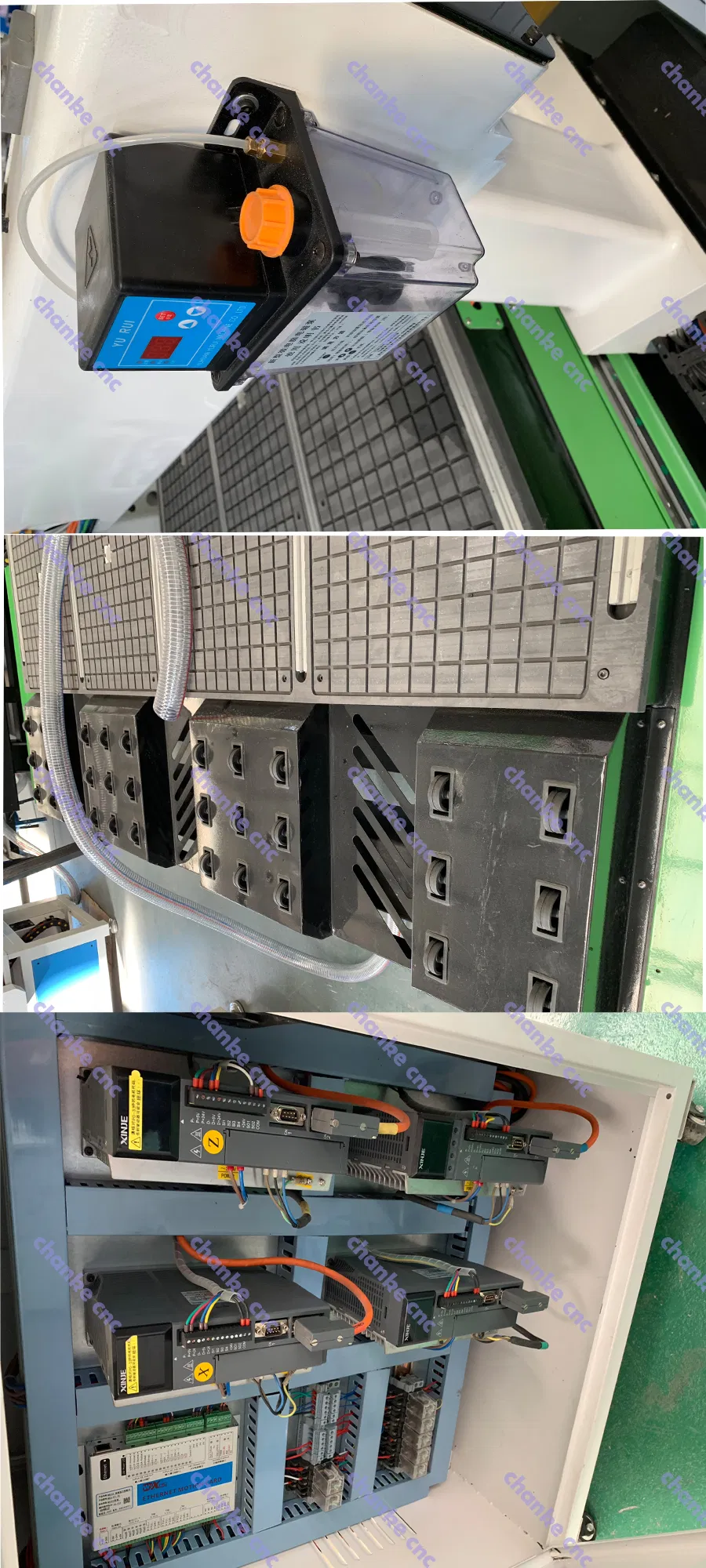

Vacuum & T-slot Combined Table: Perfect for both small-scale processing with material holders and large-scale adsorption for high efficiency.

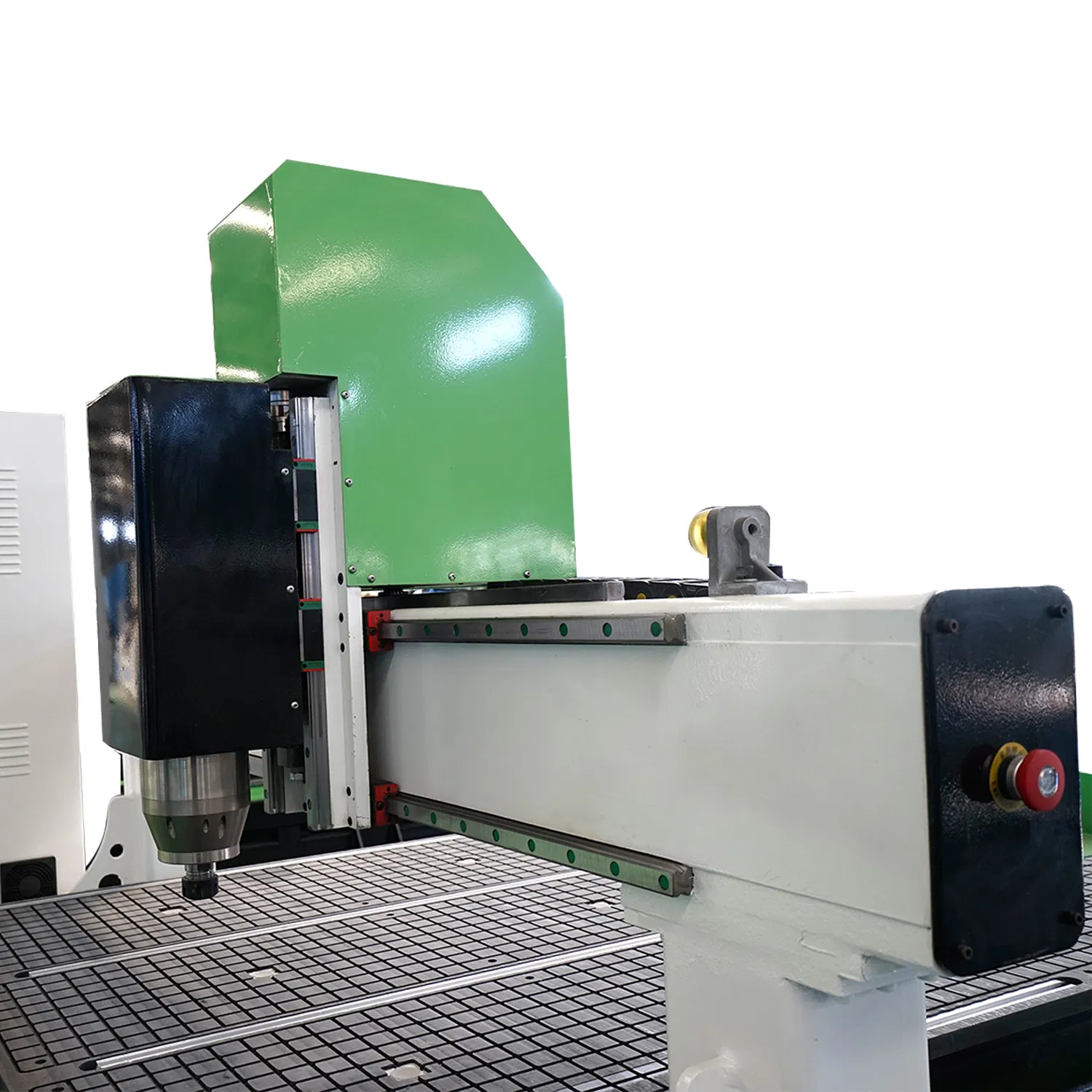

Premium Water Cooling Spindle: High precision, extended lifespan, and steady operation.

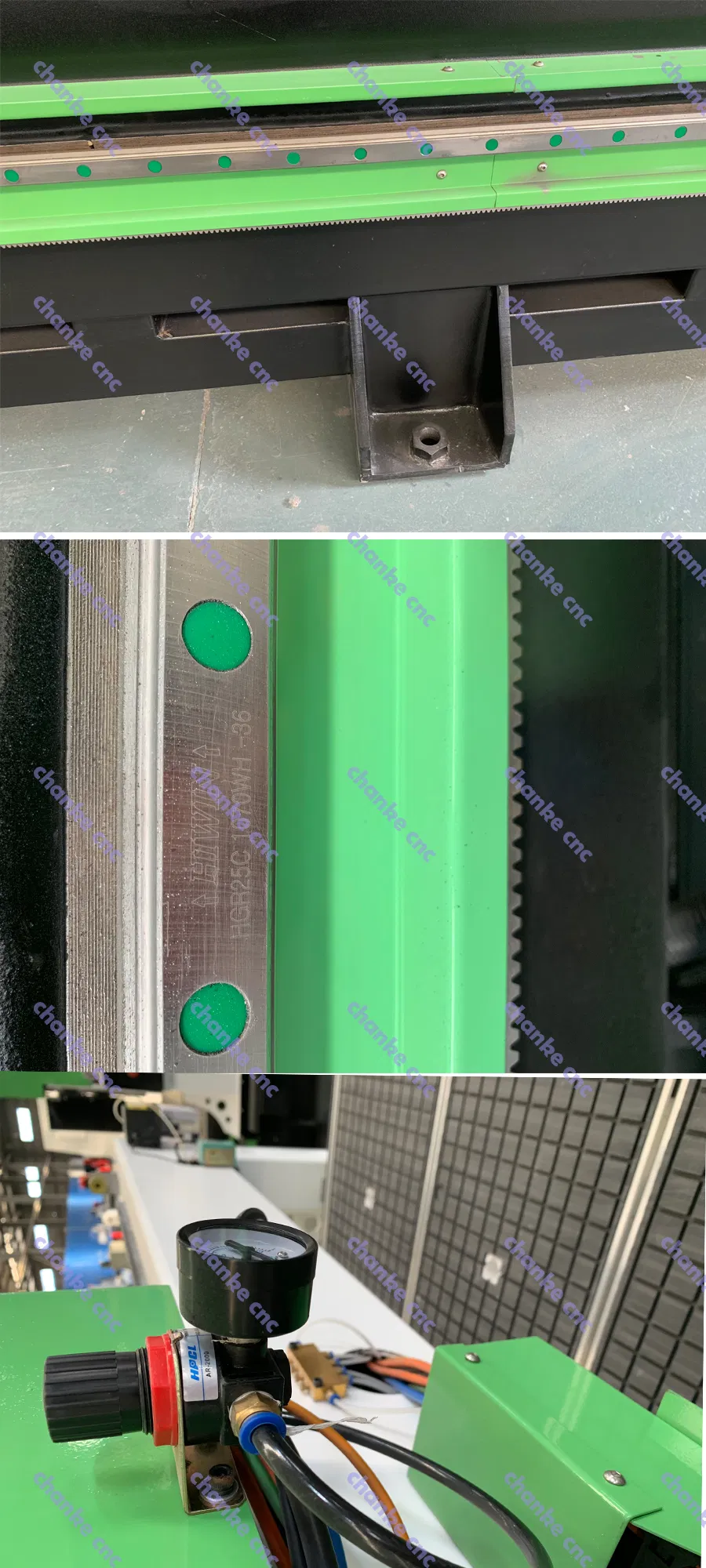

Taiwan Hiwin Linear Square Guide Rail: Equipped with self-lubricating sliding blocks for multi-directional force distribution and extreme accuracy.
Y Axis Driven by Double-Motor: In-phase drive ensuring smooth and equal operation.
Advanced DSP Controller System: Operates independently of a computer via USB interface, making it extremely user-friendly.

Technical Parameters

Feature	Details
Model	CK-1325 wood CNC router
Engraving Area	13002500200mm
Spindle Power	3.0kW / 4.5kW / 5.5kW (Optional)
Spindle Speed	6000~24000 rpm
Motor Type	Stepper motor or Japanese Servo motor
Machine Structure	Thicker Welded Steel Tube (8mm thickness)
Transmission System	X,Y Axis: Helical Rack and Pinion; Z Axis: Taiwan TBI Ball Screw
Positioning Accuracy	±0.03/300mm
Engraving Speed	8000~12000mm/min
Working Voltage	AC220V/50Hz or 380V/50Hz
Net Weight	1680Kg

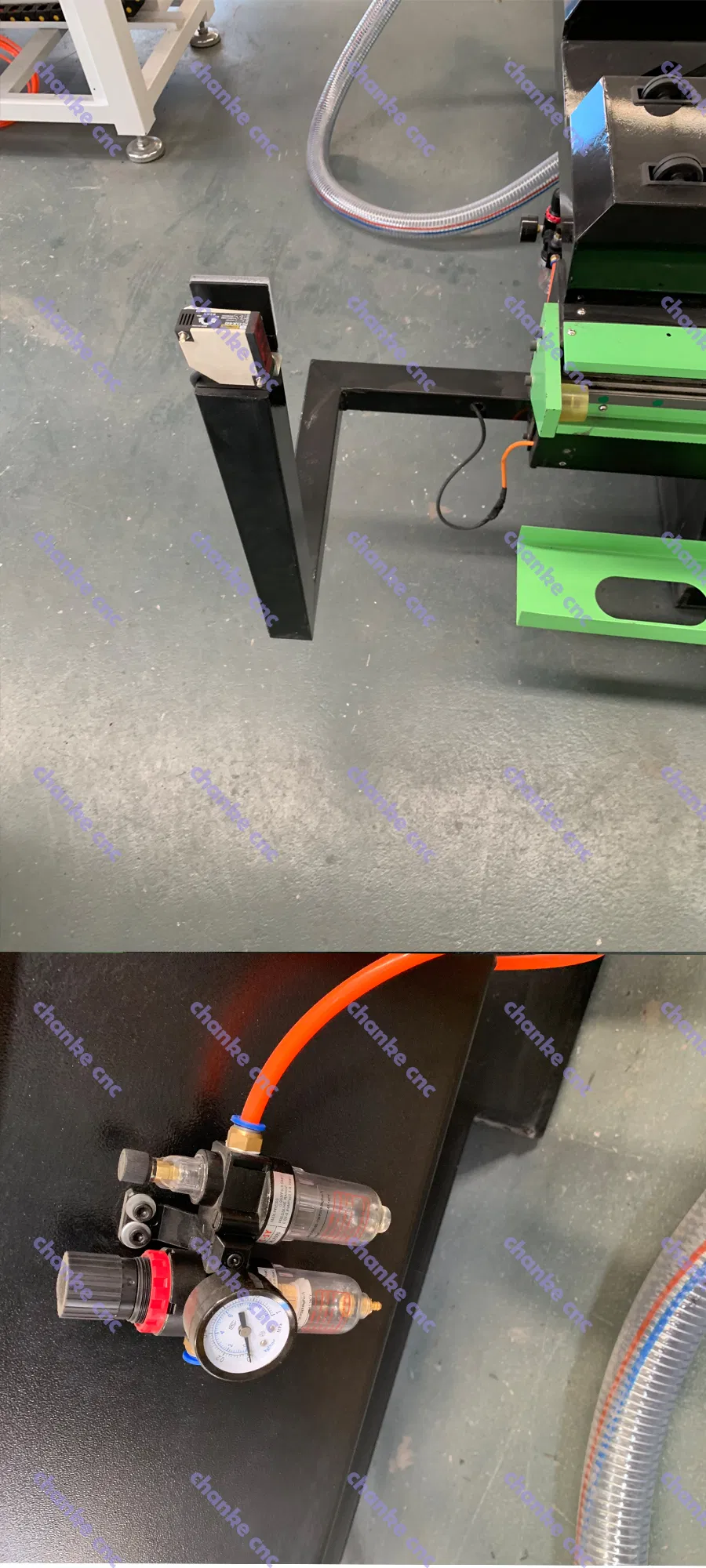

Product Gallery

Compatible Materials

Furniture: Plates, office furniture, doors, and cabinets.
Wood Products: Speakers, gaming cabinets, computer tables, and musical instruments.
Board Processing: Insulation materials, plastic chemical components, PCB, ABS, PP, PE.
Decoration: Acrylic, PVC, MDF, glass, and soft metals like copper and aluminum.

Quality Guarantee & Service

Two Years Quality Guarantee: Main parts (excluding consumables) will be replaced free of charge if problems occur during the warranty period.

Comprehensive Support: We provide lifetime technical support and 24-hour online assistance. Detailed English manuals and remote control assistance are also available.

Packing Details: All CNC routers are packed with standard inner plastic wrap, a steel structure, and outer plywood cases. Our plywood cases are fumigation-free, moisture-proof, and offer superior compressive strength for safe transit.

Frequently Asked Questions

Q1: What materials can this CNC router cut and engrave? A: It can handle wood, MDF, acrylic, PVC, plastic, and soft metals such as aluminum, copper, and brass.

Q2: What is the benefit of the Vacuum & T-slot table? A: It allows you to use a vacuum pump for high-efficiency adsorption of large boards or traditional material holders for small/irregular pieces.

Q3: Can I customize the spindle power? A: Yes, we offer options ranging from 1.5kW to 7.5kW or larger, depending on your specific thickness and material requirements.

Q4: What control system does the machine use? A: It uses an advanced DSP controller system with a USB interface, which allows for independent operation without being constantly connected to a computer.

Q5: How is the machine protected during shipping? A: The machine is packed in a robust, fumigation-free plywood case with inner plastic wrap to ensure it is waterproof and shock-resistant during transit.

Q6: What kind of after-sales service is provided? A: We provide a two-year quality guarantee, lifetime technical support, English manuals, and online troubleshooting by fluent English-speaking engineers.
