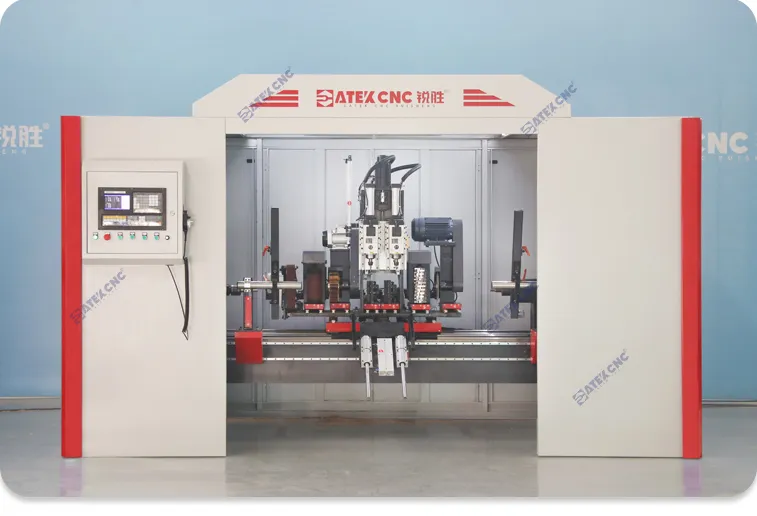

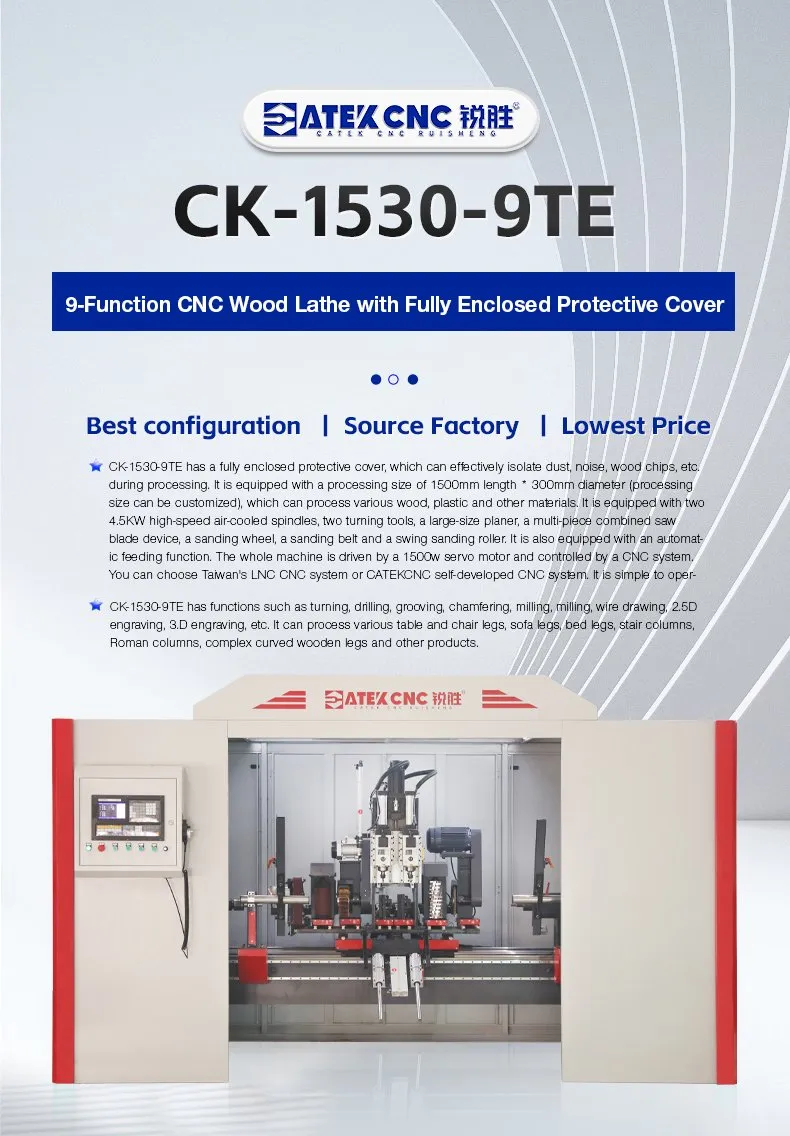

Deepit Cutter
1 / 5
| Model NO. | CK-1530-9TE | Voltage | 380V |
| Tool Holder | Double-tool Holder CNC Lathe | Automatic Grade | Automatic |
| Precision | High Precision | Controlling Mode | CNC |
| Certification | CE, ISO, FDA, RoHS | After-sales Service | 3-Year Warranty, Lifetime Service |
| Function | Turning, Drilling, Slotting, Sanding, Milling, PLA | ||
| Processing Dimensions | 1500 * 300mm (customizable) |
| Motor | 4KW pure servo high torque high-speed motor |
| Spindle Power | Dedicated 4.5KW high-speed air-cooled spindle * 2 |
| Spindle Speed | 0-18000r/min |
| Planer | 90*240mm, large diameter independent planer |
| Transmission Mode | XY axis 25 TBI ball screw / Z-axis high-precision helical gear |
| Control System | Dedicated CNC control system |
| Weight / Dimensions | 2700kg / 3900*2150*2250mm |

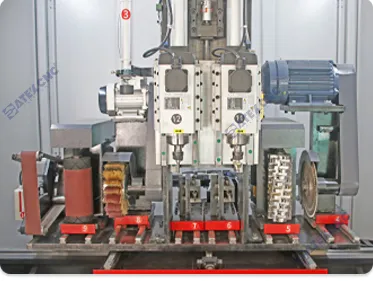

Equipped with 4.5KW spindles and dual turning tools for multi-mode processing.

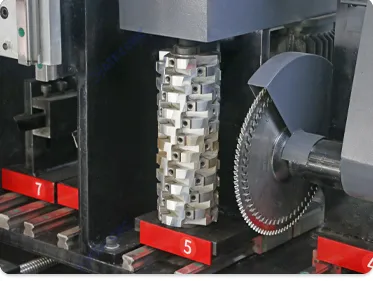

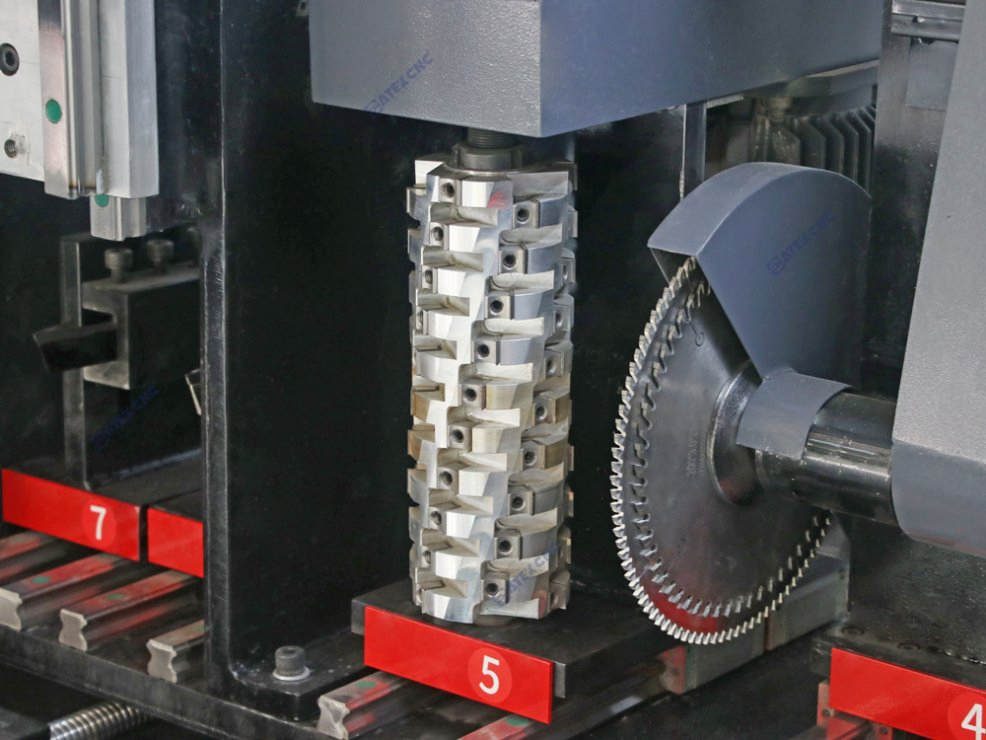

Large size cutting blade (230MM height) for rough processing and milling.

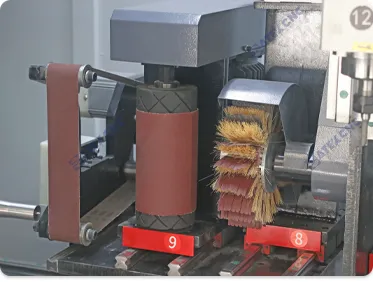

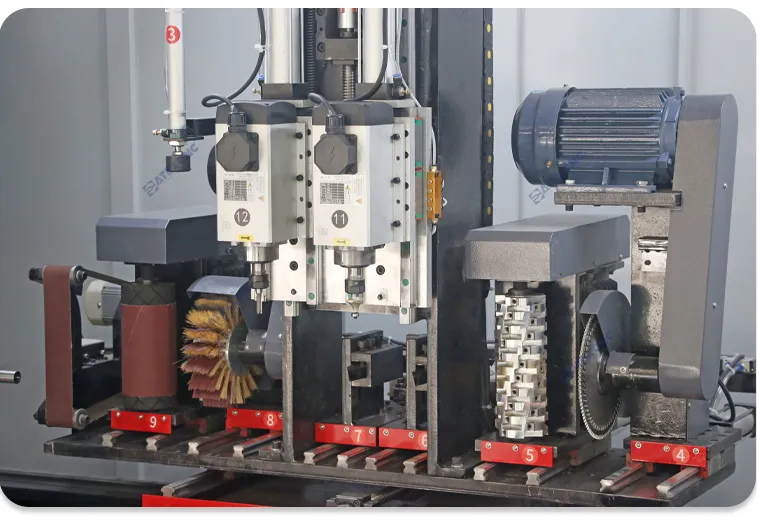

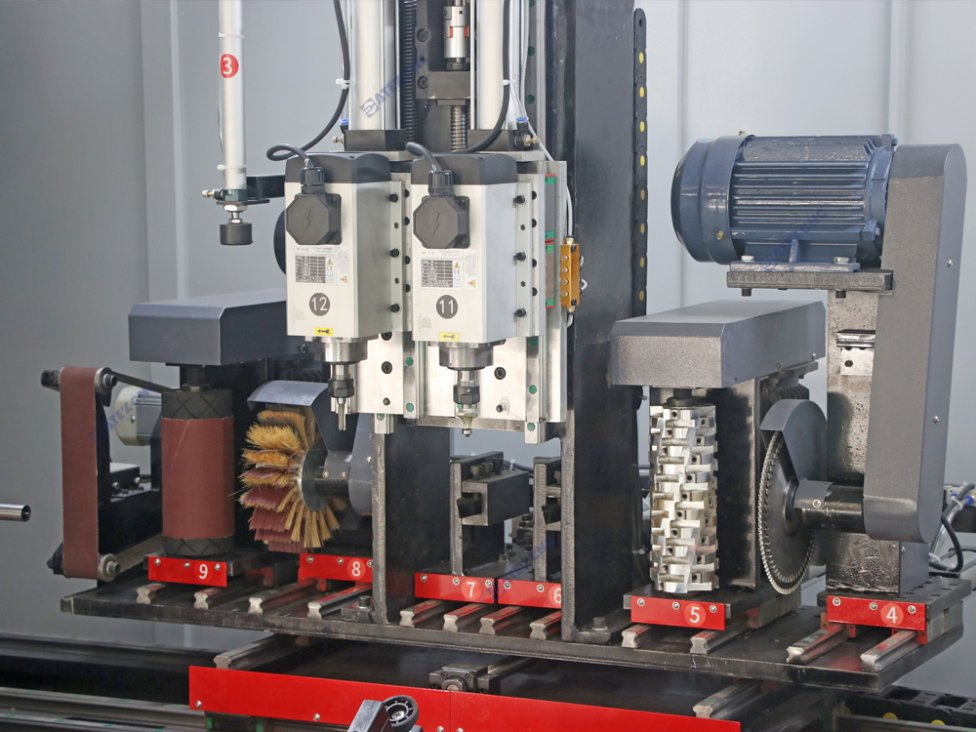

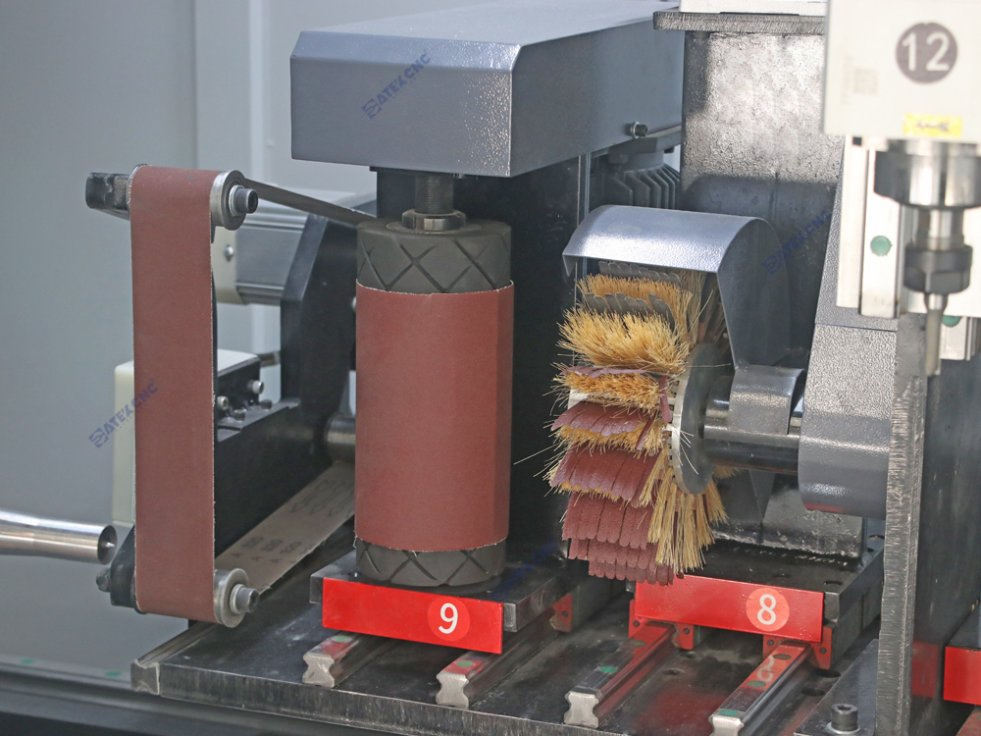

Triple sanding methods: wheel, oscillating roller, and belt for flexible finishing.

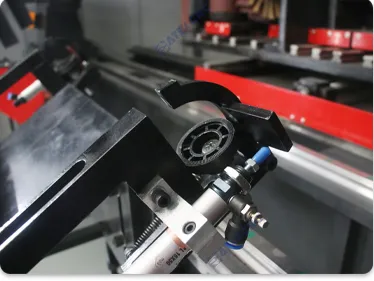

Pneumatic automatic feeding device with high stability and strong load capacity.

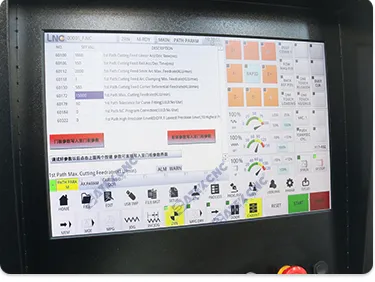

User-friendly English operation interface, supporting G-code and various CAD formats.

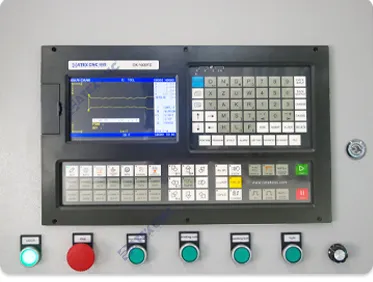

Optional advanced numerical control system with touch screen compatibility.
Suitable Materials: Wood, PVC, plastic, nylon, acrylic, carbon fiber, bamboo, density board, etc.
