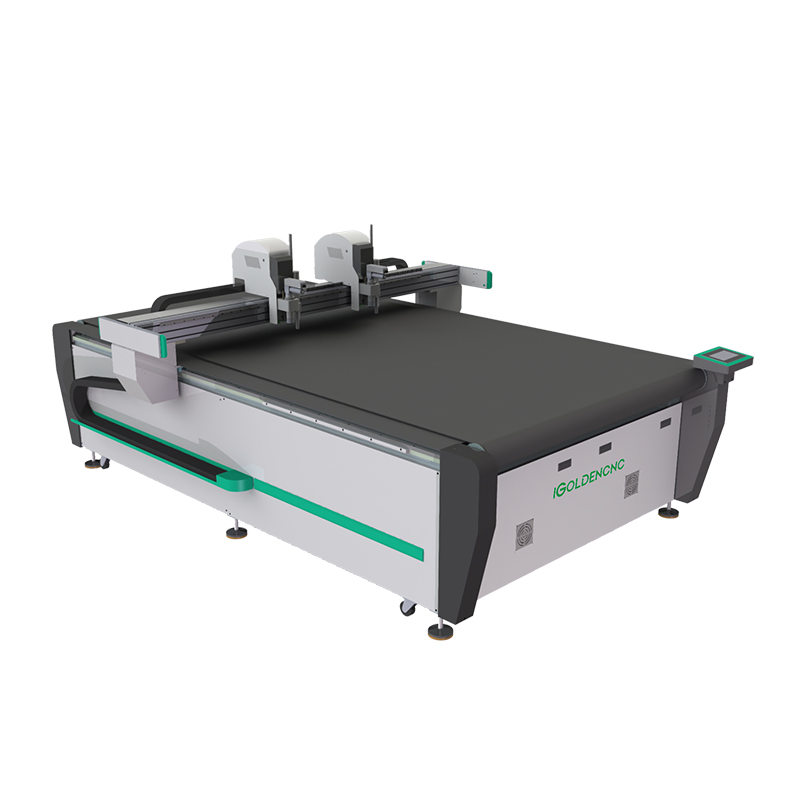

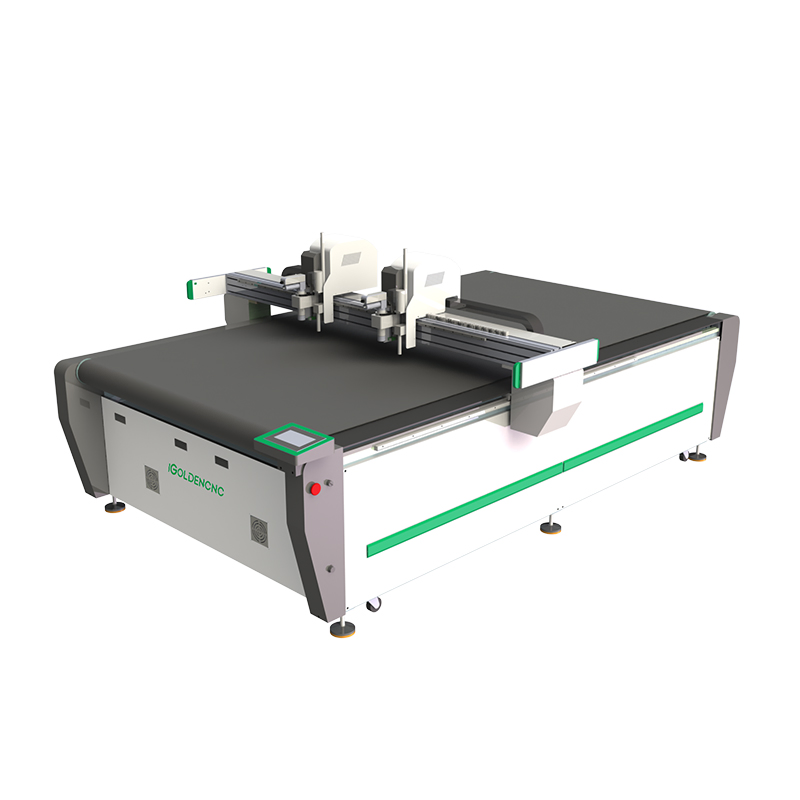

High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
1 / 5
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean
High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean

High Speed CNC Gasket Cutting Machines Vibrating Knife Cutting Machine for Oxford Cloth Dress Jean

Customization: Available
After-sales Service: Professional Team One-on-One Service
Warranty: Professional Team One-on-One Service
Send Inquiry

Product Description

📊 Basic Info.
Certification
CE
Condition
New
Application
Metal, Paper, Plastic, Leather, Fabric
Product Name
Fabric Vibrating Knife Cutting Machine
Advantage
Oxford Cloth Cut Perfectly
Industry
Garment/Apparel Industry
Working Type
CNC Cotton and Linen Cutting Machine
Production
Blended Fabric Cloth Cutting Machine
HS Code
8441100000
Capacity
200
Vibrating Knife Cutting Machine
⚙️ Technical Indicators
Technical Indicator Parameter Details
ModeliGK-1630 (Size can be customized)
Working Size1600(W) * 3000mm(L)
Dimensions3500 * 2200 * 1200mm (L*W*H)
Machine BodyWelded high strength integrated bed

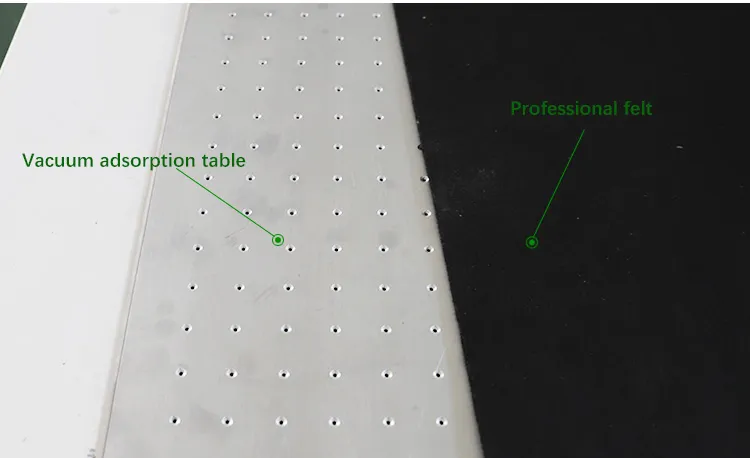

PlatformAerospace aluminum vacuum adsorption platform
Platform material4mm felt
ToolVibrating knife
Cutting Speed200-2600mm/s
Translatory Velocity500-2800mm/s
Cutting Thickness0.1-40mm (Actual materials prevail)
Cutting Accuracy0.05mm
Operating SystemZhongrui
Vacuum Pump9KW vacuum pump

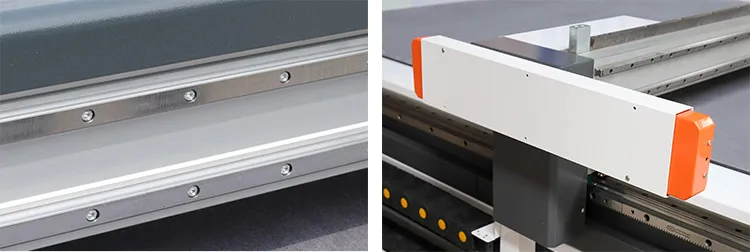

Drive PartTaiwan straight square rail and rack

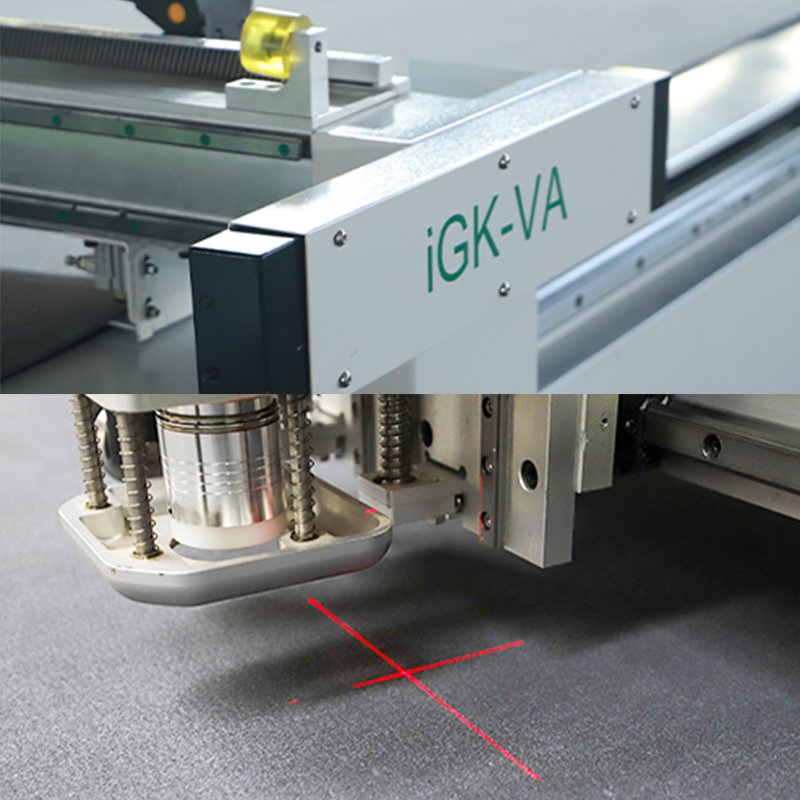

MiscellaneousCross red light location
Motor DriveFull servo motor drive
Electric DeviceChint/Omron
VoltageAC 220V/380V, 50Hz
Optional ToolsRound knife, punching knife, pneumatic knife, half cutter, milling cutter, etc.
🖼️ Product Gallery
Machine Details 1
Machine Details 2
Machine Details 3

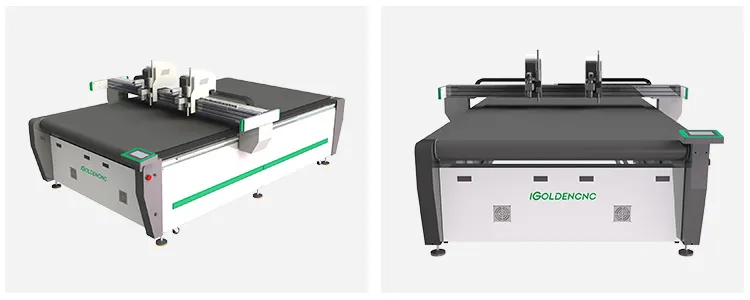

Machine Details 4
Machine Details 5

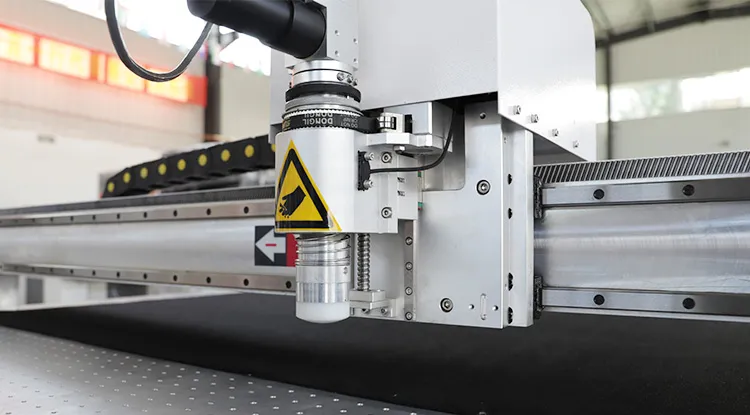

Machine Details 6
Machine Details 7

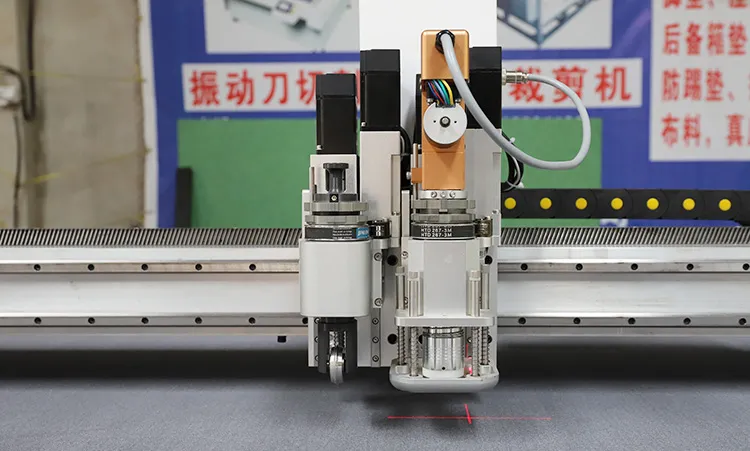

Machine Details 8
Machine Details 9
Machine Details 10
Machine Details 11

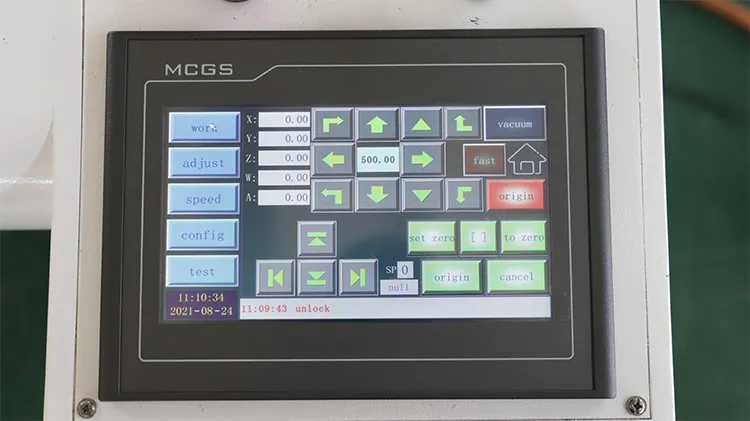

Machine Details 12
Machine Details 13

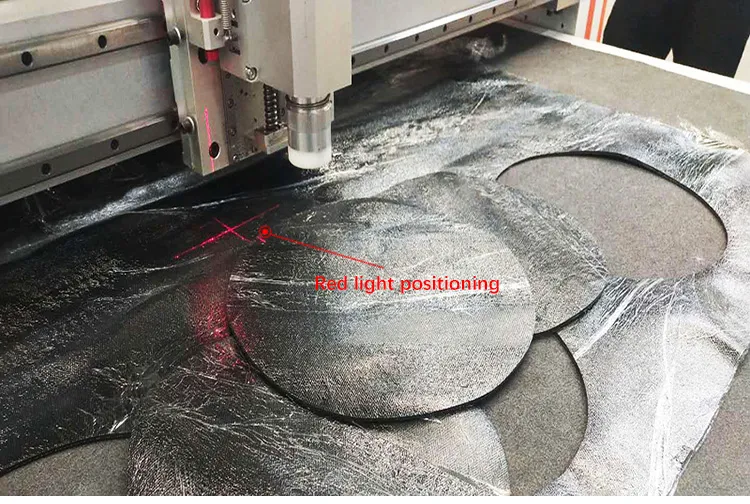

Machine Details 14
Machine Details 15
Machine Details 16
Machine Details 17
Machine Details 18
Complete View
❓ Frequently Asked Questions

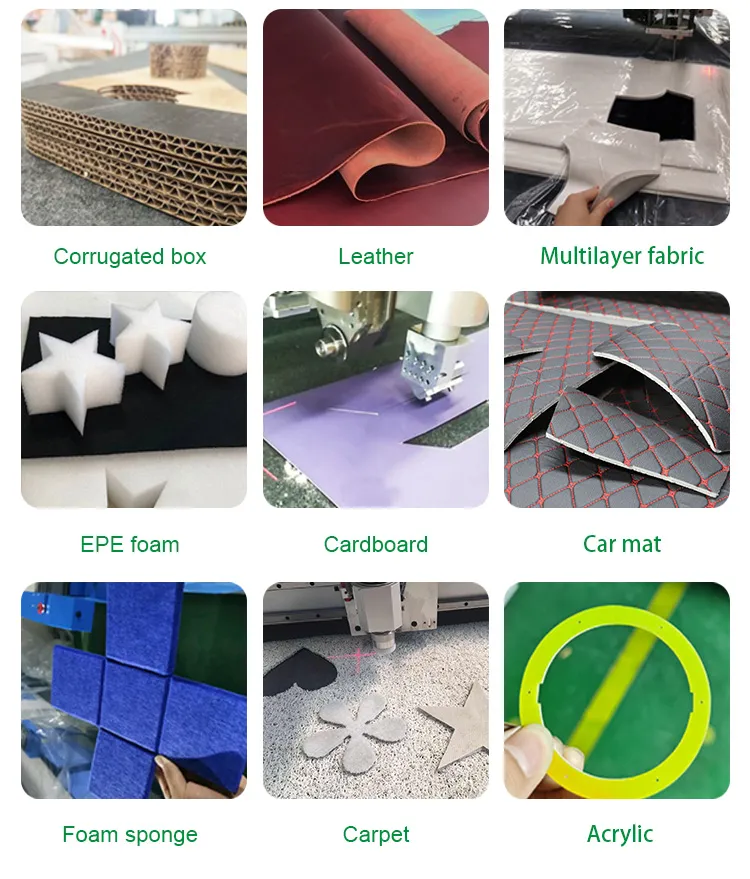

1. What materials can the Vibrating Knife Cutting Machine process?
The machine is highly versatile and can cut a wide range of materials including Oxford cloth, metal, paper, plastic, leather, fabric, cotton, linen, and blended fabric cloth.
2. Can the working size of the machine be customized?
Yes, while the standard iGK-1630 model has a working size of 1600*3000mm, we offer customization options to meet your specific production requirements.
3. What is the maximum cutting speed and thickness?
The machine offers a cutting speed ranging from 200mm/s to 2600mm/s and can handle material thicknesses from 0.1mm up to 40mm, depending on the specific material properties.

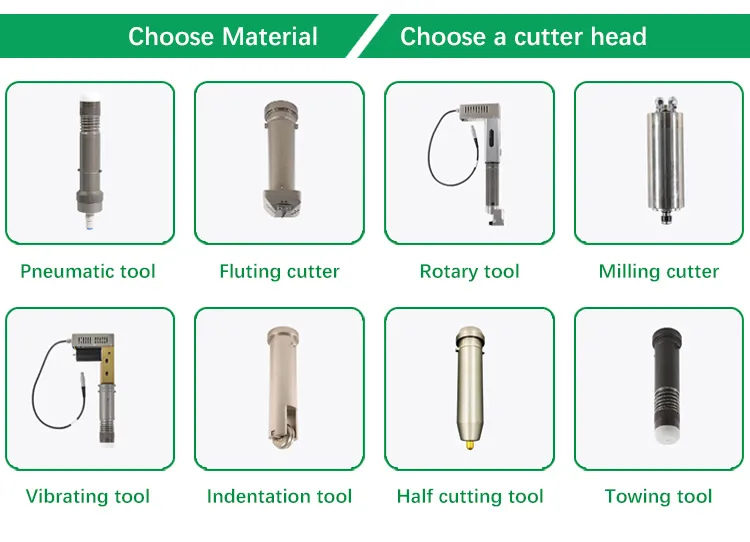

4. What type of cutting tools can be used with this CNC machine?
In addition to the standard vibrating knife, you can equip the machine with round knives, punching knives, pneumatic knives, half cutters, milling cutters, and multi-layer knives.
5. What industry is this cutting machine best suited for?
It is ideal for the Garment and Apparel industry, as well as industries requiring precision cutting for gaskets, textiles, and industrial fabrics.
6. Does the machine include a vacuum system?
Yes, the machine features an aerospace aluminum vacuum adsorption platform powered by a 9KW vacuum pump to ensure materials stay firmly in place during the cutting process.
