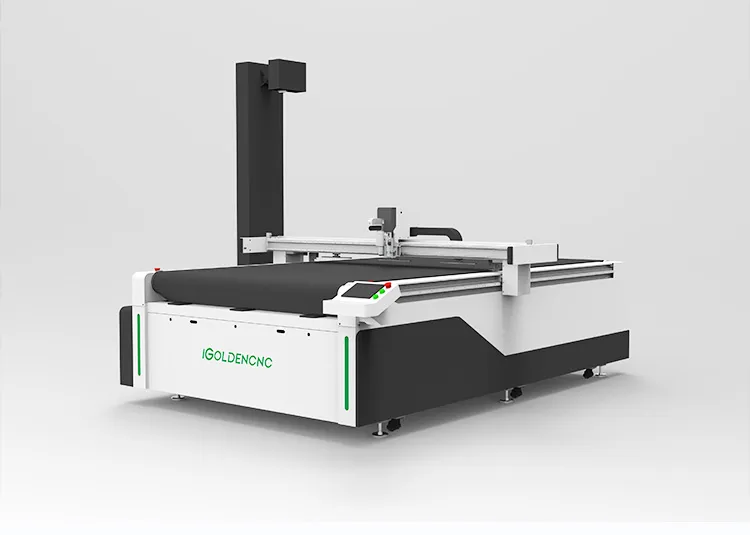

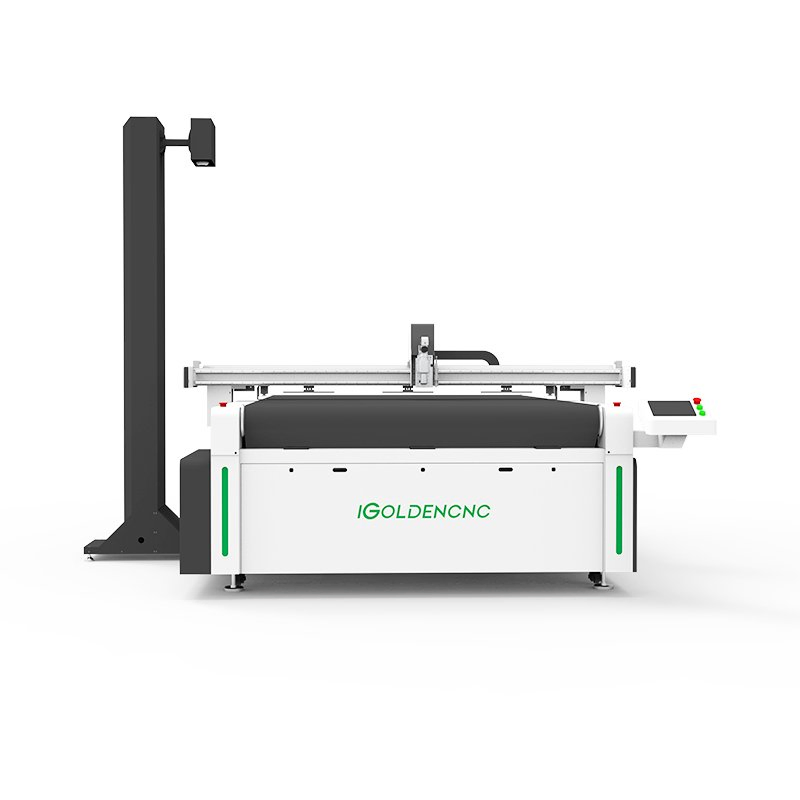

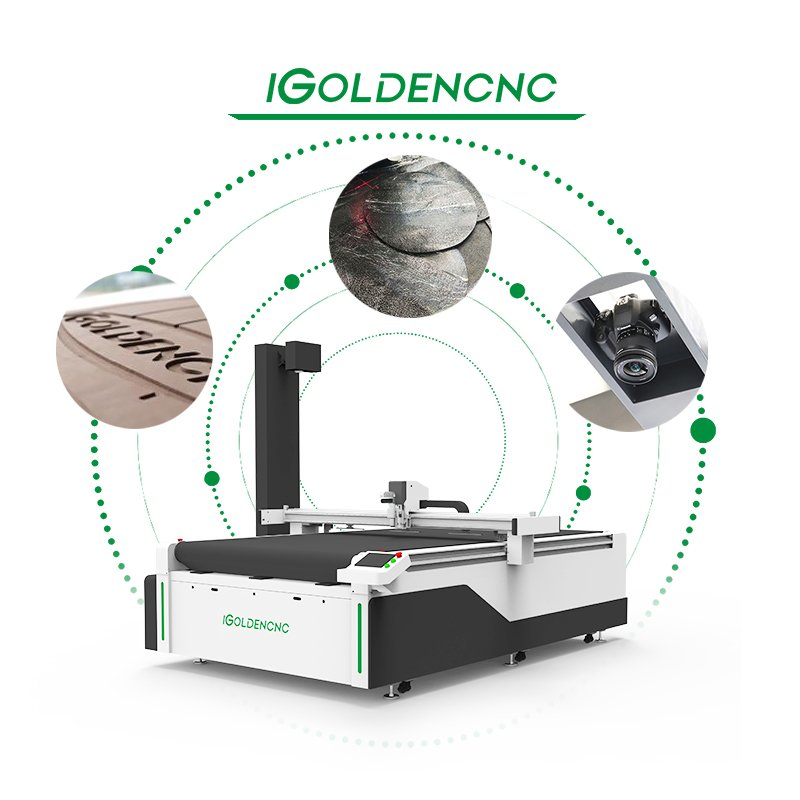

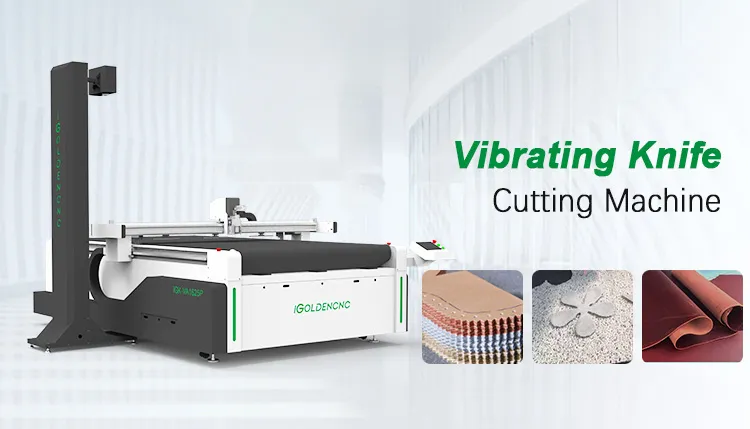

IGK-VA1625P Projector vibrating knife cutting machine

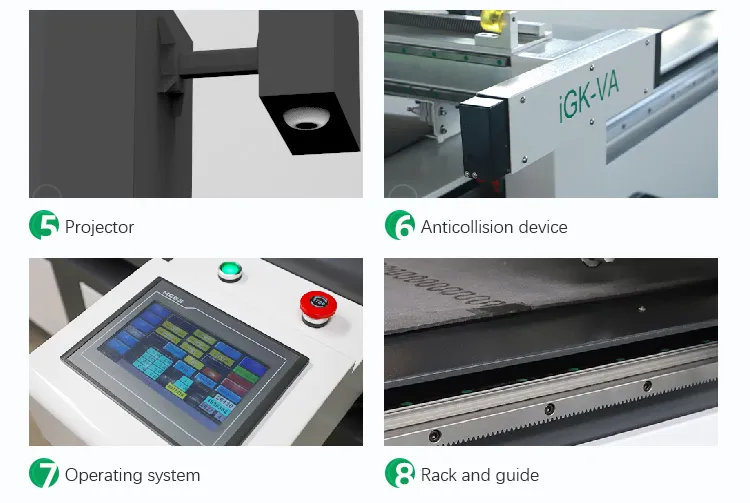

CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials. CNC oscillating knife cutting machine is carried on the multi-tool cutting head-Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife, Punch roller and Marking pen. CCD camera and Projector are optional for more precise cutting.
| Technical Indicators | Parameter |
|---|---|
| Model | iGK-1630 (Size can be customized) |
| Working Size | 1600(W)*3000mm(L) |
| Dimensions | 3500*2200*1200mm(L*W*H) |
| Machine body | Welded high strength integrated bed |

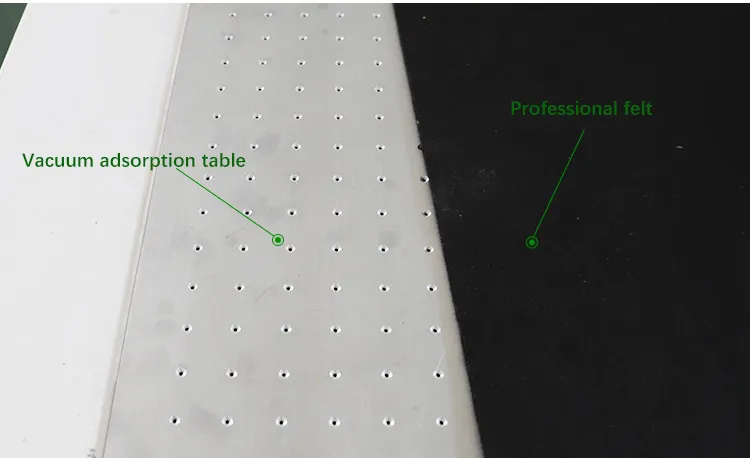

| Platform | Aerospace aluminum vacuum adsorption platform |
| Platform adsorption material | 4mm felt |
| Tool | Vibrating knife |
| Cutting speed | 200-2600mm/s |
| Translatory velocity | 500-2800mm/s |
| Cutting thickness | 0.1-40mm (The actual materials shall prevail) |
| Cutting accuracy | 0.05mm (The actual materials shall prevail) |

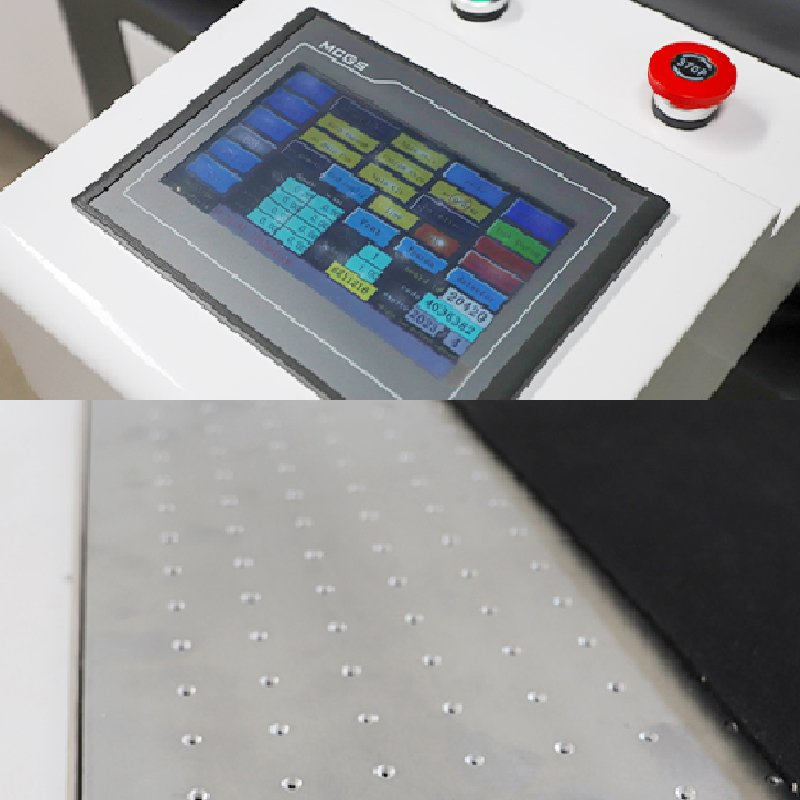

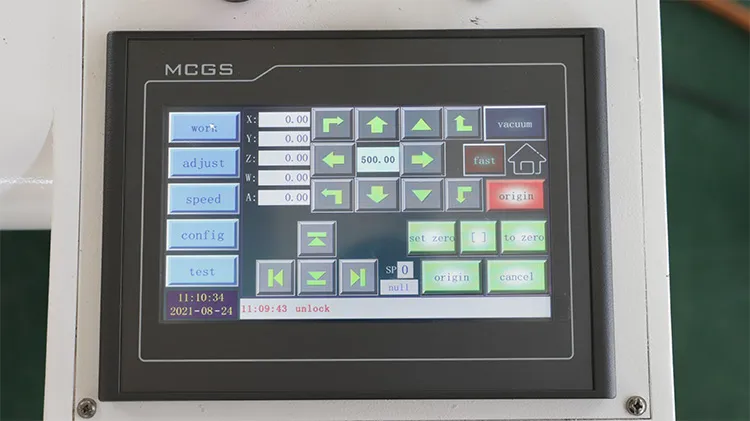

| Operating system | Zhongrui |
| Vacuum pump | 9KW vacuum pump |

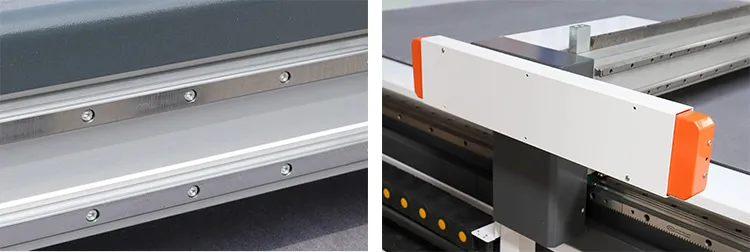

| Drive part | Taiwan straight square rail and rack |

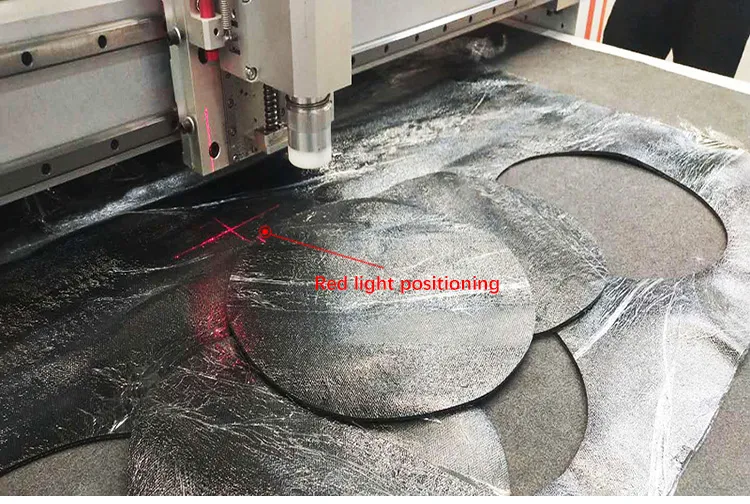

| Miscellaneous function | Cross red light location |
| Motor drive | Full servo motor drive |
| Electric device | Chint/Omron |
| Voltage | AC 220V/380V, 50Hz |

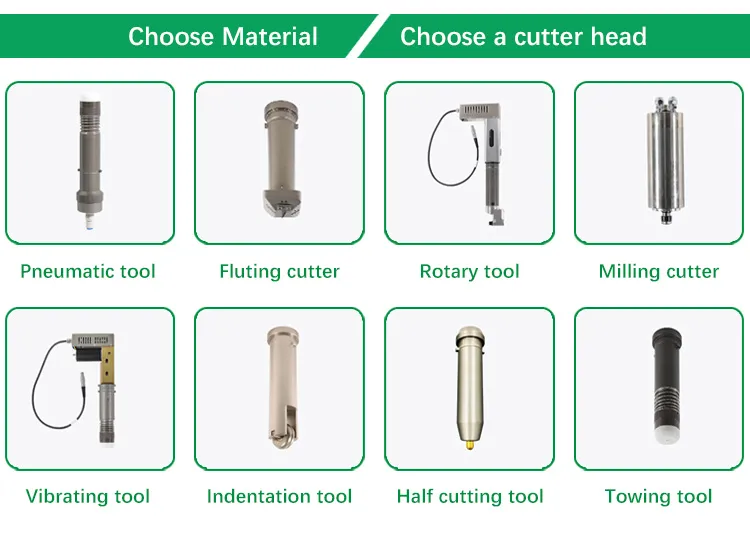

| Optional tool | Round knife, punching knife, pneumatic knife, multi-layer knife, supporting knife, half cutter, oblique cutter, milling cutter, etc. |
