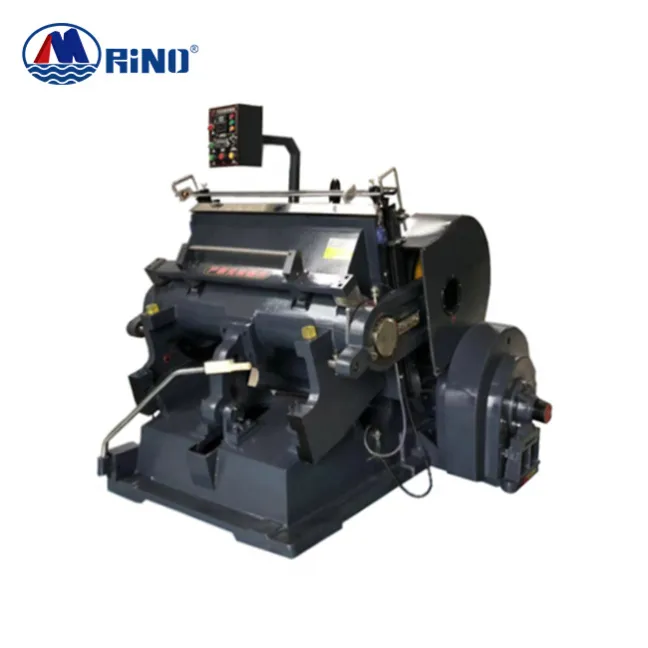

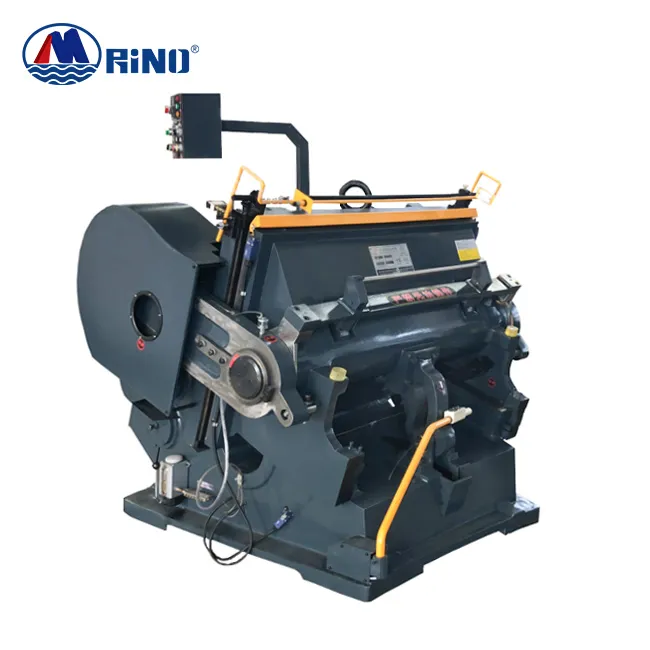

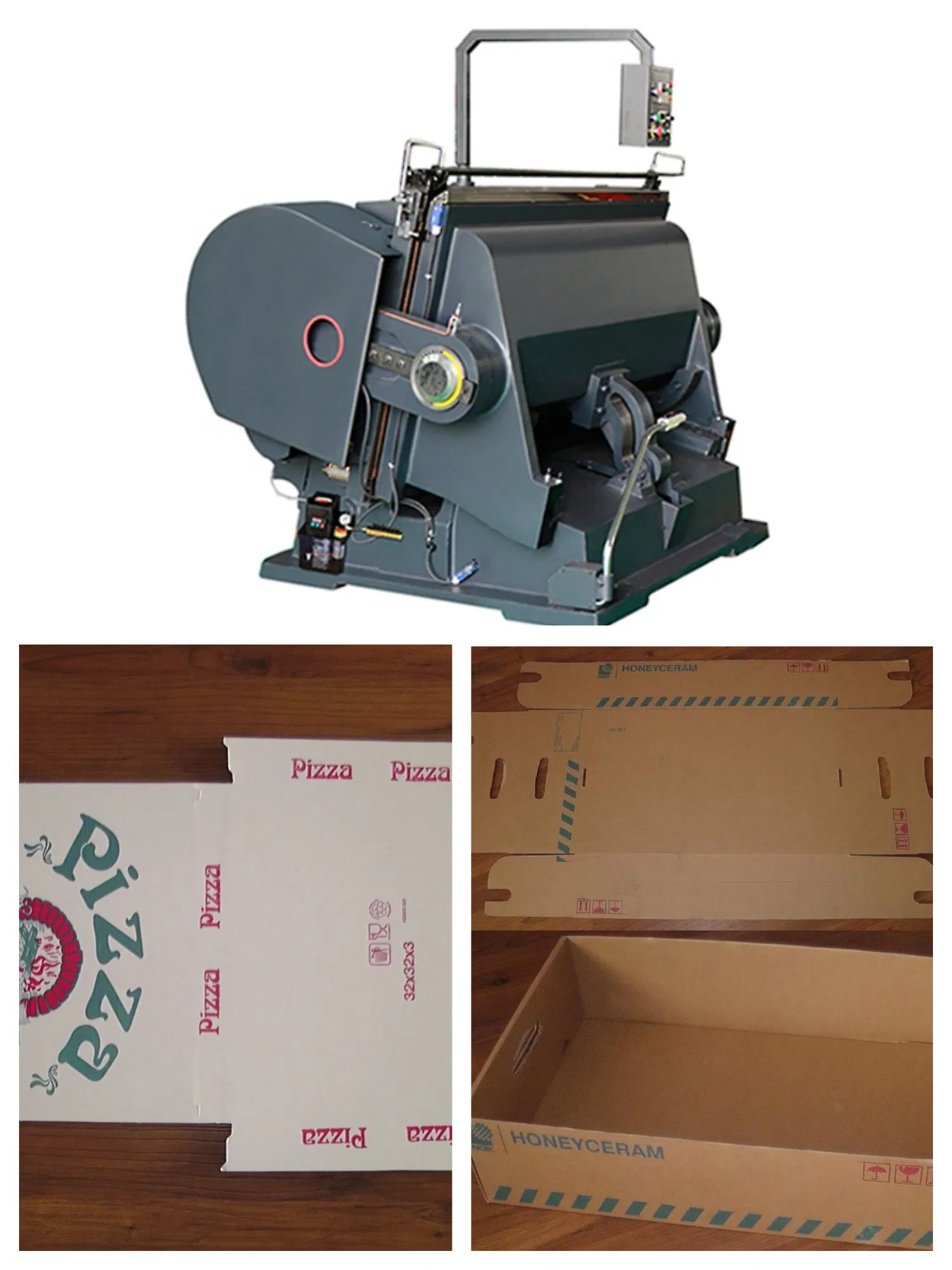

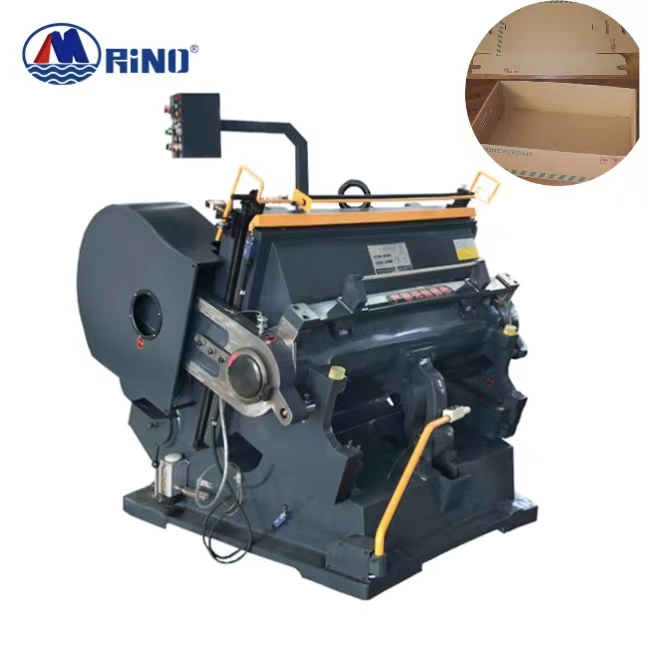

Manual Flatbed Paper Die Cutting and Creasing Machine, Cardboard Flat Bed Die Cutter Punching Press

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

i

Basic Information

Species:Die Cutting and Creasing Machine

Imprinting Type:Platen

Template Form:Horizontal

Die Cutting Tool:Metal Mold

Computerized:Non-Computerized

Automatic Grade:Semi-Automatic

Application:Paper Packaging, Stickers

Max. Rule Area:1200*830mm

Working Speed:24 Sheets/Min

Total Power:5.5kw

Weight:4800kg

Dimensions:1900*2000*1700mm

★

Product Description

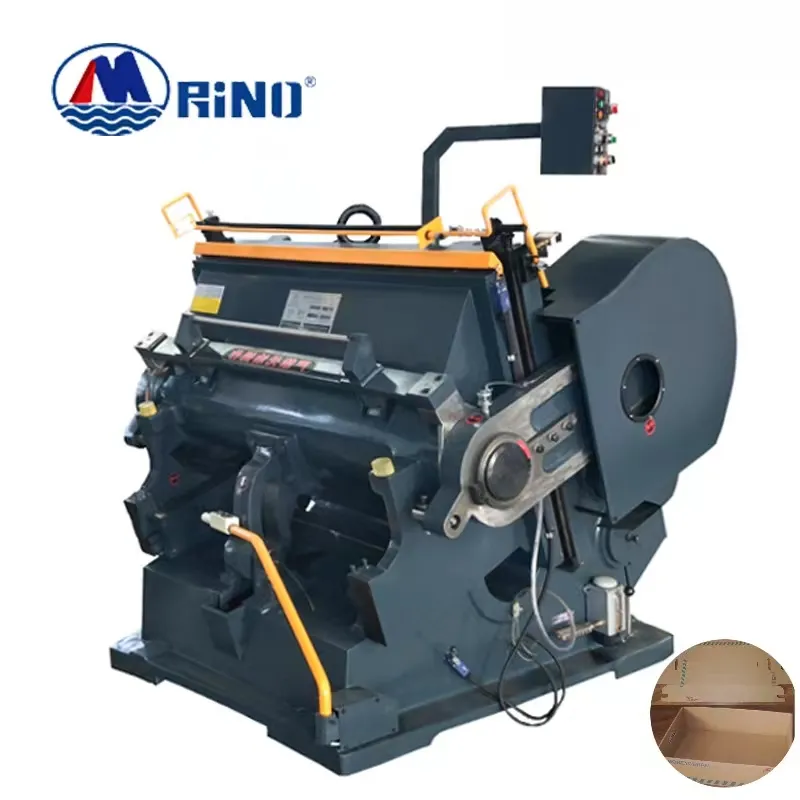

Manual die cutting machine, also known as a manual punching machine, is a specialized equipment for die cutting and creasing various materials including paper, cardboard, plastic sheets, and leather. It is widely applied in printing, packaging, decoration, and plastic industries. This series is highly regarded for its outstanding performance, reliable quality, ease of operation, and cost-effectiveness.

⚙

Technical Parameters

Model	Max. Rule Area	Speed (sheets/min)	Total Power	Weight	Dimensions (L×W×H)
HD-M750	750×520mm	25±2	2.2kw	2000kg	1260×1350×1280mm
HD-M930	930×670mm	23±2	4.0kw	3000kg	1800×1600×1600mm
HD-M1100	1100×800mm	22±2	5.5kw	4500kg	1900×1800×1700mm
HD-M1200	1200×830mm	22±2	5.5kw	4800kg	1900×2000×1700mm
HD-M1400	1400×1000mm	18±2	5.5kw/7.5kw	6500kg	2000×2450×1900mm
HD-M1600	1600×1250mm	18±2	11kw	11000kg	2170×2560×2130mm

✔

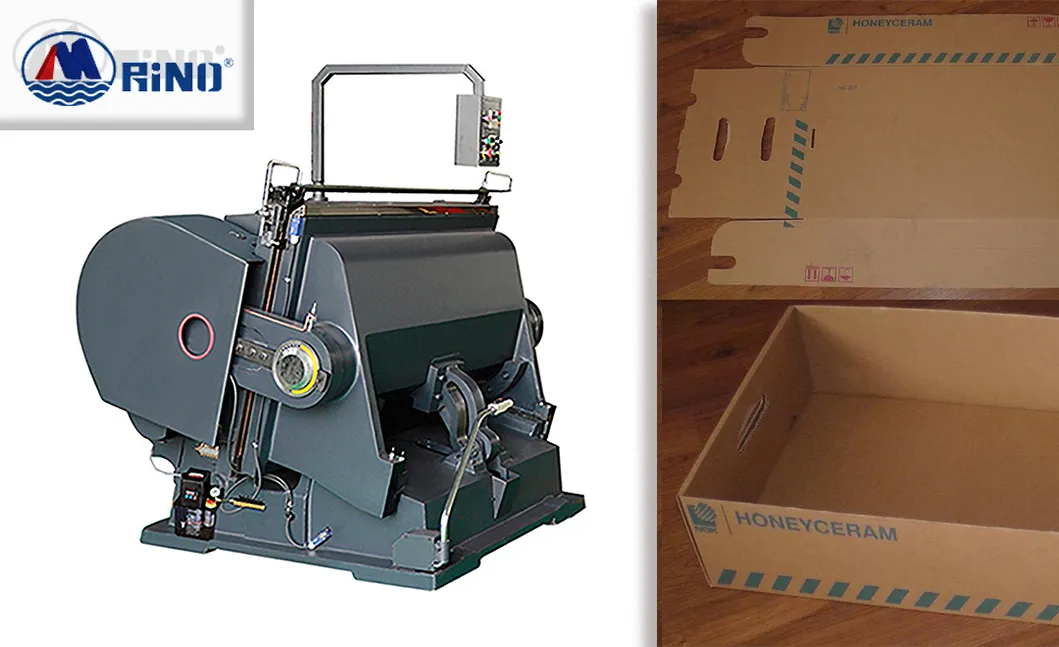

Key Features

Casting material utilizes HT250 gray cast iron with annealing treatment to prevent deformation and breakage.
The principal axis adopts 4Cr13MoV with thermal refining to improve intensity, rigidity, and hardness.
Main gear components are made of 4Cr13Mov for enhanced durability.
Functional versatility: Single pressing, continuous pressing, and adjustable delay pressing.
Shaft sleeve constructed from copper ensures superior wear resistance.
Equipped with a nimble and reliable single plate electromagnetic clutch.
Features continuous cutting and adjustable opening dwell functions.
Key bearing components utilize high-quality NSK bearings.
Concentrated or optional automatic lubrication system for optimal maintenance.

❒

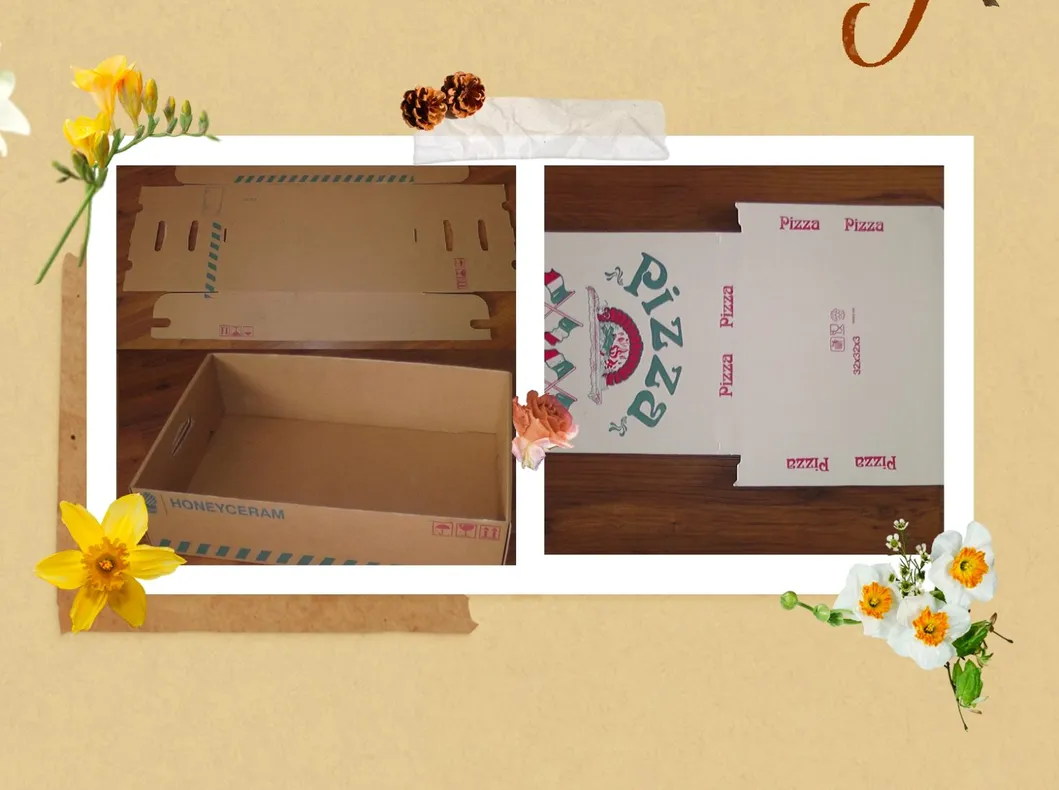

Product Application

🏭

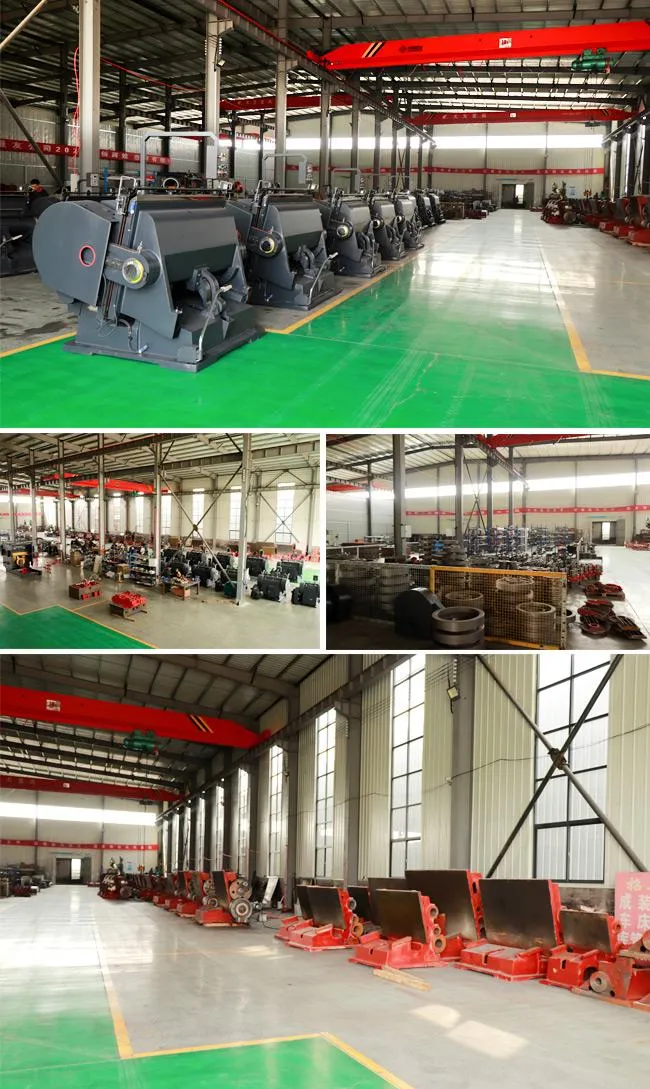

Workshop & Company Profile

Our group is a fast-growing entity committed to manufacturing and exporting high-quality products. With 20 years of experience in carton packaging production, we have established professional facilities for flexo printing, manual die cutting, and corrugated production lines. Our professional technical team provides comprehensive packaging solutions and timely after-sales service, focusing on client requirements and high-quality standards.

📜
