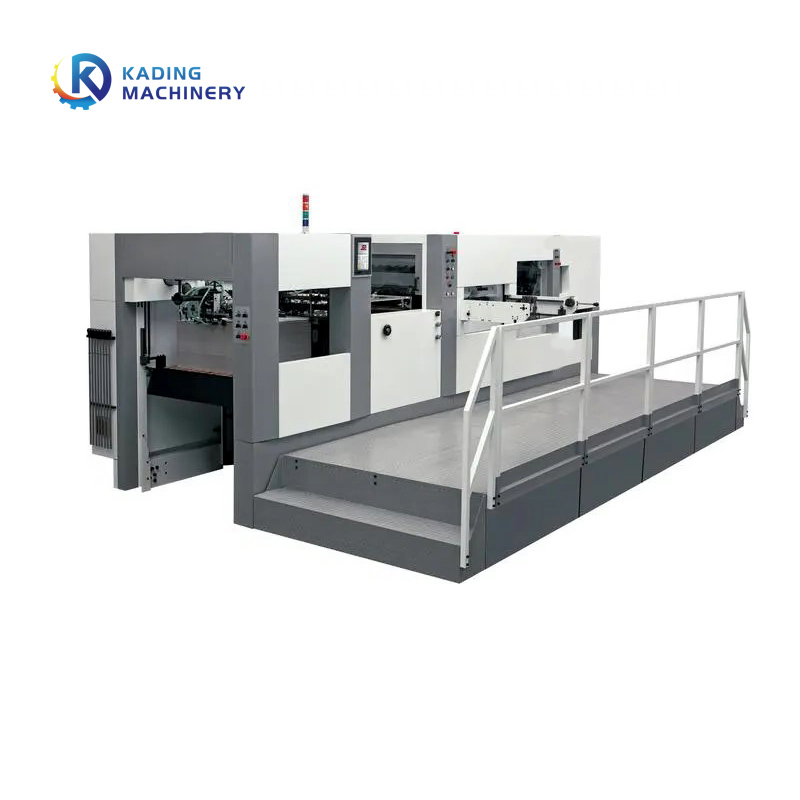

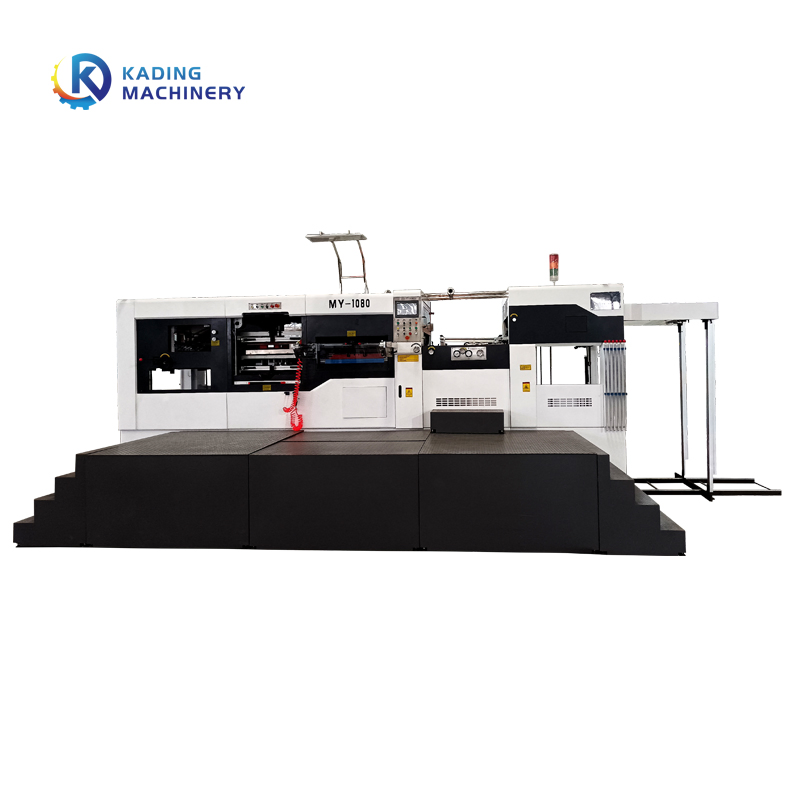

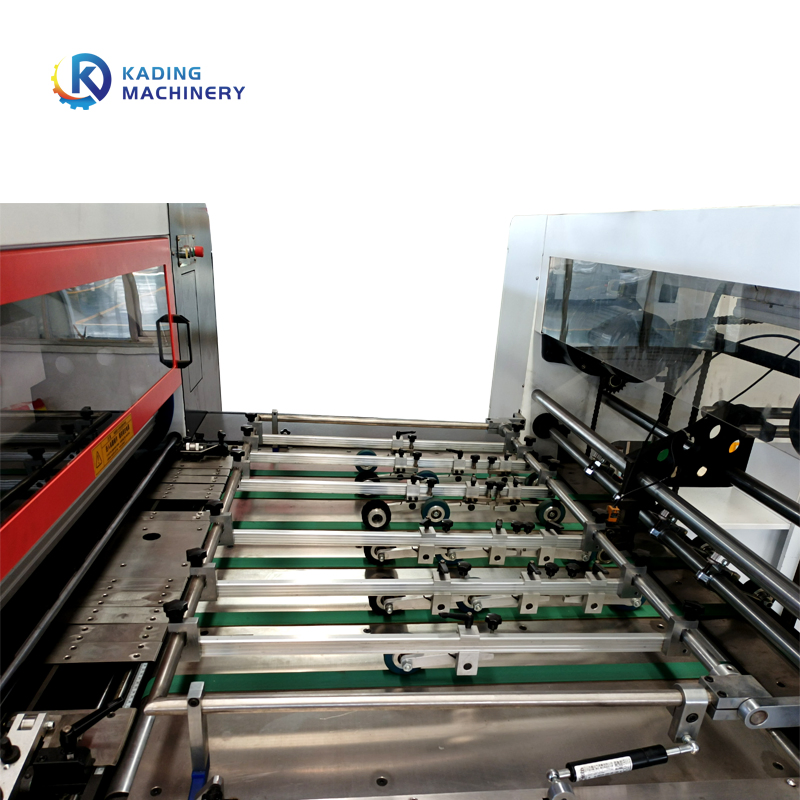

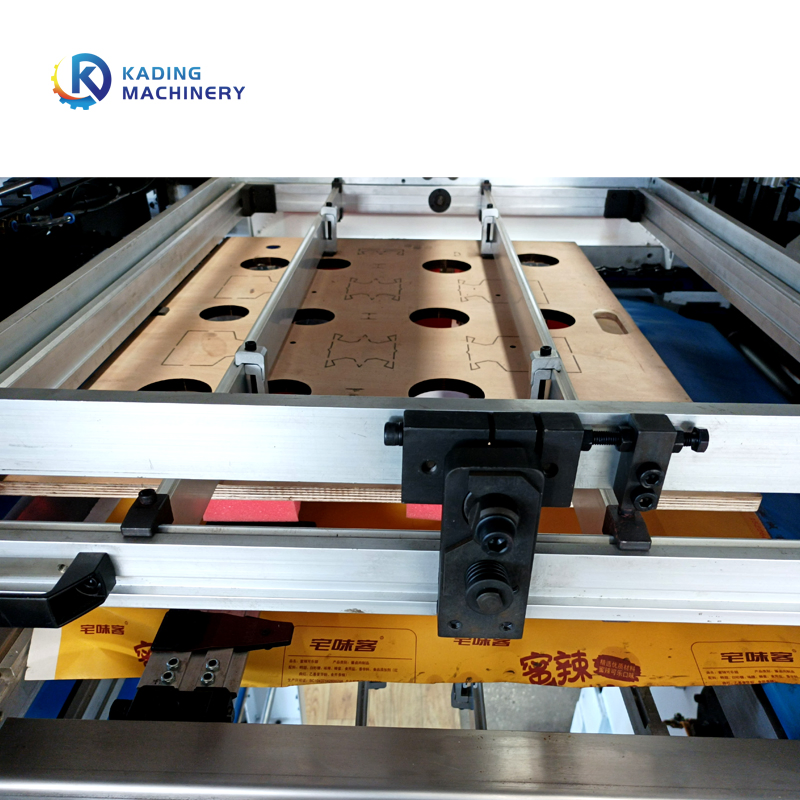

Feeder Auto Platen Punching & Creasing Machine With Output Counter

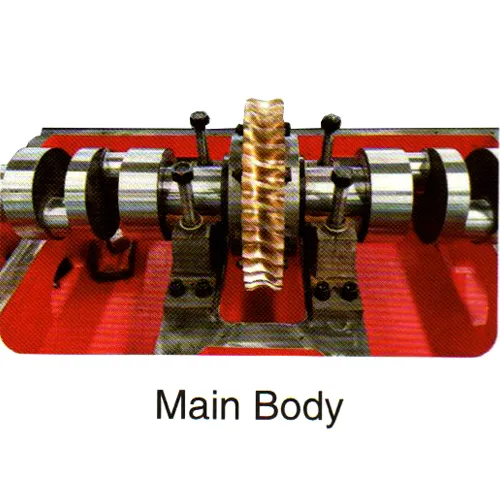

The Automatic Die Cutting Machine is the primary equipment for die-cutting paper, carton, trademarks, and various paper packaging products. It features a high-precision intermittent structure, pneumatic plate-lock, air clutch, and overload protection to ensure steady operation at high speeds.

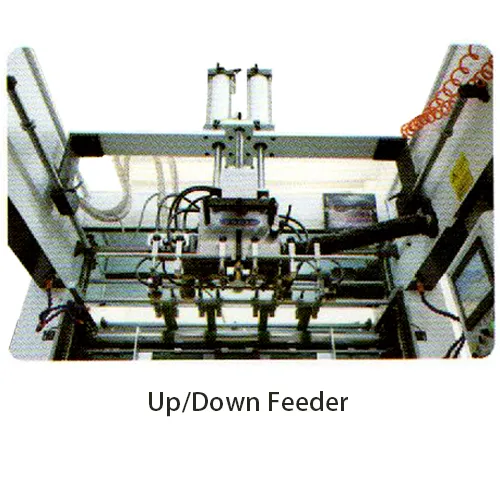

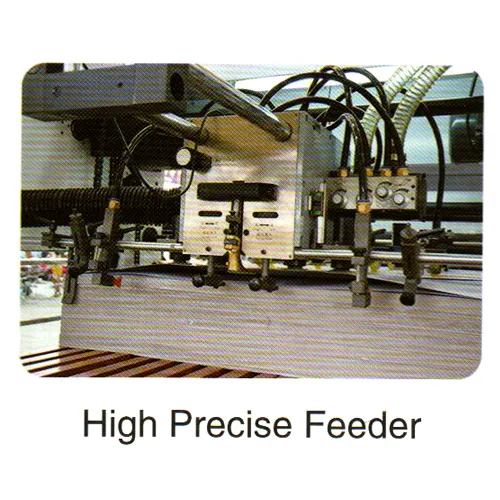

To maximize efficiency, the machine includes a pre-stacking paper part, assistant paper feeding structure, variable speed feeding, auto-collection, and pneumatic sampling. All electrical and driven components are from internationally recognized brands, ensuring precision and reliability. The PLC and electronic monitoring system allow for easy adjustments and troubleshooting.
| Model | MY-800 | MY-1080 | MY-1300 | MY-1650 |
|---|---|---|---|---|
| Max. Paper Size | 800x620mm | 1080x780mm | 1320x980mm | 1670x1200mm |
| Min. Paper Size | 340x280mm | 400x350mm | 400x350mm | 550x500mm |
| Max. Die Cutting | 770x600mm | 1070x760mm | 1300x960mm | 1650x1180mm |
| Pressure | 300N/cm² | 350N/cm² | 350N/cm² | 400N/cm² |
| Cardboard | 200-2000g/m2 | 200-2000g/m2 | 200-2000g/m2 | 200-2000g/m2 |
| Corrugated | ≤3mm | ≤4mm | ≤7mm | ≤7mm |
| Max. Speed | 7000pcs/h | 7000pcs/h | 5000pcs/h | 4200pcs/h |
| Total Power | 13.5kw | 16.5kw | 18kw | 21kw |

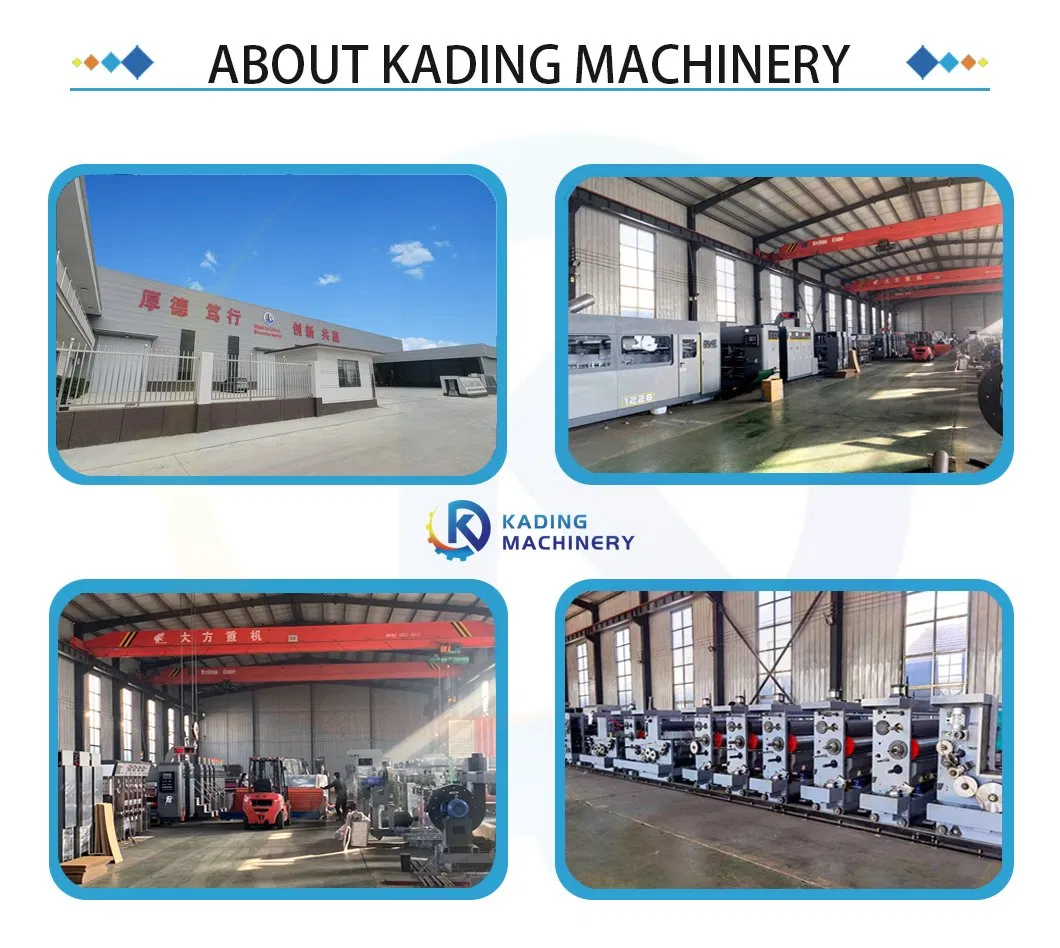

Our production lines include carton printing machines, die-cutting machines, and slotting machines. Additionally, we provide stitching machines, folder gluers, flute laminators, and single facer machines. With nearly twenty years of production experience, the supply chain is mature, allowing for efficient one-stop purchasing for customers worldwide.
