■ Basic Info.
Stone Hardness
Soft Medium Hard Mix Cutting
Material
Diamond and Metal Power
Transport Package
20 Box a Carton
Specification
24*6.5/7.5*13
Production Capacity
600,000 piece/Week
■ Product Description
- ✓ Size: Suitable saw blade size from 300mm to 3,500mm, sizes can be customized.
- ✓ Cost-effective with a long lifespan for maximum efficiency.
- ✓ Quality guaranteed for cutting all types of stone.
- ✓ Ideal for both single and multi-blade applications.
- ✓ Custom production based on exact specifications and dimensions.
- ✓ Over 14 years of professional manufacturing experience.
★ Our Advantages
- ● Dry & Wet cutting capability; welds easily with excellent sharpness to save stone material.
- ● Stable Performance: Carefully designed outer and inner layers ensure high cutting stability.

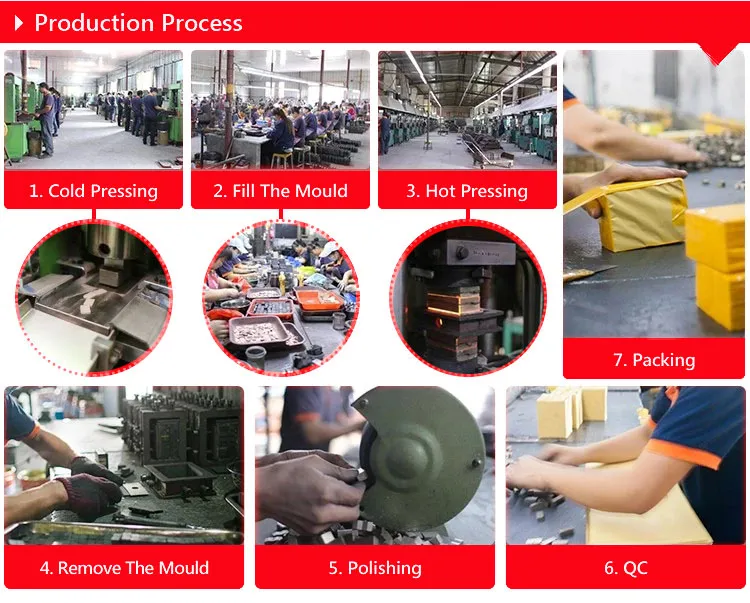

- ● Advanced production process utilized for sintering.
- ● Strict product quality inspection processes at every stage.
- ● Improved efficiency by 3% compared to similar market products.
- ● Excellent after-sales support and service.
📋 Technical Specifications
| Blade Size (Inch) |
Blade Size (mm) |
Segment Size (mm) |
Quantity (pcs/set) |
| 14 | 350 | 40X3.2X15/20 | 24 |
| 16 | 400 | 40X3.6X15/20 | 28 |
| 20 | 500 | 40X4.2X15 | 36 |
| 24 | 600 | 40X5X15/20 | 42 |
| 32 | 800 | 40X6X15/20 | 58 |
| 40 | 1000 | 24X5.8/6.4X15/20 | 70 |
| 48 | 1200 | 24X6.8/7.4X15/20 | 80 |
| 54 | 1350 | 24X7.6/8.0X15/20 | 88 |
| 56 | 1400 | 24X7.6/8.4X15/20 | 96 |
| 64 | 1600 | 24X8.4/9.0X15/20 | 108 |
| 72 | 1800 | 24X9.4/10.0X15/20 | 120 |
| 80 | 2000 | 24X10.2/10.6X15/20 | 128 |
| 88 | 2200 | 24X10.6/11X15/20 | 132 |
| 100 | 2500 | 24X11/11.4X15/20 | 140 |
| 120 | 3000 | 24X12/12.4X15/20 | 160 |
| 140 | 3500 | 24X12.6/13X15/20 | 180 |

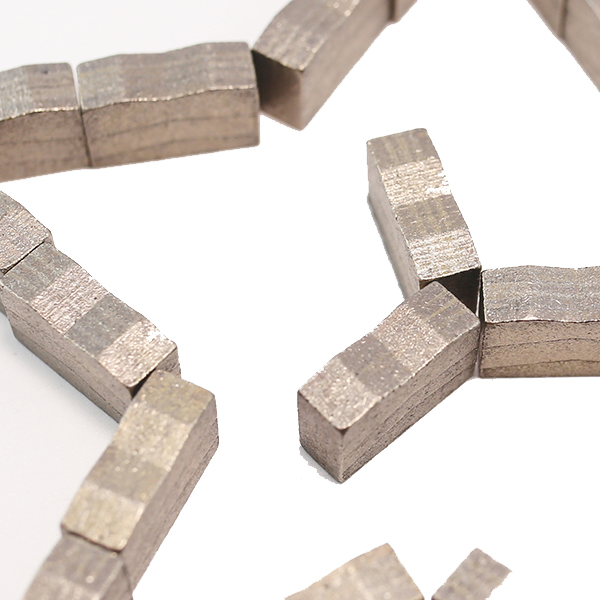

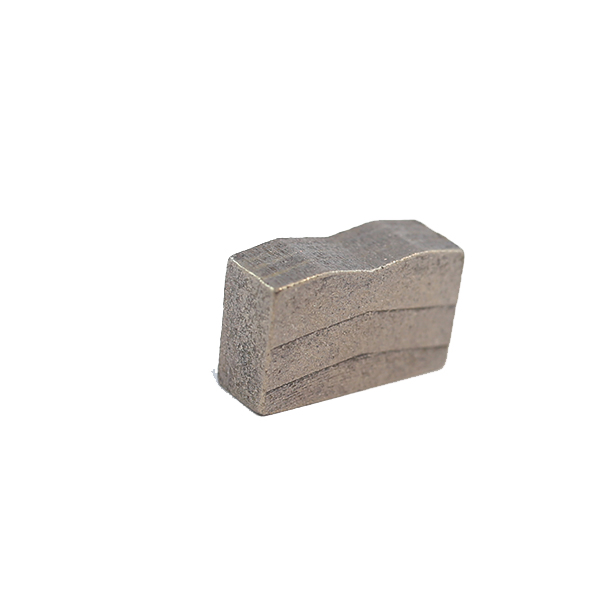

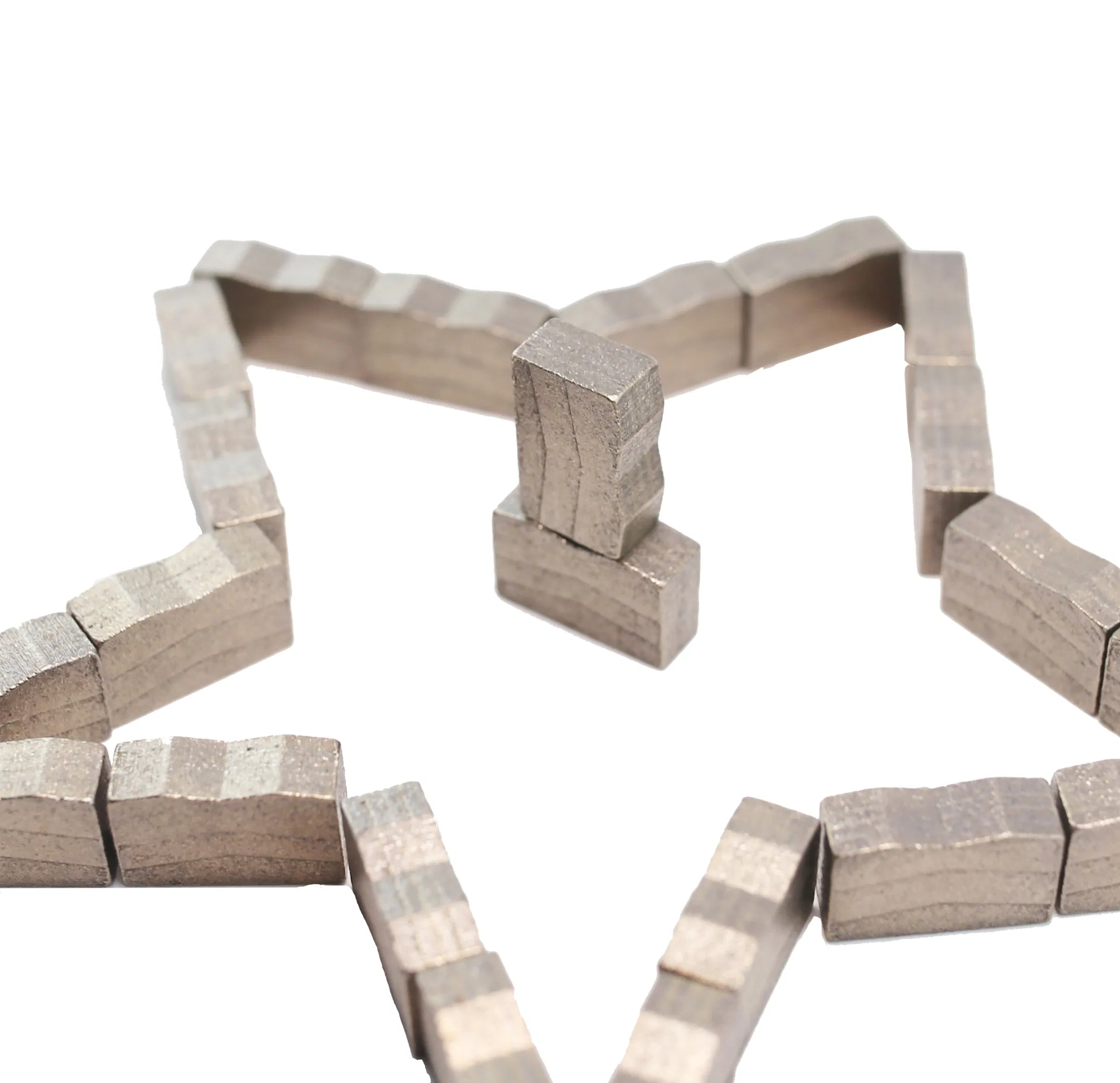

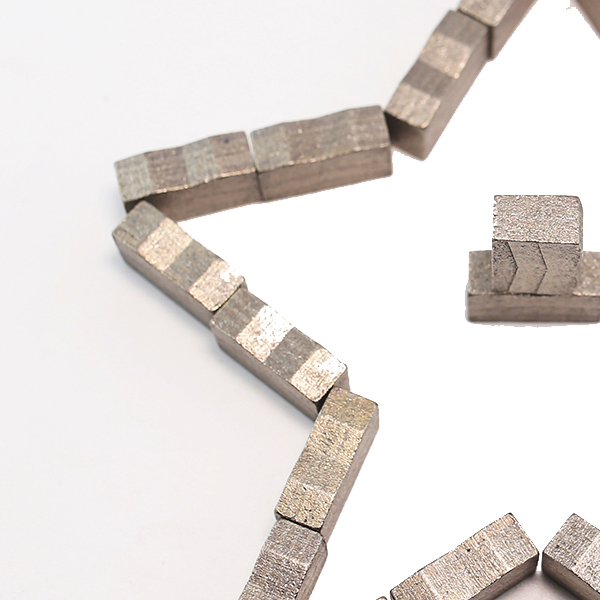

🖼️ Product Display
FAQ
Q1: What sizes of saw blades are these segments suitable for?
A: Our segments are compatible with saw blades ranging from 300mm to 3500mm, and we can customize sizes to meet your specific requirements.
Q2: Can these segments handle hard stone like granite?
A: Yes, they are specifically designed for mixed granite cutting and can handle soft, medium, and hard stone variations efficiently.
Q3: Are these segments designed for wet or dry cutting?
A: These segments are versatile and can be used for both dry and wet cutting applications while maintaining high sharpness.
Q4: How do you ensure the stability of the segments during cutting?
A: Stability is ensured through a carefully designed multi-layer structure (outer and inner layers) and an advanced sintering production process.
Q5: Can I request a custom specification for my project?
A: Absolutely. We can manufacture diamond segments according to your exact dimensions and technical specifications.
Q6: What is the typical production capacity for bulk orders?
A: We have a robust production capacity of approximately 600,000 pieces per week to support large-scale industrial needs.
