Deepit Cutter
1 / 5
| Model NO. | HS0606 |
| Control | Automatic |
| Power Source | Electric |

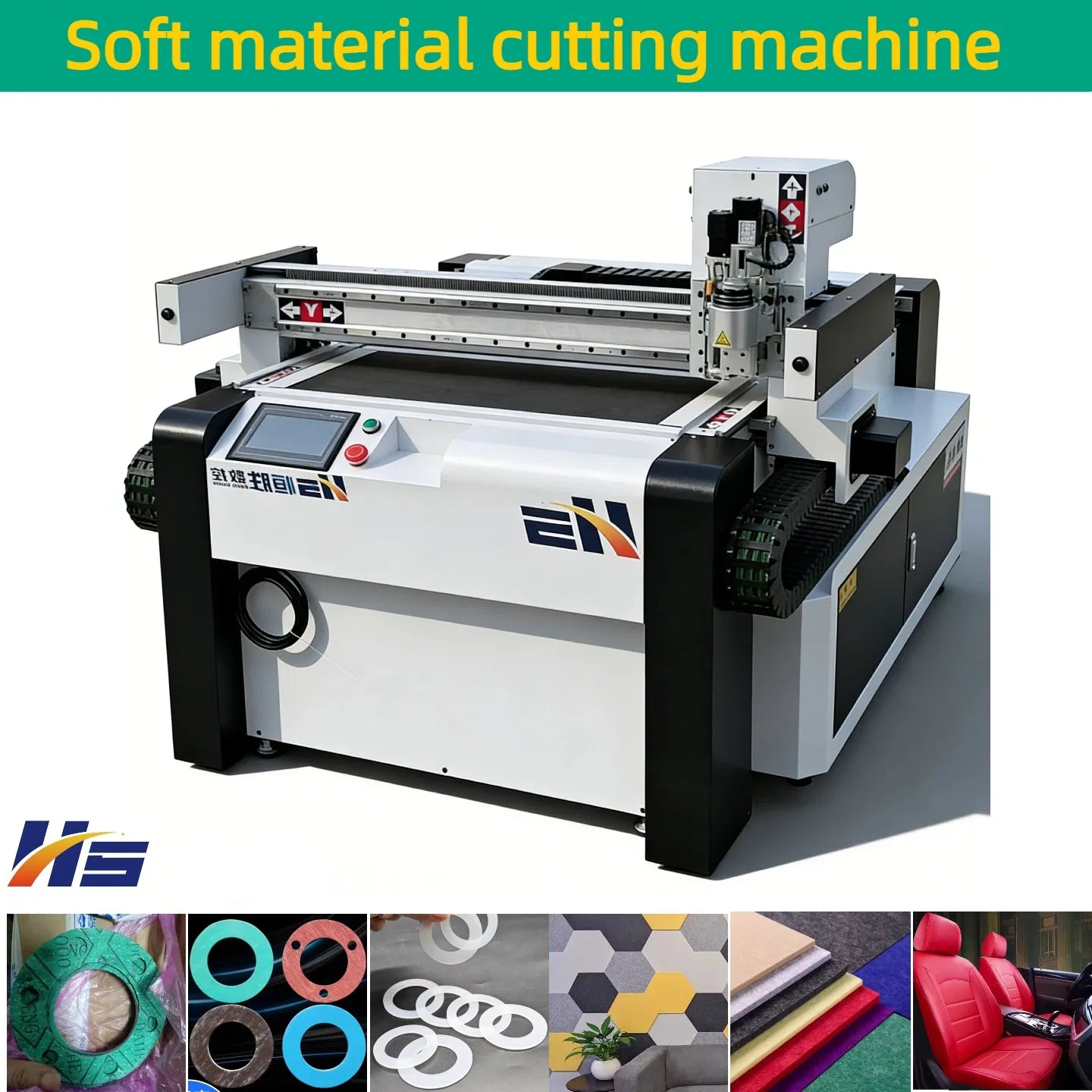

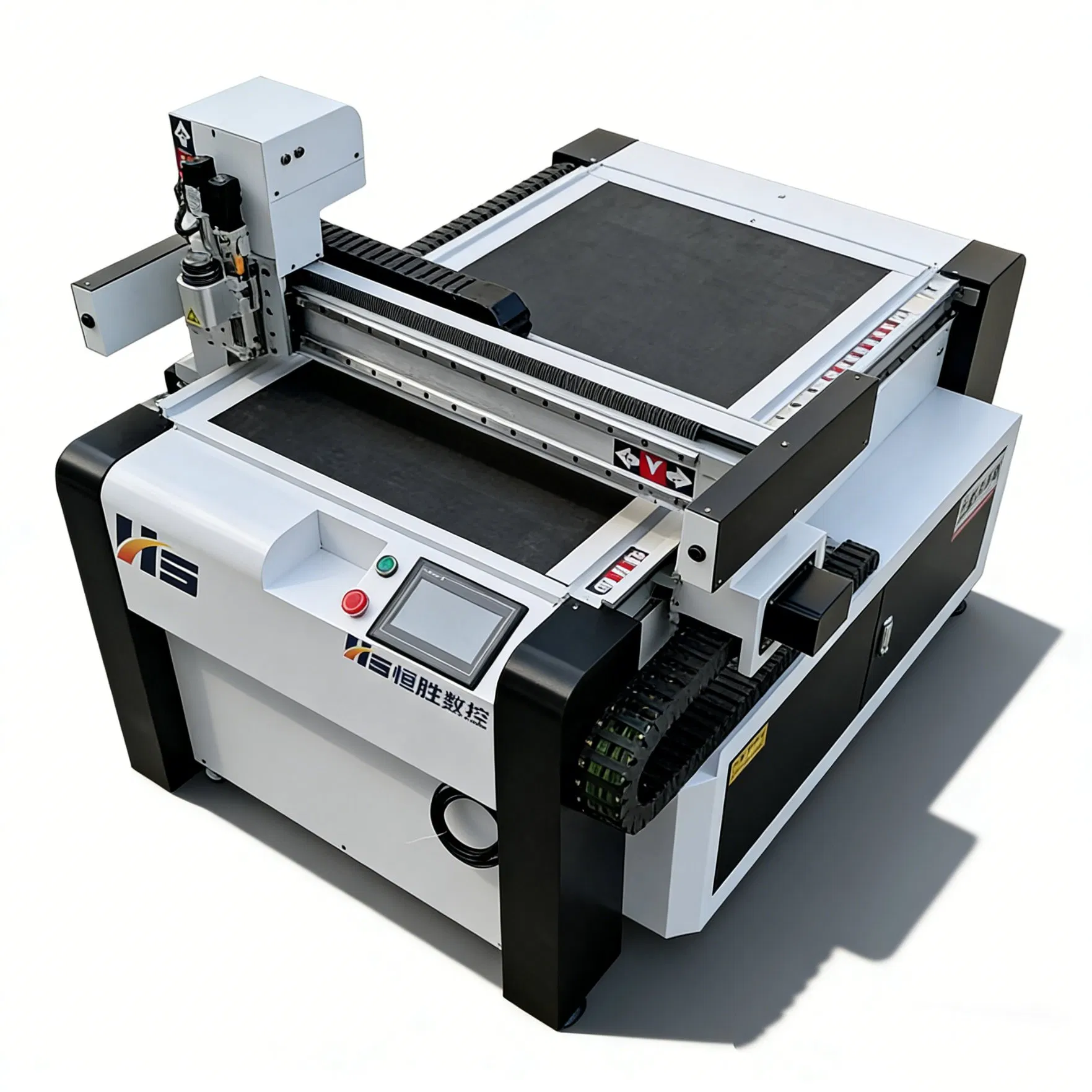

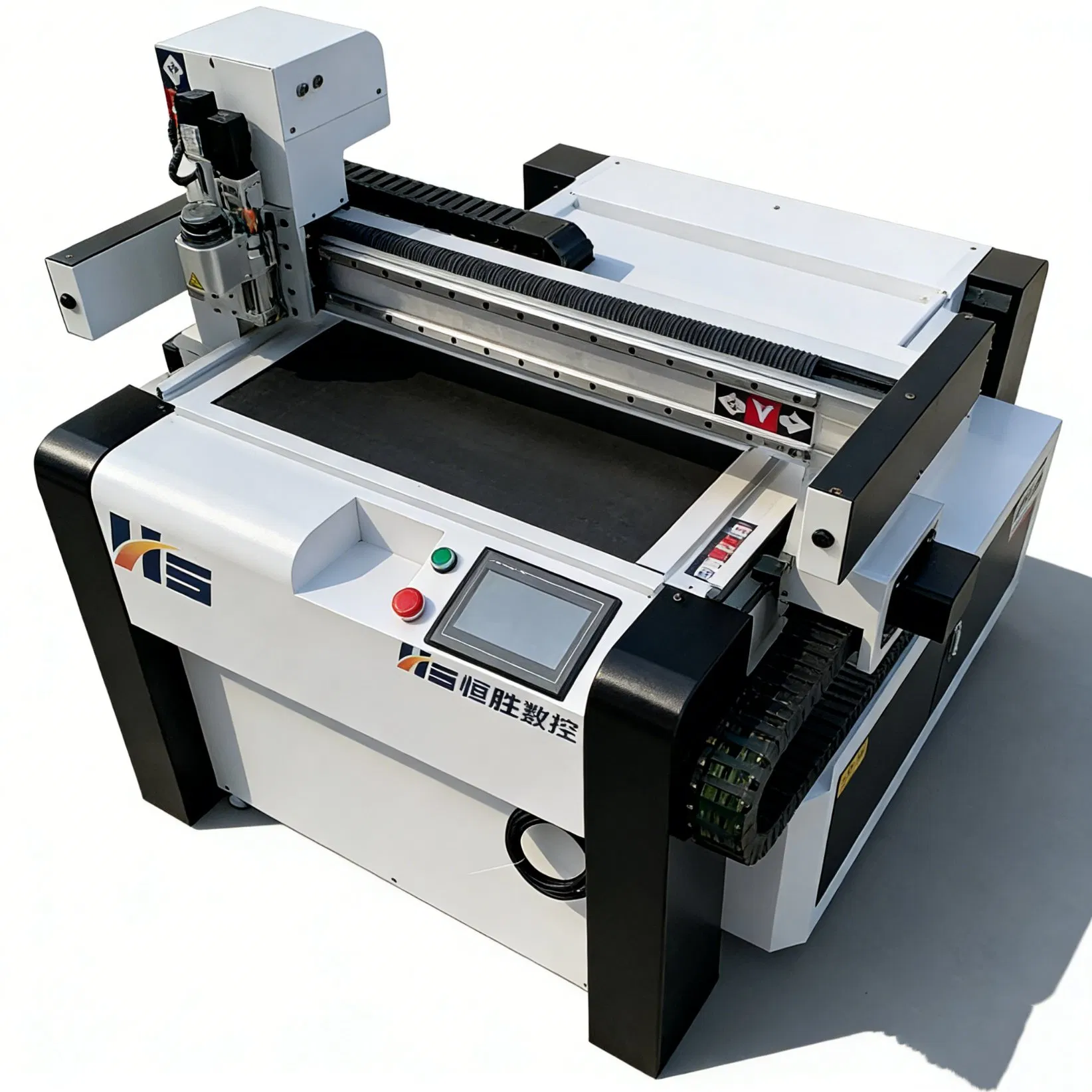

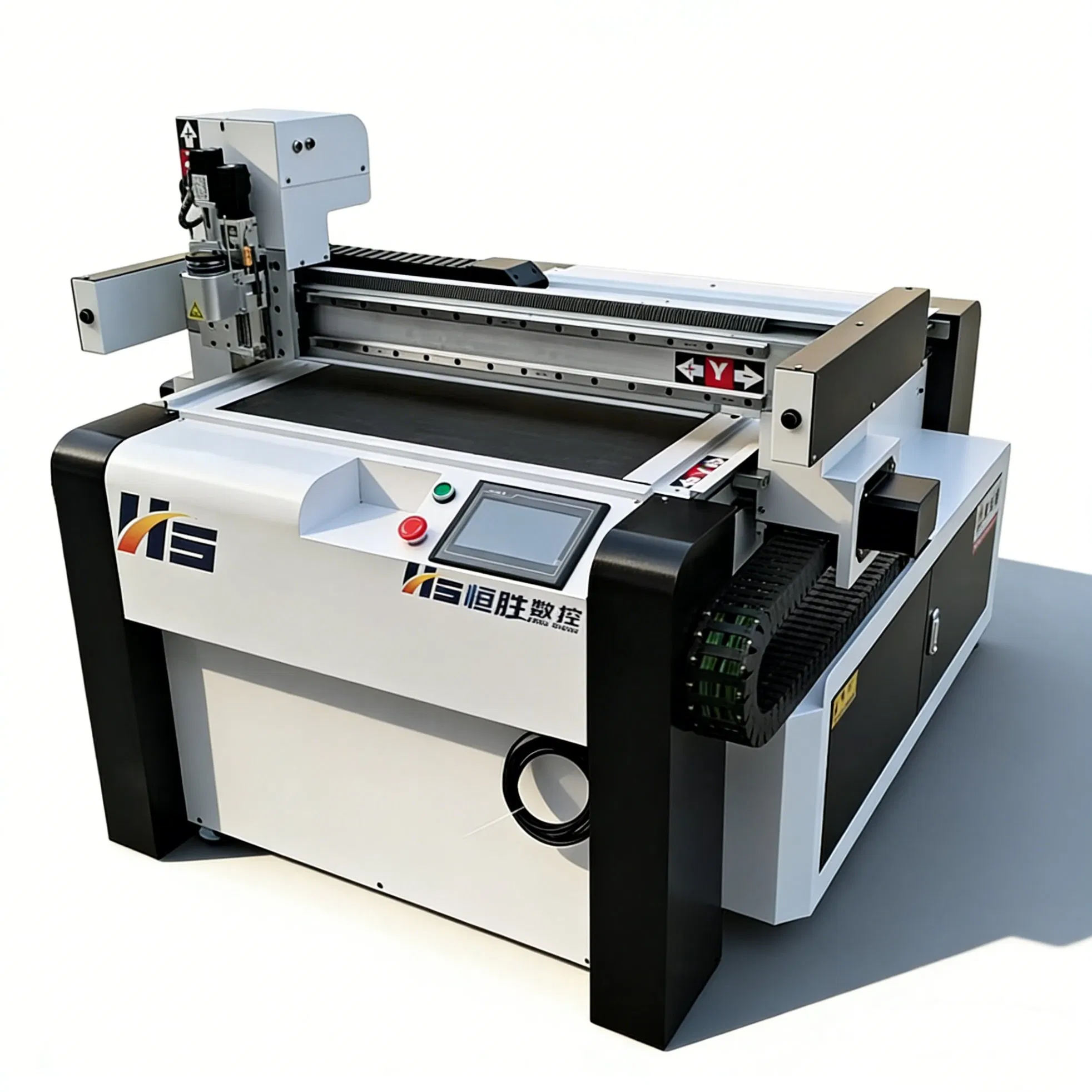

| Product Name | HS0606 Cutting Machine |
| Keywords | Vibrating Knife Cutting Machine |
| Color | Black and White |
| Working Size | 600*600mm (Customized) |
| Cutting Thickness | ≤45mm (Customized) |
| Cutting Speed | ≤2000mm/S (Depend on Material) |
| Cutting Precision | ± 0.1mm |
| Cooling System | Water Cooling |
| Safety Device | Infrared Blocking Device, etc |
| Fixed Mode | Vacuum Absorb |
| Transport Package | Wooden Case Packaging |
| Specification | 600*600mm |
| Production Capacity | 500 pieces/Year |

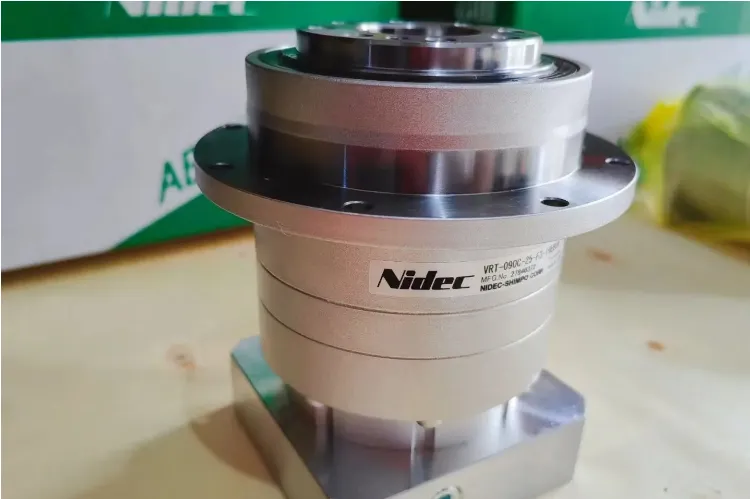

We use the high-precision planetary helical gear stepper/servo motor reducer from Japan's SHIMPO reducer.

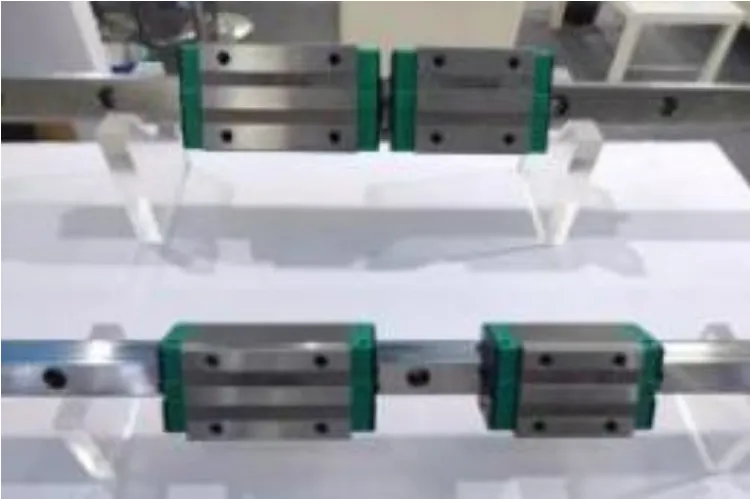

Adopting German imported Fulex sliders, high-speed allows for smoother operation, low noise, and long service life.

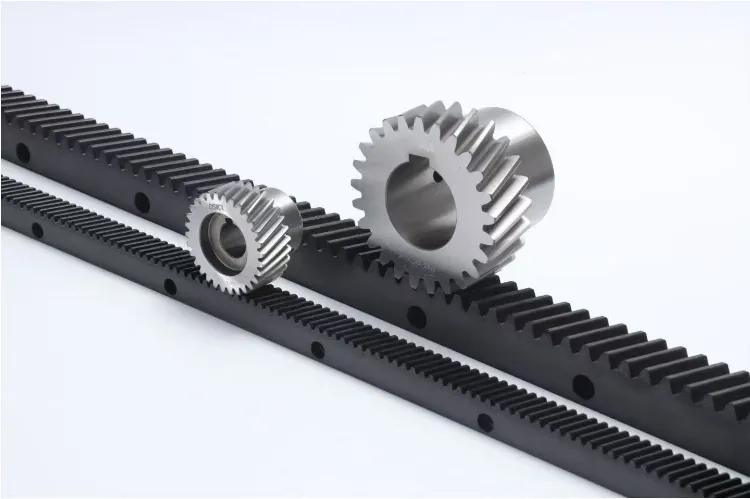

1.5mm grinding rack and gear, high wear resistance, low noise, strong rigidity.

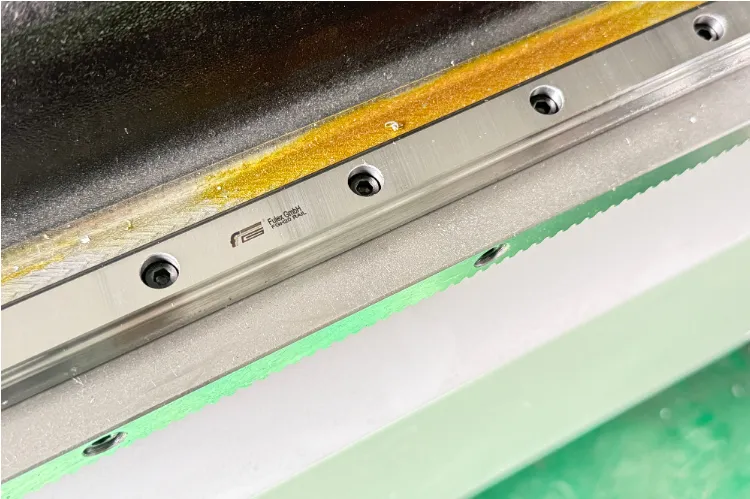

Adopting German high-speed silent Fulex guide rails and diagonal precision grinding technology, the precision is higher and the parallelism is higher.

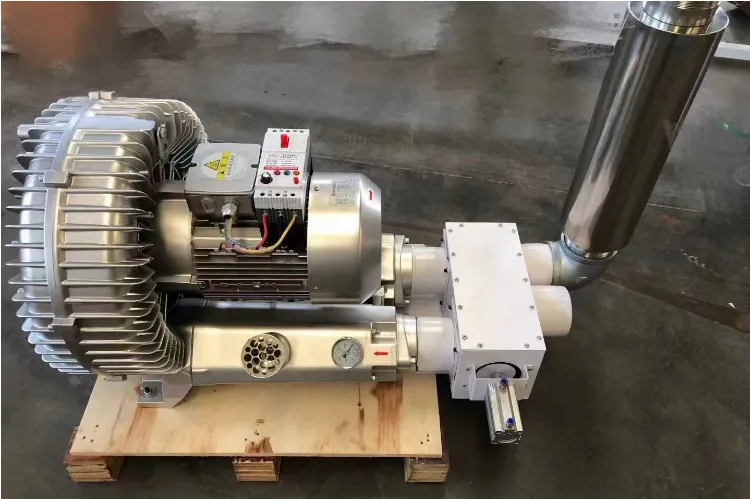

High-power vortex air-cooled vacuum pump, stable operation, no need to use water, more convenient to use, greater negative pressure suction.

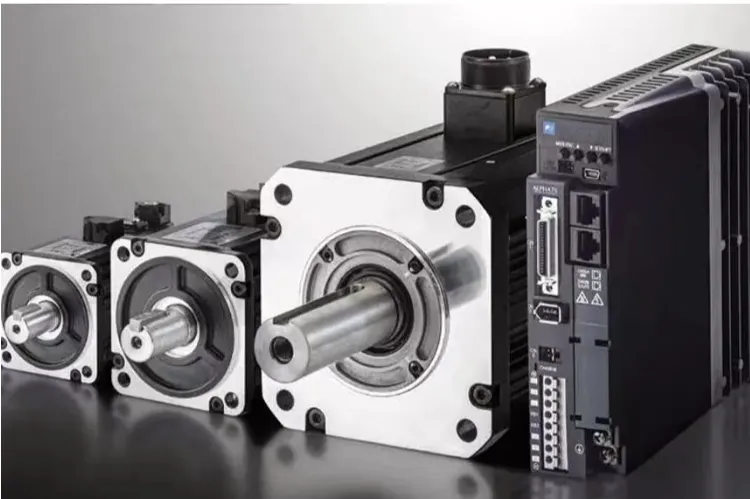

Adopting high-quality Japanese Fuji servo motors and drivers (X-axis dual servo motor drive + precision reducer drive). Strong power, long lifespan, high precision.

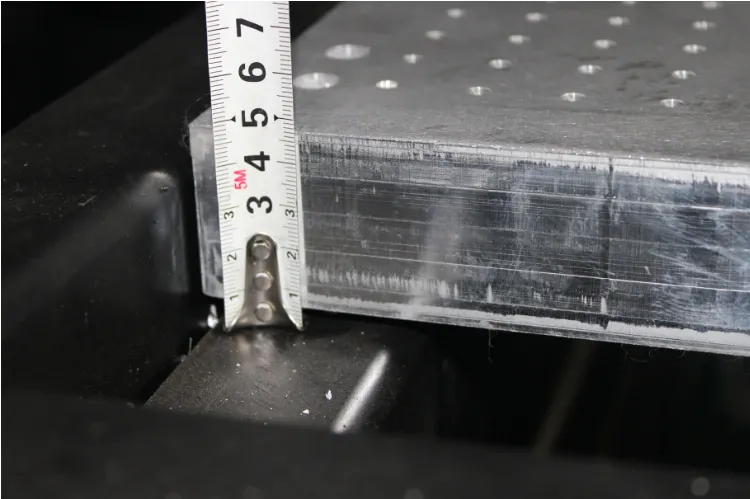

Aviation aluminum alloy honeycomb vacuum adsorption workbench, the surface is densely covered with vacuum adsorption holes. Both large and small workpieces can be easily fixed.

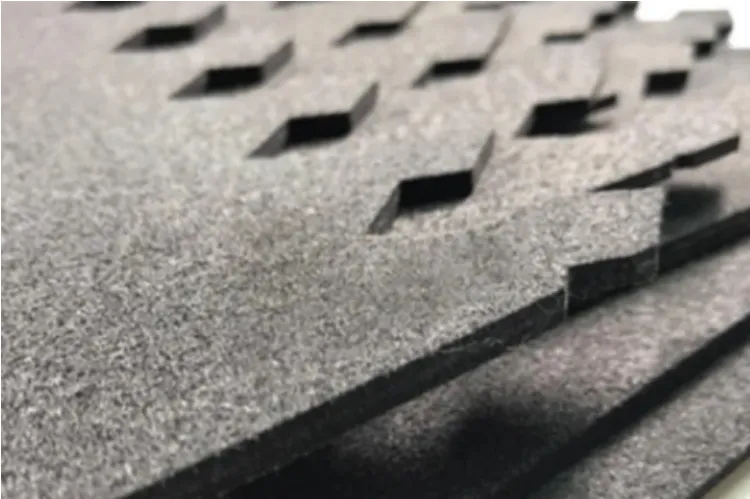

A 4mm high-permeability felt pad is laid on the vacuum adsorption workbench to prevent the tool from being damaged by direct contact with the workbench during processing.

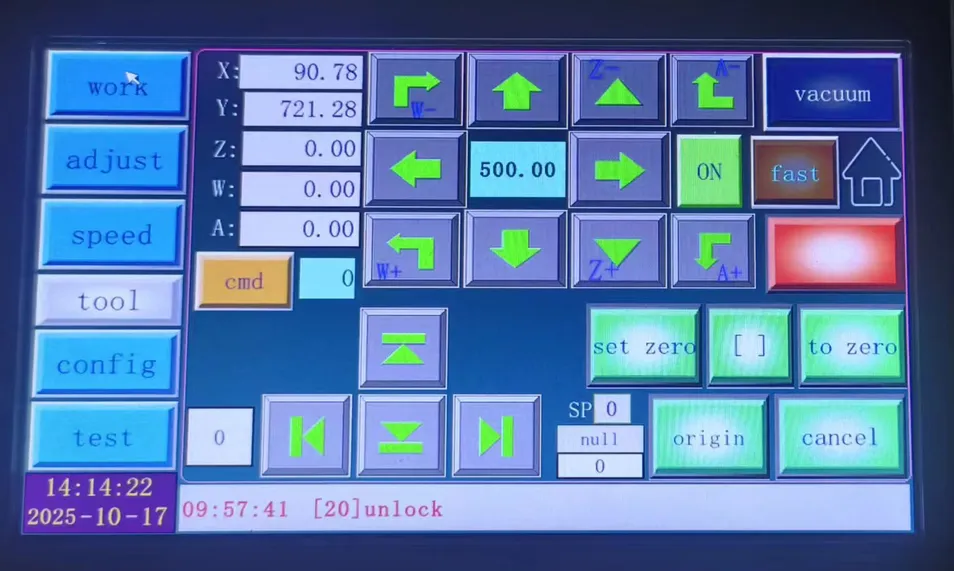

Zhongrui System
Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, feature-rich and user-friendly operation.

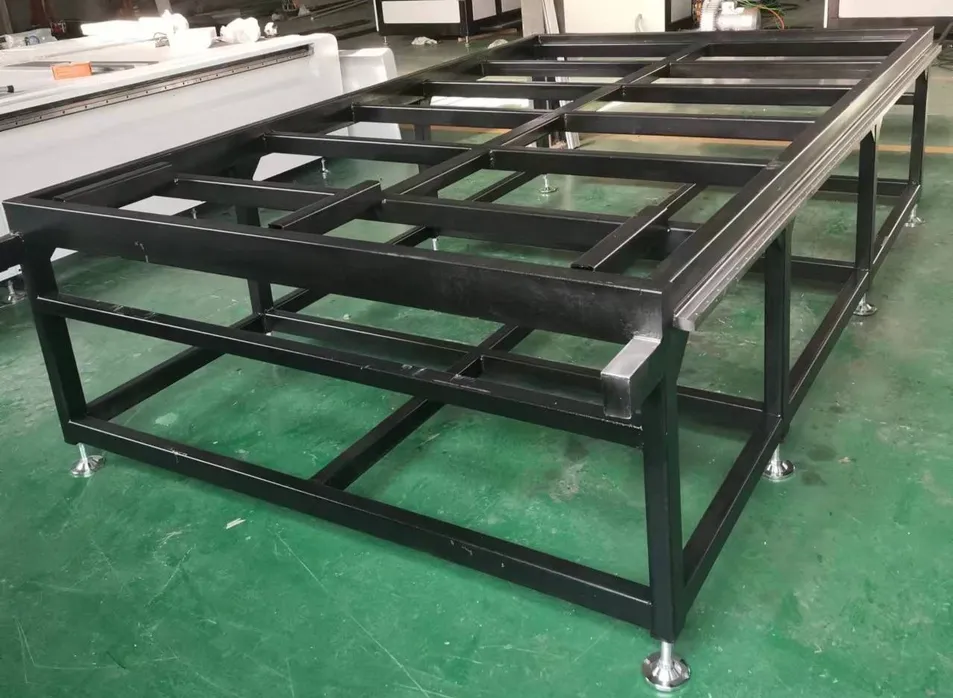

Bed body
Wall square tube welding, five sided milling precision machining bed, high precision, stable operation.
| Product Name | HS1625 Knife Cutting Machine |
| Keywords | CNC Knife Cutting Machine |
| Color | Black And White |
| Working Size | 1600*2500mm |
| Cutting Thickness | ≤45mm (customized) |
| Cutting Speed | ≤2000mm/s (depend on material) |
| Cutting Precision | ± 0.1mm |
| Pan Speed | 100-3000mm/s |
| Cutting Tool | Vibrating Knife |
| Safeguards | Infrared Induction Anti-Collision Device |
| Software Formats | Plt, Dxf, and other formats |
| Fixed Method | Vacuum Pump Adsorption |
