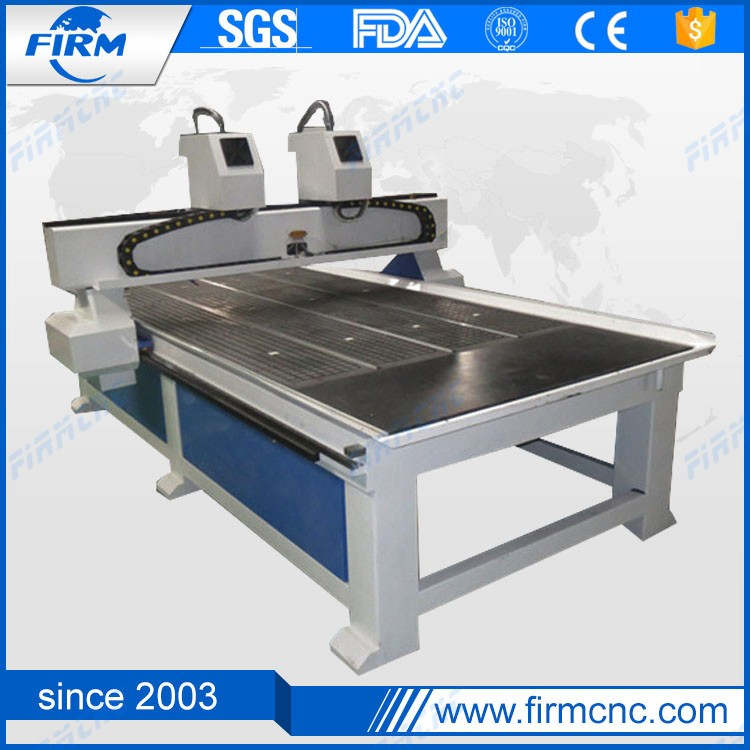

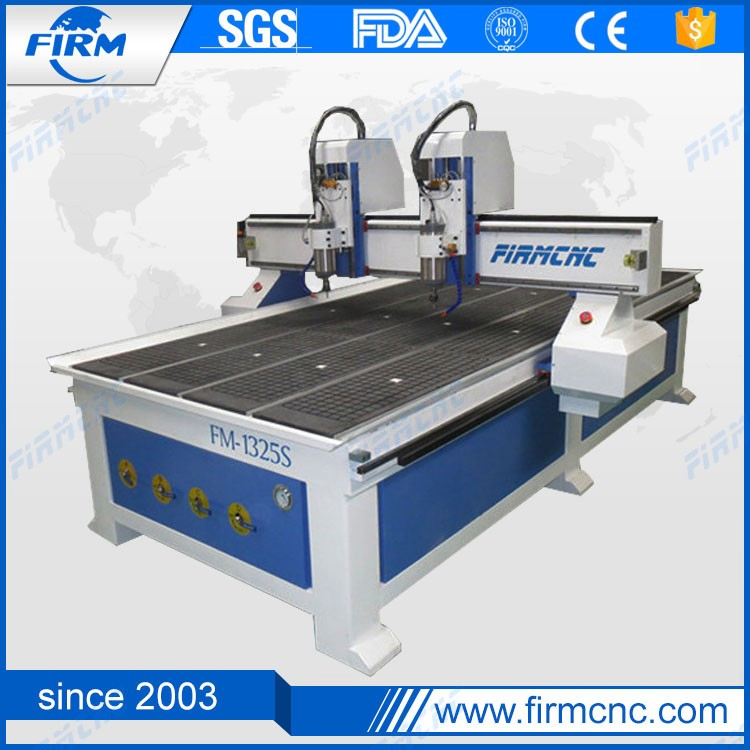

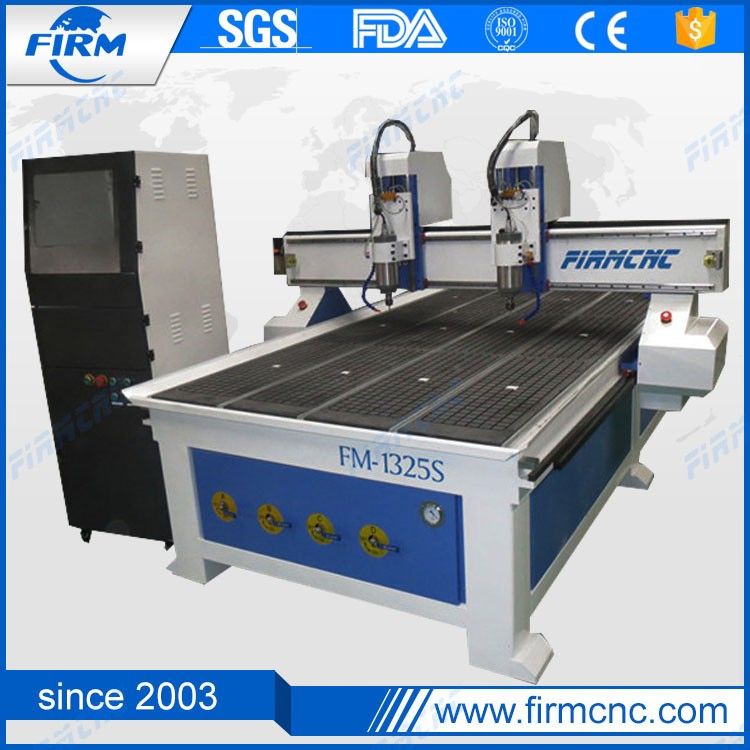

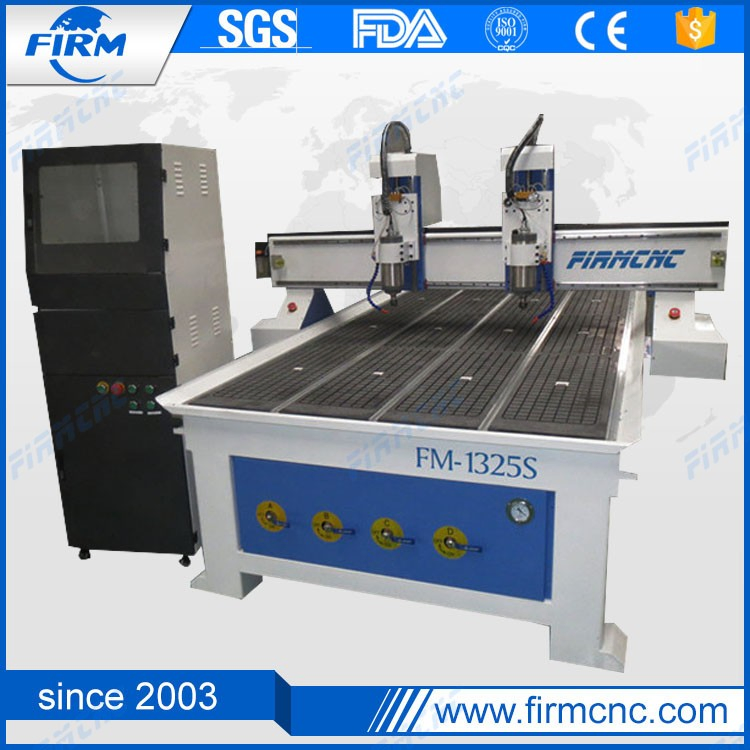

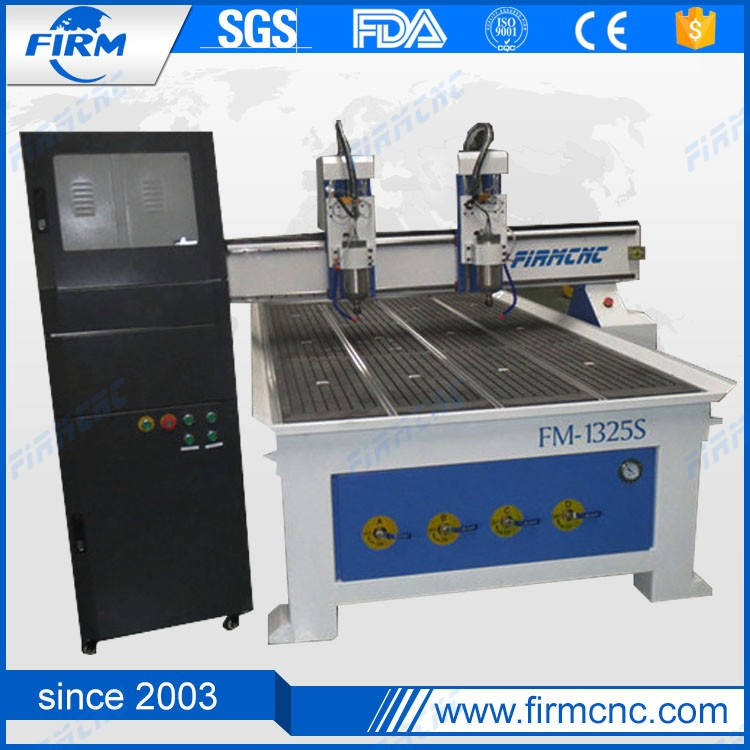

Double-Head CNC Woodworking Engraving Carving Tools

Customization:	Available
Type:	Engraving Router
Spindle Layout:	Spindle Over

Basic Information

Model NO.FM1325

Spindle NumberDouble-Spindle

Feed ModeMechanical

Controlling ModeCNC

CertificationCE, ISO

ConditionNew

Working Area1300*2500mm

Cutting Speed0-8000mm/Min

Control SystemDSP/Nc Studio/Syntec

TransmissionHelical Rack and Pinion

HS Code84659900

Production Capacity350/Mon

Product Features

HIWIN square orbit and double slippers for heavy bearing and high precision cutting.
High-speed stepper motor and drivers with water cooling spindle to upgrade processing speed.
Optional high power water cooling motor (Japan NSK bearing) for stable capability.
Unique intelligent budget principle develops full potential of the motor for smooth curves and synchronization.
Wide compatibility with CAD/CAM software like Type3, Artcam, Castmate, and Ucancam.

Technical Specifications

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Table Structure	Vacuum table
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	TBI Ball screw, Hiwin square rails
Max. rapid	32000mm/min
Spindle power	3.0kw water cooling spindle
Operating system	Mach3 system (Ncstudio, Syntec, DSP)
Software	Artcam, Type3 UcancameV9
Net weight	1200KG

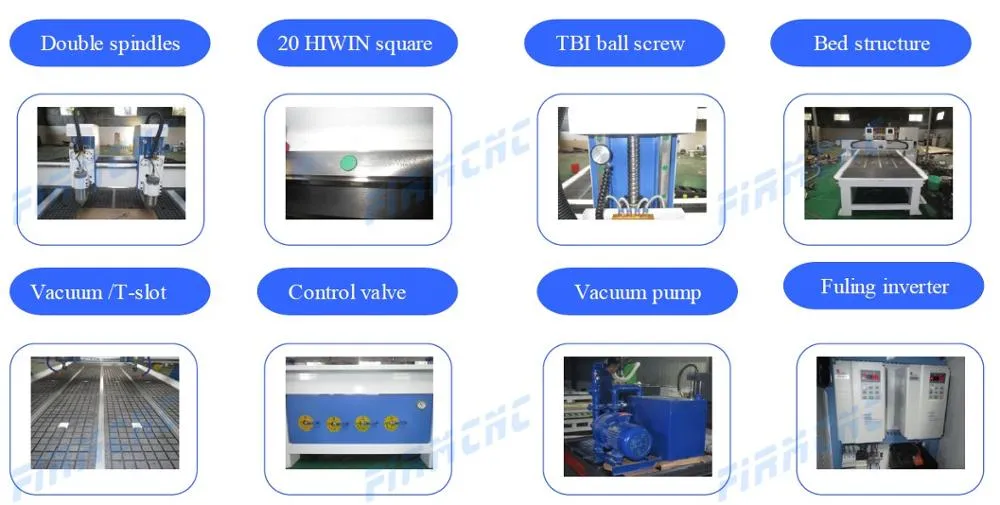

Key Advantages

Double heads 3.0KW Spindle for high efficiency and time saving.
DSP Control System: No PC connection required, easy to learn and operate.
Taiwan TBI ball screw transmission for Z axis ensures precision.
High positioning accuracy with Stepper motor and Leadshine drivers.

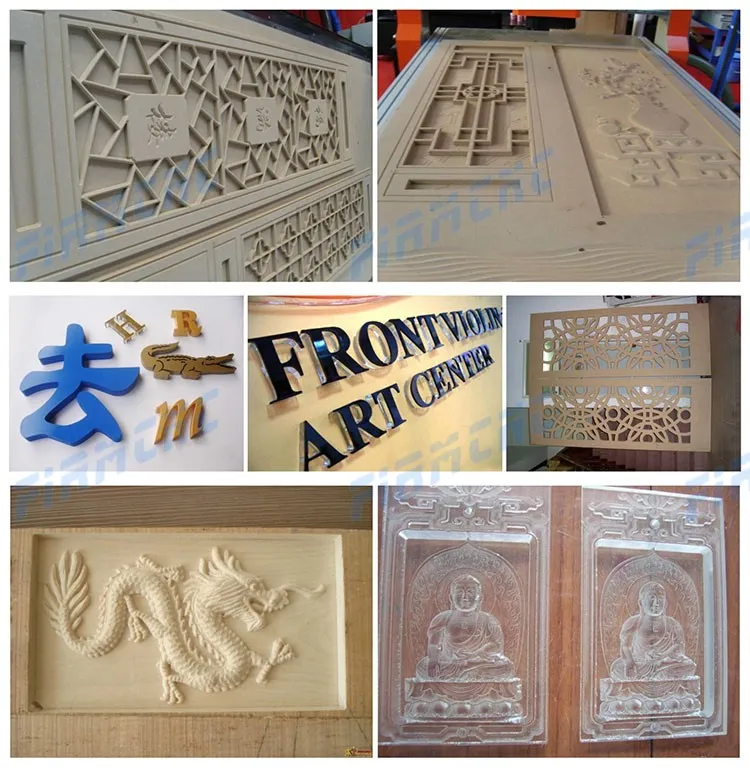

Application & Industry

Furniture industry: Ideal for wooden doors, windows, folding screens, tables, and chairs. Compatible with plastic board, PVC sheet, dual color board, and aluminum.

Mainly designed for cupboard doors, real wood furniture production, and MDF cutting.

Quality Control & Service

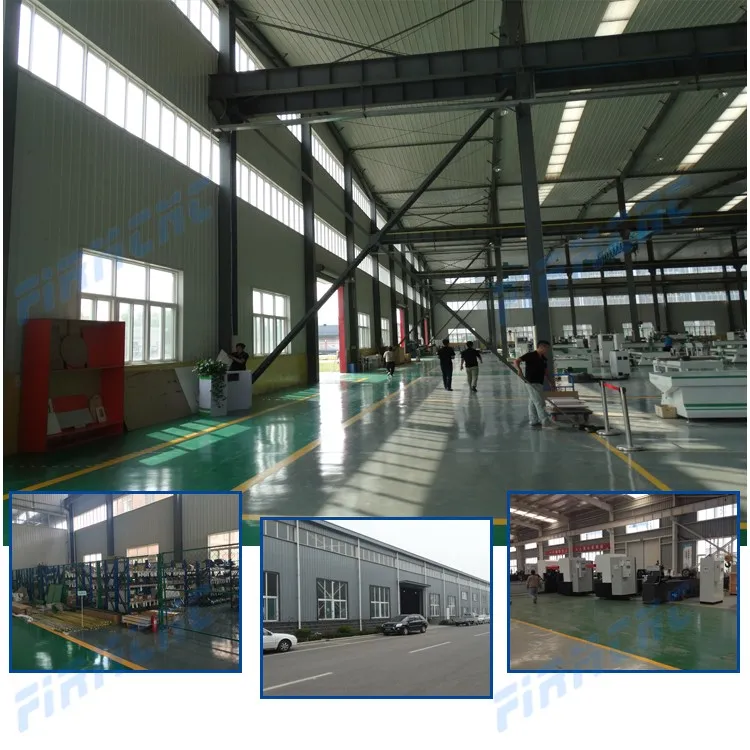

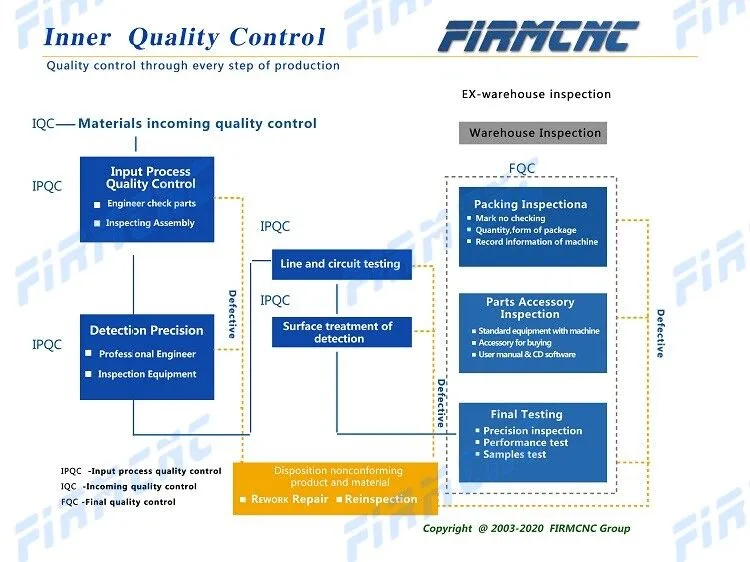

Quality Inspection: 48 hours continuous working test before leaving the factory. Every step is strictly monitored to ensure high precision and clean machine aesthetics.

Technical Support: 24-hour support via phone or e-mail, friendly English manuals, and operation videos provided.
