Customization: Available
Species: Die Cutting and Creasing Machine
Imprinting Type: Platen
Send Inquiry

Product Description

Technical Specifications

Model NO.
ML-1500
Placing Form
Horizontal Template
Die Cutting Tool
Steel Blade
Automatic Grade
Semi-Automatic
Workers Required
1-2
Power Supply
380V
Size Range
750mm to 2800mm
Production Capacity
100 sets/Month
Application:
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products.

Product Introduction

The die cutting and creasing machine is an equipment especially designed for die cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation.

▶ Video Checking

Video demonstration available: https://youtu.be/qHWkxx2yNRU

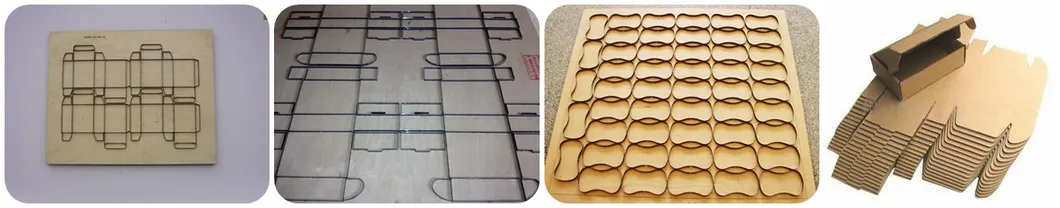

Die Cutting Plate and Finished Samples

Die Cutting Plate

Core Features

✔ Durable Body

High strength due to one piece casting by using top quality materials for the machine body.

✔ Smooth Operation

Low noise and big pressure via herringbone gear input and helical gear output mechanism.

✔ Electromagnetic Clutch

Single plate electromagnetic clutch is sensitive and reliable for precise control.

✔ IEC Standard

The electrical system is designed strictly following IEC standards for safety.

✔ Adjustable Dwell

Functions as single or continuous operation with adjustable dwell time.

✔ Lubricating System

Equipped with a concentrated lubricating system for easy maintenance.

Main Specifications Table

ModeI Inner Chase size Speed (strokes/min) Max. Rule Length Motor Power Weight Overall Dimensions
ML-750750x520mm25±2<14m2.2kw1800kg1360x1400x1300mm
ML-930930x670mm23±2<25m4kw3000kg1680x1680x1640mm
ML-10401040x720mm23±2<30m4kw4000kg1850x1780x1700mm
ML-11001100x800mm20±2<26.5m4kw4500kg1900x1780x1700mm
ML-12001200X820mm20±2<26.5m4kw4500kg1900x1900x1750mm
ML-13001300x920mm18±2<38m5.5kw5600kg1920x2140x1800mm
ML-14001400x1000mm17±2<38m5.5kw6200kg2010x2400x1930mm
ML-15001500x1050mm17±2<40m7.5kw6800kg20100x2480x1960mm
ML-16001600x1250mm13±2<50m11kw11000kg2500×2200×2000mm
ML-18001800×1250mm13±2<60m11.5kw13500kg2510×2300×2000m
ML20002000×1400mm13±2<60m15kw16000kg2270×3100×2150mm
ML25002500×1500mm13±2<75m18.5kw20000kg2300×3600×2150mm

Factory & Shipping Display

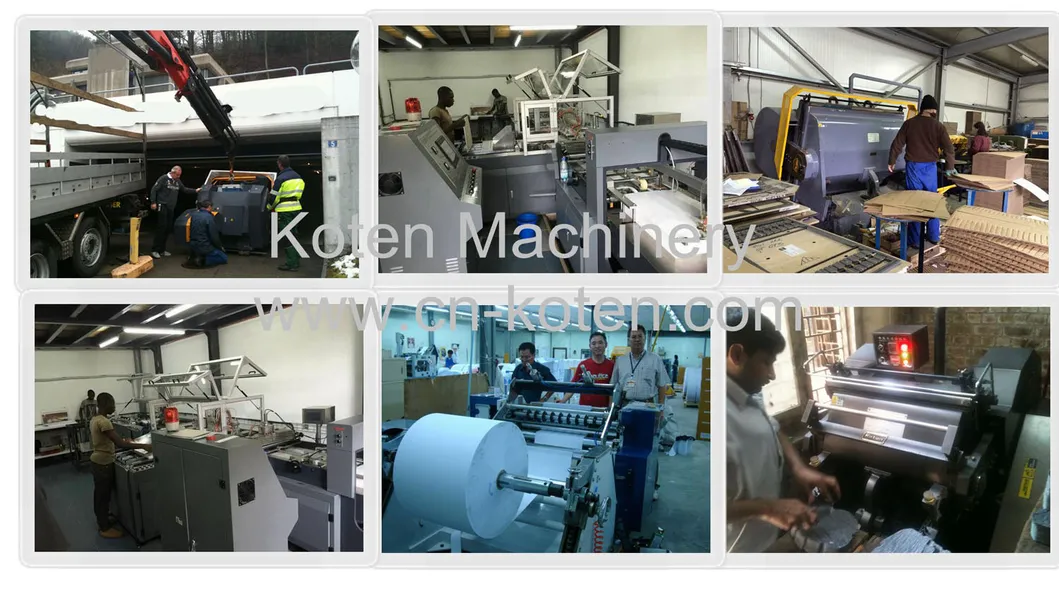

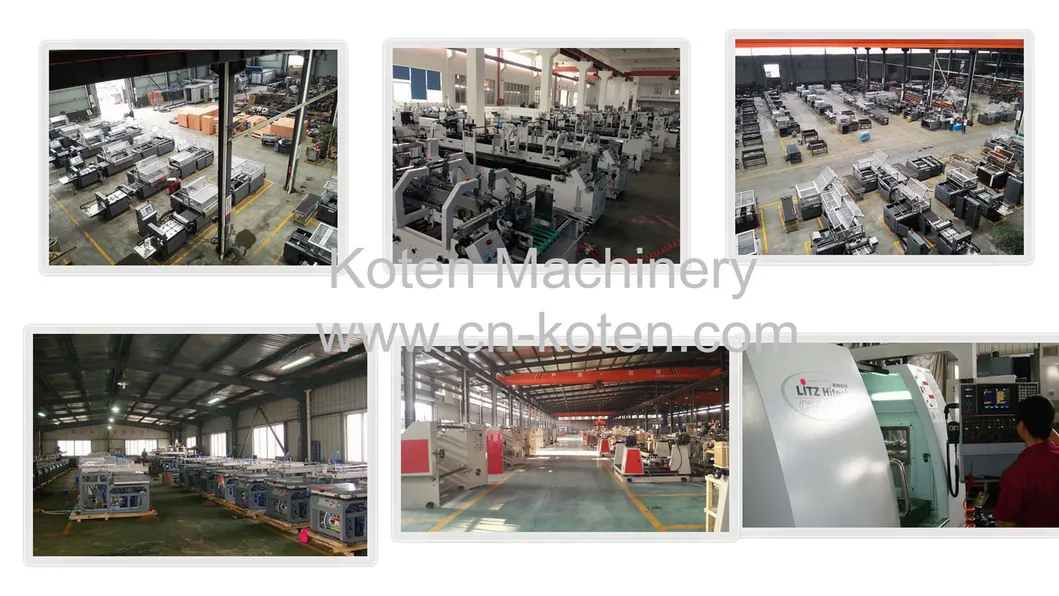

Loading into Container Client Factory Installation Factory Production Line

Frequently Asked Questions

What materials can the ML-1500 handle?
The machine is designed for die cutting cardboard, corrugated board, plastic, leather, and various insulation or dust-proof materials.
Is the machine easy to operate for new workers?
Yes, it features a semi-automatic design with a reasonably arranged operational altitude, requiring only 1-2 workers for efficient operation.
What are the safety features included?
The machine includes a reliable safety system with an optional CE security device and is built to IEC electrical standards.
Does the machine support continuous operation?
Yes, it supports single, continuous, and opening well operations, and the dwell time is fully adjustable to suit production needs.
How is the machine protected during transport?
All machines are packed in strong export-standard wooden cases to ensure they arrive at the client's destination safely.
What is the power requirement for the ML-1500?
The standard power requirement is 380V, with a motor power of 7.5kw for the ML-1500 model.
