Corrugated Cardboard Creasing Chain Slotting Machine

1 / 5

Corrugated Cardboard Creasing Chain Slotting Machine

Customization:	Available
Slotting Stroke:	200mm-400mm
Material:	Metal

Send Inquiry

Product Description

Basic Specifications

Model NO.

SM-015

Power Type

Electrical

Operation Type

Manual

Transport Package

Pallet

Specification

200mm-400mm

Origin

China

HS Code

8461202000

Production Capacity

20000

⚙

Product Description

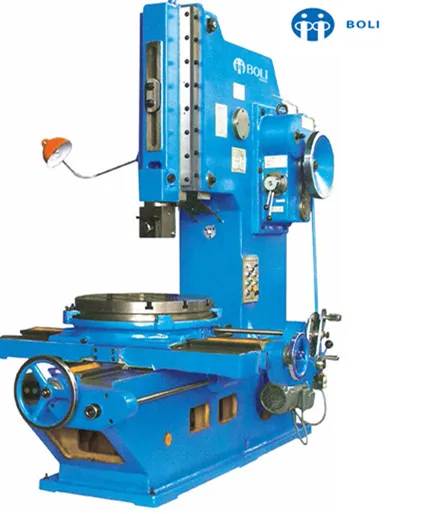

B5020D/B5032D/B5040D Slotting Machine is specifically designed to machine various planes, surfaces, and keys of workpieces. It is an ideal solution suitable for small workshops.

The machine's start and stop functions are controlled by a clutch, while the reciprocation of the ram is achieved through a robust crank connecting link. It features an automatic mechanism for vertical, horizontal, and rotary feeding, complemented by integrated safety devices on the table. Furthermore, a rapid motion device is provided for vertical, horizontal, and rotary movements of the table, which is also equipped with an indexing gear for precise rotary motion.

📊

Technical Parameters

Model No.	Unit	B5020D	B5032D	B5040D
max slotting length	mm	200	320	400
number of ram reciprocation per minute	no./min	32,50,80,125	20,32,50,80	20,32,50,80
inclination of ram	°	0-8	0-8	0-8
dia of worktable	mm	460	630	630
adjusting vertical distance of slide block	mm	200	315	315
distance from tool holder surface to column front	mm	480	600	600
distance from worktable surface to underside of slide rack	mm	320	455	615
max longitudinal travel of worktable	mm	420	560	560
max transverse travel of worktable	mm	420	535	535
max rotary angle of worktable	°	360	360	360
feed range of worktable in longitudinal and transverse	mm	0.054-1.24	0.054-1.24	0.054-1.24
rotary feed range of worktable	°	0.035-0.805	0.035-0.805	0.035-0.805
max size of slotting tool(WxH)	mm	25×40	25×40	25×40
max slotting force	Kn	5	8	8
max loading weight on worktable	Kg	400	500	500
T-slot width in center of worktable	mm	18	18	18
main motor power	Kw	3	3	3
rapid transverse motor power	Kw	0.75	0.75	0.75
N.W.	Kg	2200	2500	2900

📷

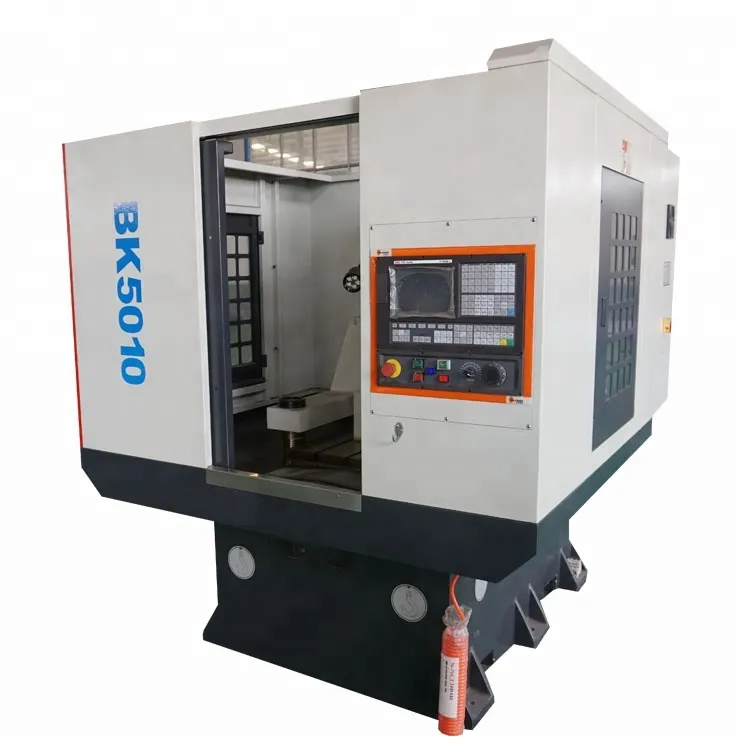

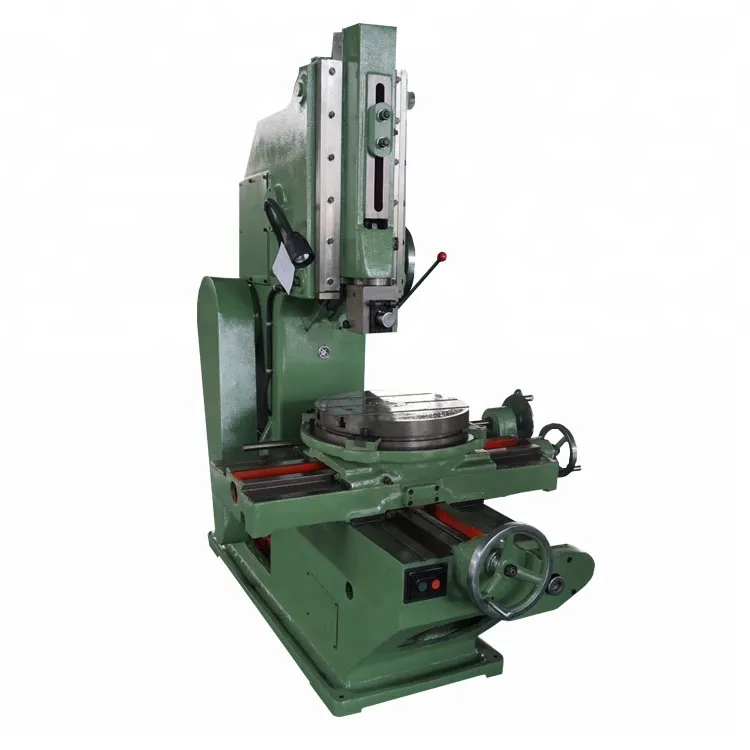

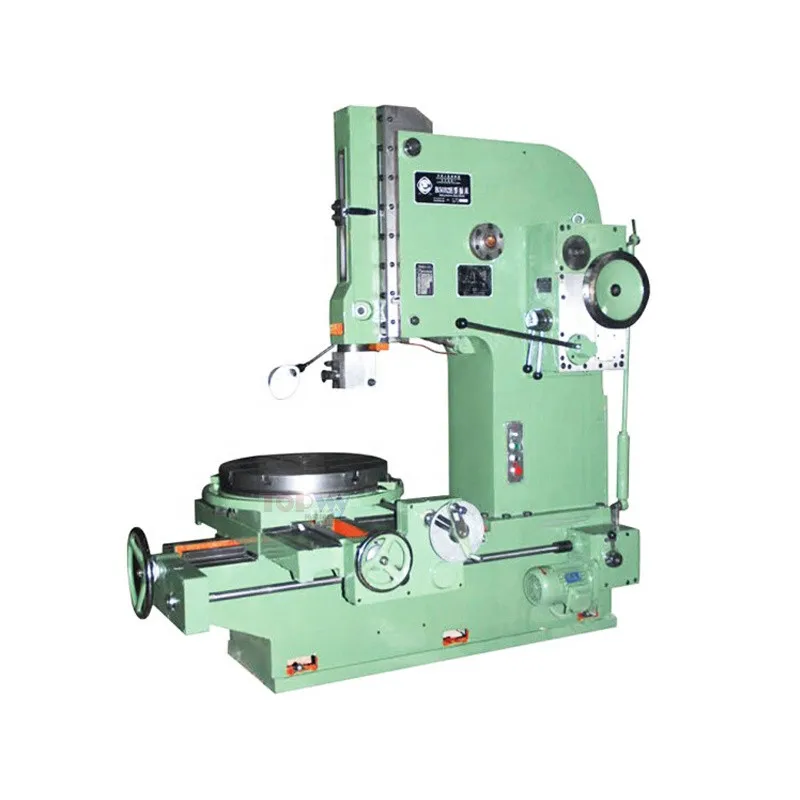

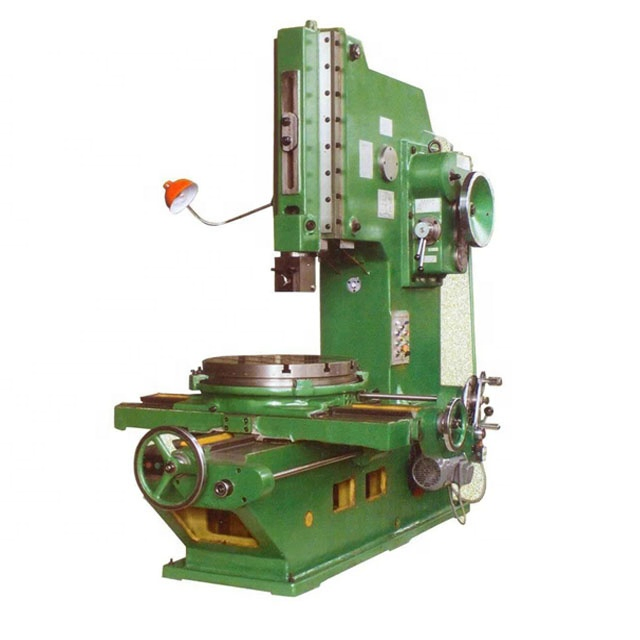

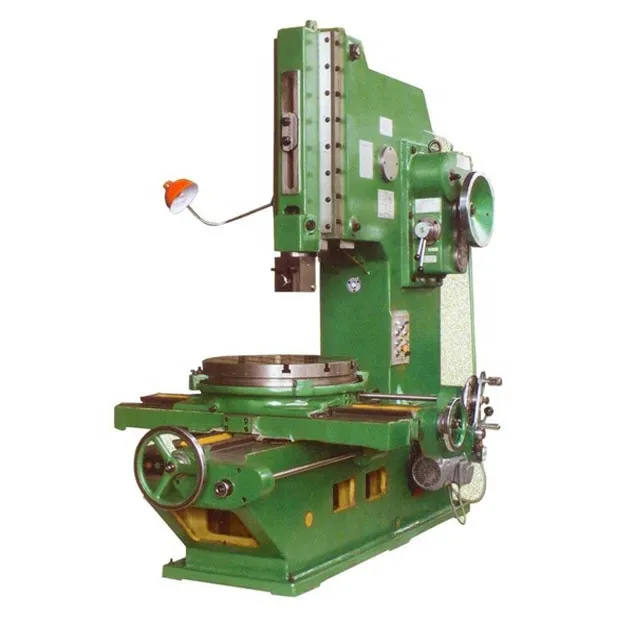

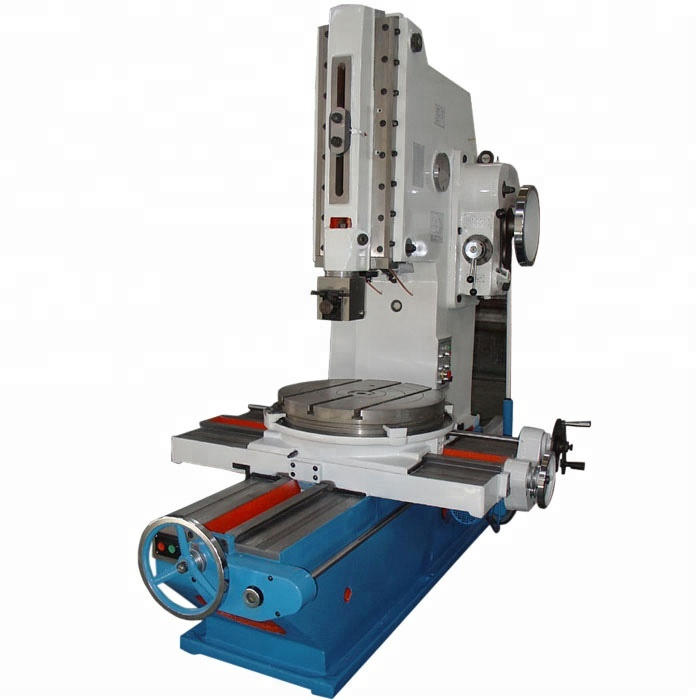

Product Gallery

Frequently Asked Questions

What are the primary applications for the B5020D/B5032D/B5040D series?

These slotting machines are designed for machining various planes, surfaces, and keyways of workpieces, making them ideal for small workshop operations.

How is the ram movement controlled in these machines?

The machine start and stop are controlled by a clutch, while the reciprocating motion of the ram is driven by a crank connecting link system.

Does the worktable support automatic feeding?

Yes, the worktable is equipped with an automatic mechanism for vertical, horizontal, and rotary feeding, along with safety devices for secure operation.

Is there a rapid movement feature for the table?

Yes, the machine includes a rapid motion device for vertical, horizontal, and rotary motion to improve efficiency during positioning.

What is the maximum slotting length available in this series?

The maximum slotting length varies by model: 200mm for the B5020D, 320mm for the B5032D, and up to 400mm for the B5040D model.

Can the ram be inclined for specific machining needs?

Yes, the ram on all three models (B5020D, B5032D, and B5040D) can be inclined within a range of 0-8 degrees.
