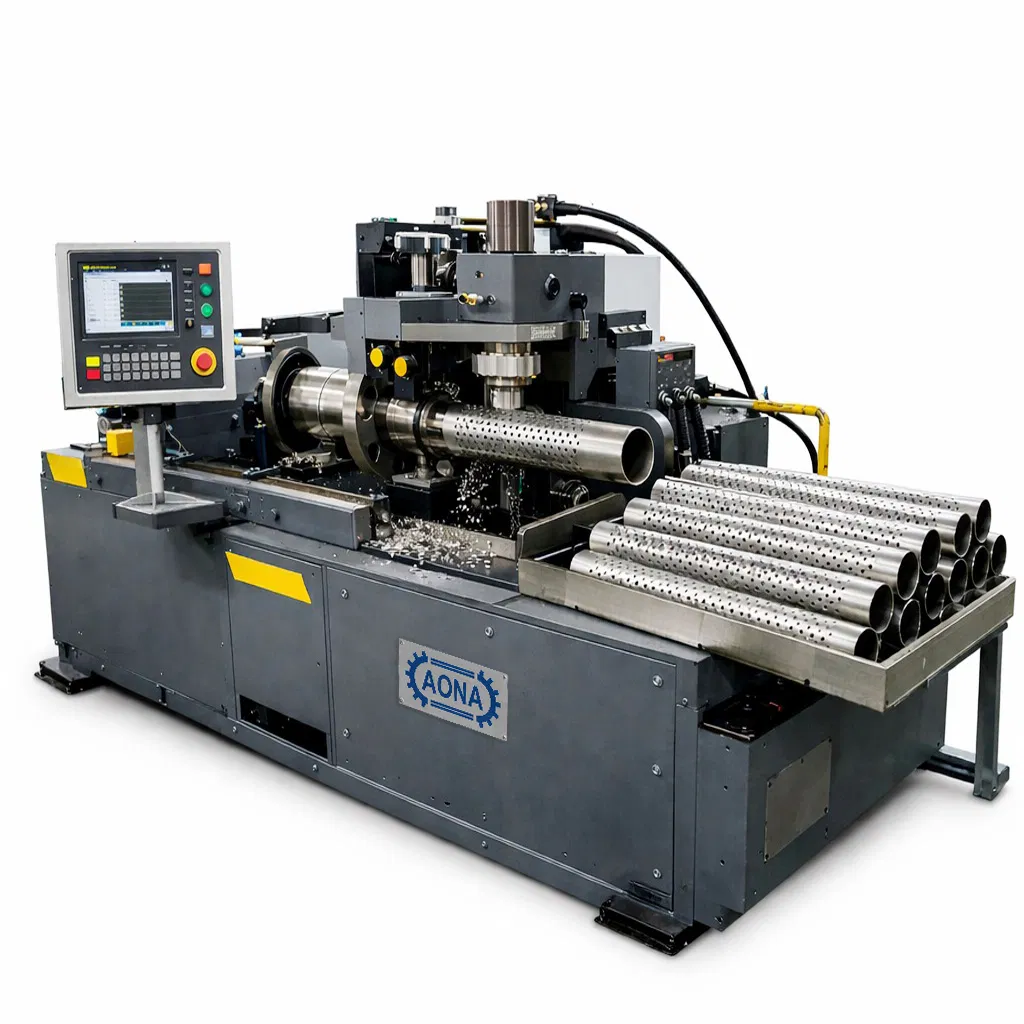

Automatic CNC Rotary Exhaust Pipe Perforating & Punching Machine

Customization: Available
After-sales Service: All Life Time
Warranty: 2 Years

Product Description

1

Basic Information

Type High-Speed Punching Machine
Punch Shape Open Punch
Slider Movement Double Action
Controlling Mode CNC (Automatic Grade)
Power Source Hydraulic Pressure
Precision High Precision
Certification GS, CE, RoHS, ISO 9001
Pipe Type Round Tube, Square Tube, Rectangle Tube
Workpiece Material Steel, Aluminum, Copper, Stainless Steel
Voltage 220, 380, 415, 600V or Customized
Origin China
2

Machine Advantages

A.
Human-machine interface display, Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.
B.
Structure: Steel plate welded structure for enhanced durability.
C.
Mould replacement: Change the die easily within 10 minutes without adjusting the dies, reducing damage and rejection rates.
D.
Hydraulic and Servo System: Step-less adjustment with zero-load loops to reduce noise and increase motor efficiency. High-speed downward moving and low-speed processing for stability and energy saving.
3

Technical Parameters

Model Capacity5--100 Ton or Customized
Punching Thickness0.5--20mm or Customized
Round Pipe RangeΦ6~Φ120 mm or Customized
Punching SpeedMax 120 holes/min
Pipe Length6000mm or Customized
Servo Feeding Speed3500mm/min
Main Motor Power7.5-15KW
Motion TypesSingle, Irregular, Regular, 360° Rotating Puncturing
Memory Function0-99 groups processing mode
Weight5500Kg
4

Product Display

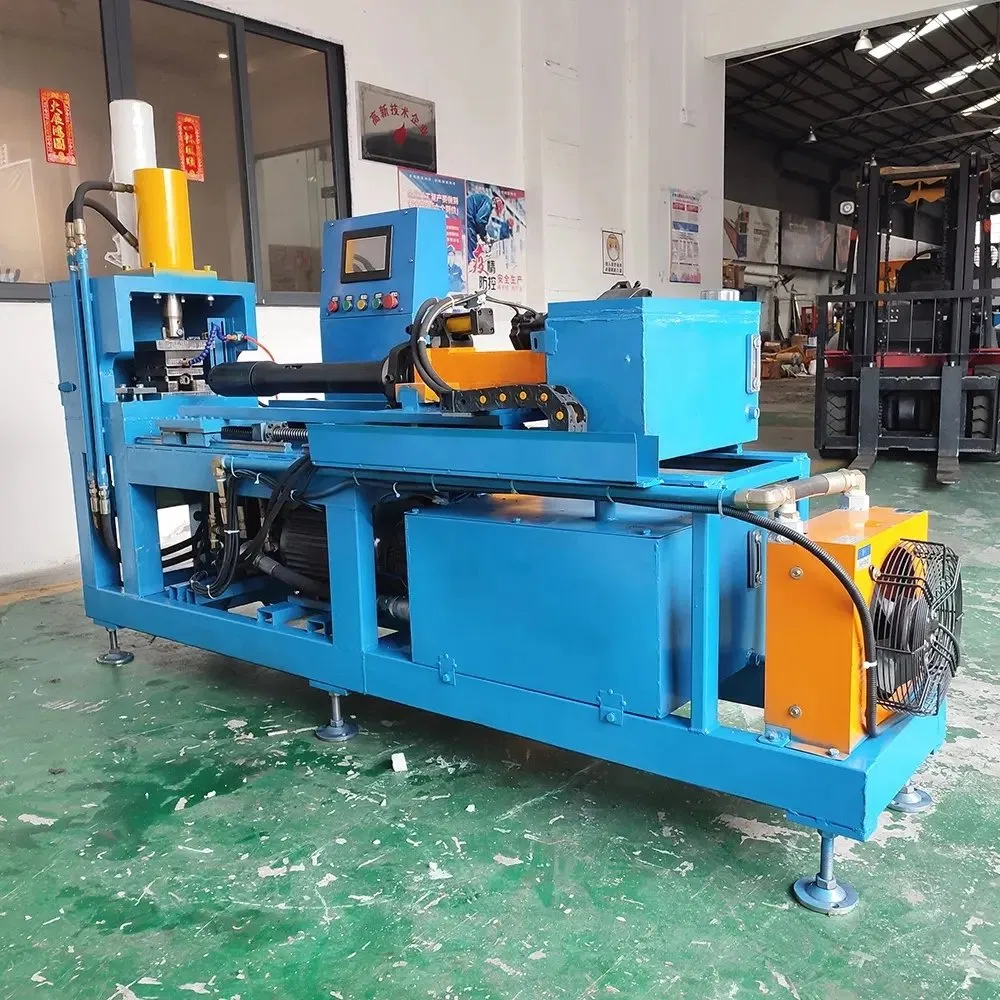

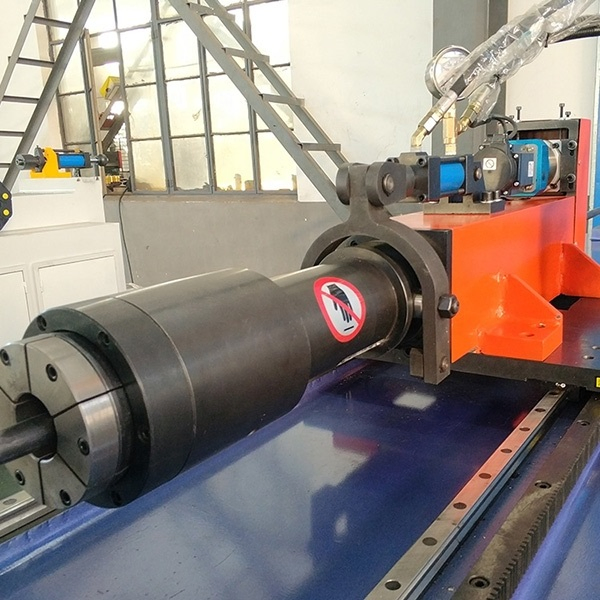

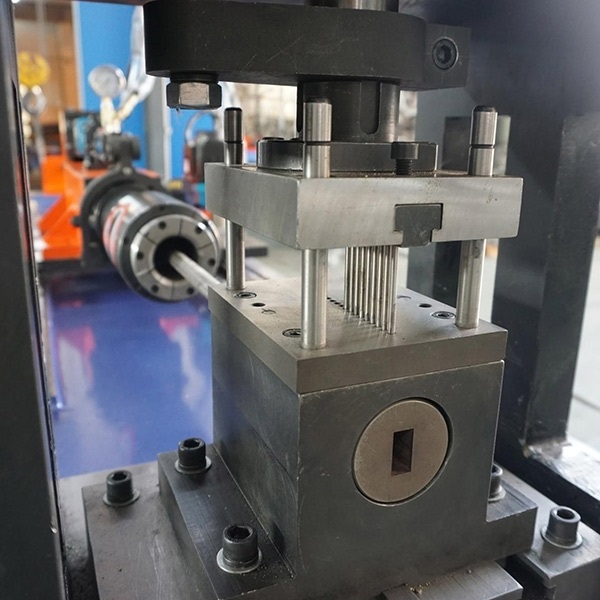

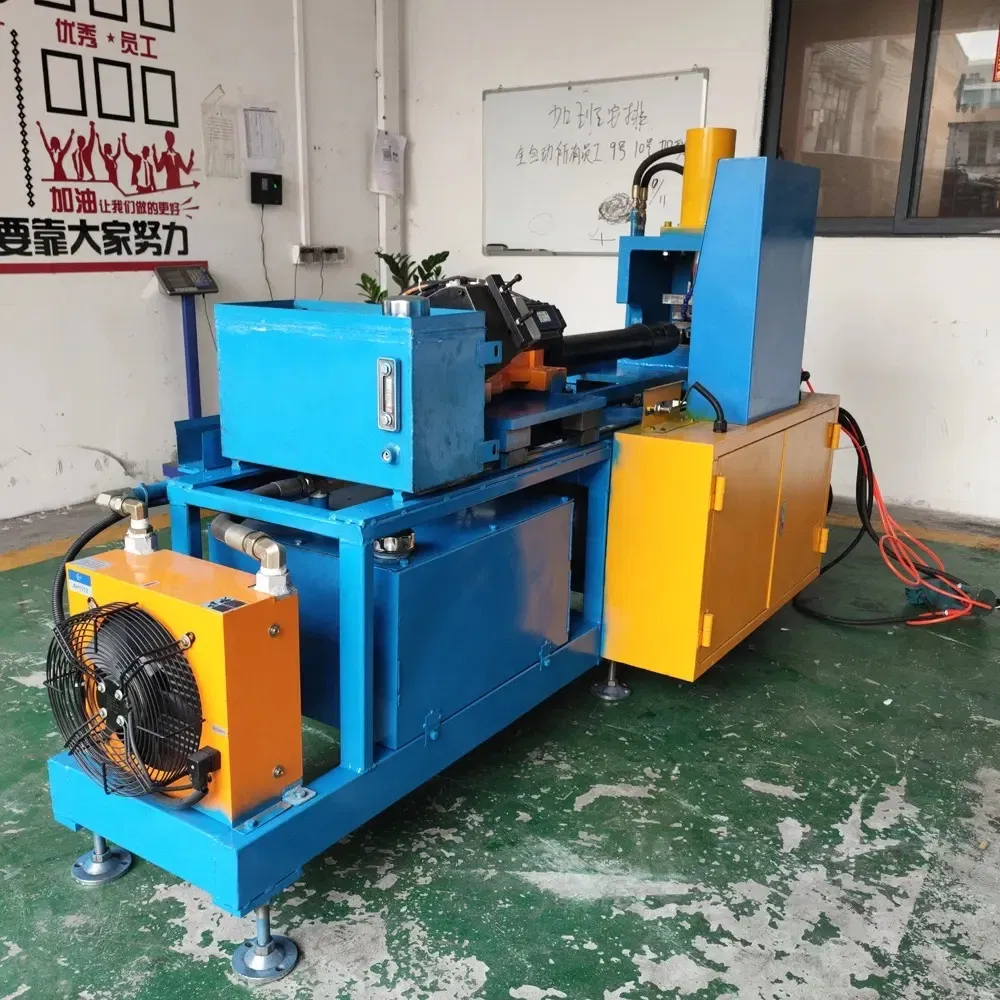

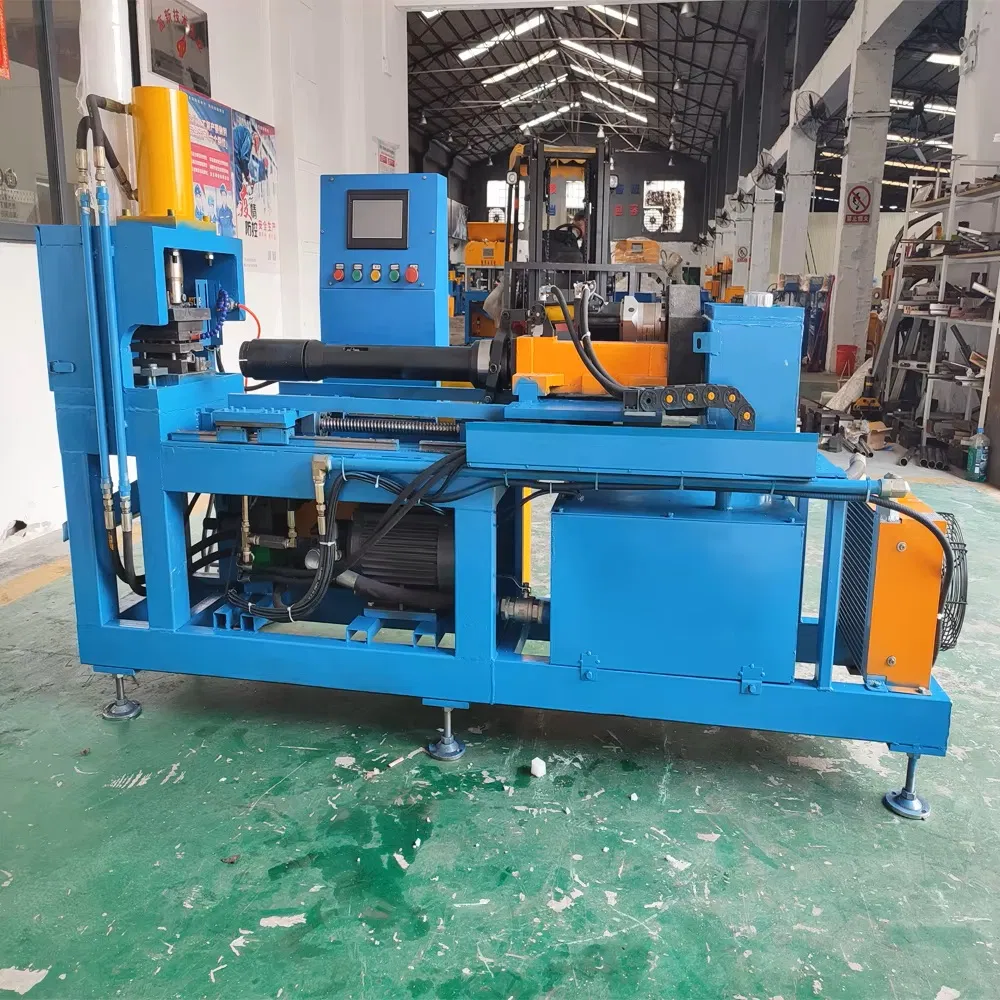

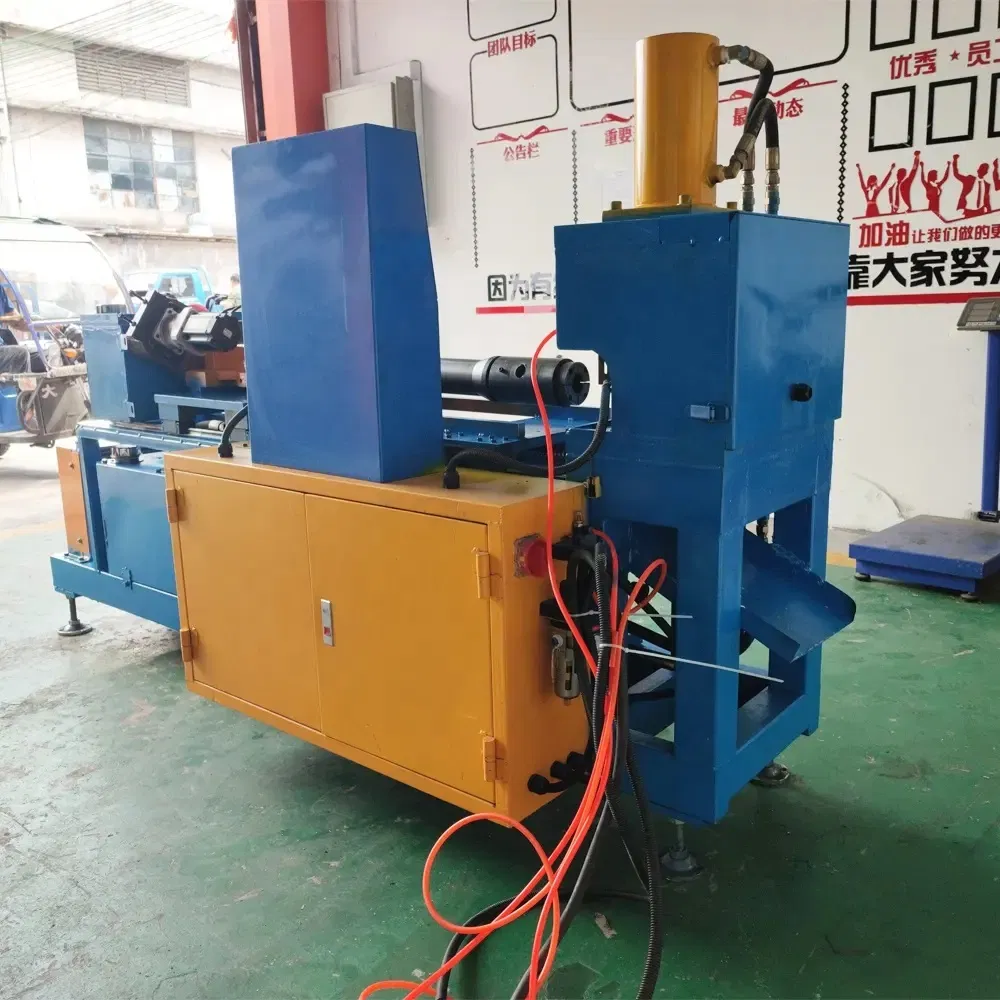

CNC Rotary Punching Machine
CNC Rotary Punching Machine
CNC Rotary Punching Machine

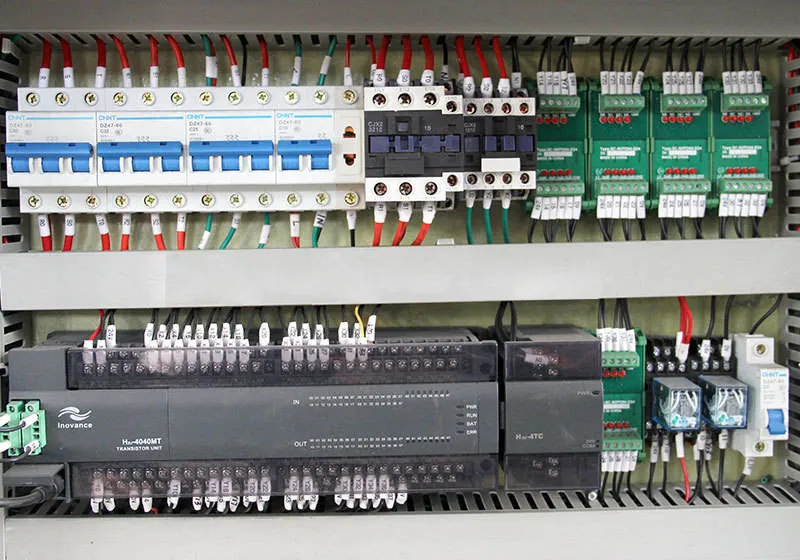

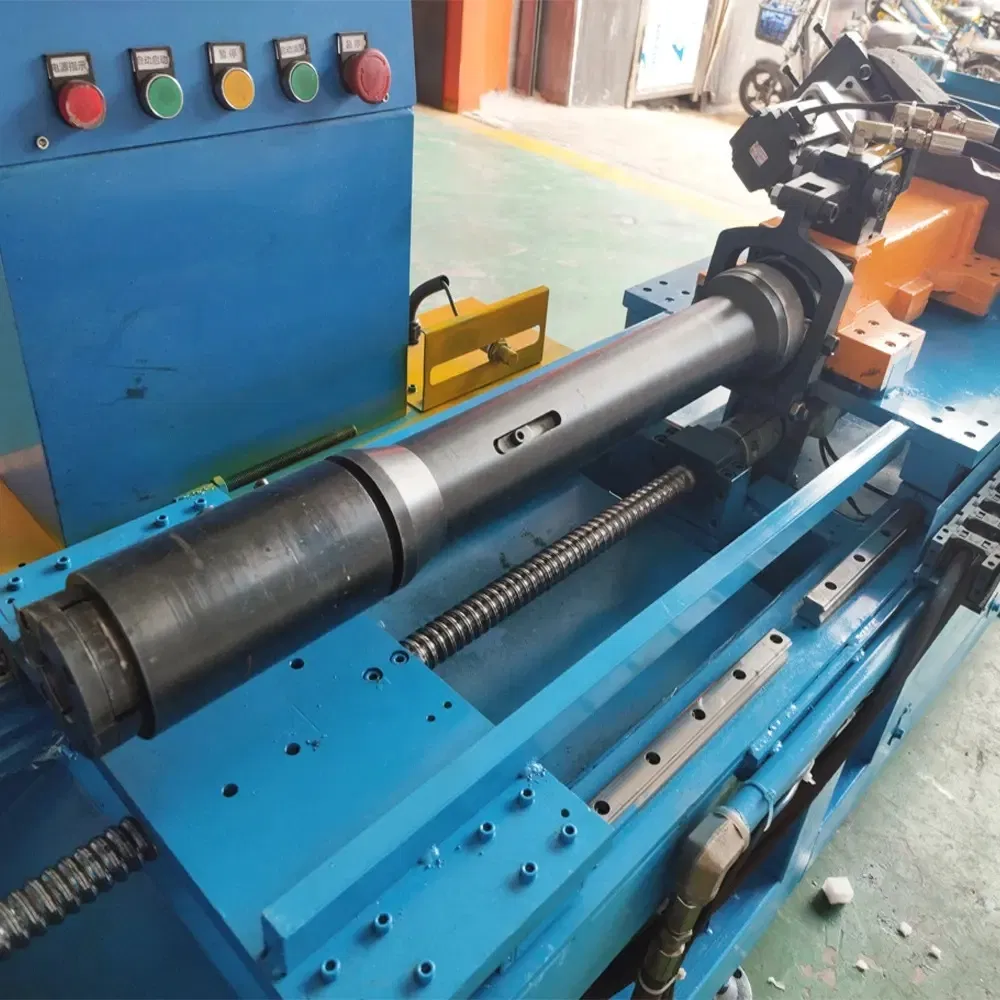

Detail View
Detail View
Detail View

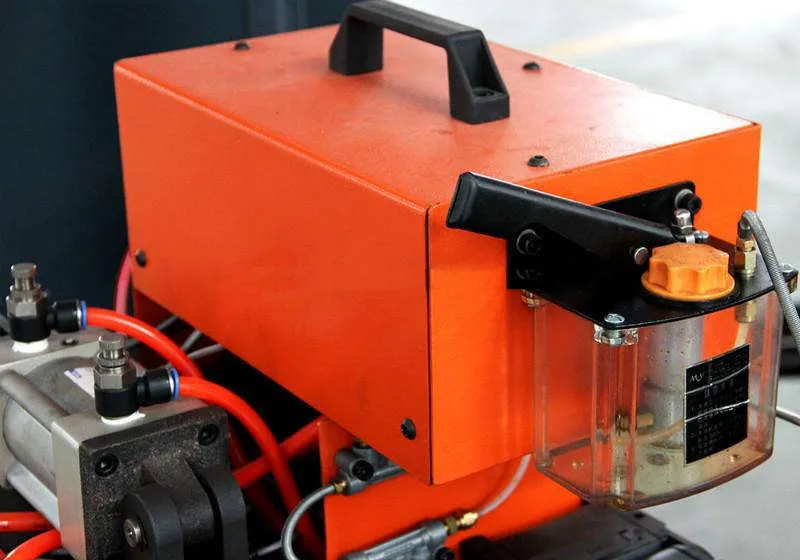

Machine Structure

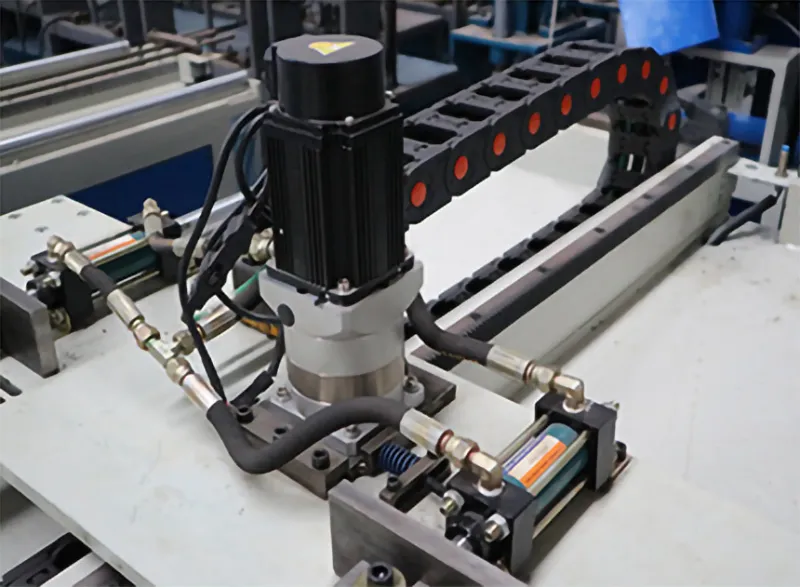

Processing View

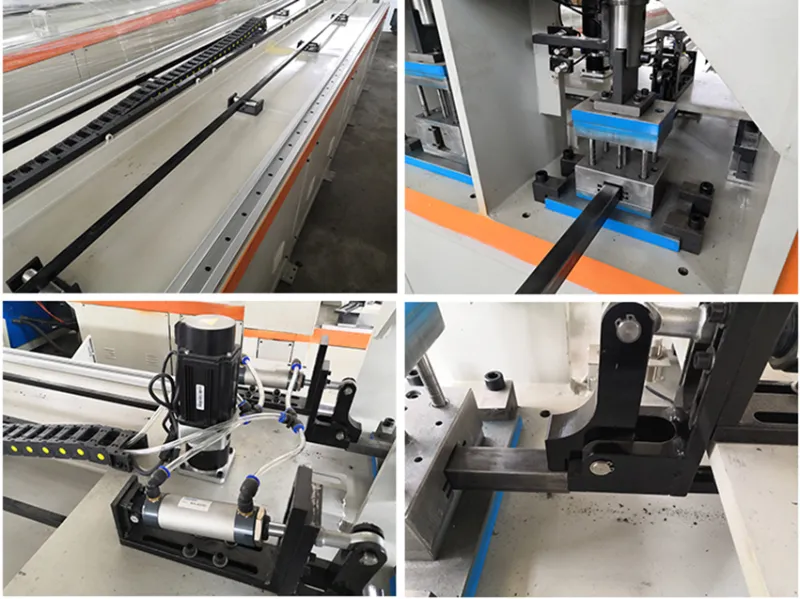

CNC System
5

Packaging & Application

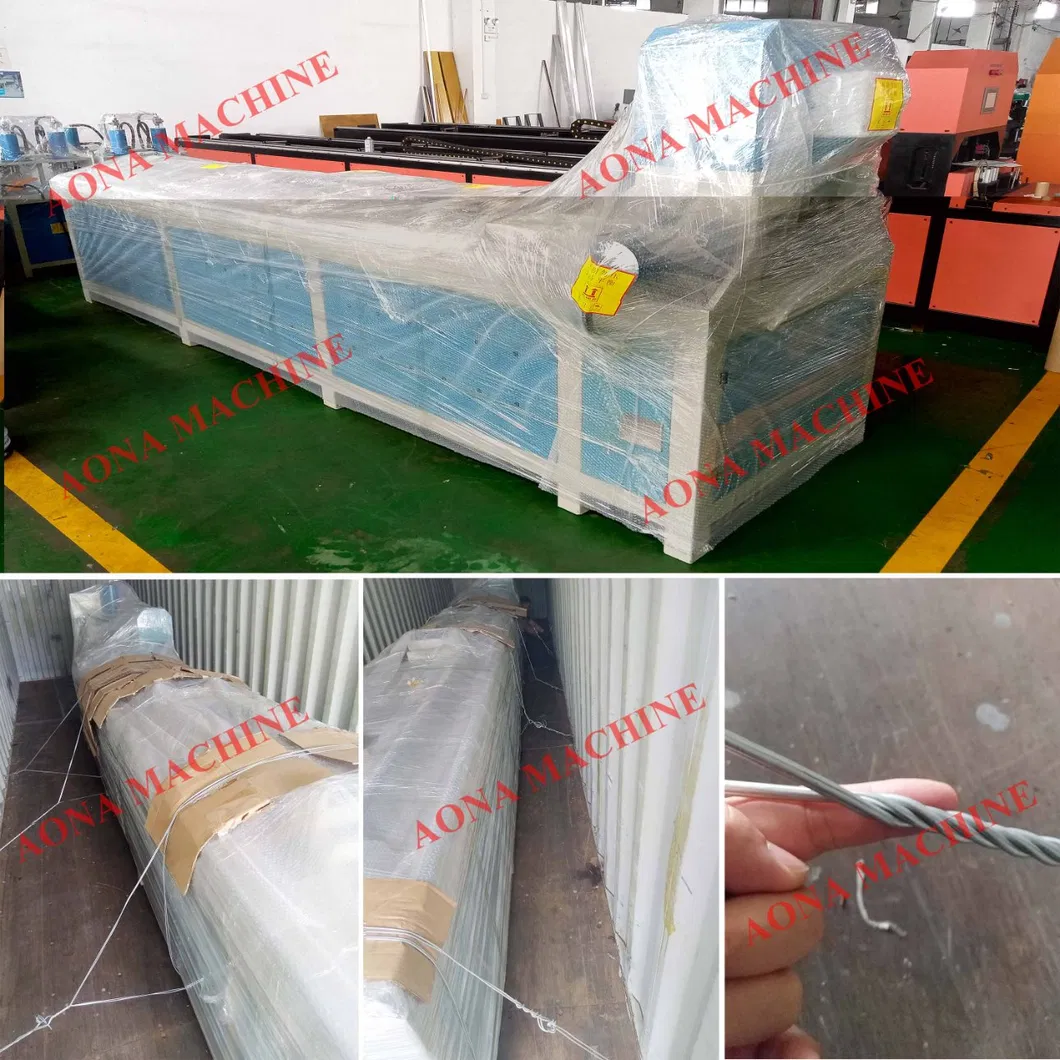

Packaging & Shipping

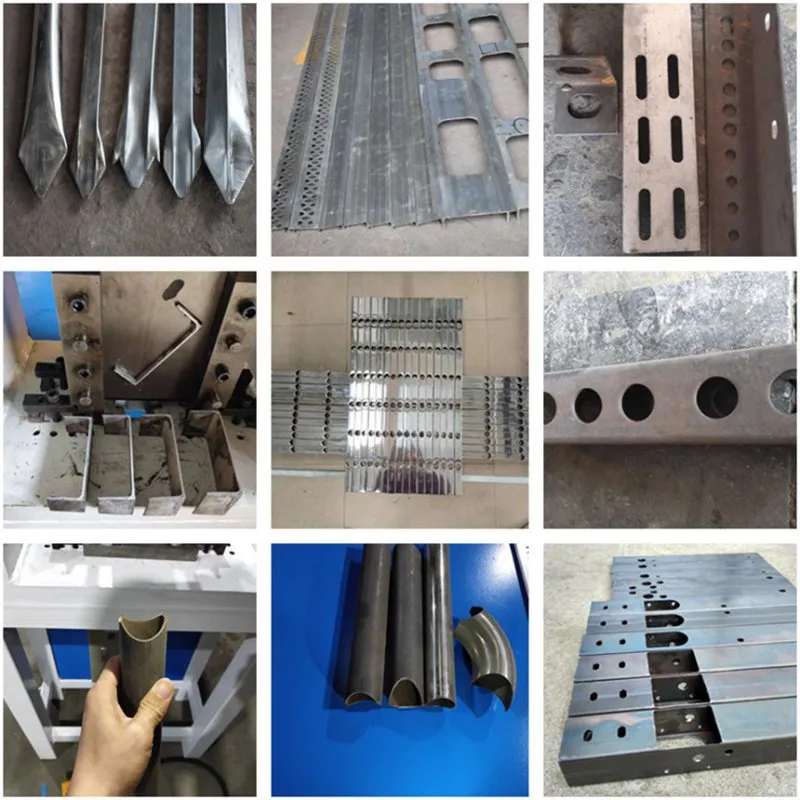

Machine Application

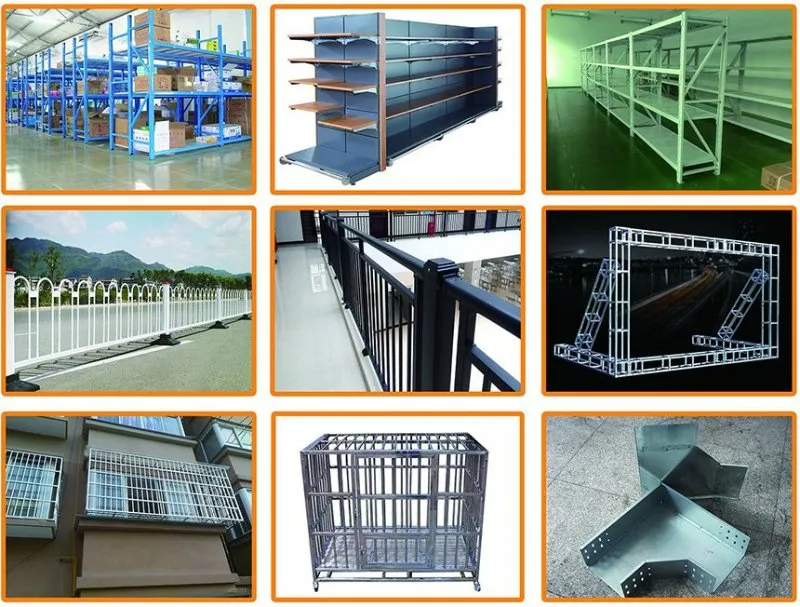

Application Samples
?

Frequently Asked Questions

1. What is the power supply of the machine?
The standard power is 380V, 3P, 50Hz or customized according to your local industrial requirements.
2. What information is needed for an accurate quotation?
Please provide technical requirements, drawings, material types, planned output, and your industrial voltage.
3. What are the available payment terms?
We typically require a 30% down payment, with the remaining 70% before shipment (T/T). We also accept L/C, DA, and D/P.
4. What is the standard delivery time?
Normally, the machine is delivered within 20 days after receiving the initial down payment.
5. What is the warranty period for this CNC machine?
We provide a 2-year warranty period starting from the date of the Bill of Lading (B/L).
6. Which materials can the machine process?
The machine is designed to punch and perforate steel, aluminum, copper, and stainless steel tubes of various shapes.
