CNC Milling Auto Creasing Rule Cutting Blade Bending Machine

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

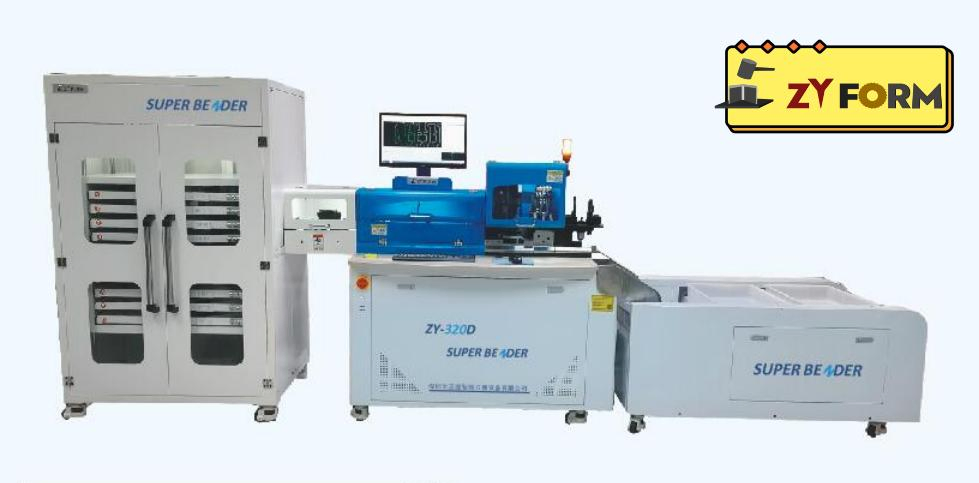

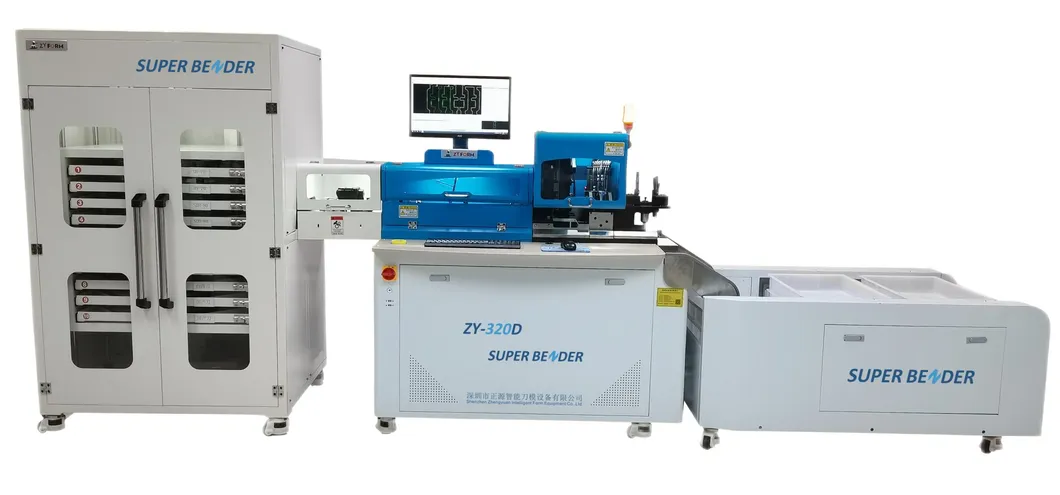

Model NO.ZY 320 D Super Bender

Warranty1-year

ConditionNew

CertificationCE

AutomationAutomatic

Suitable forCarbon Steel, Stainless Steel

TypeCnc Bending Machine

Blade Height23.8mm~32mm

Blade Thickness0.71mm~1.05mm

Bending Thickness2PT, 3PT

Feeding Accuracy0.02mm

MotorServo Motor

Voltage220V/380V

File FormatDxf/Dwg/Ai/CDR

⚙️ Product Description

✔ Auto Multi Broach, Multi Nick, Bending, Lipping, Auto Lift Bridging, Flat Cutting, No-slot joint can do in one machine automatically.
✔ Auto Bridging Width: 5~15mm, Height: 5~22mm.

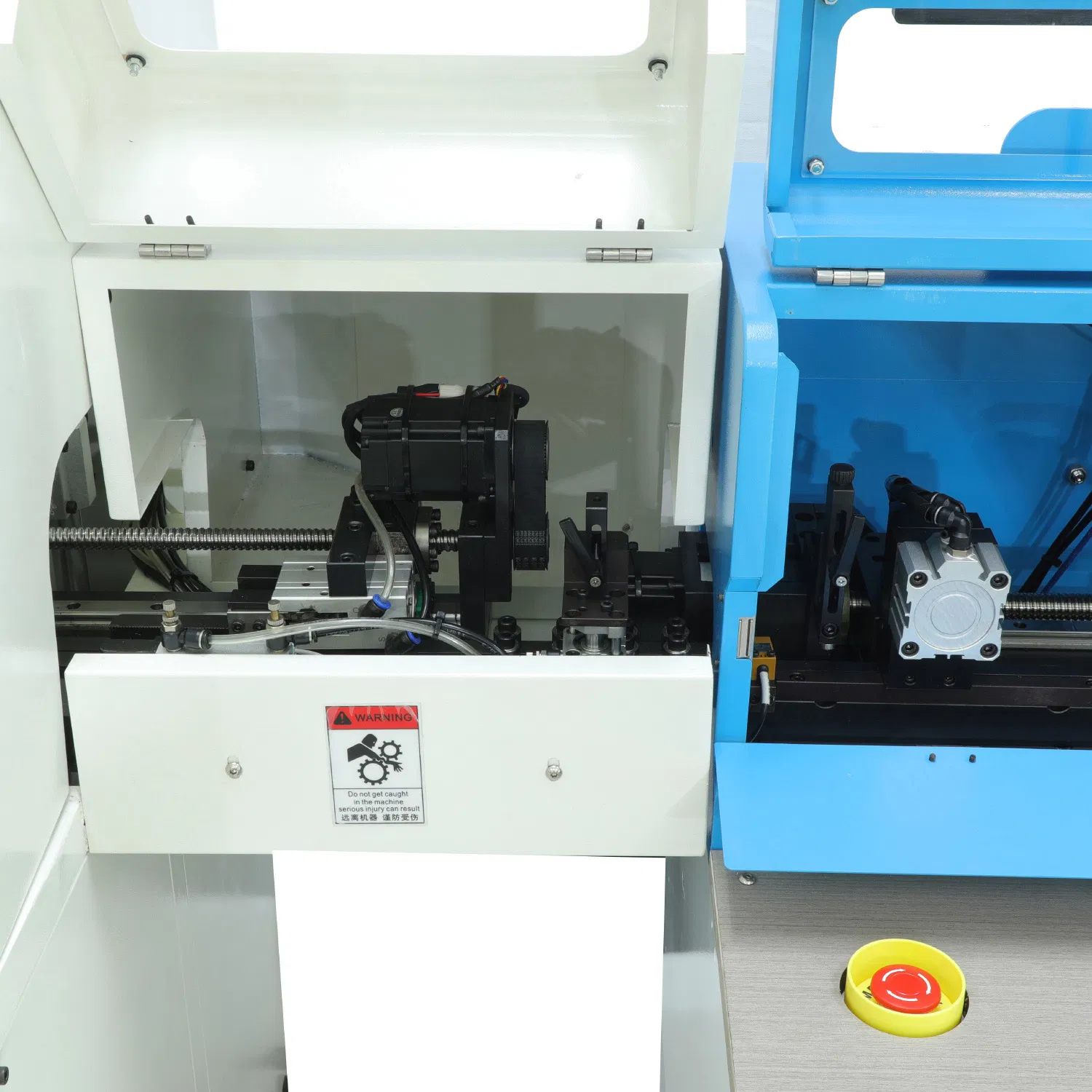

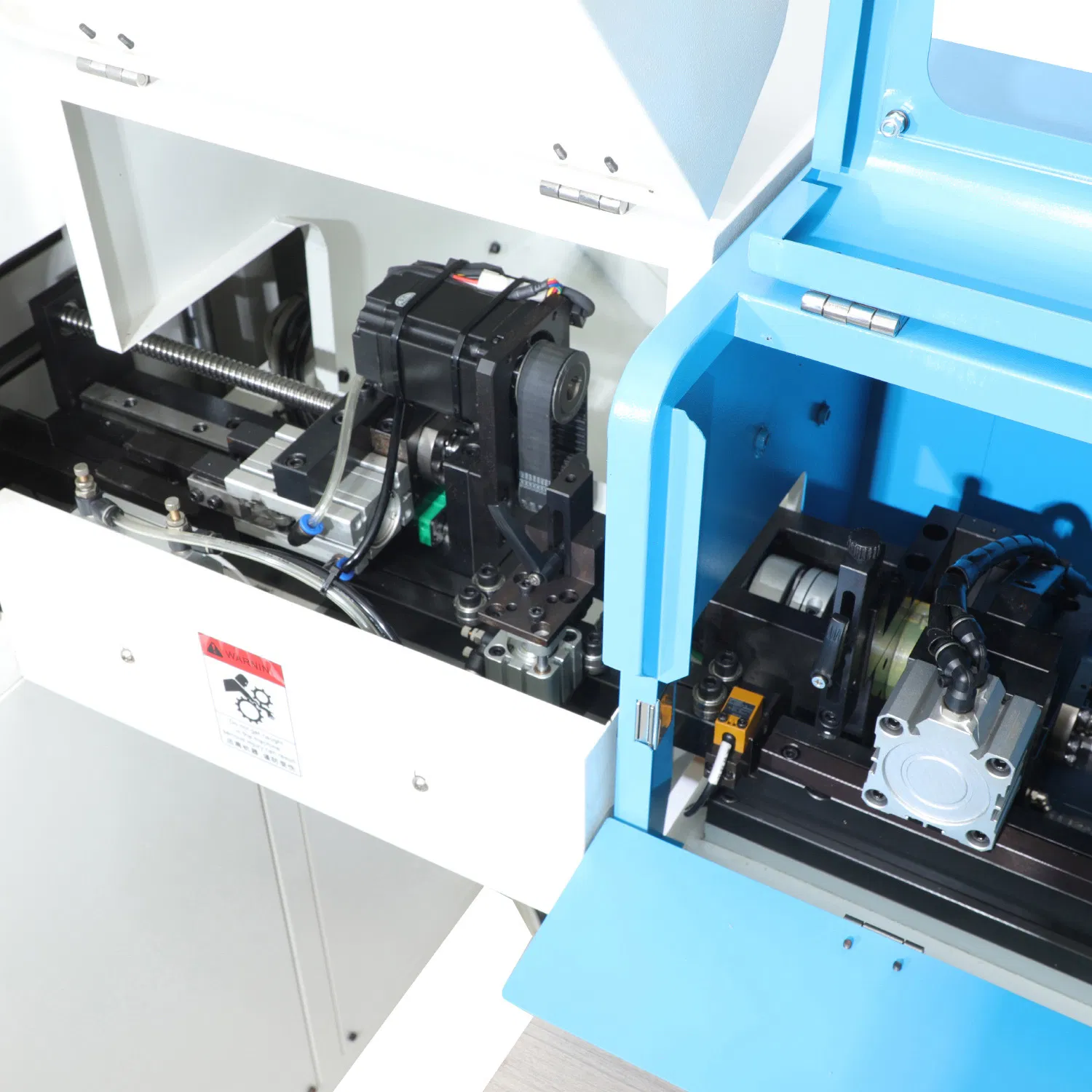

✔ Double clamps system guarantee continuous and stable feeding.
✔ Material Specification: Height: 23.2~32mm, Thickness: 0.71~1.07mm.
✔ Applications: High-end printing dies, blister packing dies, sticker dies, screen protector dies, cigarette packing dies, etc.

📊 Technical Parameters

Parameter Name		Specification Details
Max bending angle		95°
Min arc radius of 180°		R3.5
Min arc radius of 90°		R1.0
Min cutting size		1.0mm
Min bending size		1.5mm
Power		2.65KW
Setting of bridge		Height: 15-18mm (Adjustable); Width: 5-15mm (Adjustable); Customizable circular hole Bridge
Overall dimensions (LWH)		4.8m1.1m1.8m
Weight		1200kg
Motor type		Panasonic/Fuji Servo Motor
Operation system		Windows 10
Support file format		DXF, AI, DWG, CDR etc.

💎 Our Advantages

01Over 15 years of industry experience and specialized technology.

02Comprehensive range of models covering almost all sizes of steel rules.

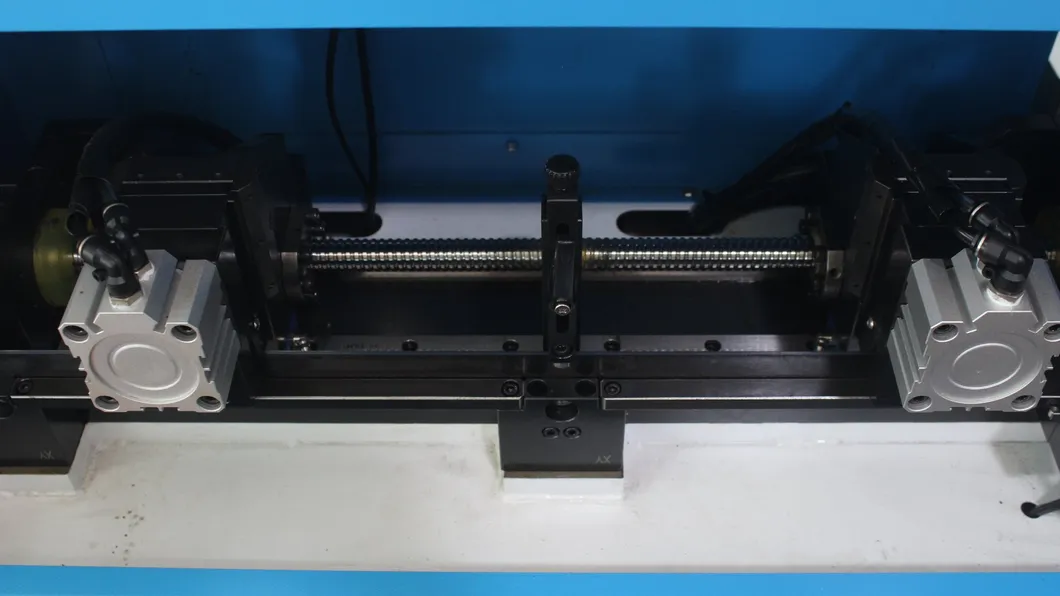

03Taiwan C3 level ball screws ensuring the most stable and precise feeding length.

04High-durability tools reaching up to 300,000 cycles using special technological processes.

05Branded spare parts and professional production management to ensure zero-fault operation.

📦 Packaging & Shipping

Package Size3200.00cm * 1200.00cm * 1700.00cm

Package Gross Weight810.000kg

Transport PackageWooden Carton

❓ Frequently Asked Questions

1. Are you a factory or trading company?

We are a factory with our own hardware and software engineers since 2008, with 15 years of research and experience. We are one of the earliest auto bending machine manufacturers in China.

2. How long is the warranty of your machine?

We offer a 1-year warranty starting from the date of shipment of the machines.

3. Can the software be changed to our local language?

Currently, we support Simplified Chinese, English, and German. Other languages can be customized upon request.

4. How do you guarantee the quality?

We have complete procedures including order preview, purchasing, mold management, assembly, internal quality audits, and strict rejected spare parts control.

5. How long is the production time?

For standard configurations, production typically takes about 15 working days. Customized tools require separate discussion.

6. Is the machine easy to learn and operate?

Yes, it is easy to learn. We provide complete instructional videos and manuals. We can also provide 3 days of free training.
