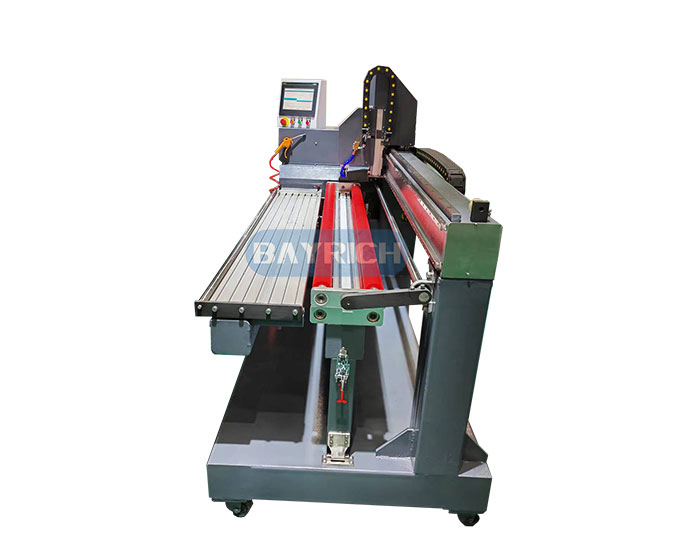

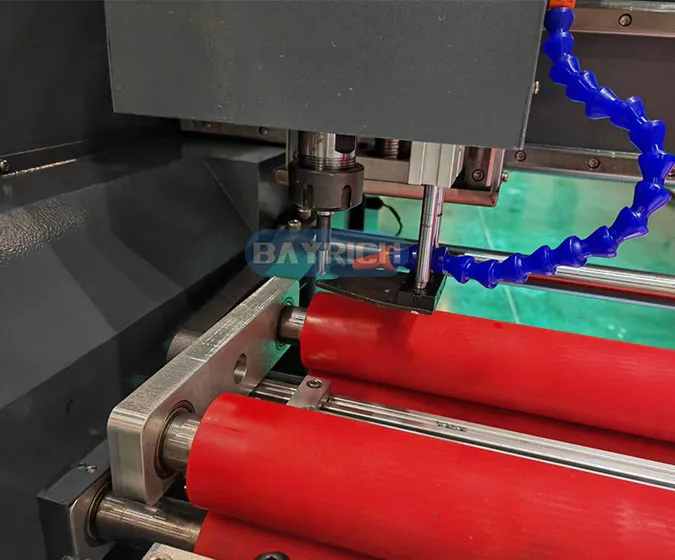

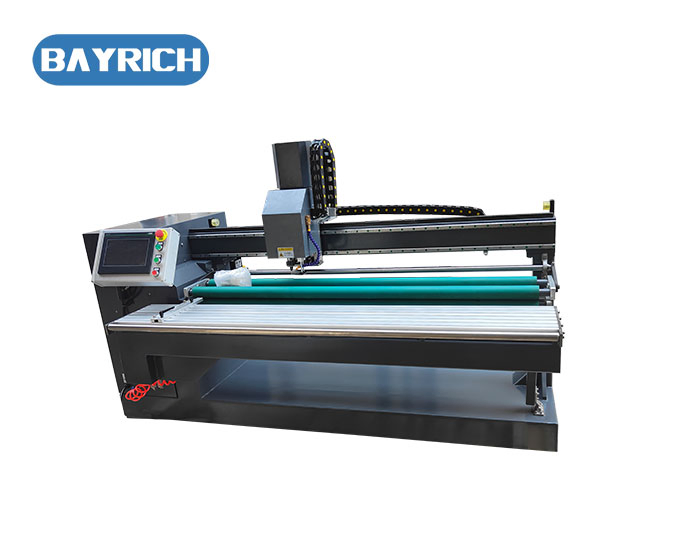

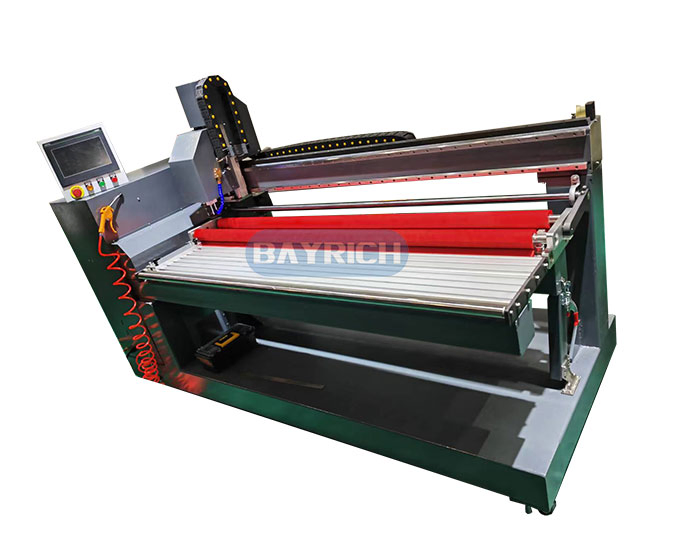

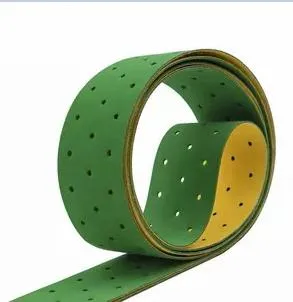

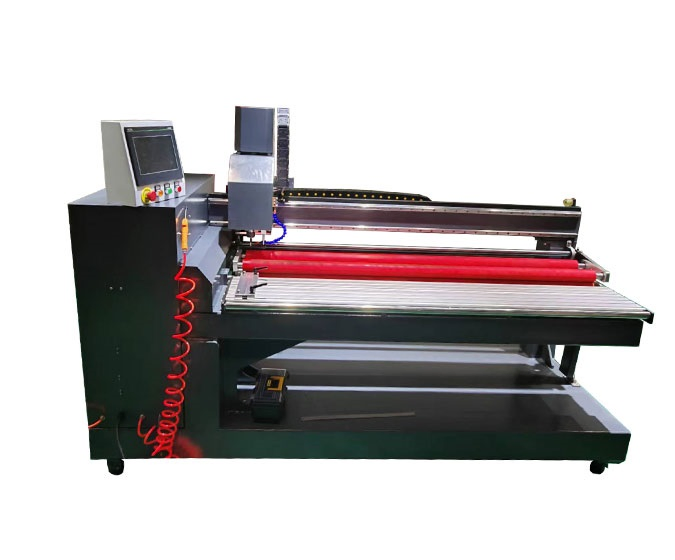

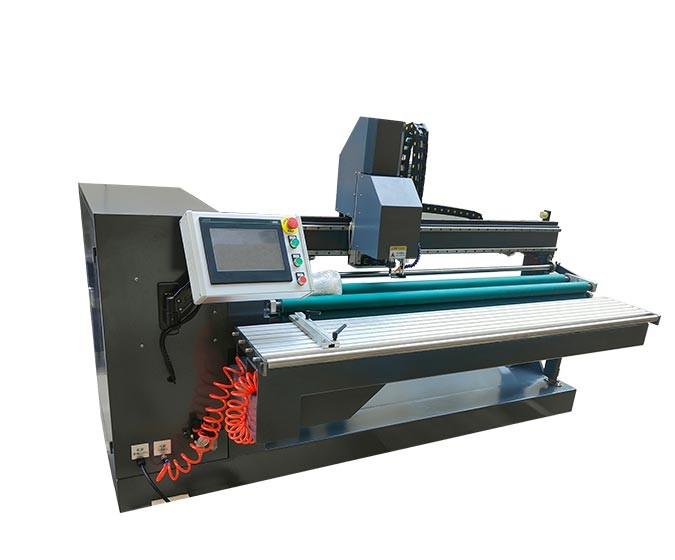

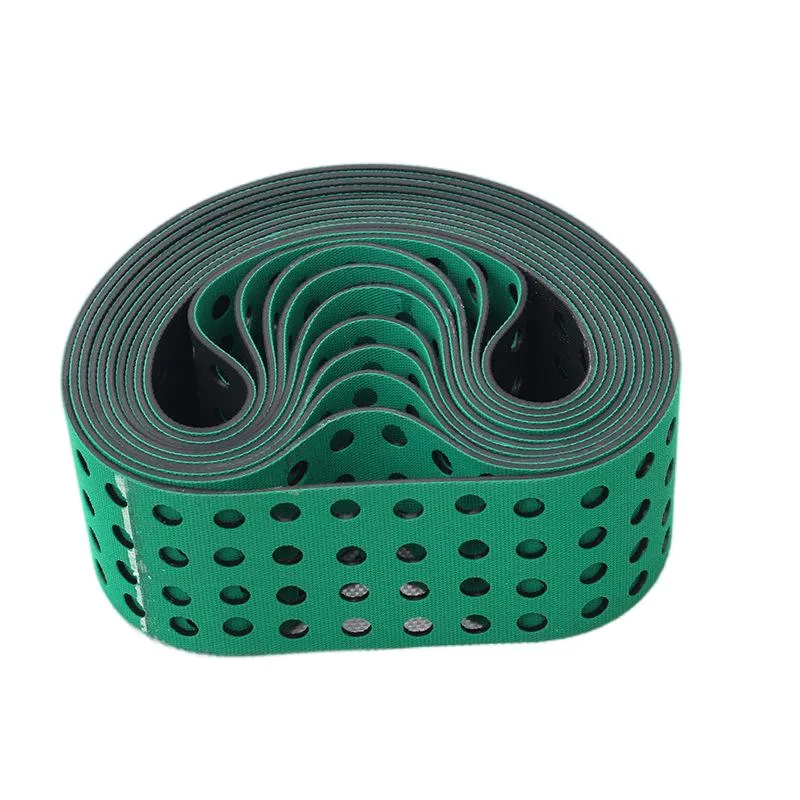

The full-automatic punching machine can be applied to the punching process of endless or open end transmission industrial belt, air suction belt, PVC belt and other rubber belts. The drill bit directly penetrates the bottom of the belt, and the hole groove is clean without burrs, without secondary processing. High speed and efficiency, with an average of one hole in less than 1 second, 8 times the efficiency of labor, environmental protection and safety, which greatly reduces the production cost for the enterprise.

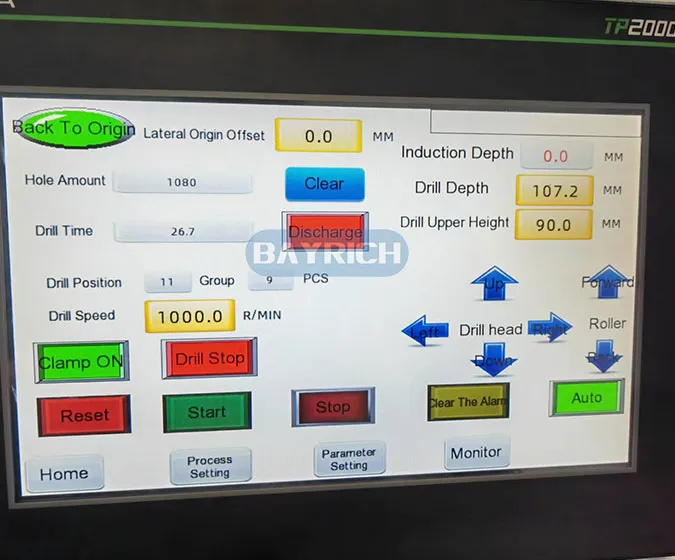

One-key processing for simplified workflow.
One machine can effectively replace four manual workstations.
Zero foundation required; learn to operate in just 3 minutes.
Intelligent control ensures clean holes and grooves free of burrs.
| Technical data | 1000mm | 1600mm | 2100mm | 2600mm |
| Power | 3500W | 3500W | 3500W | 3500W |
| Voltage | 220V | 220V | 220V | 220V |
| Air Pressure | 0.5 Mpa | 0.5 Mpa | 0.5 Mpa | 0.5 Mpa |
| Min. belt thickness | 1mm | 1mm | 1mm | 1mm |
| Max. belt thickness | 10mm | 10mm | 10mm | 10mm |
| Speed | 2/Sec. (speed depends on hole size and distance) | |||
| Hole size | φ2-φ20mm (Standard any 3 size from φ2-φ15mm) | |||
| Min. endless belt girth | 800mm | |||
| Minimum error | 1000mm error 0.1 (Calibrated by program) | |||
| Belt width | ≤1100mm | ≤1600mm | ≤2100mm | ≤2600mm |
| Machine weight | 815kg | 915kg | 1015kg | 1115kg |
| Machine size (mm) | 1950*1000*1600 | 2450*1000*1600 | 2950*1000*1600 | 3450*1000*1600 |
| Accessories | Tool cabinet, PE pad | |||
