Full Automatic Rule Steel Cutting and Creasing and Bending Machine

Customization:	Available
After-sales Service:	Have
Warranty:	1year, 1-Year

Send Inquiry

Product Description

Basic Info

Model NO.

RYSD-830

Condition

New

Certification

Automation

Automatic

Suitable for

Carbon Steel

Type

Roller-Bending Machine

Blade Height

8-30mm

Total Power

1.3kw

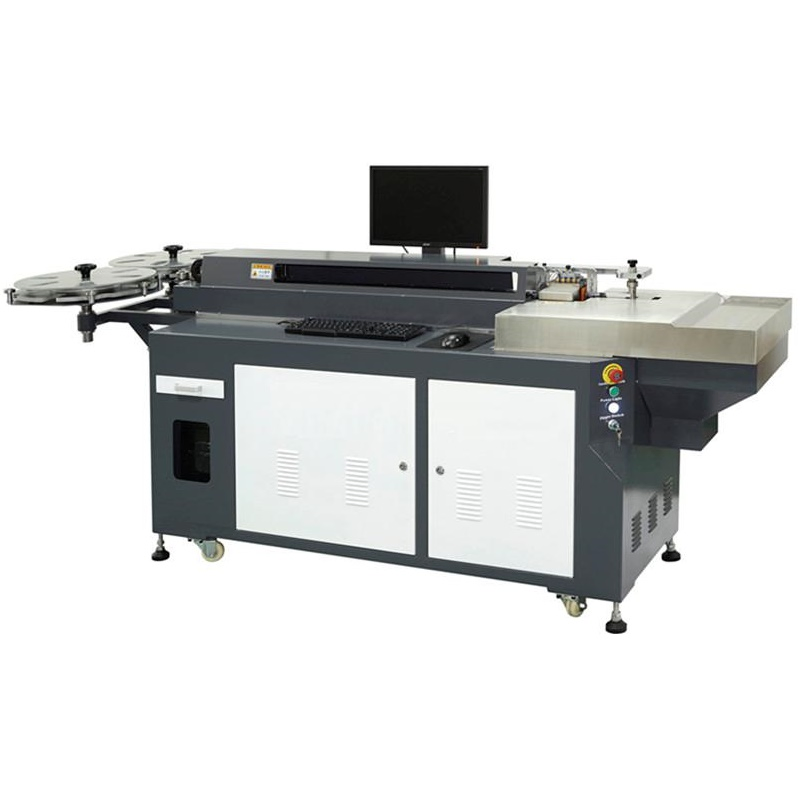

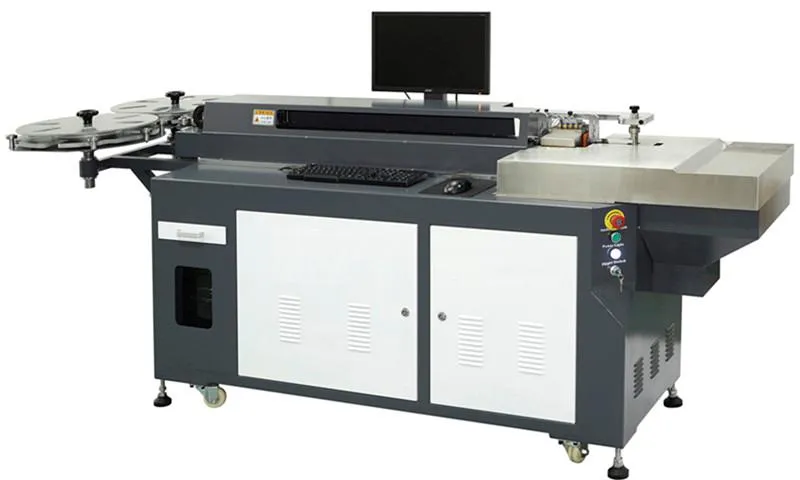

RYSD-830 Auto Blade Bending Machine

Auto blade bending machine is a numerical control program developed and designed for the convenience of the user. It is easy to operate and supports AutoCAD and various file formats including DXF, AI, and NC.

Technical Parameters

Blade thickness(mm)	0.71, 1.05
Blade height(mm)	8-30
Max. bending angle	100°
Min. ARC radius of 90 degree	0.4
Front Min. bending size	1.0
Back Min. cutting size	1.0
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Bending, cutting, bridge, lipping
Cutting methods	Swing cutting or Auto flat cutting
Optimal pattern format	Dxf format
Air supply	0.6mpa
Power supply	Three-phase power 380V 50/60HZ
Machine total power	1.3kw
Gross weight	500kgs
Overall dimension	2650×1050×1350mm(L×W×H)

Functions and Usage

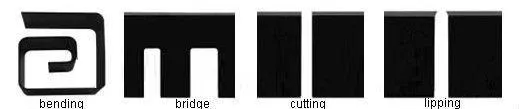

Possess six functions: bending, bridge, front lipping, back lipping, cutting, and flat cutting.
Panasonic Servo motor system + Ball-screw guide rail design to eradicate skidding.
Unique imported mould tool design for high precision and durability.
Imported transmission and control parts to guarantee a long life span.
Roller continuous feeding with servo digital work mode for high accuracy and speed.
Compatible with DXF and AutoCAD figures for complicated patterns.
Innovative "bend first and cut last" process to save time and material.

Service & Support

After-sales service: Regularly offered on-site training courses including operation, maintenance, and common failure recovery. English-speaking engineers are available for international installation and training (typically around 5 days).

Remarks: RYSD-830 includes automatic cutting creasing line functions.
Standard Tools: 0.71mm bending tool, 1.05mm bending tool, cutting tool, and 1 set of bridge tools.

Frequently Asked Questions

1. What materials can the RYSD-830 process? The machine is specifically designed for high-precision processing of carbon steel rules.

2. What are the primary functions of this auto bender? It features six key functions: bending, bridge, front lipping, back lipping, cutting, and flat cutting.

3. What file formats does the software support? The control system is compatible with standard CAD formats including DXF, AI, and NC files.

4. How accurate is the rule feeding system? The machine utilizes a Panasonic Servo motor system with ball-screw guide rails, achieving a feeding precision of ±0.03mm.

5. What blade heights and thicknesses are supported? It supports blade heights from 8mm to 30mm and thicknesses of 0.71mm and 1.05mm.

6. Does the machine require professional installation? Yes, we provide on-site installation and a 5-day training program conducted by English-speaking engineers to ensure proper operation.
