Basic Information
Classification
Flat Knife Cutter
Type
Living Paper Cutting Machine
Product Name

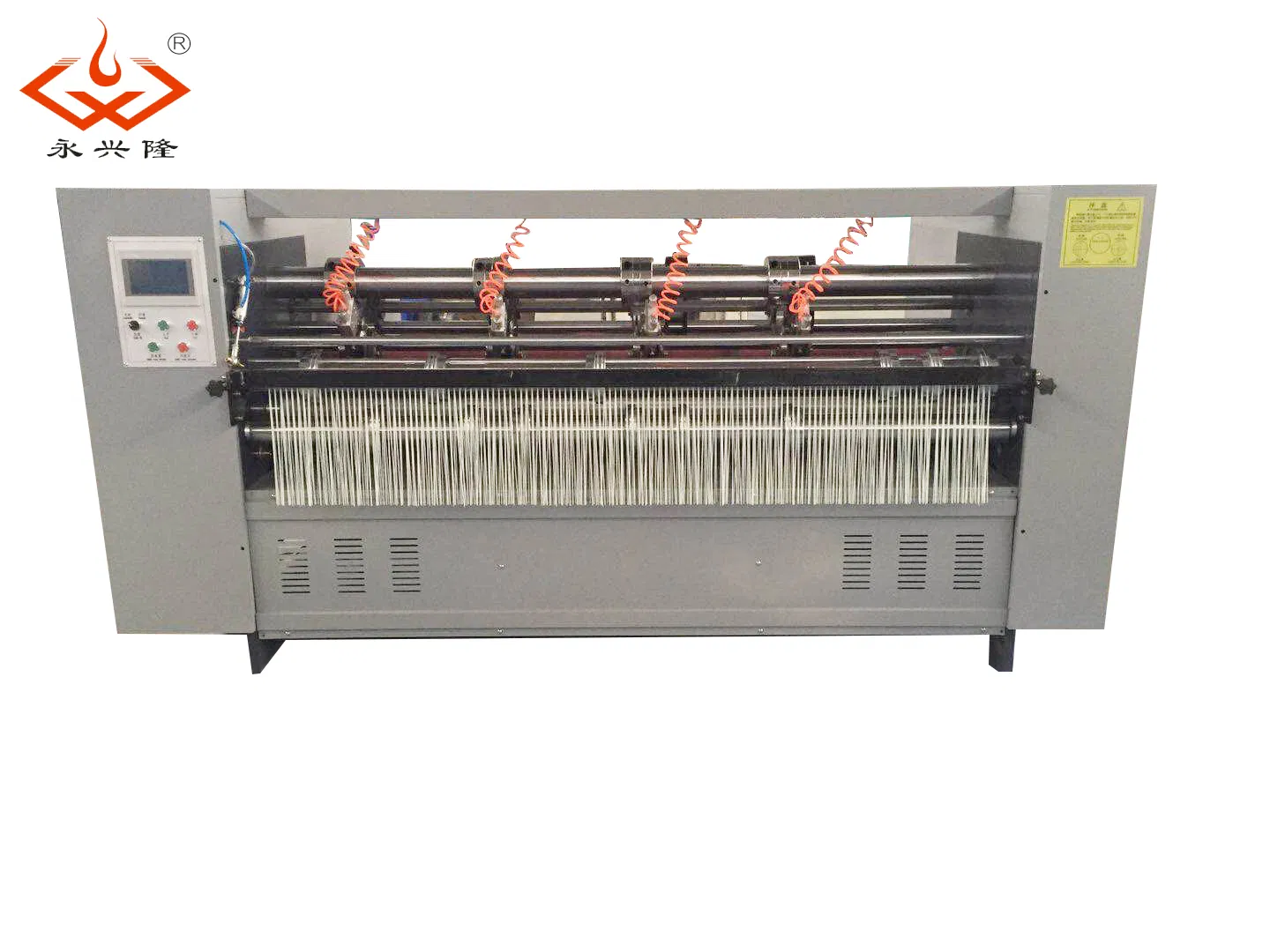

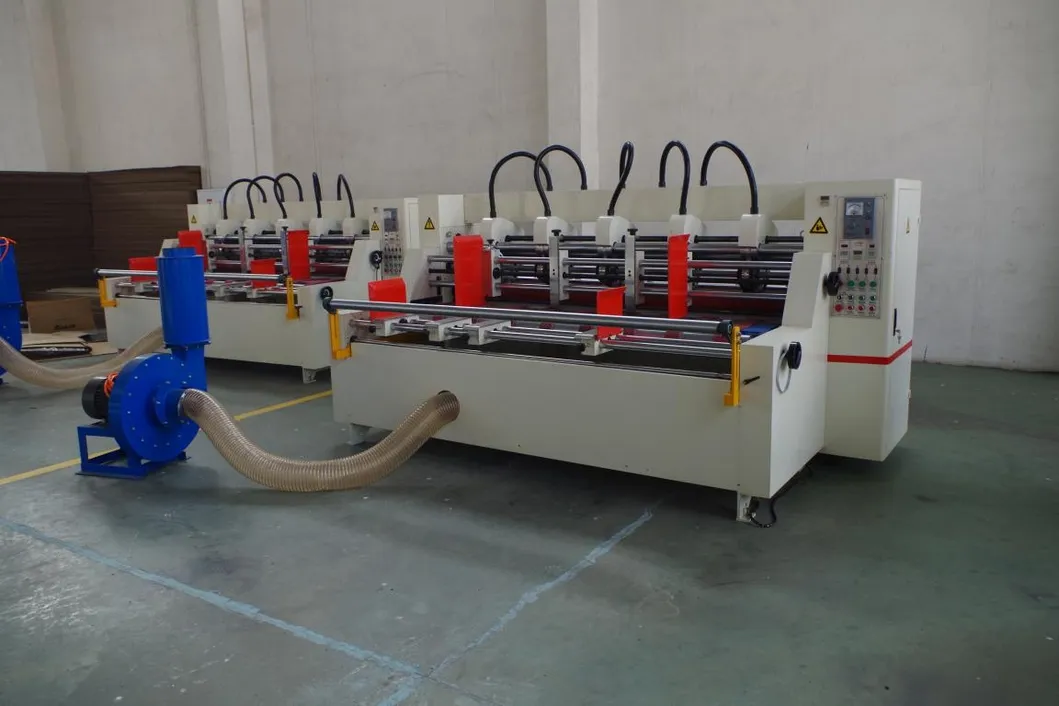

Automatic Slitting Machine
Application
Corrugated Board
After-Sales Service
Service Machinery Overseas
Key Words
Steel Coil Slitting Machine
Advantage
High Efficiency Automatic Working

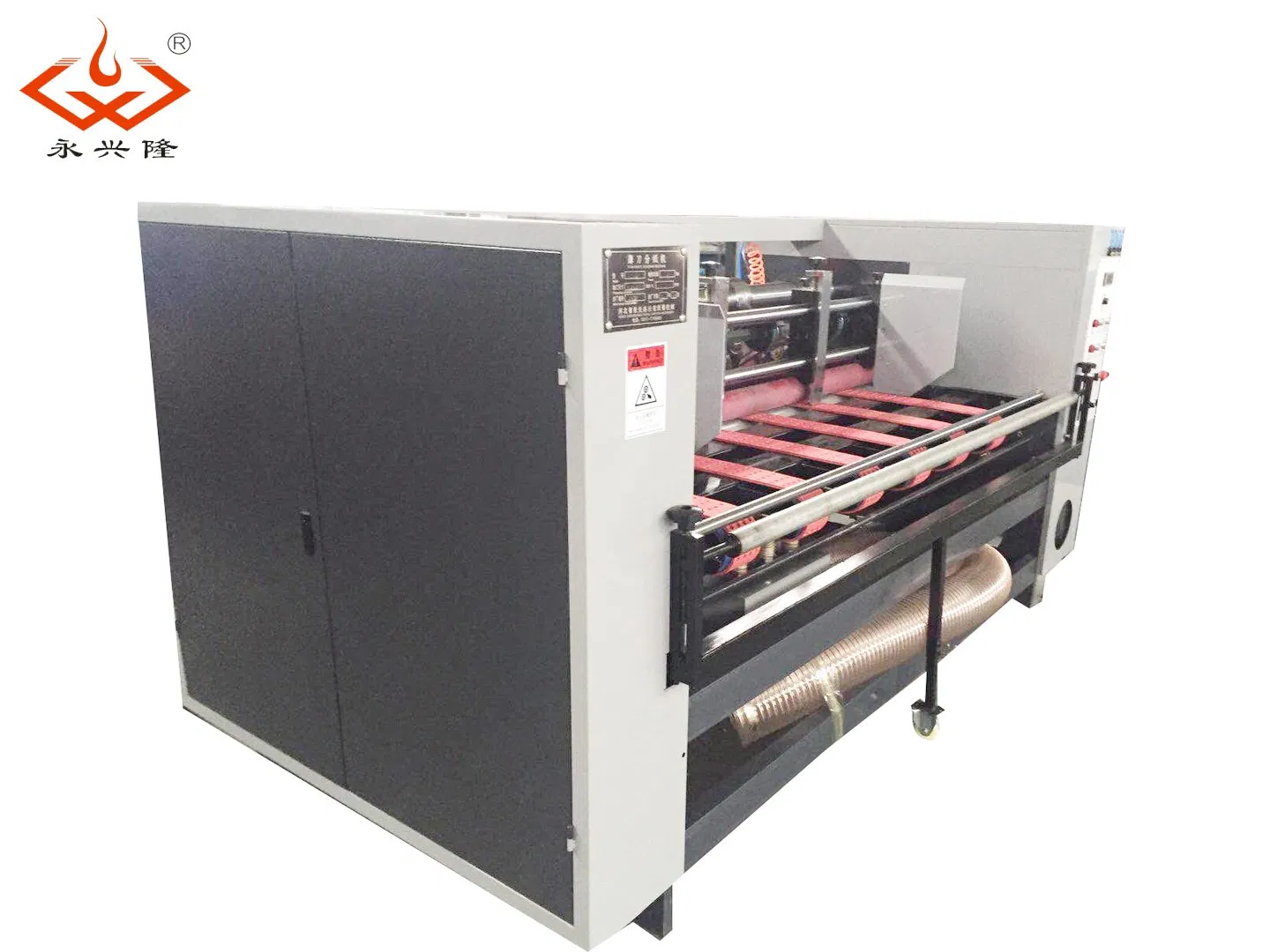

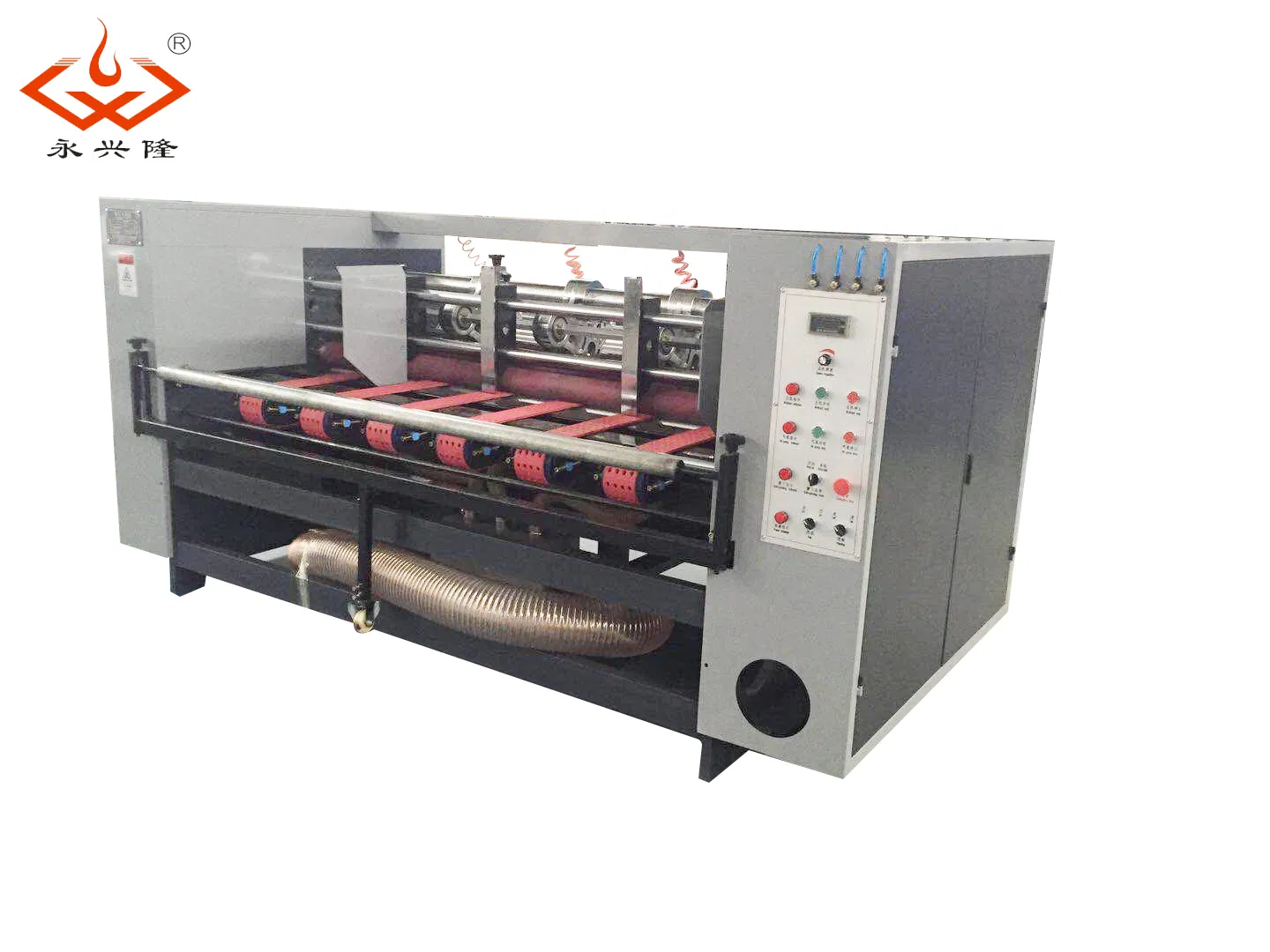

Product Description
Configuration Overview

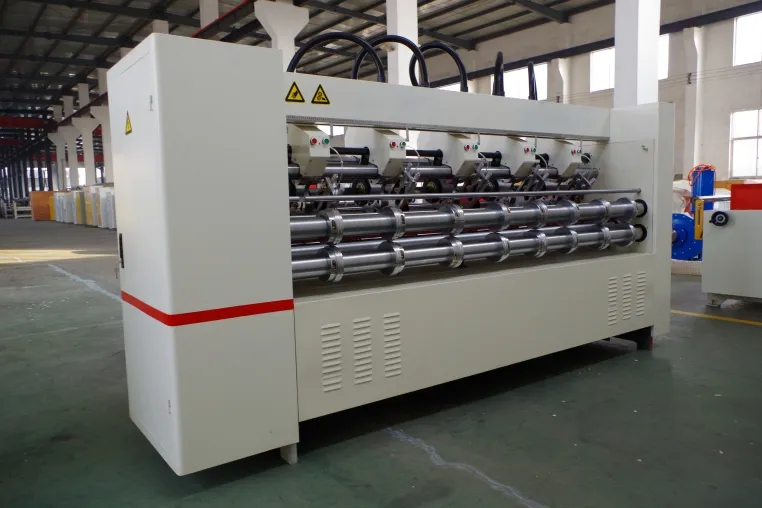

Product overview: Automatic feeding paper, saving labor and labor intensity, prevent cardboard from running and assured the safety of workers.
Machine Selection Options
| TYPE |
Electric |
WIDTH (mm) |
BLADE-SCORE |
CAN CHOOSE |
| SMBD / SLDD |
Electric Adjustment |
2000, 2200, 2500, 2800, 3000, 3500, 3800, 4000 |
4-6, 5-8, 6-10, 7-12, 8-14 |
Protective net, Synchronous belt drive, Line type |
Technical Index
| Model |
2000 |
2200 |
2500 |
2800 |
3000 |
| Max slitting size(mm) | 1800 | 2000 | 2300 | 2600 | 2800 |
| Min slitting size(mm) | 130 |
| Min slitting length(mm) | 270 |
| Min scorer width(mm) | 30 |
| Scorer height(mm) | 0-12 |
| Blade size(mm) | 190*105 |
| Blade/scorer | 4/6, 5/8, 6/10, 7/12, 8/14 |
| Min. Paper size | 500*270 |
| Machine dimension (LWH) | 2640*1750*1400 | 2840*1750*1400 | 3140*1750*1400 | 3640*1750*1400 | 3830*1750*1400 |
| Power(kw) | 10 | 10 | 13 | 13 | 15 |
Function and Features

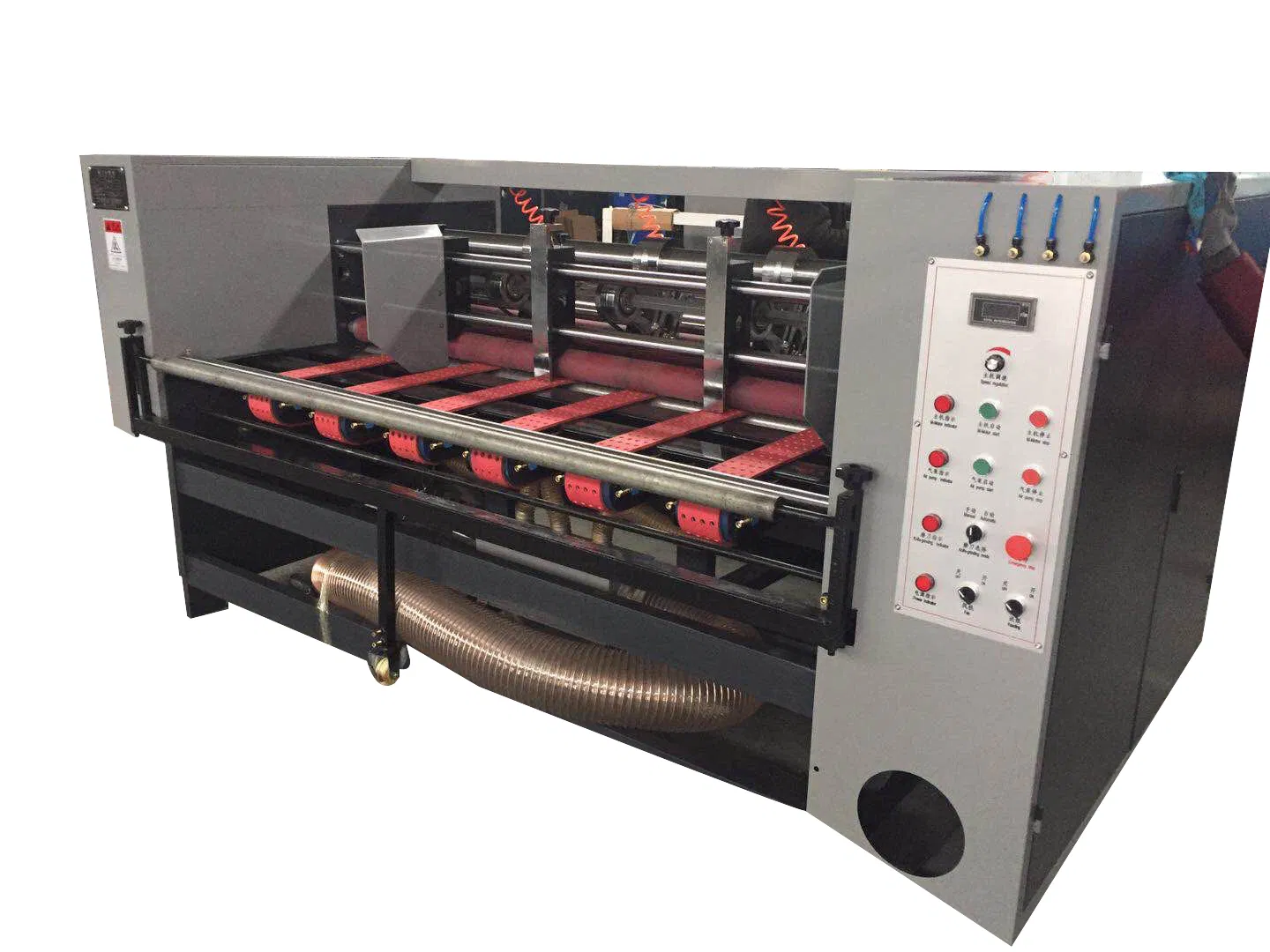

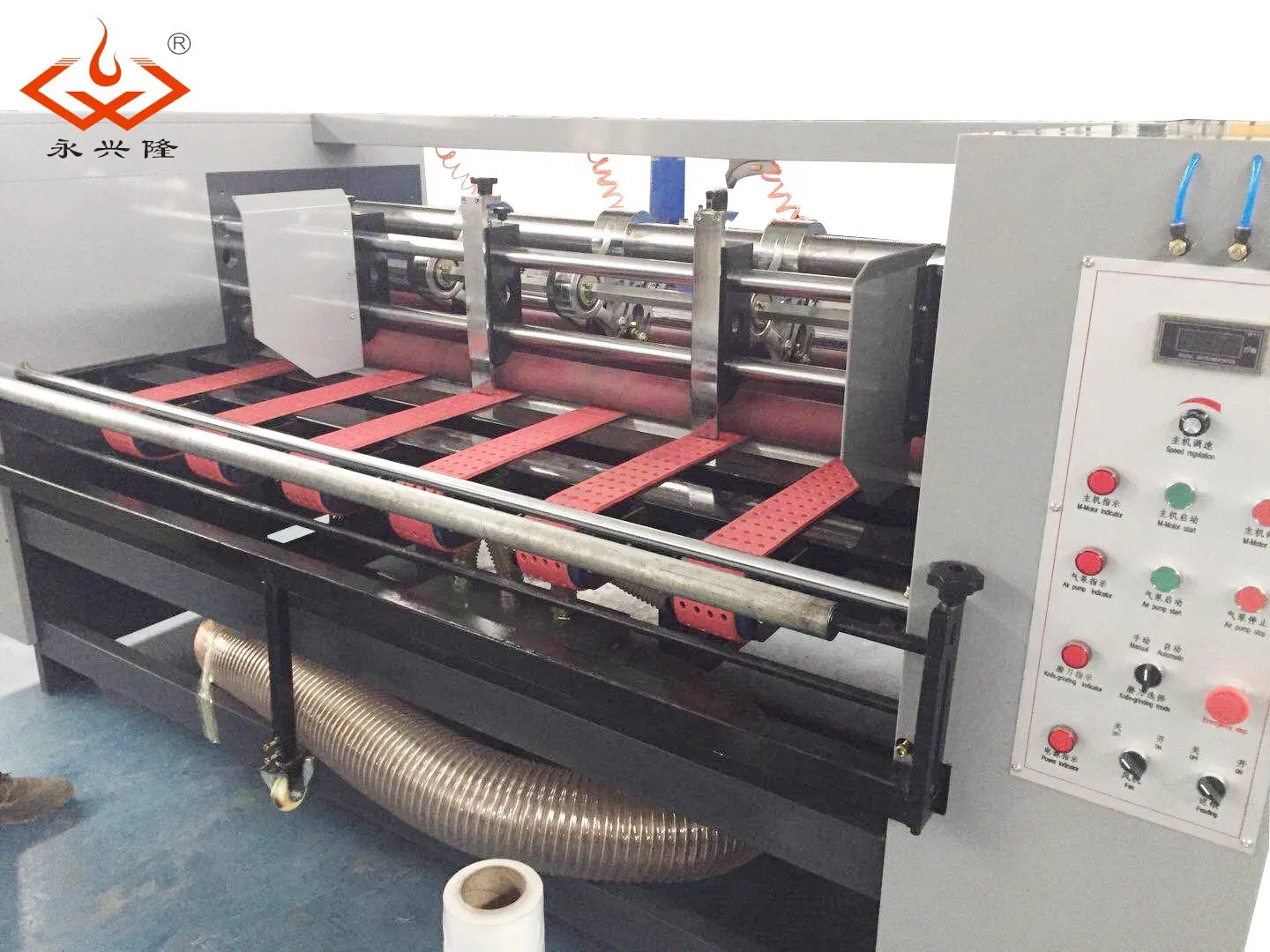

Feeding Unit
- The baffle size for screw adjustment, easy to operate.
- Can set the qty.of paperboard, automatic stop the feeding after finishing.
- Automatic feeding paper, Improve the safe operation, decreased the working load.
- Cutting indentation for long cardboard.

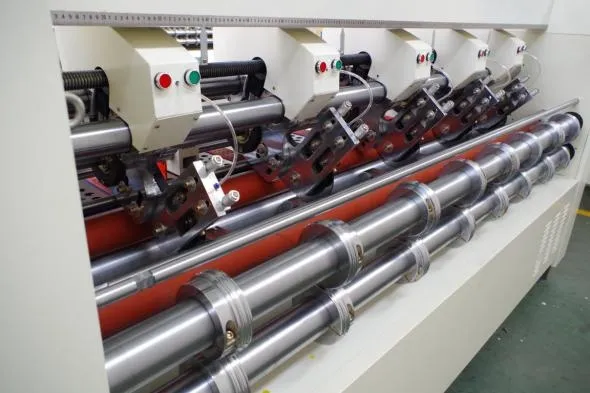

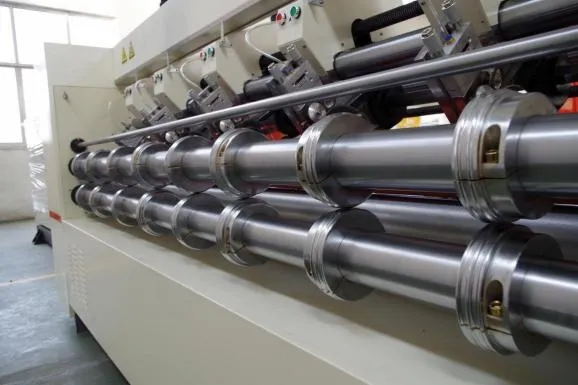

Slitter Scorer
- Electric adjusted slitter blade space with auto pneumatic locking and double guide optical axis.
- Knife rest built-in polyurethane rubber for dust prevention and reduced failure rate.

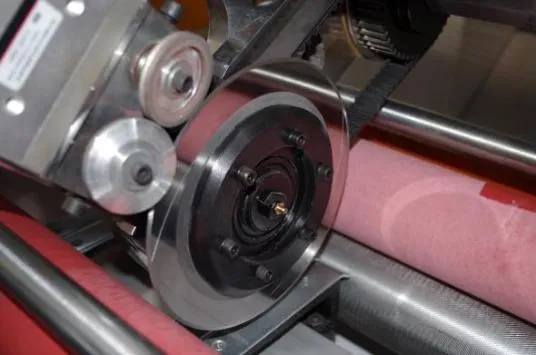

- High quality tungsten steel blades for sharp, tidy, non-pressing and non-burr slicing.
- Eight roll design: two roll-rang feeding followed by scoring, easy to adjust.
- Supports both automatic and manual grinding types.
- 5 points scoring system for easy bending of carton sheets.
- Equipped with HRB bearings for long-term stable operation.

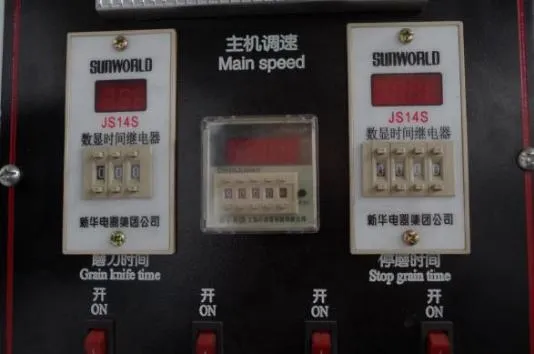

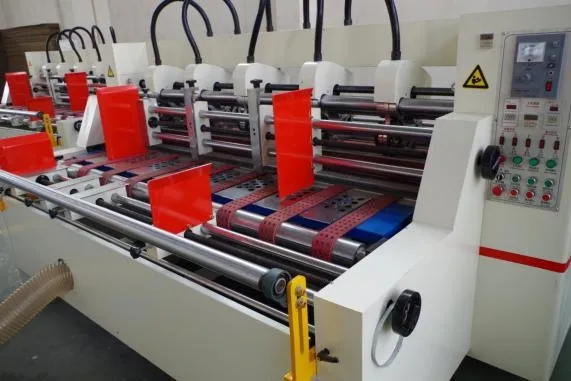

Machine Parts & Detailed Pictures
Frequently Asked Questions (FAQ)
Q1: What materials can this machine handle?
The machine is specifically designed for high-efficiency slitting and creasing of corrugated board and cardboard.
Q2: How does the automatic feeding system improve production?
The automatic feeding unit saves labor, reduces operator intensity, prevents cardboard misalignment, and ensures overall worker safety.
Q3: What type of blades are used in the slitting part?
We use high-quality tungsten steel blades which are exceptionally sharp, provide a long work-life, and ensure tidy, burr-free cuts.
Q4: Is the machine capable of creasing as well as slitting?
Yes, the machine features a 5-point scoring system that allows for simultaneous slitting and creasing for easy carton bending.
Q5: What are the different width options available for this machine?
We offer multiple width options ranging from 2000mm up to 4000mm to accommodate different production requirements.
Q6: Does the machine require manual sharpening of the blades?
The machine is versatile and supports both automatic and manual grinding types to keep the blades in optimal cutting condition.
