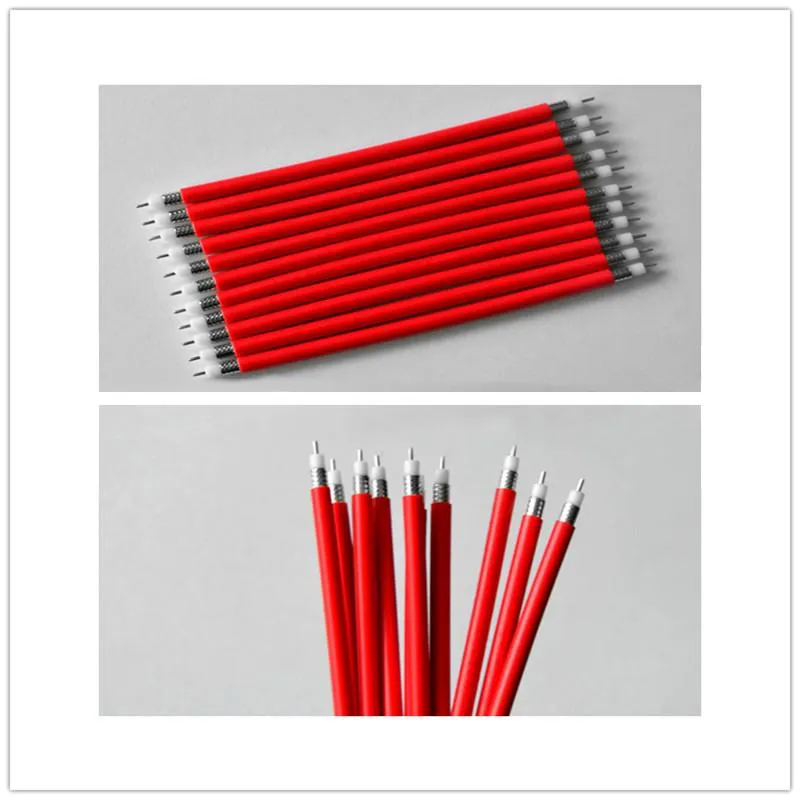

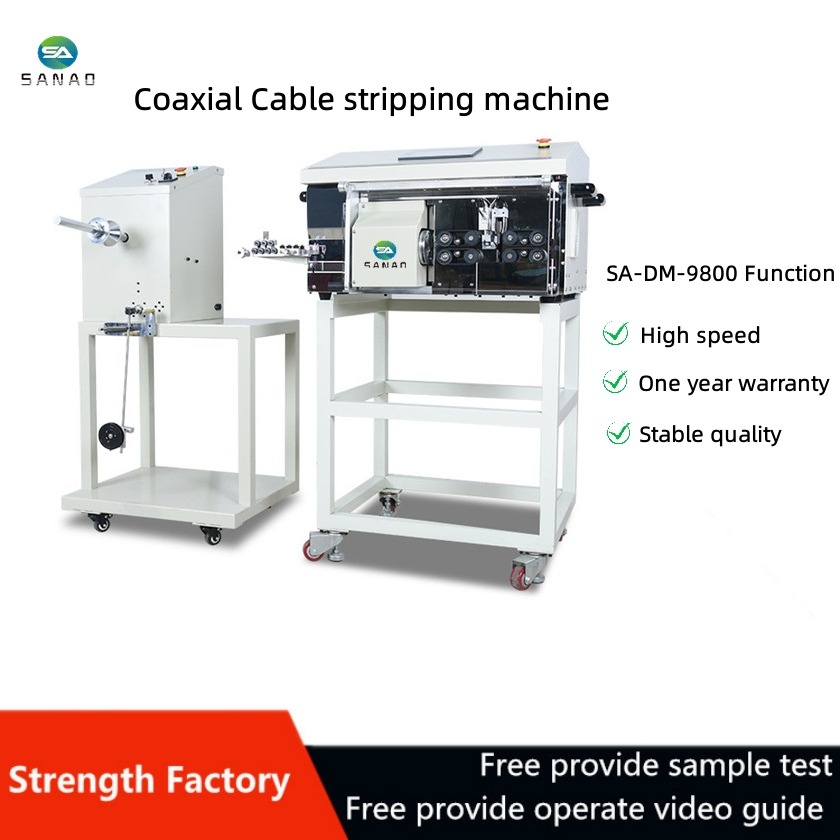

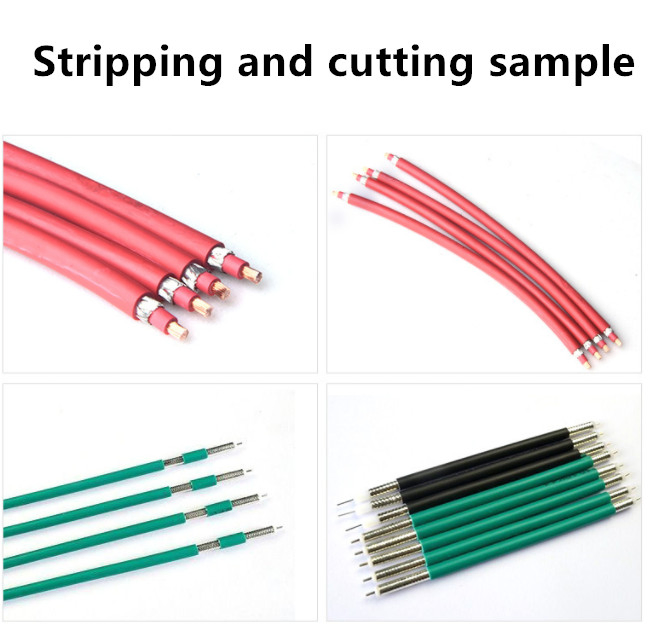

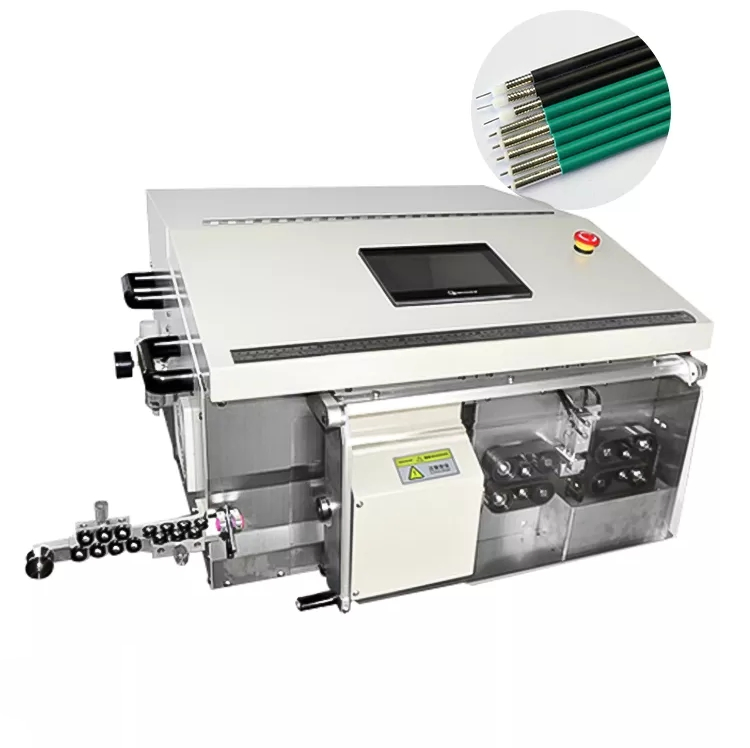

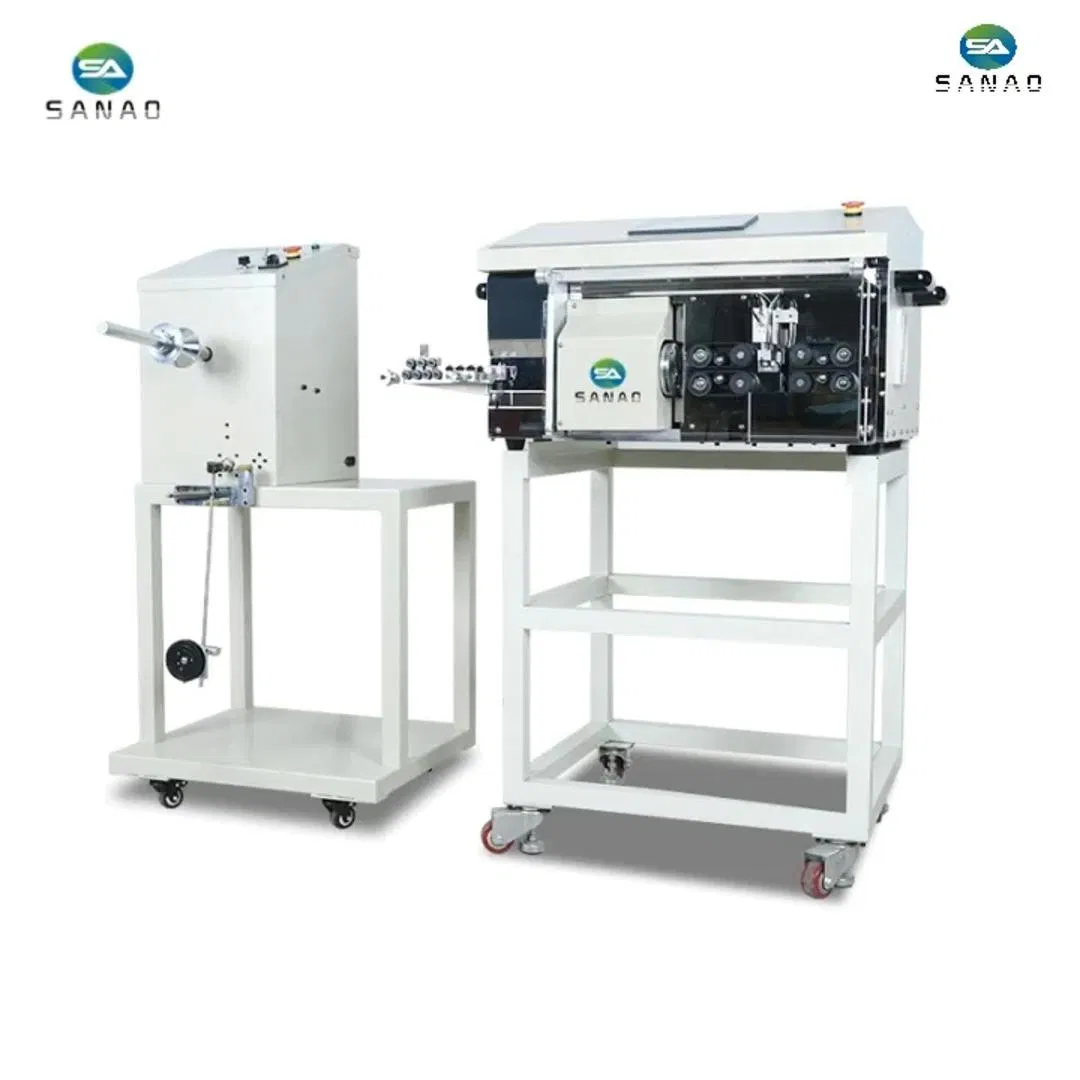

This series machines are designed for fully automatic cutting and stripping coaxial cable. SA-DM-9600S is suitable for semi-flexible cable, flexible coaxial cable and special single core wire processing; SA-DM-9800 is suitable for precision of various flexible thin coaxial cables in communication and RF industries.
| Model | SA-DM-9600 | SA-DM-9800 |
|---|---|---|
| Available Wire Dia | 1-6mm | 0.64-4mm |
| Cutting Length | 50-9999mm | 50-9999mm |
| Stripping Layers | Max 6 layers | Max 6 layers |
| Stripping Length | Left max 100mm; Right max 40mm | Left max 120mm; Right max 45mm |
| Production Rate | 350-50pcs/h | 850-1150pcs/h |
| Drive Method | Motor / ball screw drive | |
| Power Supply | 110/220VAC, 50/60Hz | |
1. All machines come with English manuals and tutorial videos.
2. We provide lifetime technical service via professional engineers for any operation questions.
* Our sales staff will provide professional introduction and guidance for your specific needs.
