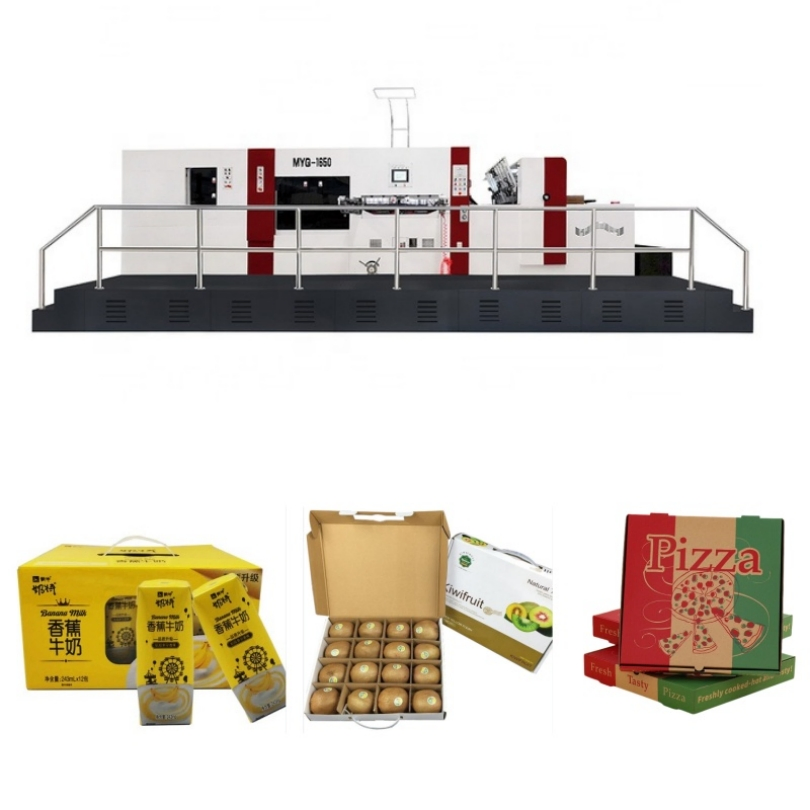

Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
1 / 5
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine
Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine

Fully Automatic Platen Corrugated Carton Box Die-Cut Creasing Board Punching Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.QH-1300/1500/1650
SpeciesDie Cutting and Creasing Machine
Imprinting TypePlaten
Template FormHorizontal
Automatic GradeSemi-Automatic
FunctionCutting and Creasing with Stripping
Max Speed5000-6000 pcs/H
HS Code84413090
⚙️ Product Description

Semi Automatic Platen Die Cutting & Creasing Machine

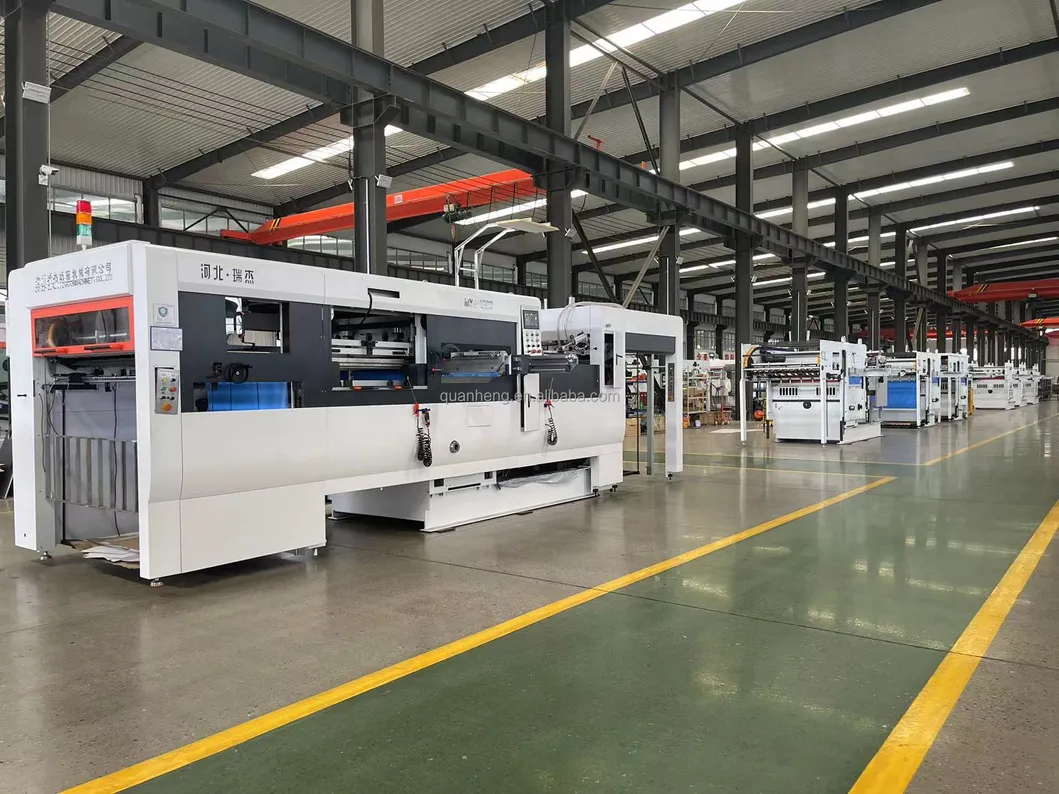

Semi Automatic Die Cutting Machine
Item Parameters (Model BMY-1500)
Die cutting typePressed flat die cutting (Lower side movable)
Max paper size1510 * 1120 mm
Min paper size450 * 550 mm
Max die cutting size1490 * 1100 mm
Max pressure380 N/cm²
Paper processedCardboard (200-2000 gsm) / Corrugated (<= 10mm)
Max speed4600 sheets/h
Main motor power11 kw
Total weight~ 17 T
Overall size6500 * 4300 * 2250 mm
🚀 Application & Key Parts
1. Feeding and Collecting Part
  • Extra feeder supports paper and corrugated board with high-quality vacuum pump.
  • Equipped with a central monitor for easy back-viewing by operators.
  • Pre-paper pile design and pneumatic bench to save operational time.
  • Non-stop sampling system allows for accuracy checks without halting production.

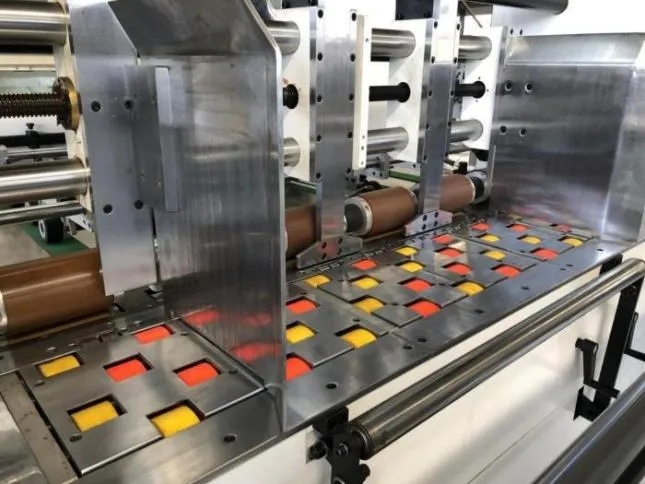

Feeding Part
2. Main Body Features
  • Automatic centralized lubricating system integrated via HMI.
  • Patented shock absorption system to prolong machine life and increase pressure stability.
  • Intermittent gearbox ensures accurate registration and reduces gripper stress.
Main Body

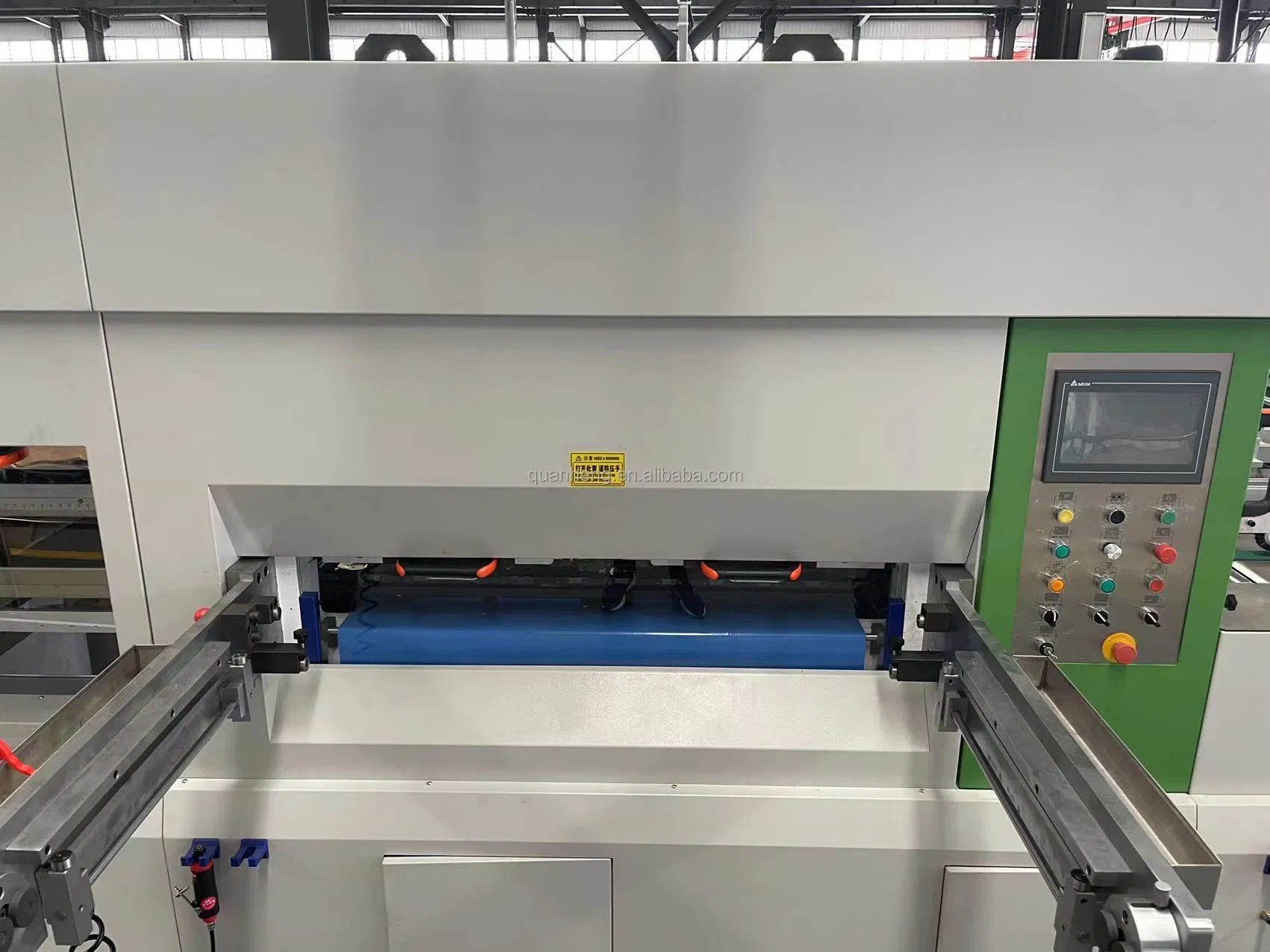

3. Stripping & Die Cutting System
  • Double action movement structure for easy die changes.
  • Centerline registration system for high precision and production efficiency.
  • Pneumatic lock system for accurate die cutting chase fixation.
  • High-durability aluminum alloy gripper bars with premium European chains.

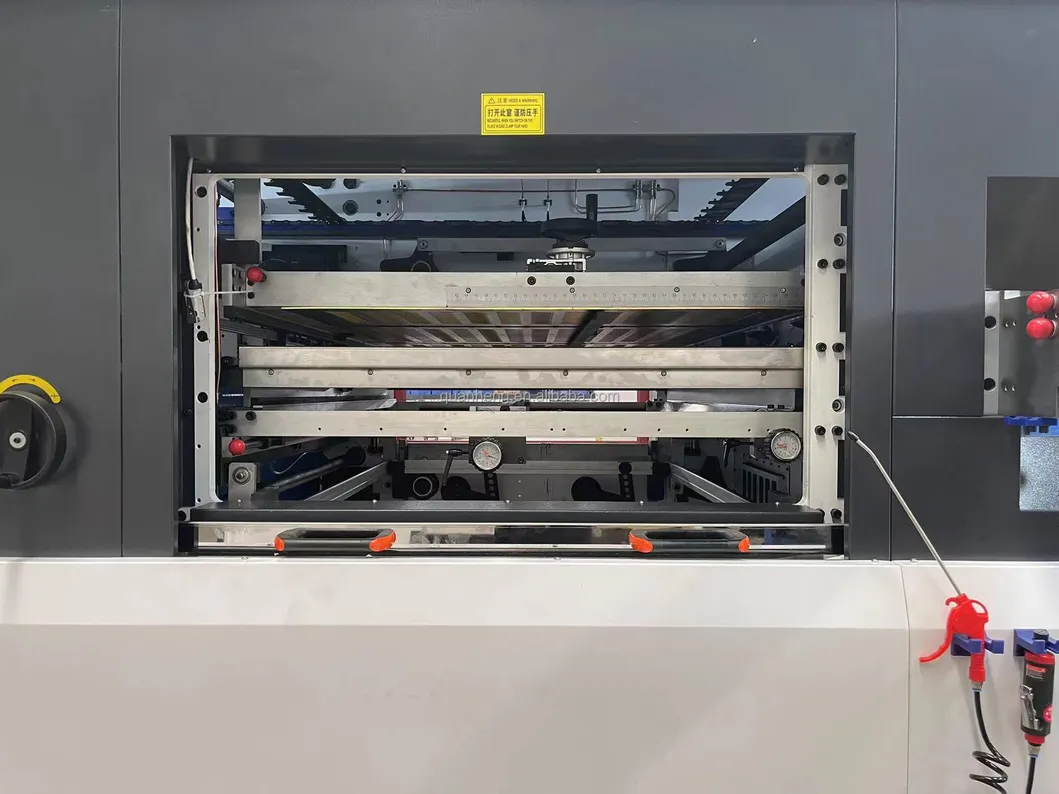

Stripping Part

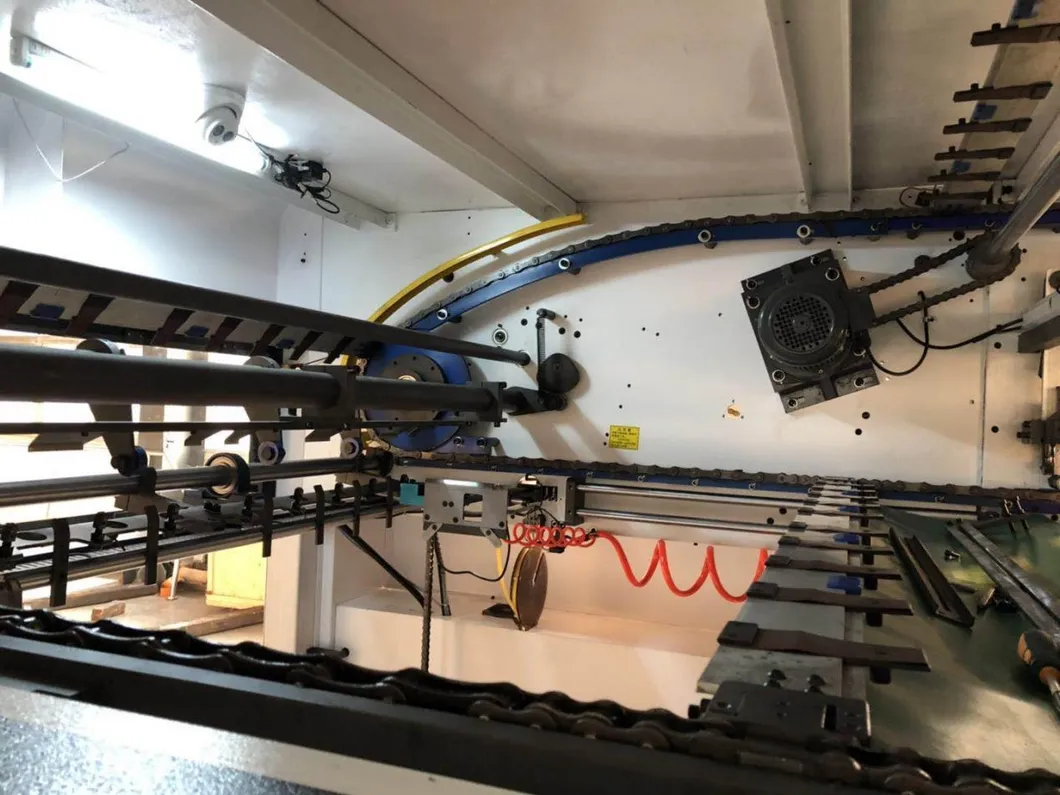

Die Cutting Part
🏢 Production & Packaging

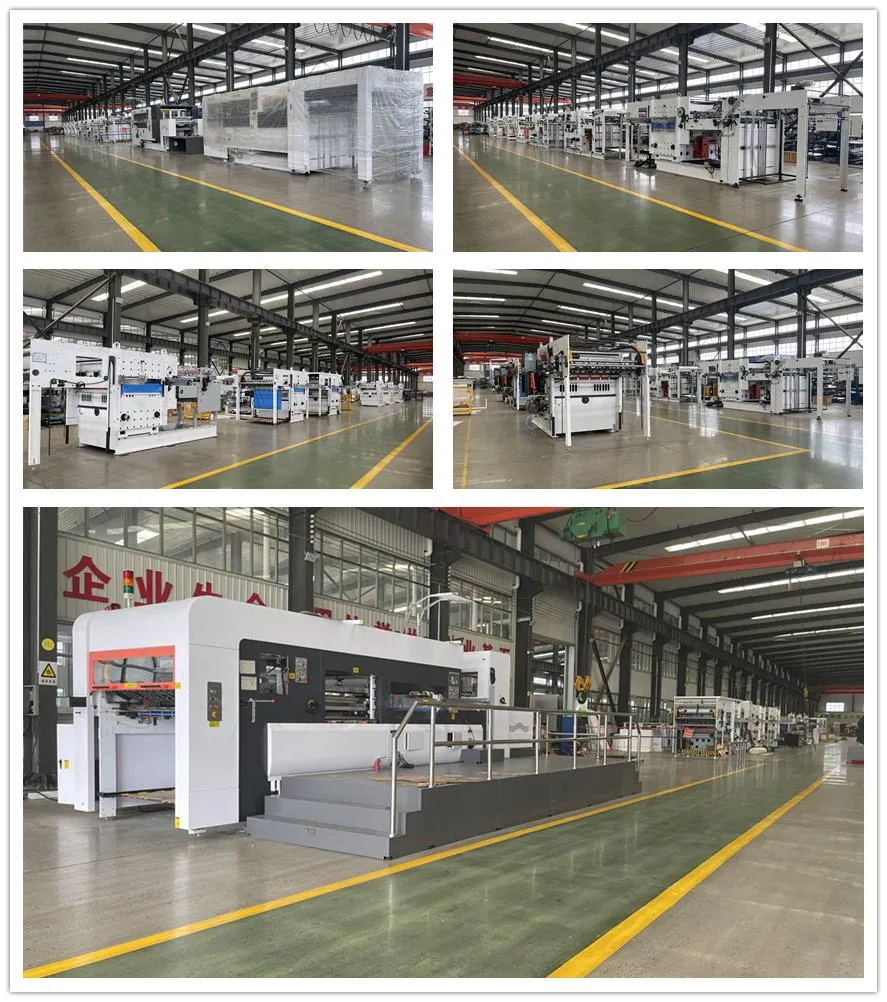

Workshop
Equipment Display
Manufacturing
Factory View
Packaging
❓ Frequently Asked Questions
Q: Are you a manufacturer or a trading company? A: We are a direct manufacturer established in 1999. As a source factory, we provide high-quality equipment directly to our clients and global partners.
Q: How do you ensure product quality before shipping? A: Our dedicated QC department inspects every machine thoroughly before delivery to ensure all functions operate perfectly and meet our standards.
Q: What type of packaging is used for export? A: We use robust, professional wooden trays and export-standard packaging to ensure the equipment remains safe and secure during transit.
Q: What is your after-sales service process? A: We offer prompt support for any operational issues. Our technical team provides installation guidance, debugging videos, and global after-sales support to resolve problems quickly.
Q: Do you have independent import and export rights? A: Yes, we have full export authorization, allowing us to ship our machinery directly to international customers efficiently.
Q: Can I visit your production facility? A: You are more than welcome to visit our factory to see our production process and equipment quality firsthand. Please contact us to schedule a visit.
