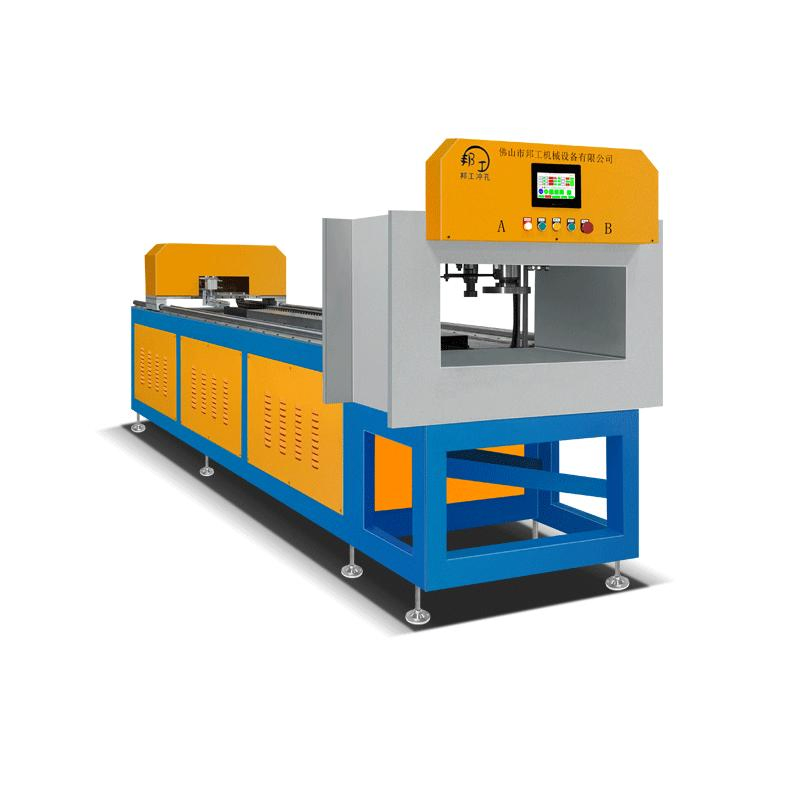

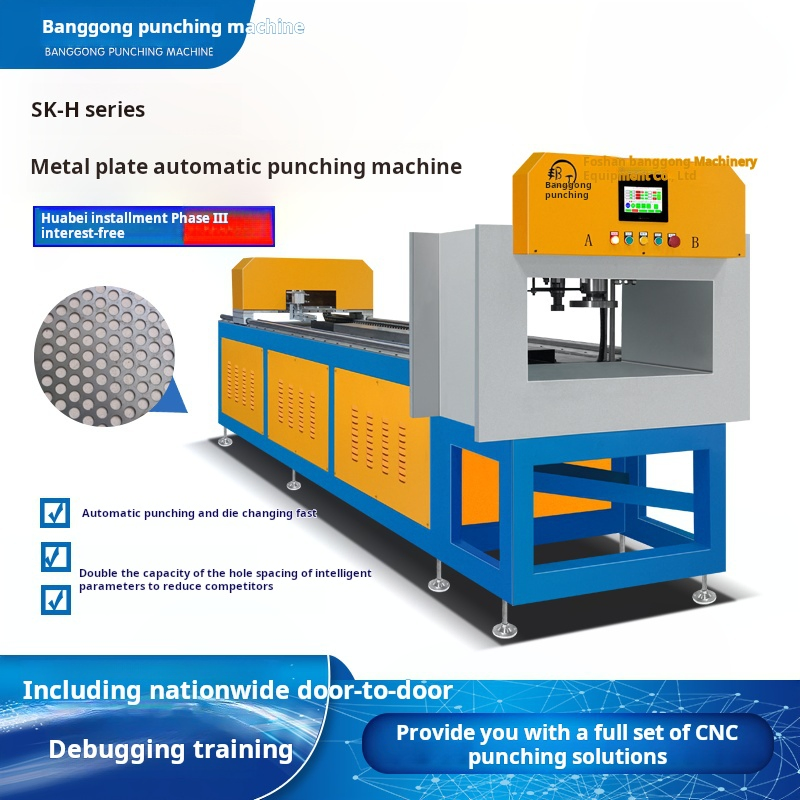

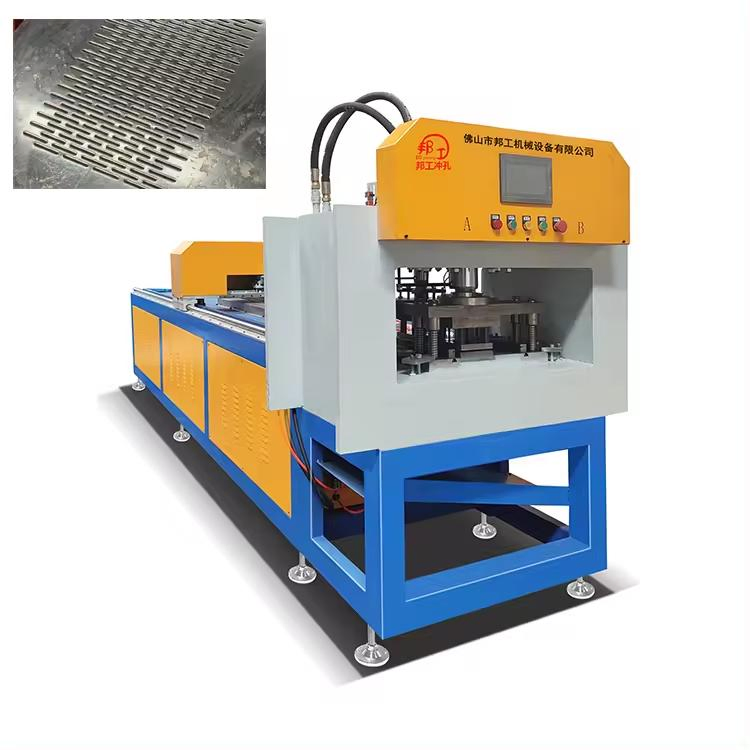

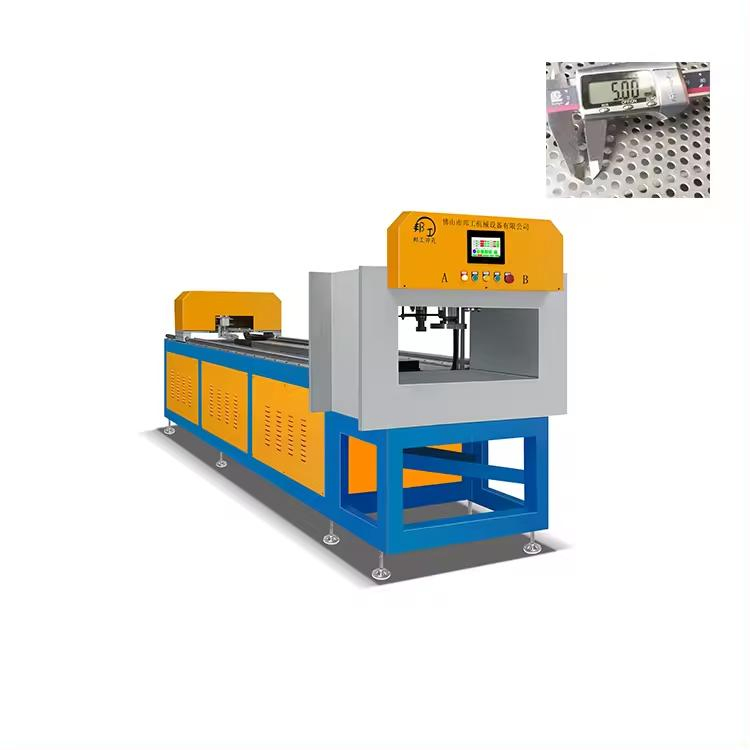

Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
1 / 5
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine
Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine

Punching Aluminum Curtain Wall Perforating Metal Plate CNC Punch Press Machine

Customization: Available
After-sales Service: on-Site-Service
Warranty: 1year
Send Inquiry

Product Description

📊 Basic Specifications
Model NO.
BG-BC
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Numerical Control
CNC/MNC
Performance
High-End CNC Machine Tools
Condition
New
System
Servo
Weight
2.0 T
Motor Power
7.5 Kw
Core Components
Bearing, Motor, Pump, Gear, PLC
Return Force
35 Kn
Capacity
5000 Units/Year
🖼️ Product Gallery

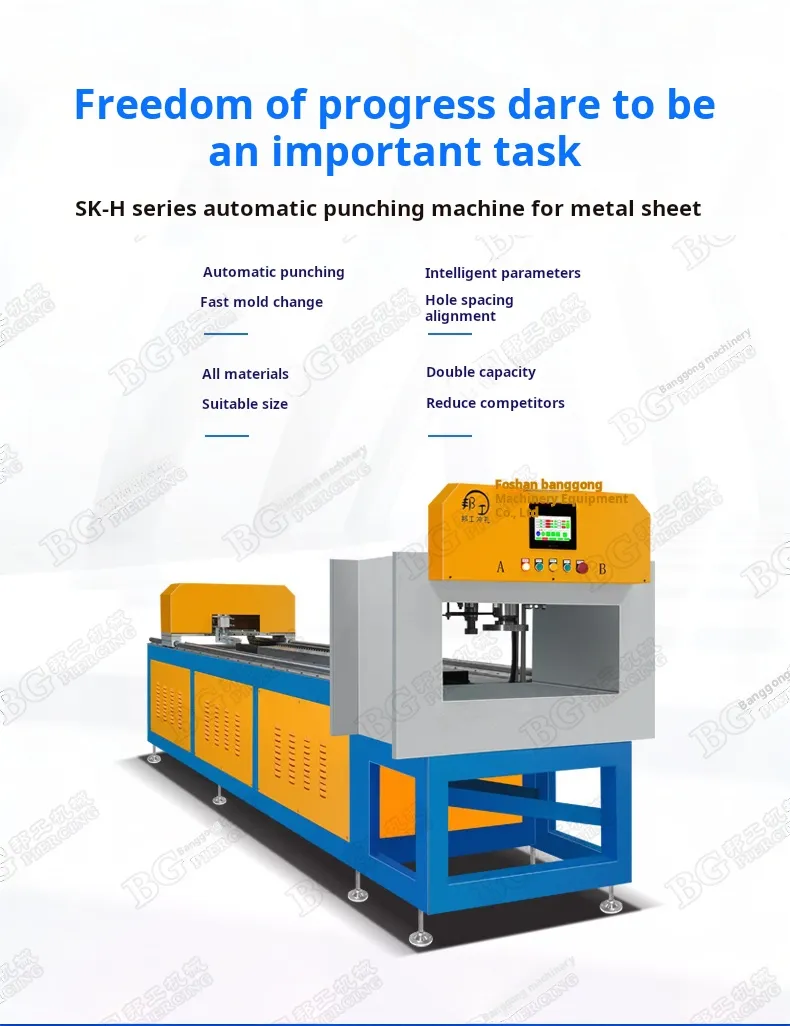

CNC Punch Press Machine 1

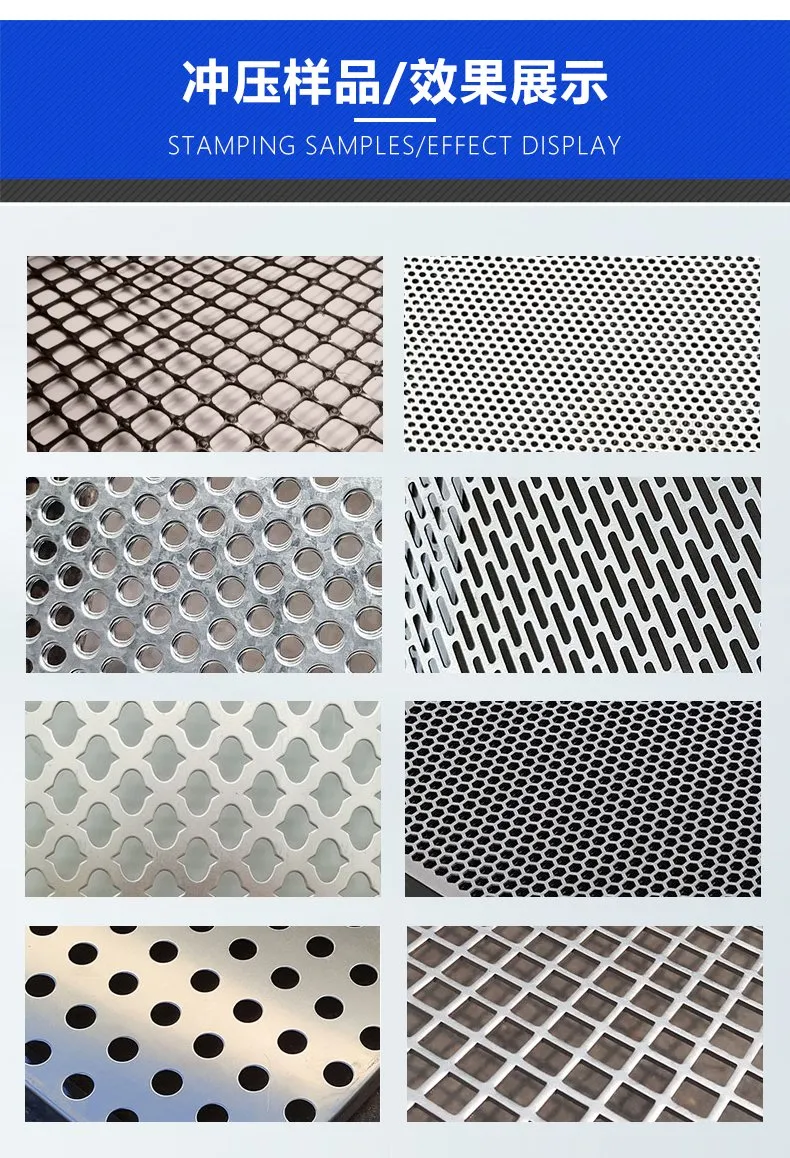

CNC Punch Press Machine 2
CNC Punch Press Machine 3
CNC Punch Press Machine 4
CNC Punch Press Machine 5
CNC Punch Press Machine 6
CNC Punch Press Machine 7
CNC Punch Press Machine 8
CNC Punch Press Machine 9
🚀 Main Features
  • Color touch screen, man-machine interface control, convenient and quick parameter setting, easier data operation.
  • Adopt high-precision guide rail, servo motor and PLC control system to achieve high processing precision, high efficiency and automation.
  • Adjustable punching and clamp pressure, suitable for various pipes with different thicknesses; supports half hole or full hole selection.
  • Professionally made mold steel materials and casing bearing guide effectively protect the mold and enhance service life, ensuring smooth punching without burrs.
  • Energy-saving design: The oil cylinder features high-speed descent and return with low-speed punching to reduce motor workload.
⚙️ Technical Parameters
Specifications BG-SKDL-01 BG-SKDL-02 BG-SKDL-03
Product size800*1600*7300mm900*1600*7300mm1000*1600*7300mm
Main motor efficiency7.5KW11KW18.5KW
Servo Motor Power0.75KW/1.0KW1.0KW/1.5KW1.5KW/2.0KW
Length Range≤6000mm≤6000mm≤6000mm
Punching Force80Kn80Kn80Kn
Greatest Pressure16mpa16mpa16mpa
Punching Frequency0.3-1.5s/second0.3-1.5s/second0.3-1.5s/second
Control SystemCylinder clamping material, servo drive feeding via PLC
Cooling MethodForced cold air 150L
Appropriate TypesRound, square, rectangular, elliptical, steel tubing, steel groove, I-section, T-section, etc.
❓ Frequently Asked Questions
What materials can this CNC punch press machine process?
The machine is versatile and can process various metal shapes including round, square, rectangular, and elliptical steel tubing, as well as steel grooves, I-sections, and T-sections.
How is the punching precision maintained?
Precision is achieved through the integration of high-precision guide rails, a high-performance servo motor, and a specialized PLC control system.
Can I customize the hole types for different thicknesses?
Yes, the punching pressure and clamp pressure are fully adjustable. Users can choose between half hole or full hole processing based on the material thickness and project requirements.
Is the operation interface user-friendly?
Absolutely. The machine features a color touch screen with a man-machine interface, allowing for quick and convenient parameter settings.
Does the machine include energy-saving features?
Yes, the hydraulic system is designed for efficiency, featuring high-speed approach and return movements with controlled punching speeds to minimize the motor's workload and save energy.
What kind of maintenance support is available?
The machine is built with durable professionally made mold steel. We provide a machinery test report and video outgoing-inspection to ensure quality before delivery.
