Deepit Cutter
1 / 5

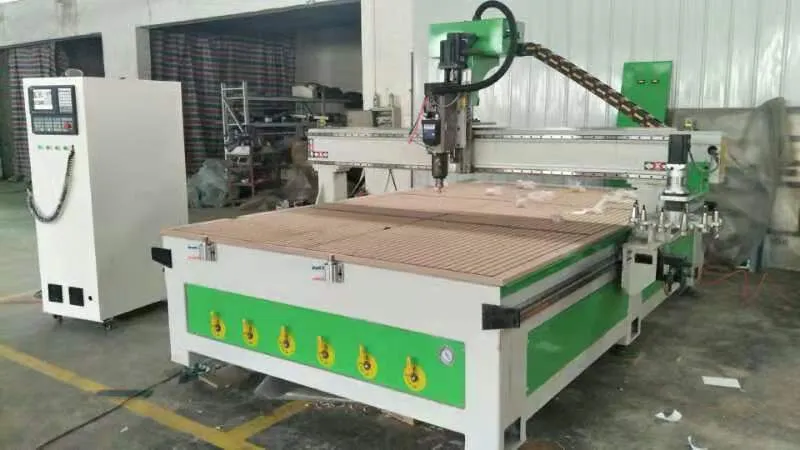

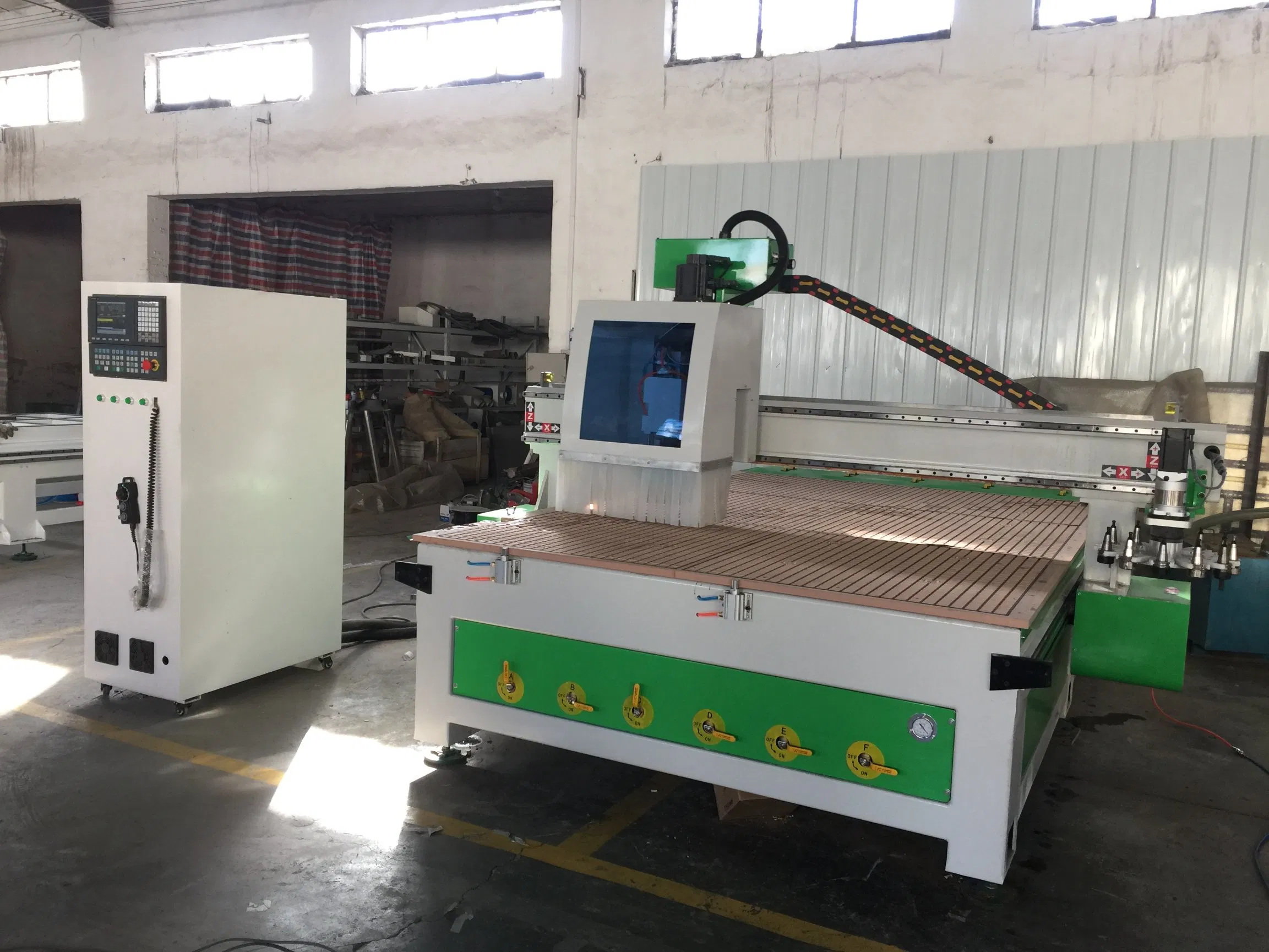

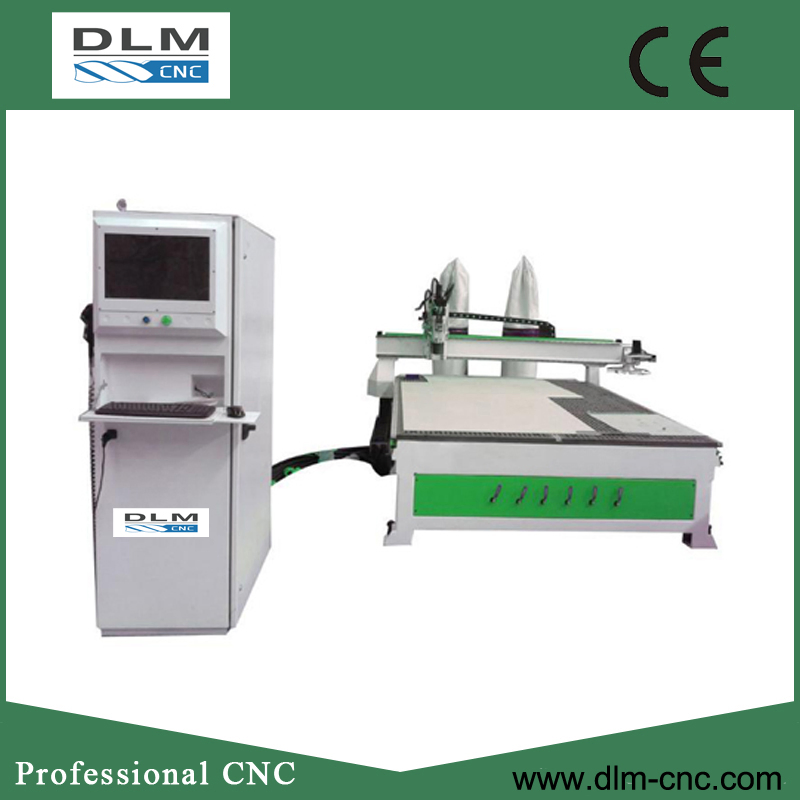

The NA series is a light-duty entrance level CNC router designed with trustworthy quality and functionality. It fulfills the basic needs of the advertising, woodworking, and furniture industries. Equipped with ATC (Automatic Tool Changer) facilities, this model significantly enhances working efficiency and reduces labor costs.

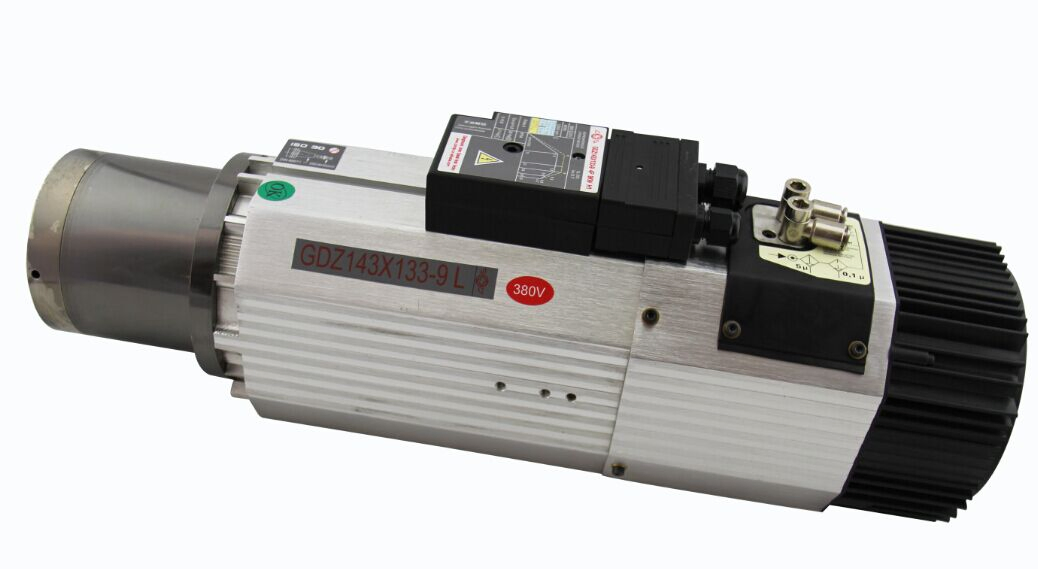

Standard Configuration of NA-2030| Spindle Power | 9kw HSD / Hiteco / HQD |
| Controller | Taiwan Syntec control system |
| Motor | Servo motor |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | Vacuum suction table |
| Vacuum Pump | 5.5kw Chinese Becker pump |
| Tool Magazine | ISO-30 8-slot linear plastic steel tool magazine |
| Software | Router-8 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Guide Rail | Taiwan Hiwin |
| Table Size | 1500x3000mm |
| Max. Traveling Size | 1600x3100x200mm |
| Net Weight | 2500kg |
Wood, Solid Wood, Acrylic, PVC, MDF, Brass, Aluminum, etc.
