200W Electric Oscillating Tangential Knife High-Speed CNC Knife Cutting Machine Accessory

Customization: Available
After-sales Service: 24hours Online Service
Warranty: 24month

Product Description

Overview
Model NO.IBONT002
CertificationCE
ConditionNew
ControlAutomatic
ApplicationLeather, Fabric, Composite Material
Power SourceElectric
LayoutHorizontal
Product NameVibrating Knife Tool
Size297*147*53
MaterialAluminum
Power200W
Cutting Thickness0-50mm
Amplitude1mm
Supply VoltageDC 24V
Install Diameter40mm
Blade Width6-7mm
Production Capacity3000 Set/Year
Product Description

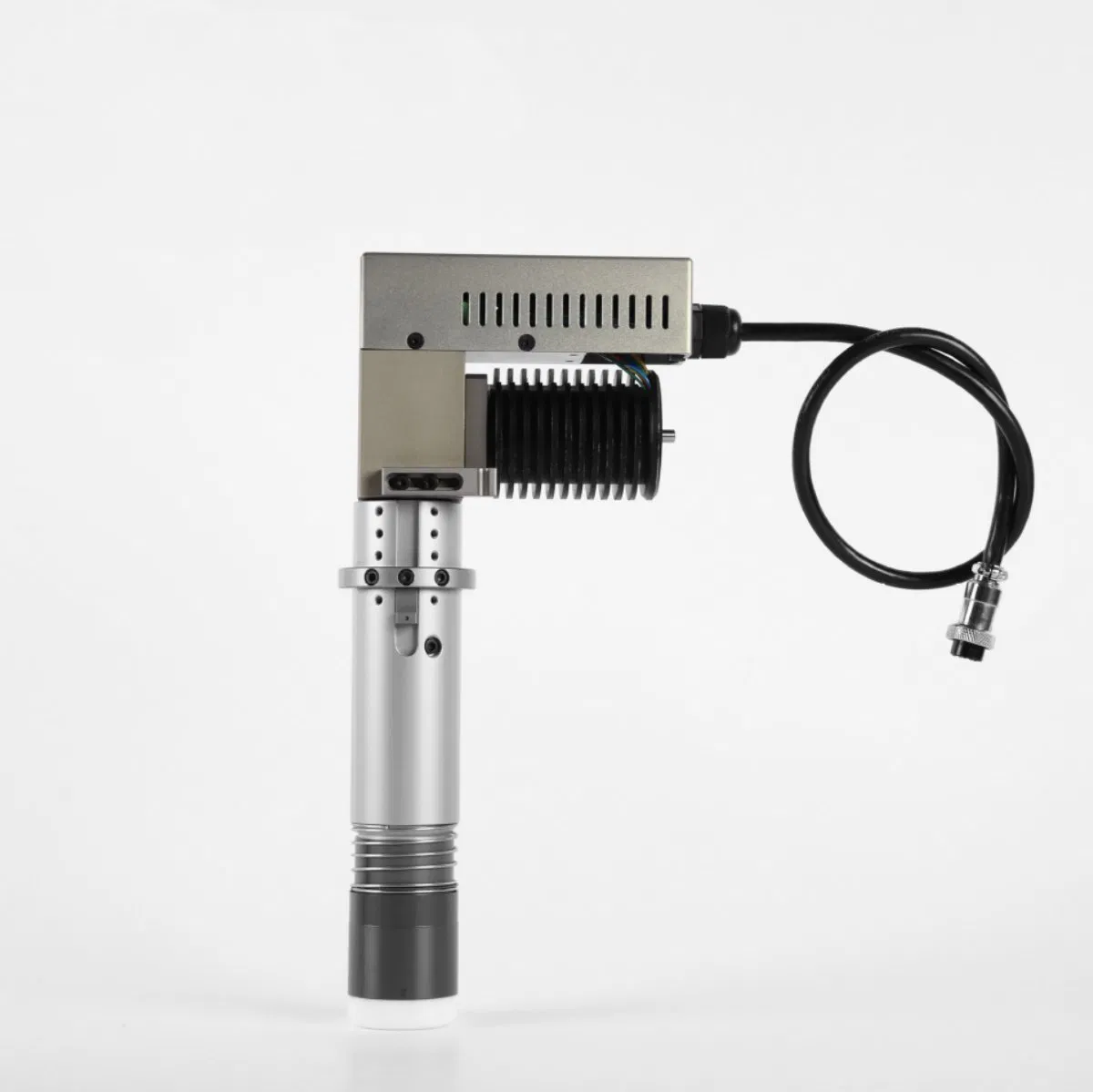

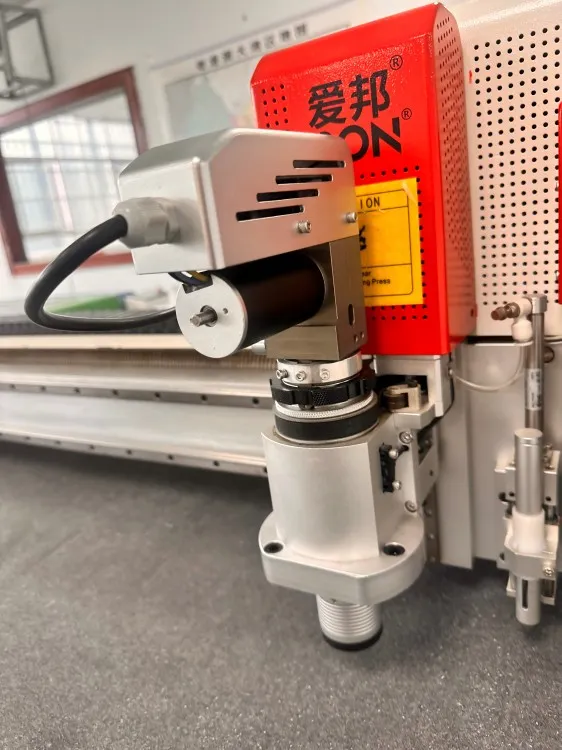

200W Electric Oscillating Tangential Knife

200W EOT Electric Oscillating Tangential Knife Tool

This precision CNC knife cutting machine accessory is designed for high-speed, dust-free cutting across various industrial applications.

Long Service Life

Designed for optimal performance and durability in high-demand manufacturing environments.

⚙️

Versatile Use

Suitable for garments, building materials, printing, advertising, and machinery repair shops.

📐

Adjustable Depth

Features an adjustable cutting thickness of 0-50 mm for medium-density materials.

Efficient Power

Powered by DC 24V with 200W/100W output to minimize energy consumption while maximizing torque.

Key Applications:

  • Car foot mats and carpets
  • Leather and fabric materials
  • KT board, foam board, and ABS plastic
  • Carton board and corrugated plastic board
  • PVC, seal rings, and carbon fiber prepreg
Wiring Instructions:
PIN1: DC 24V+ | PIN2: COM | PIN3: COM | PIN4: DC 5V+
Product Parameters
Item Value
ConditionNew
Warranty1 Year
Weight1.55KG
Power100W / 200W
Cutting Thickness0-50 mm
Amplitude1 mm
Installation Diameter40 mm
Applicable Blade Thickness0.63 mm / 1 mm
Effective Length AdjustmentYes
Overload ProtectionCarbon fiber block
OriginChina
Detailed Photos

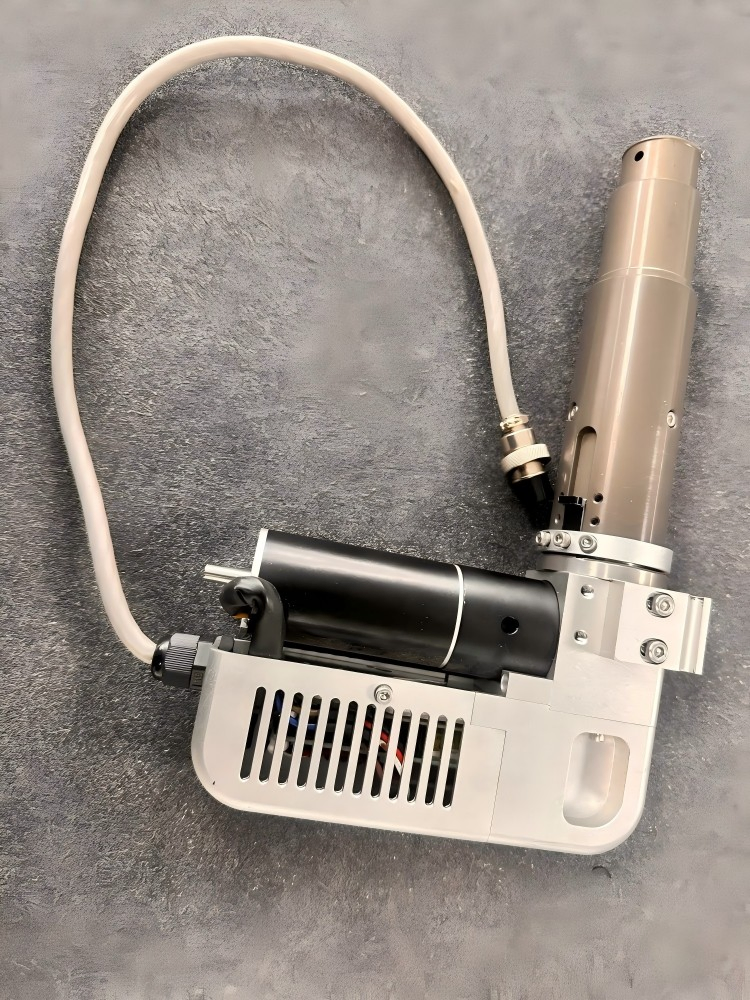

Detailed View 1

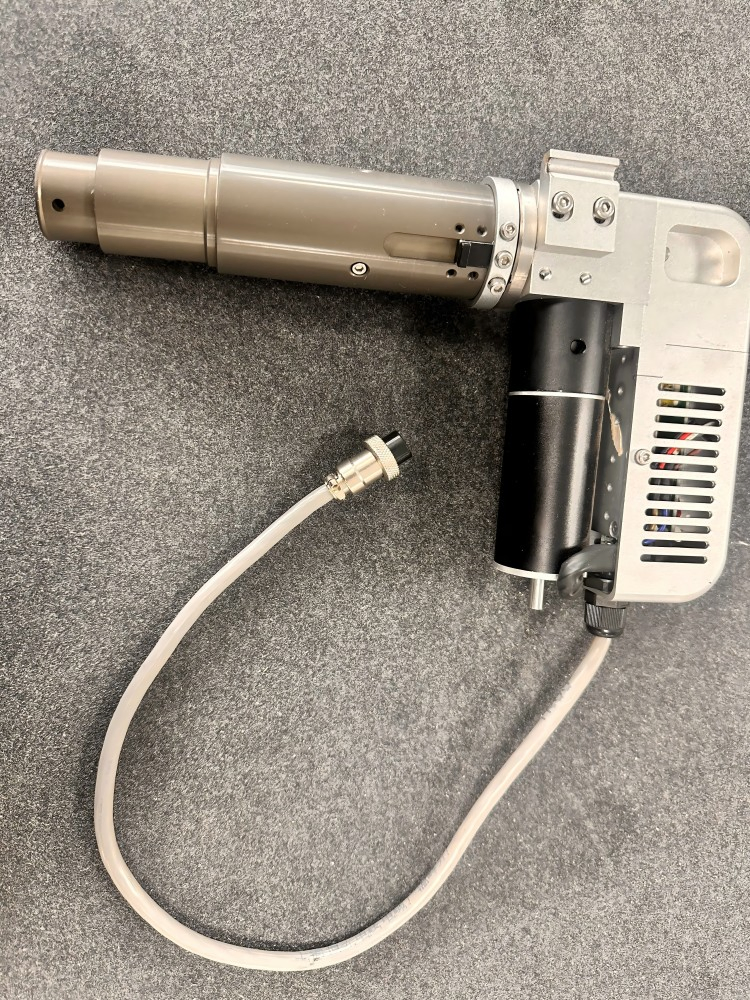

Detailed View 2

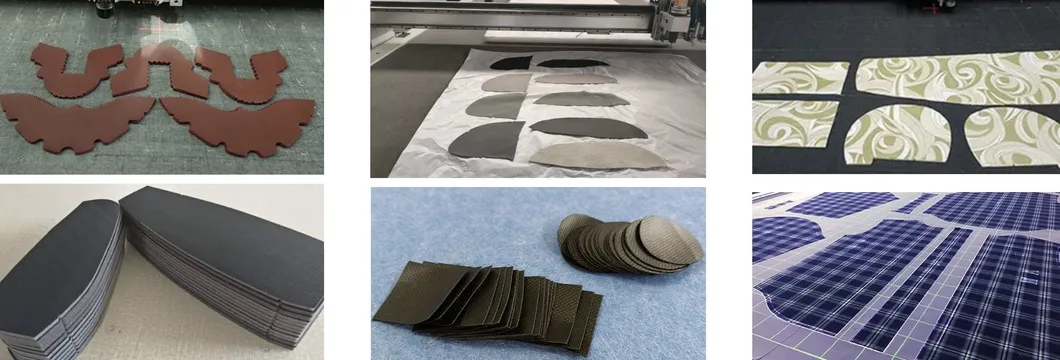

Cutting Samples:

Cutting Samples
Packaging & Shipping

Standard Packaging: All units are securely packed in high-quality cartons or wooden cases for maximum protection during transit.

Shipping Methods: We provide global shipping via DHL, EMS, UPS, Fedex, TNT, as well as air and sea freight options to meet your delivery requirements.

Note

If you have any questions regarding specifications or compatibility, please feel free to inquire, and we will do our best to assist you with technical support.

Frequently Asked Questions
What materials can the Vibrating Knife Tool cut?
It is ideal for cutting car foot mats, carpets, leather, KT board, foam board, ABS plastic, carton board, and flexible composite materials.
What is the maximum cutting thickness supported?
The tool features an adjustable cutting thickness ranging from 0 to 50 mm, specifically designed for medium-density materials.
What are the power requirements for this tool?
The tool operates on a DC 24V power supply with a power output of either 100W or 200W depending on the specific model configuration.
Does this tool support different blade thicknesses?
Yes, we offer models compatible with 0.63 mm thick blades (IBONT002-0.63) and 1 mm thick blades (IBONT002-1).
What is the installation diameter for the CNC machine?
The standard installation diameter for this vibrating knife tool is 40 mm, making it compatible with most standard CNC cutting machine heads.
Is the motor speed adjustable?
Yes, the motor speed is adjustable to allow for precise control depending on the material density and desired processing speed.
